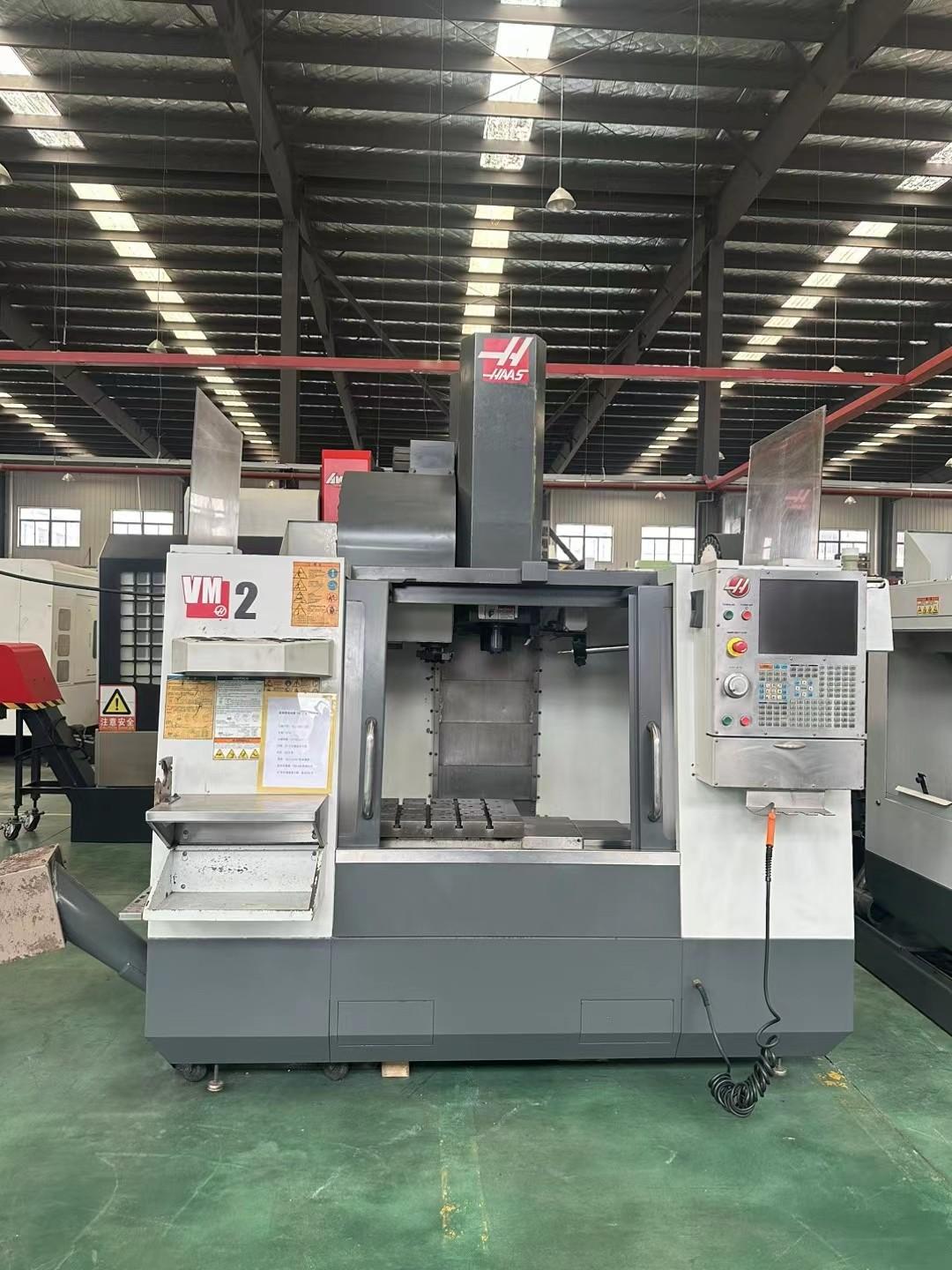

HAAS VM-2 Machining centre

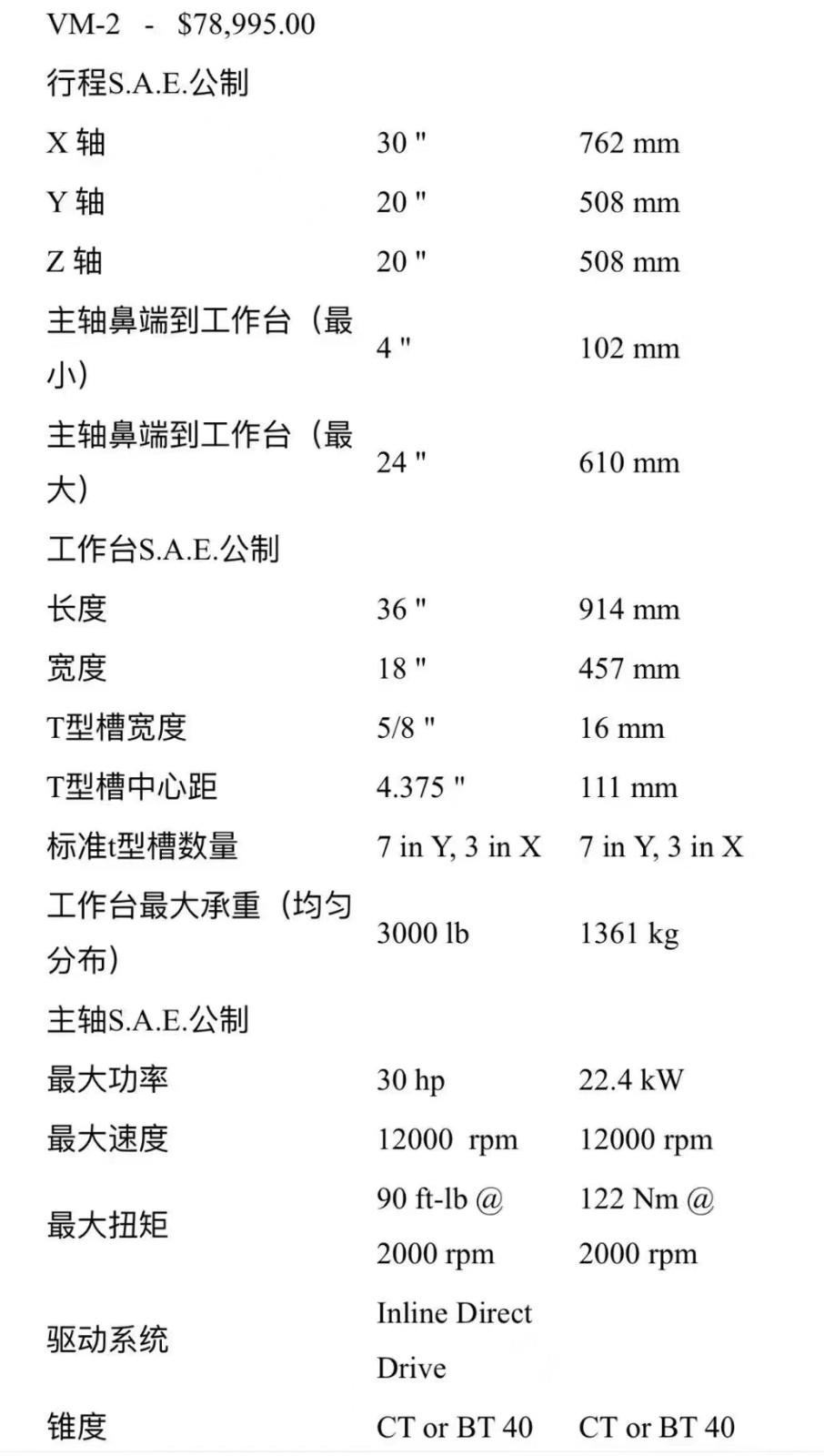

X/Y/Z axes travel 762/508/508mm

Distance between spindle nose and Worktable 102~610 mm

Worktable size 914* 457mm

T-slot width 16 mm

Space between T-slot centers 111 mm

Number of standard T-slots X:3, Y:7

Maximum Worktable load bearing (uniform distribution)  1361kg

Maximum spindle power 22.4kw

Maximum spindle speed 12000 rpm

Maximum torque 122Nm
