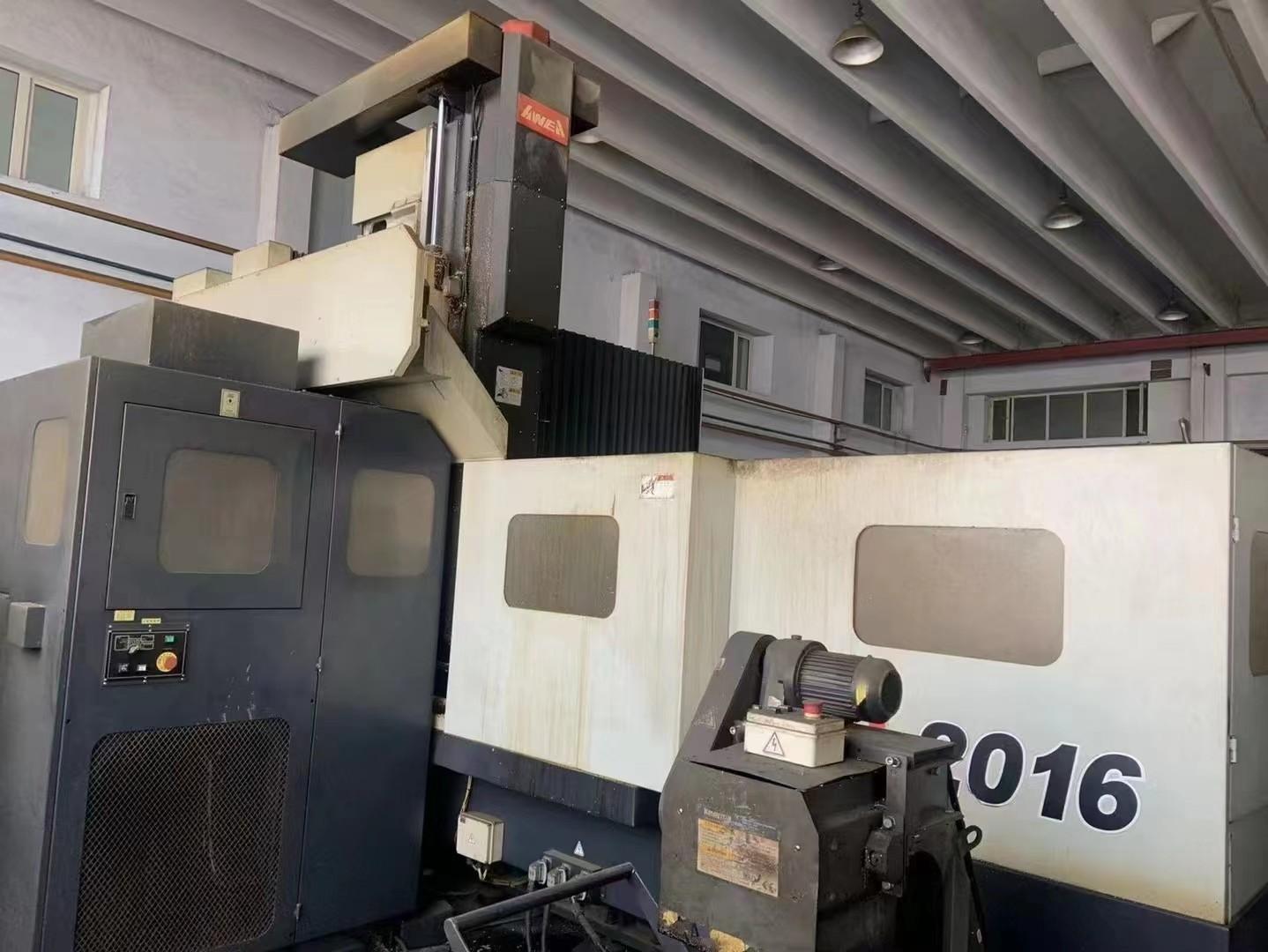

AWEA NFP-2016 Gantry machining centre

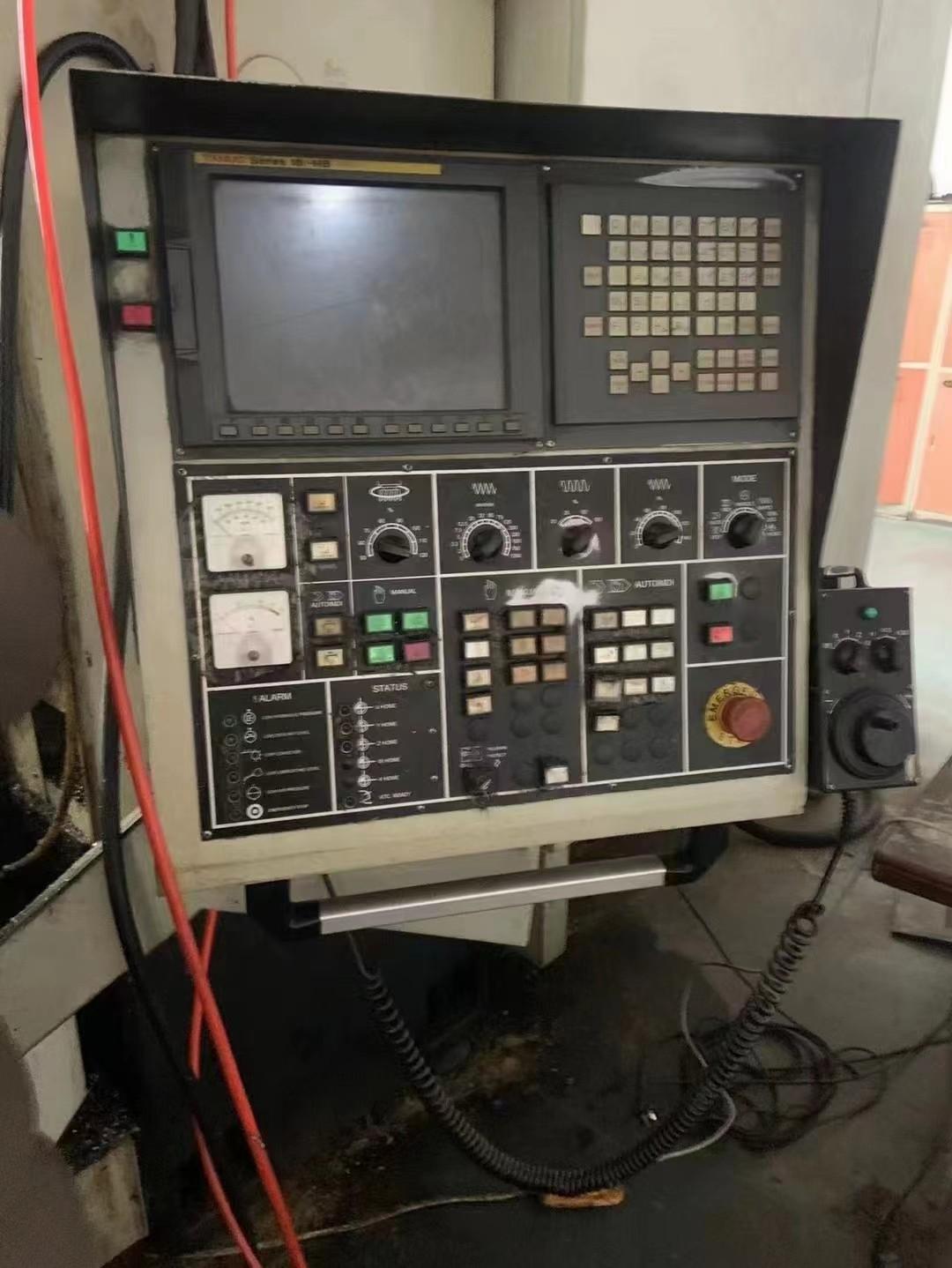

System: Fanuc 18i-MB

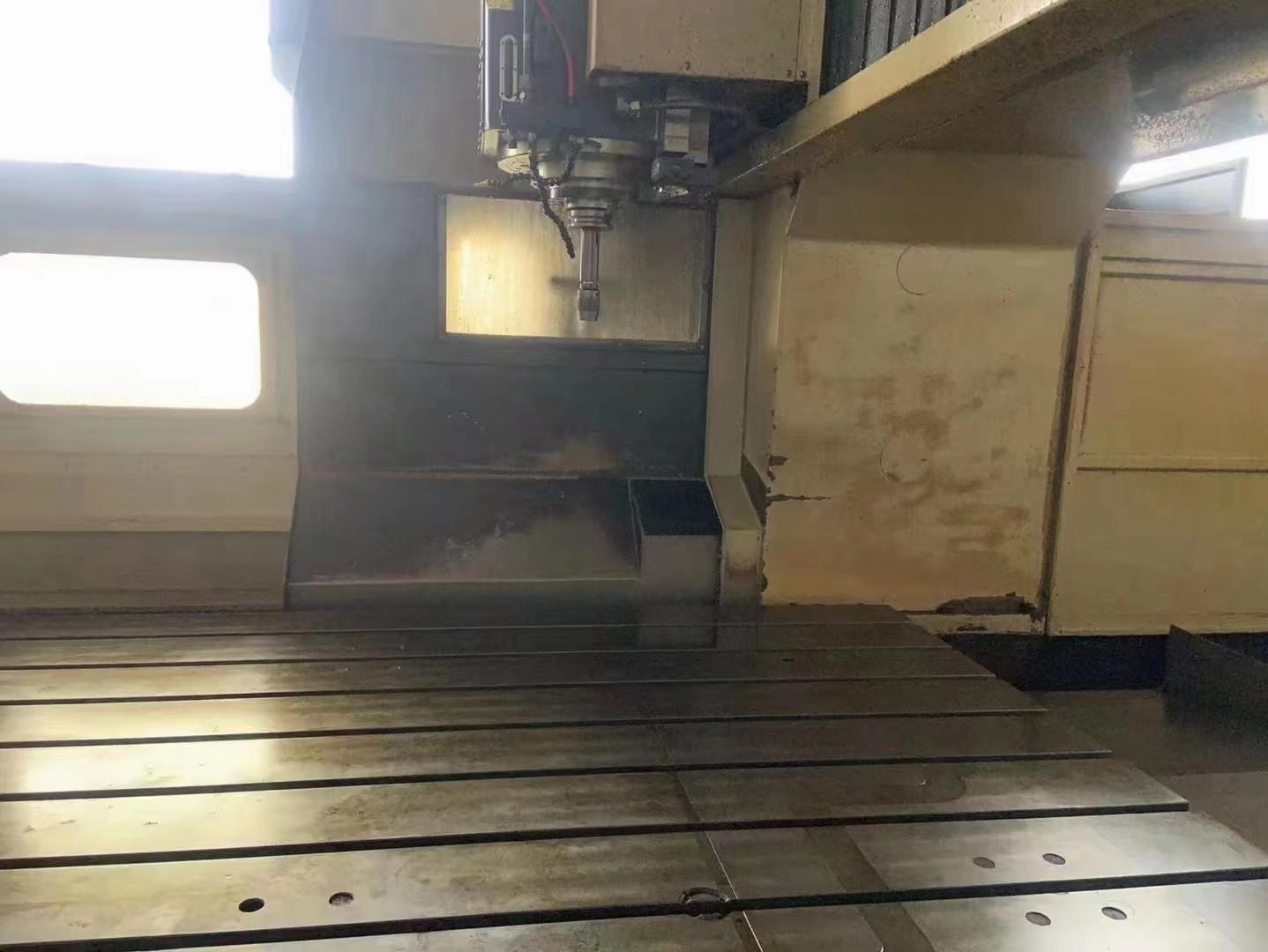

Worktable size: 2310x1500mm

Three-axis travels: 2200*1600*780mm

Spindle speed: 10-6000rpm

Spindle: BT50

Main motor power: 22-26kw

Tool magazine :32

Distance between two columns: 1700mm

Spindle nose to worktable distance: 240-1000mm

T-slot: 22*170mm

Worktable load: 8000kg

Machine weight: 19000kg

Machine tool footage: 6690x4700x3980mm

Two linear guideways and one rigid guideway

Gear spindle

Center flushing
