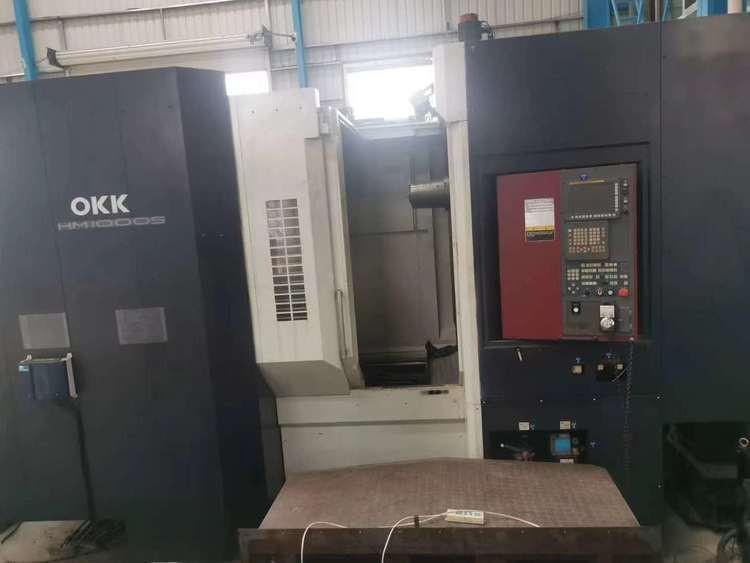

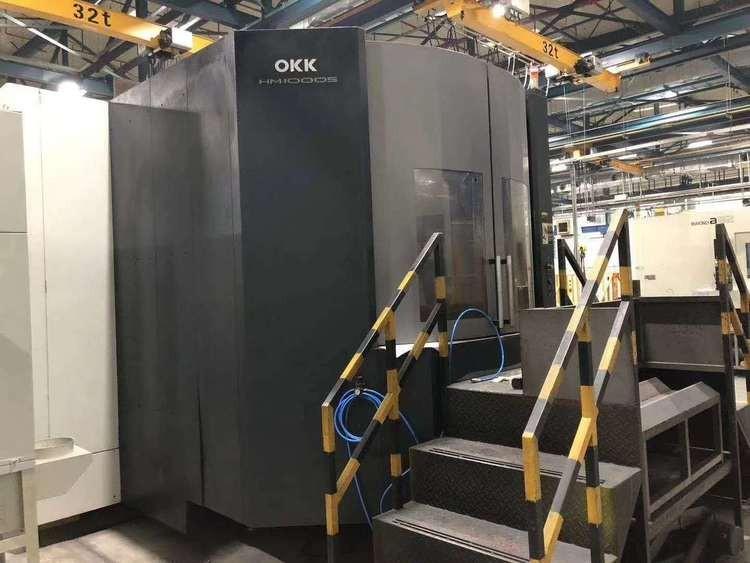

OKK HM1000s Horizontal Machining centre

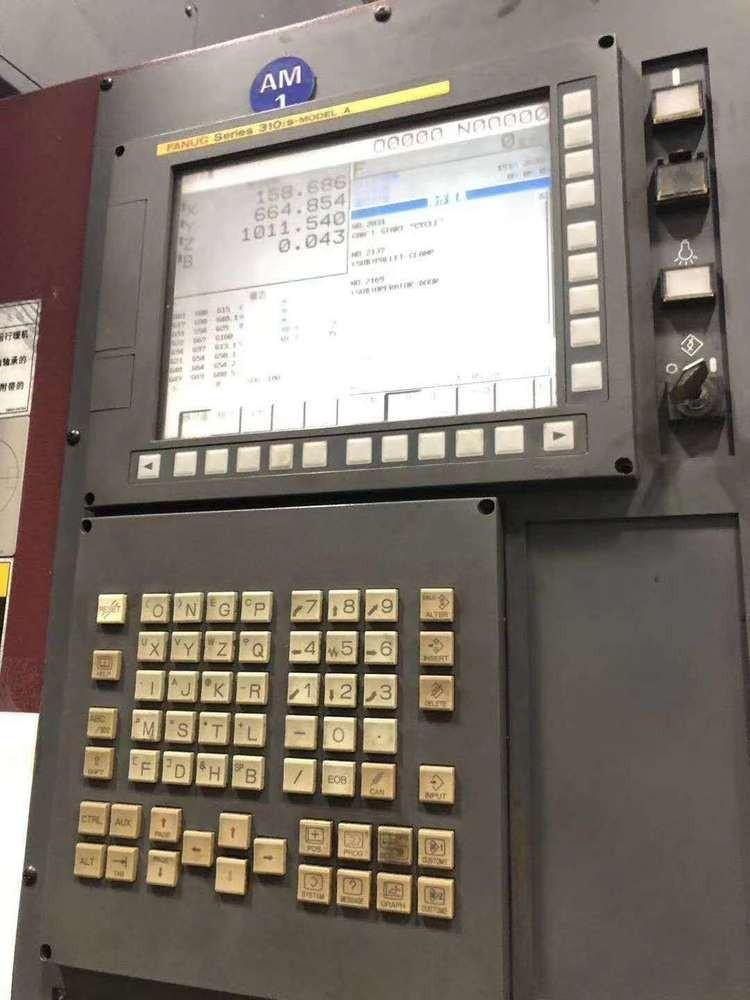

System: Fanuc

Three axes travel :1400*1100*1000mm

Distance from worktable to spindle center :30-1130 mm

Distance from worktable center to spindle nose: 1250mm

Worktable size :1000*1000mm

Worktable load :2500kg

Spindle speed :10000rpm

Tool holder :BT50

Fast feed rate :48m/min

Cutting feed rate: 1~40m/min

Spindle motor power :30/25kw

Number of tool magazine positions :40

Accuracy :0.005mm

Weight :25000kg

With center flushing
