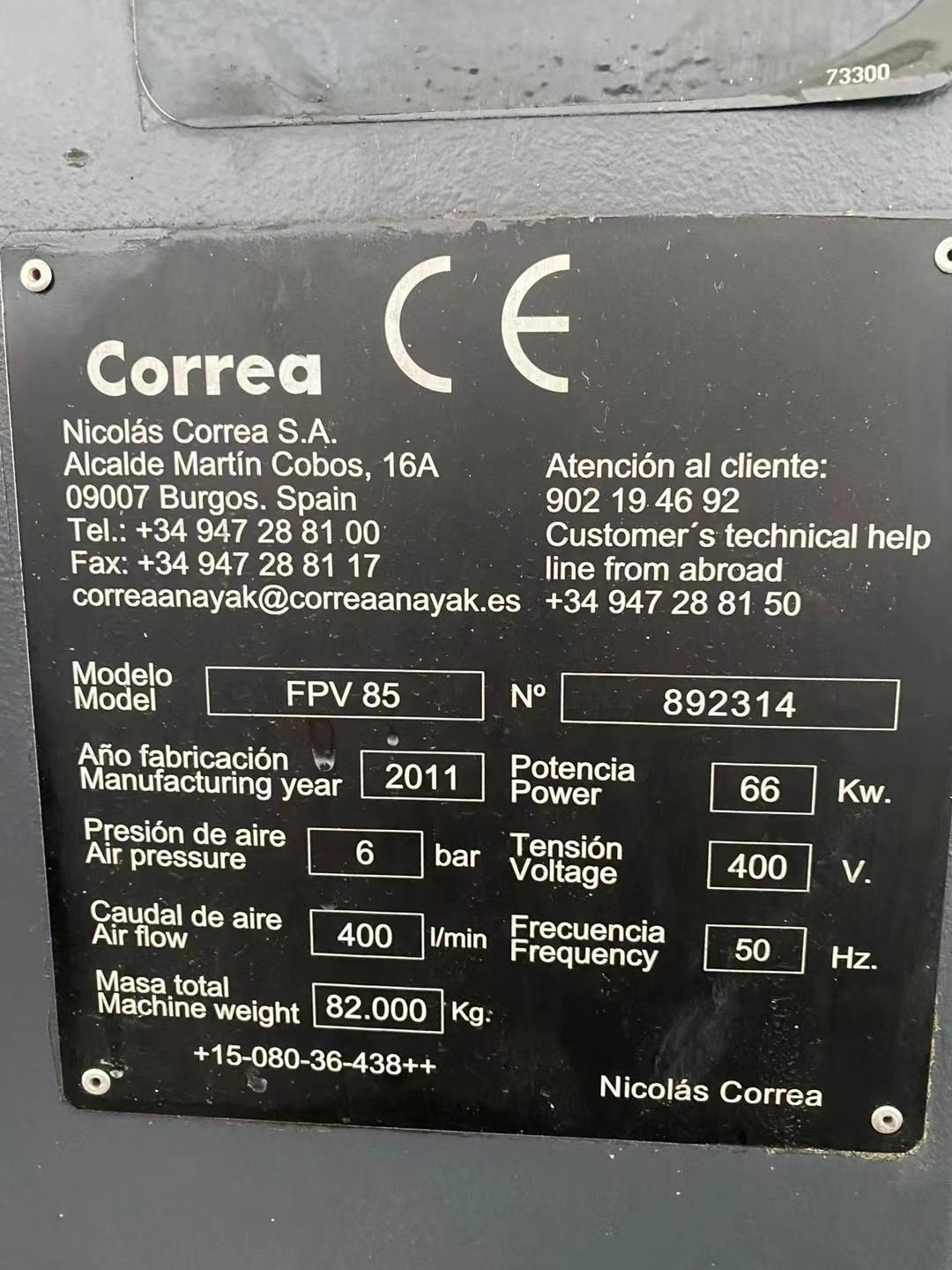

Nicholas FPV85 Gantry machining centre

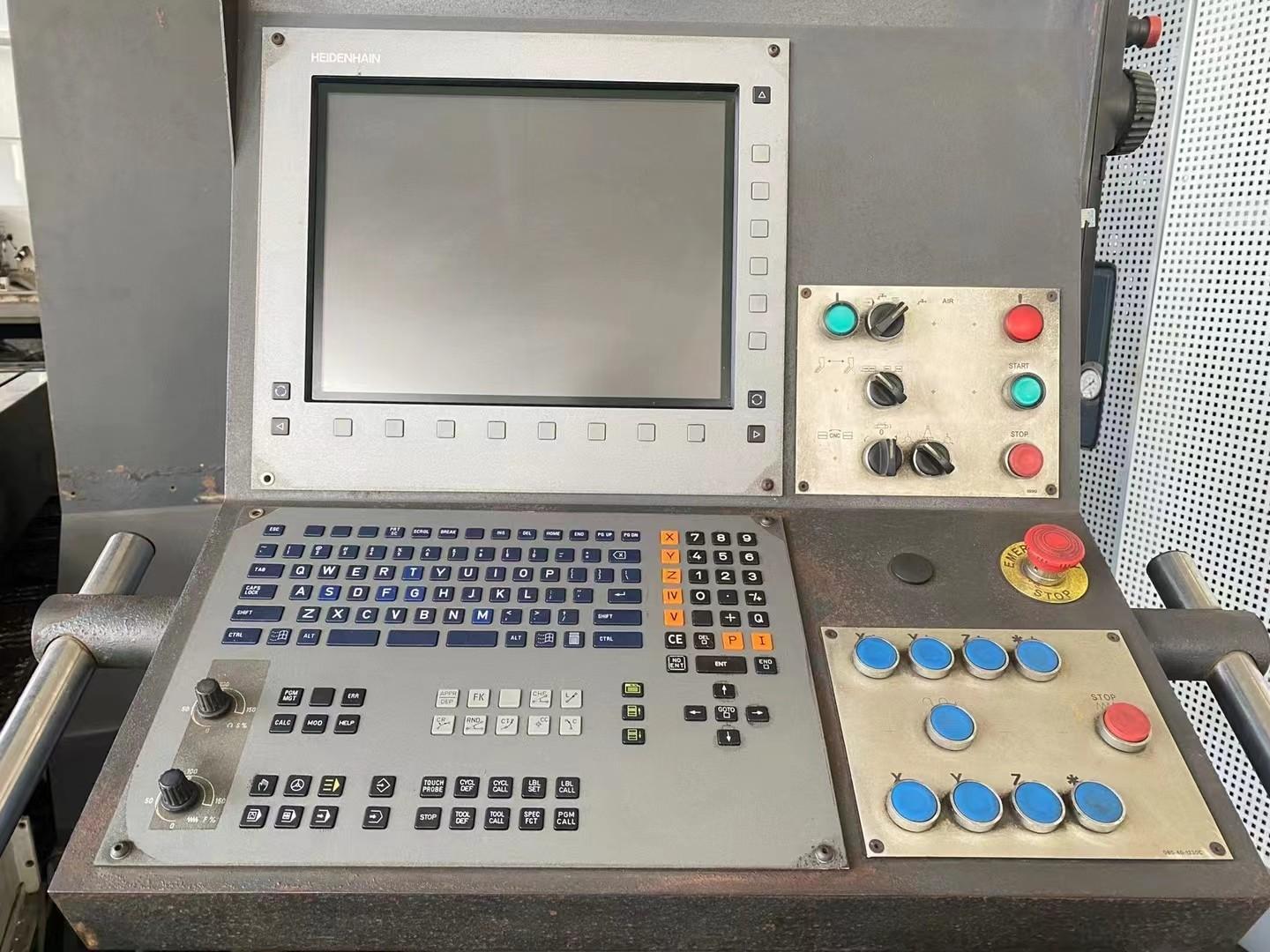

System: Heidenhain TNC530

X*Y*Z travels :8500*3800*1250mm

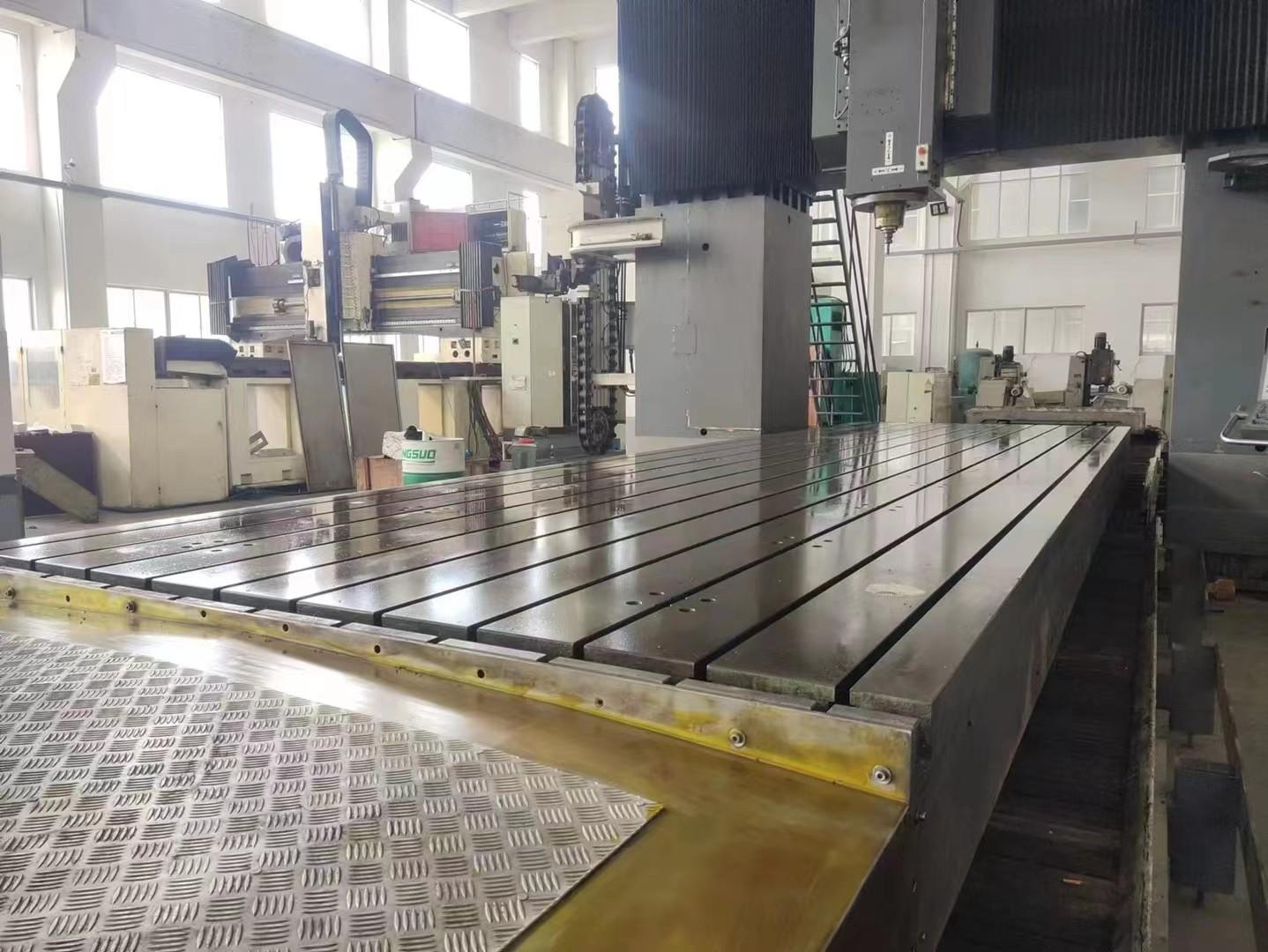

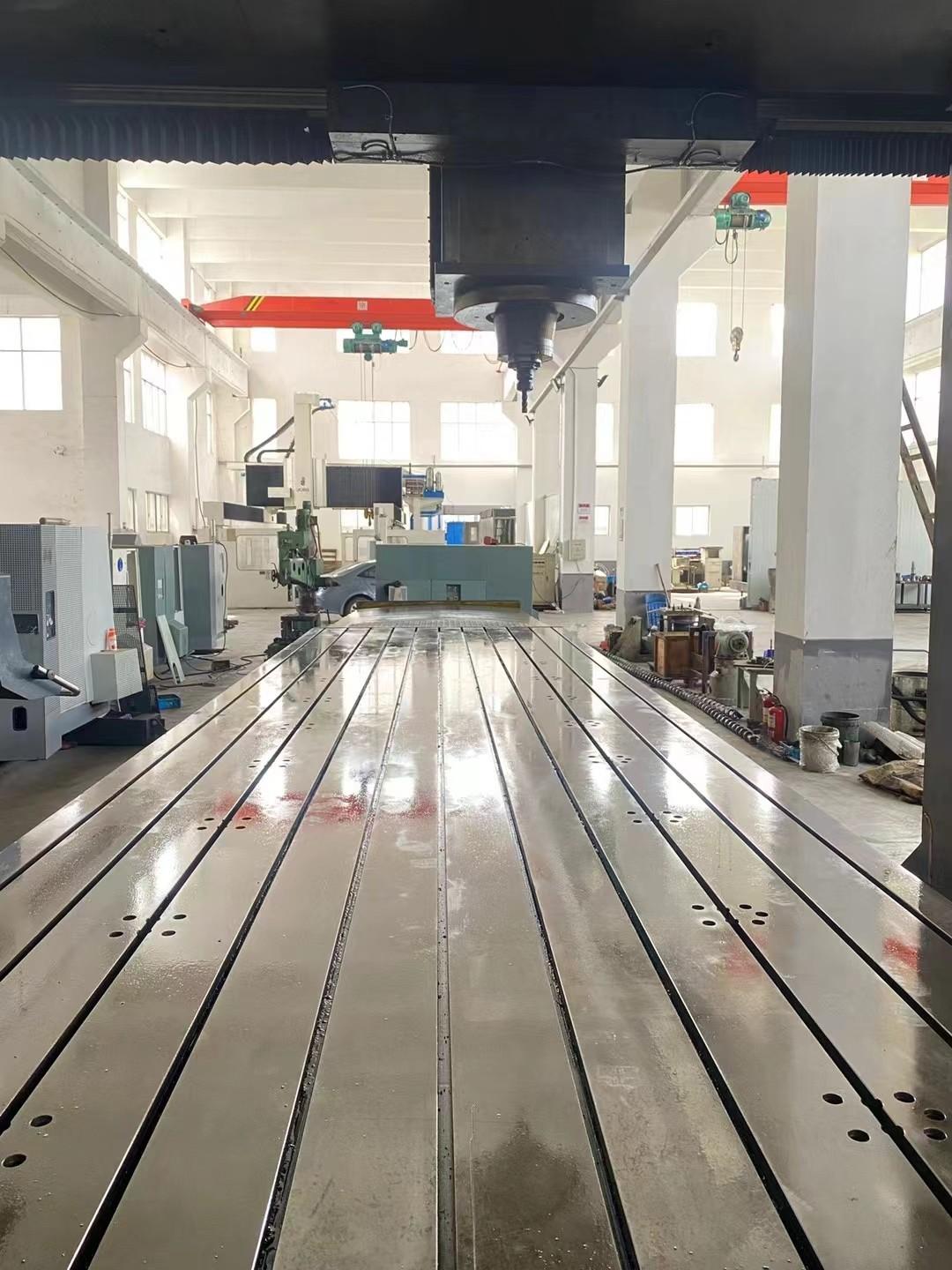

Worktable size :8m*2.5m

Max. worktable load:35t

Effective gantry width :3100mm

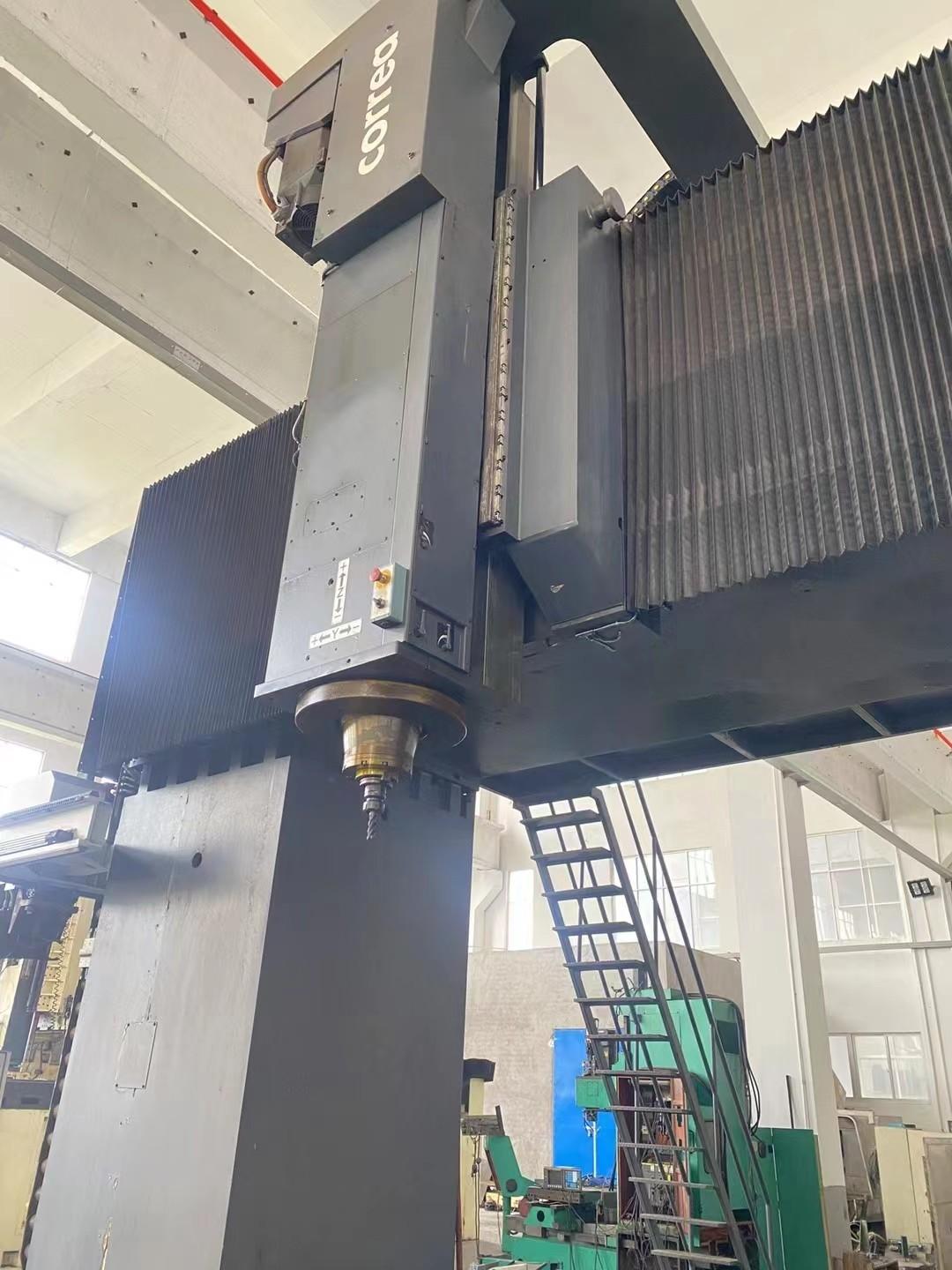

With one steering milling head

Spindle taper :ISO50

X*Y*Z fast feed rate: 30*12*12m/min

Spindle speed: 5000rpm

ATC tool magazine: 60

Maximum tool length: 400mm

Tool weight :20 kg

Tool holder type: DIN 69871 A50

Distance from worktable to spindle nose: 1350mm

Cutting feed rate: 1 ~ 5000mm

Main motor power: 37/30KW
