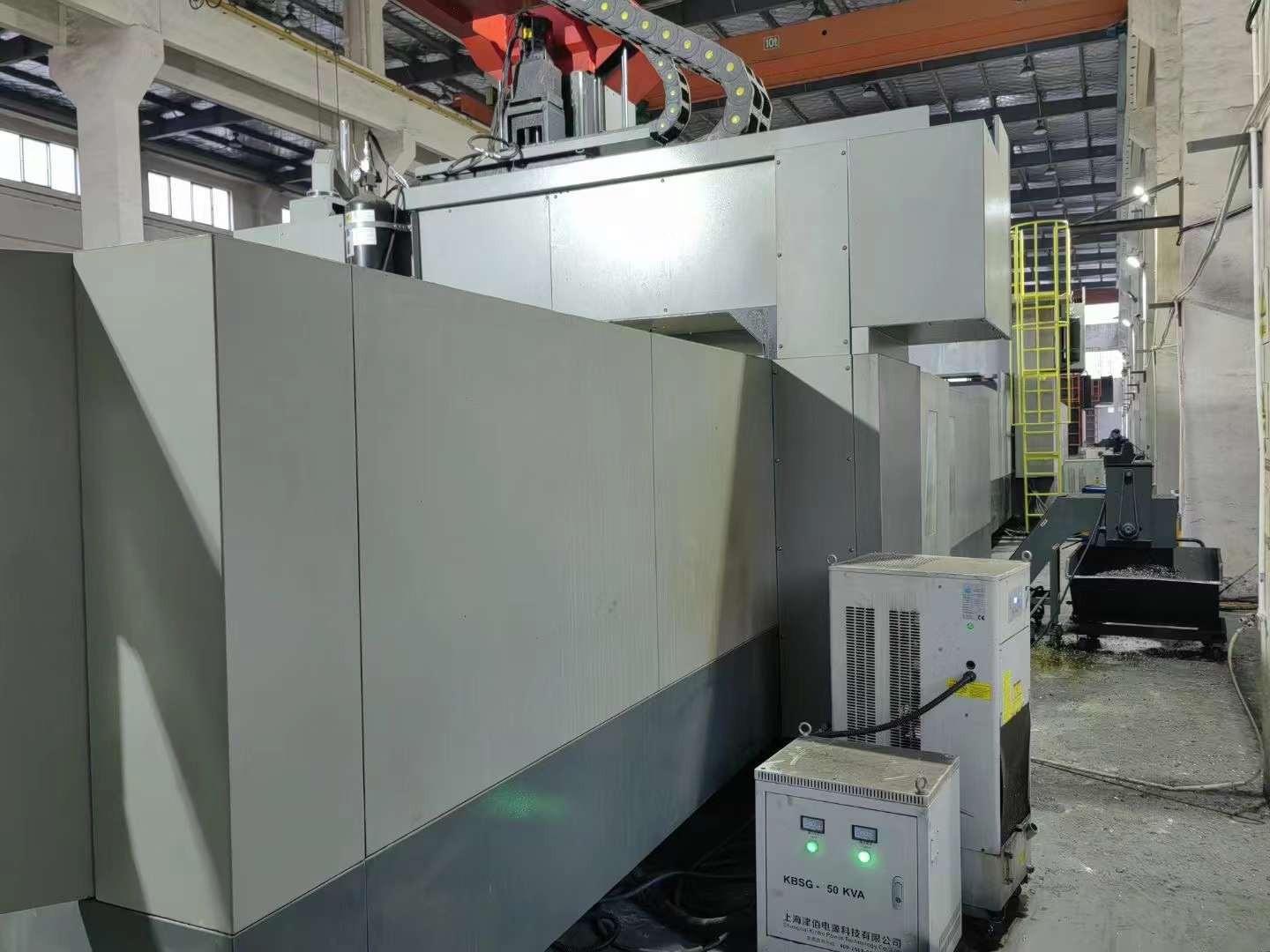

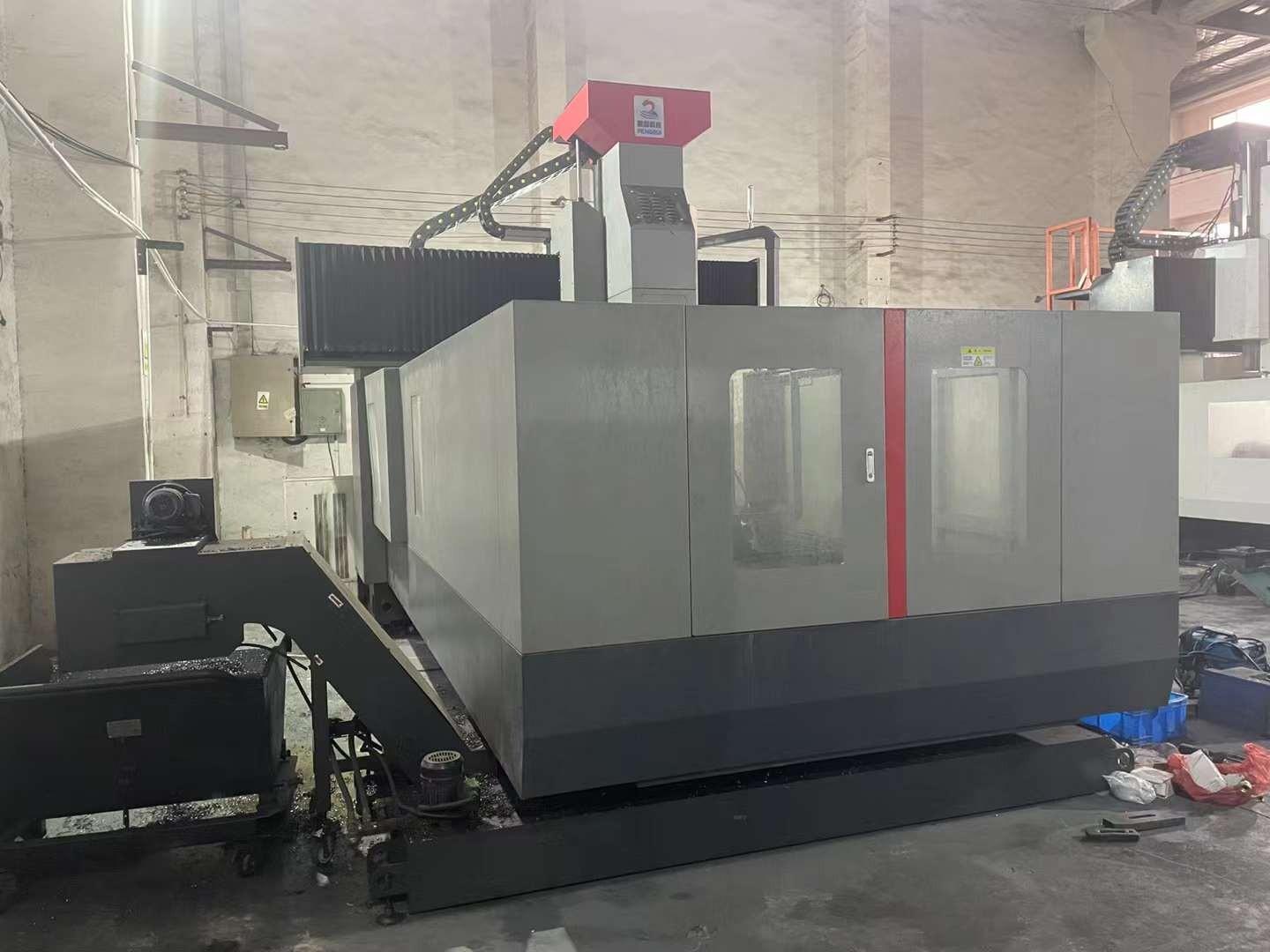

Binsheng BSM-3018 Gantry machining centre

Worktable size :3000*1600mm

Worktable load :8T

Three-axis travels :3000*1900*900mm

Distance from spindle nose to worktable :150~1050mm

Gantry width :1920mm

Gantry height :1100mm

Tool holder type :BT50

Speed :6000rpm

Main motor power :15/18.5kw

Fast moving rate :12/12/10m/min

Machine tool net weight: 28T

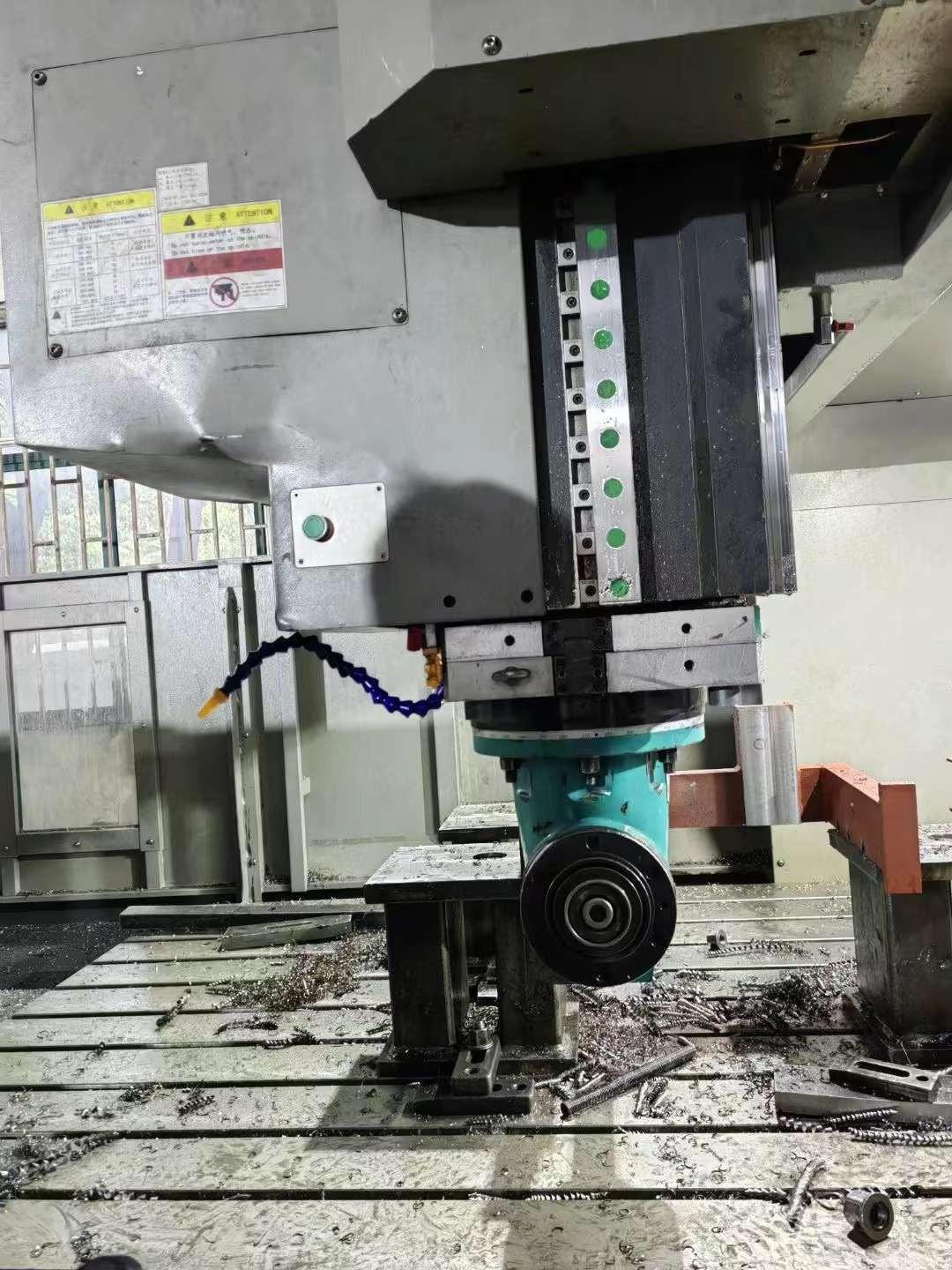

(with manual 90 deg side milling head)

Three axes linear guideway, Z axis adapts a optimized rectangular section design ,with 4 linear guideways
