ANYANG XINGSHENG CKJ6180 CNC turning lathe

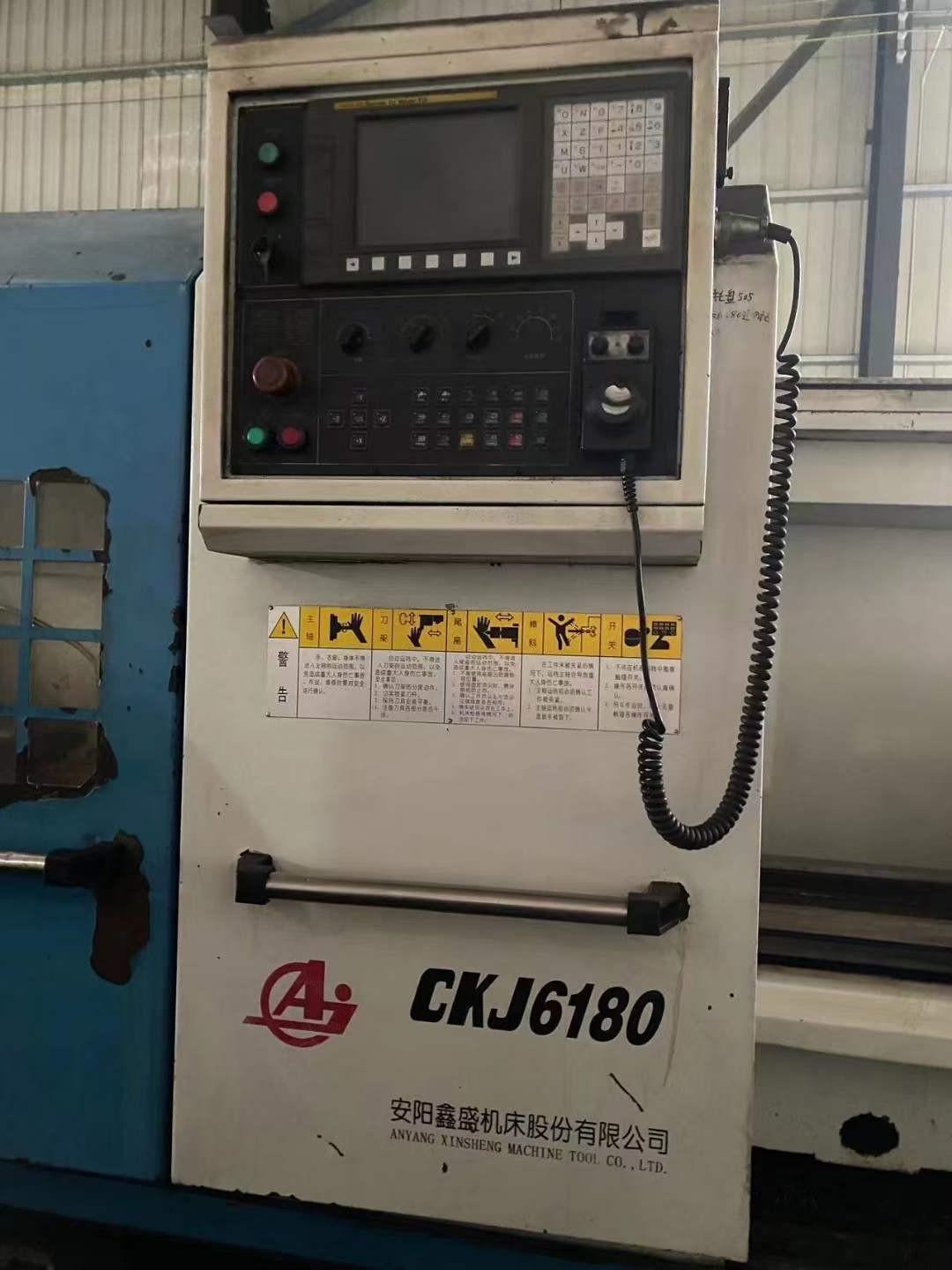

System: Fanuc

Swing diameter over bed:800mm

Cutting diameter :510mm

Workpiece length :2000mm

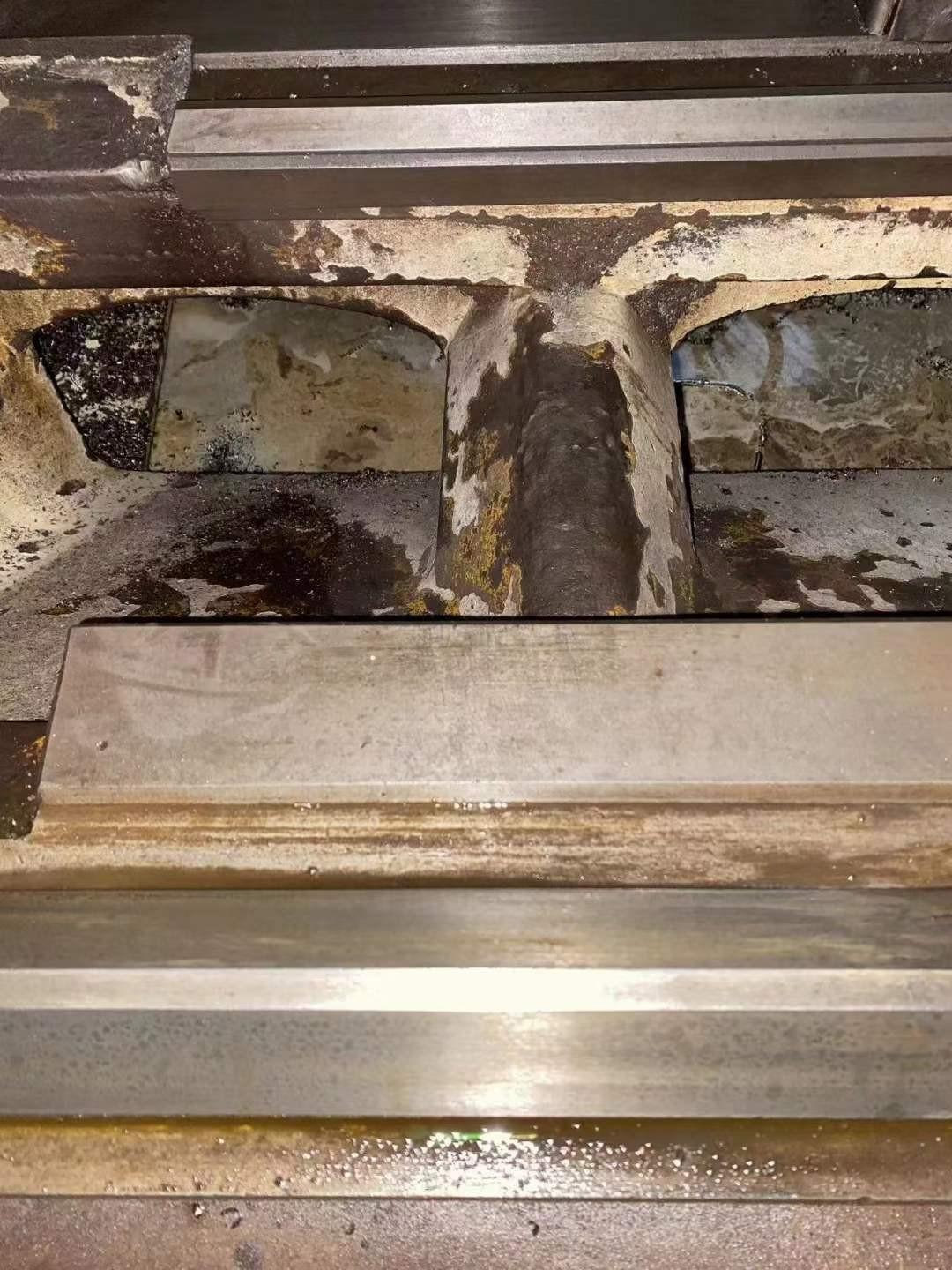

Guideway on bed width:550mm

Spindle through hole :100mm

Spindle speed :800rpm

Spindle center height :400mm

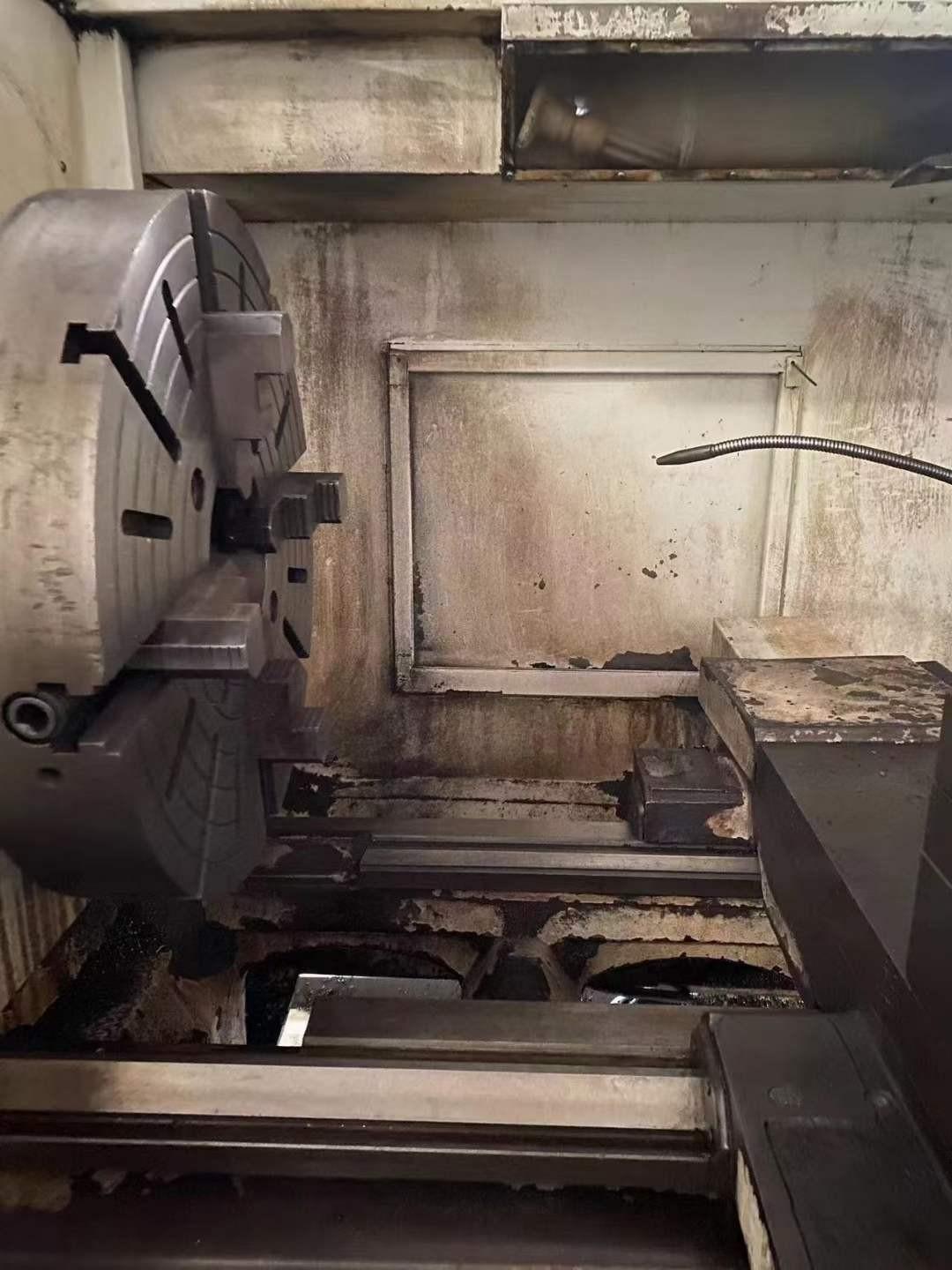

Chuck :325mm

Fast moving rate:3000/6000mm/min

X-axis travel :475mm

Positioning accuracy :0.008mm

Tailstock quill shaft diameter/travel :100/250mm

Spindle motor power :11kw

Weight :5300kg

Footage :3445*1800*1980mm
