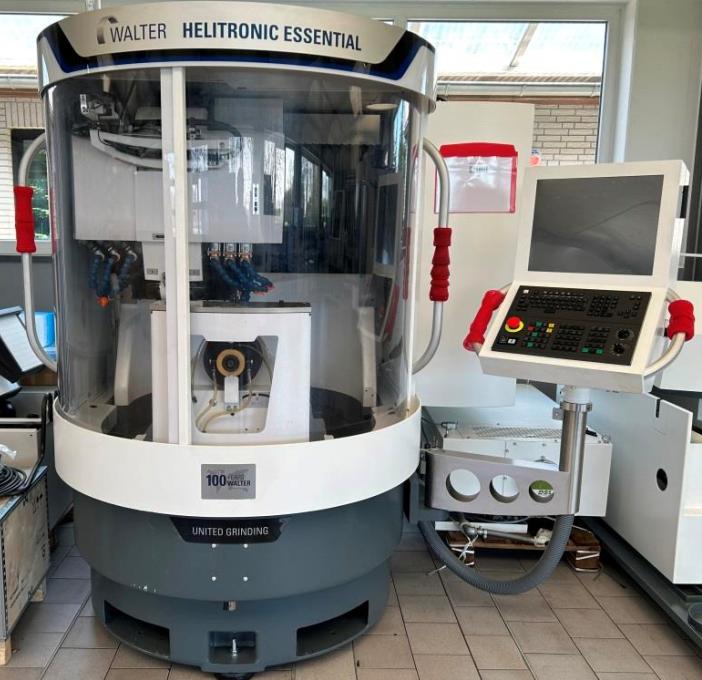

Walter Helitronic Essential Tool grinder

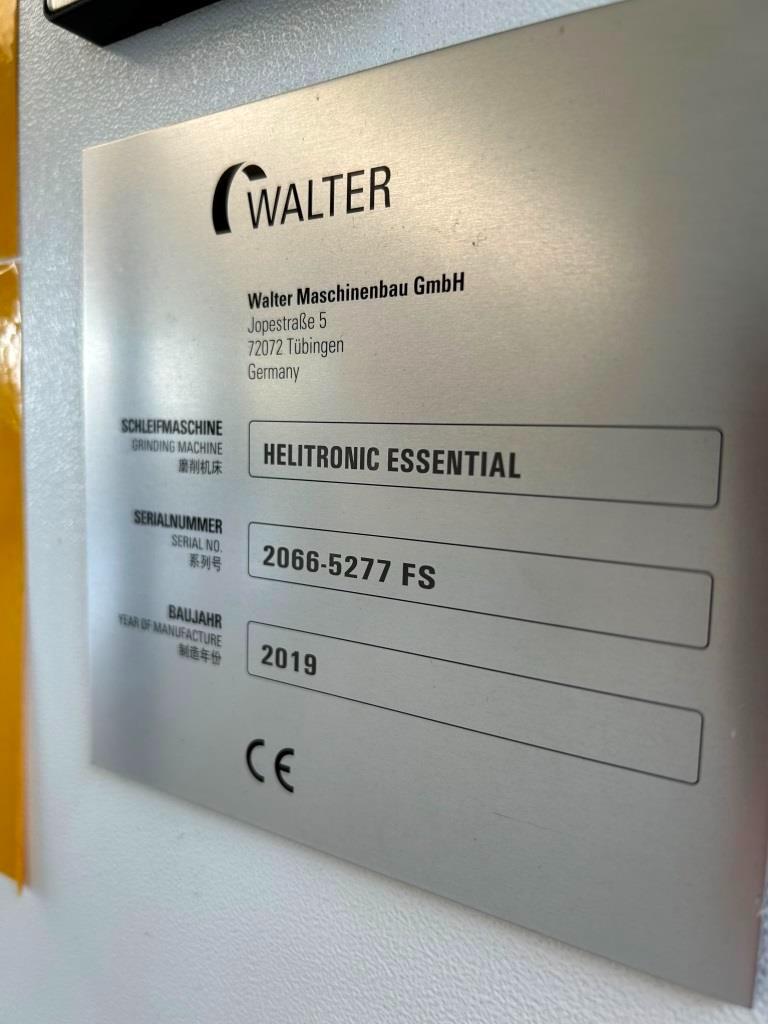

Machine serial number   2066-5277 FS

X axis   330 mm

Y-axis   200 mm

Z-axis   470 mm

C-axis   + / - 400 °

Workpiece tool holder  ISO 50

Center height (with/without worktable)  130/160 mm

Maximum workpiece diameter   100 mm

Maximum workpiece length for peripheral grinding   255 mm

Maximum workpiece length for front face grinding   185 mm

Driving power of grinding spindle   9 kW

Grinding spindle speed (stepless variation)  0-10500 rpm

Connection load   25 kVA (400 V/50 Hz)

Weight   3600 kg

Footage W x D x H  1808 x 2716 x 1933 mm

Color   RAL 7011/RAL 9003

Accessories:

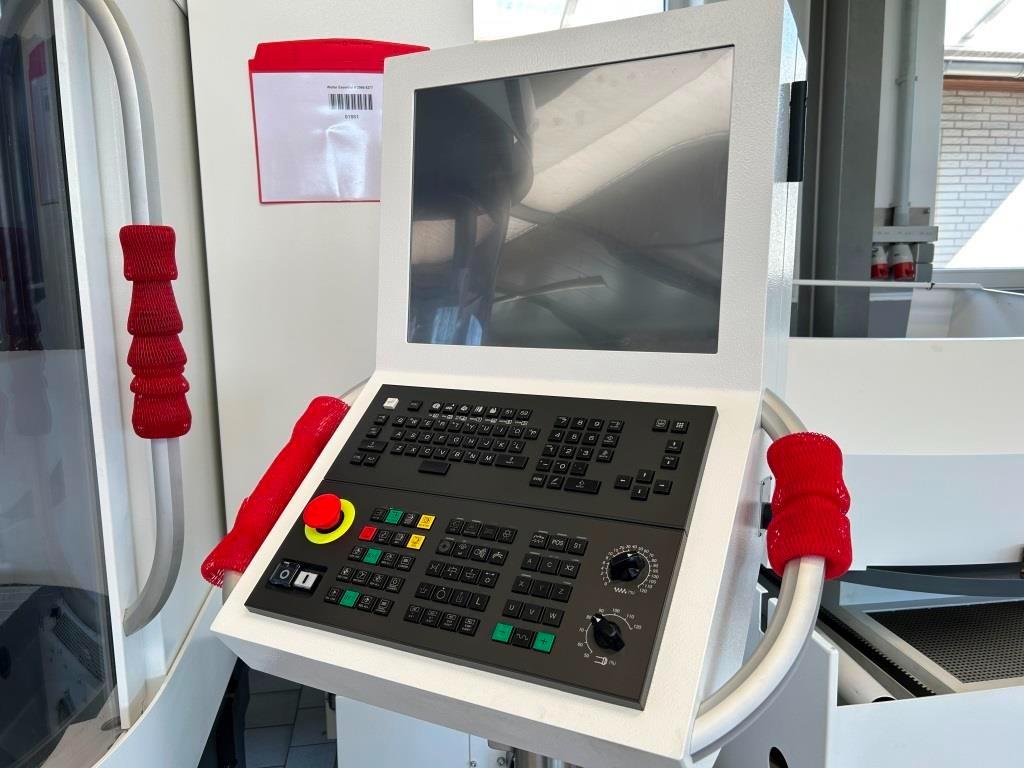

Control  Fanuc 31i  A5

Tool magazine  Standard and Advanced Version 3

Tool magazine performance improvement (optional)

Top loader

Probe

Oil collecting pan

Glass scale on linear axis

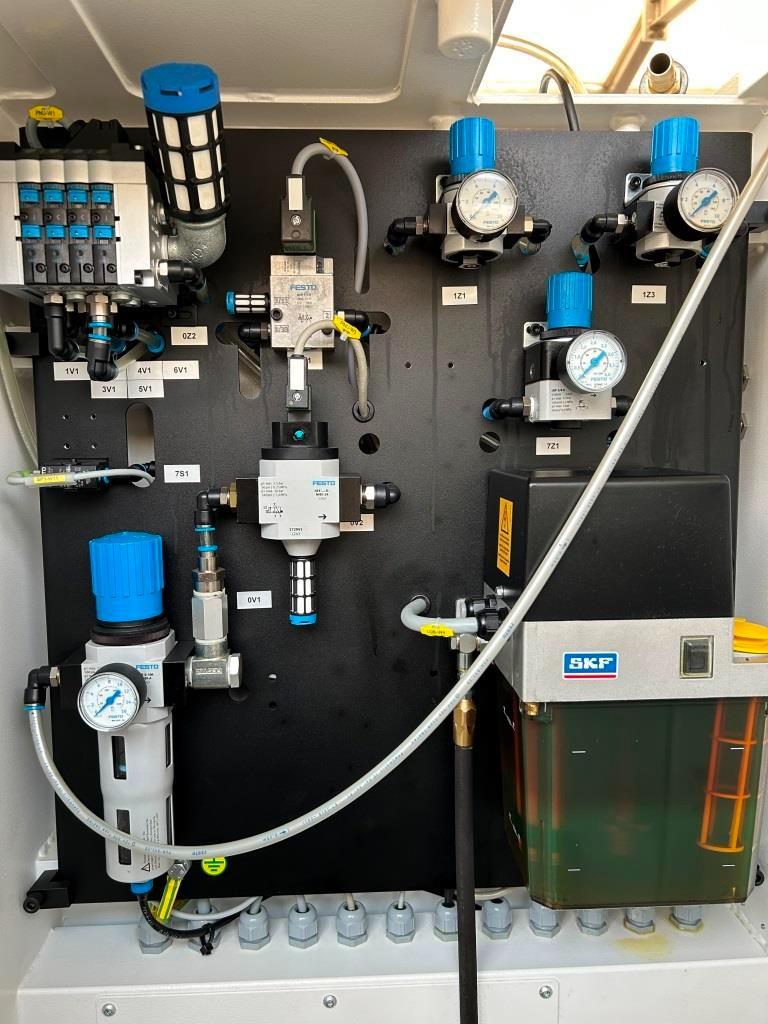

Pneumatic workpiece clamping,

Automatic fire extinguishing system,

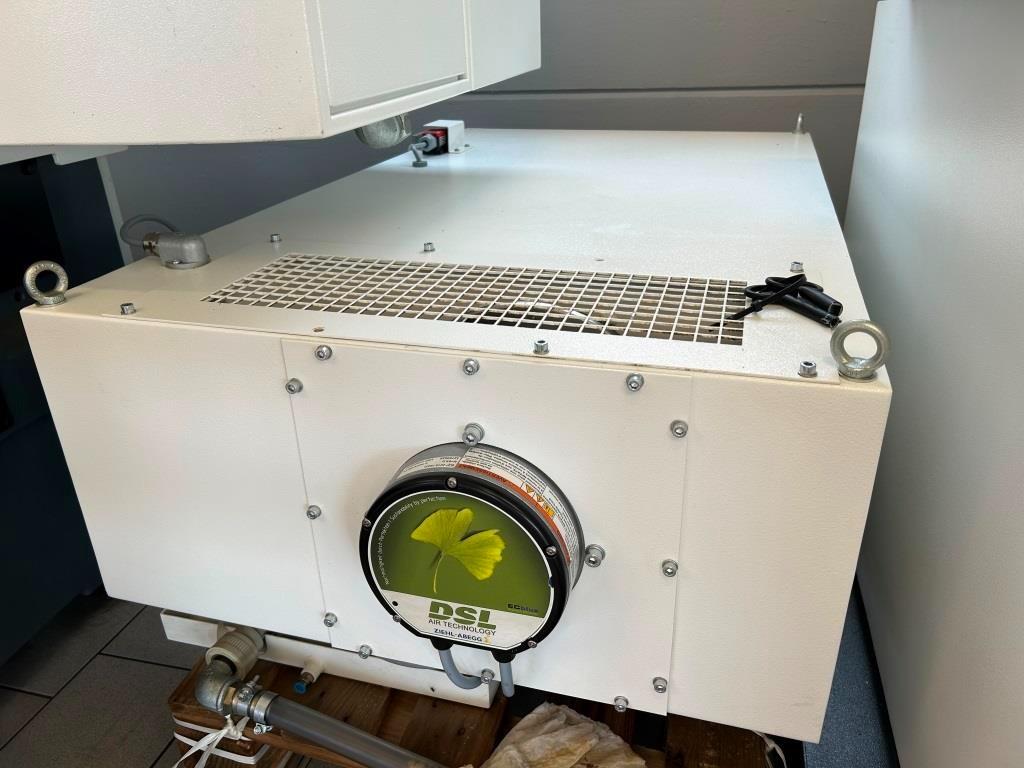

Electrostatic demister,

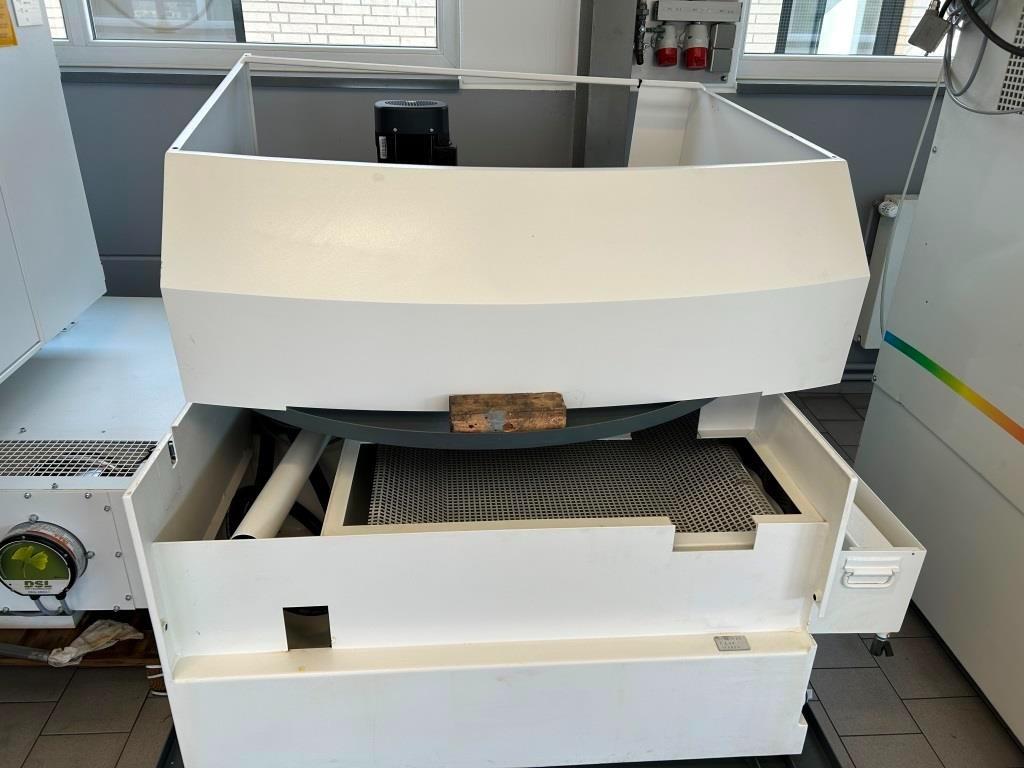

Coolant Cleaning System with Pump   400L

Remarks:

Suitable for re-grinding and manufacturing new wood and metal working tools with diameters of 1-100 mm and total lengths up to 255 mm.
