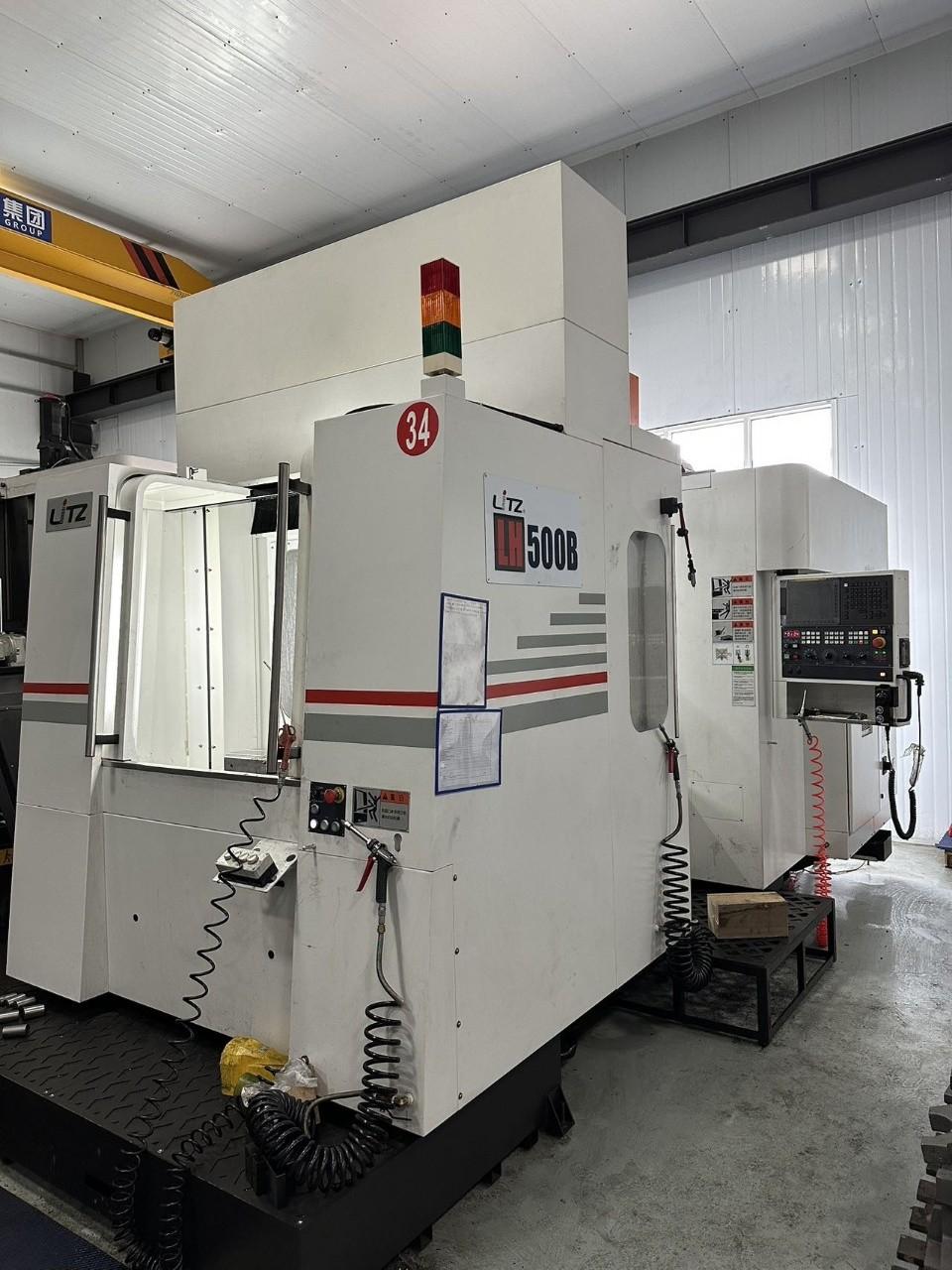

LITZ LH500B Horizontal Machining centre

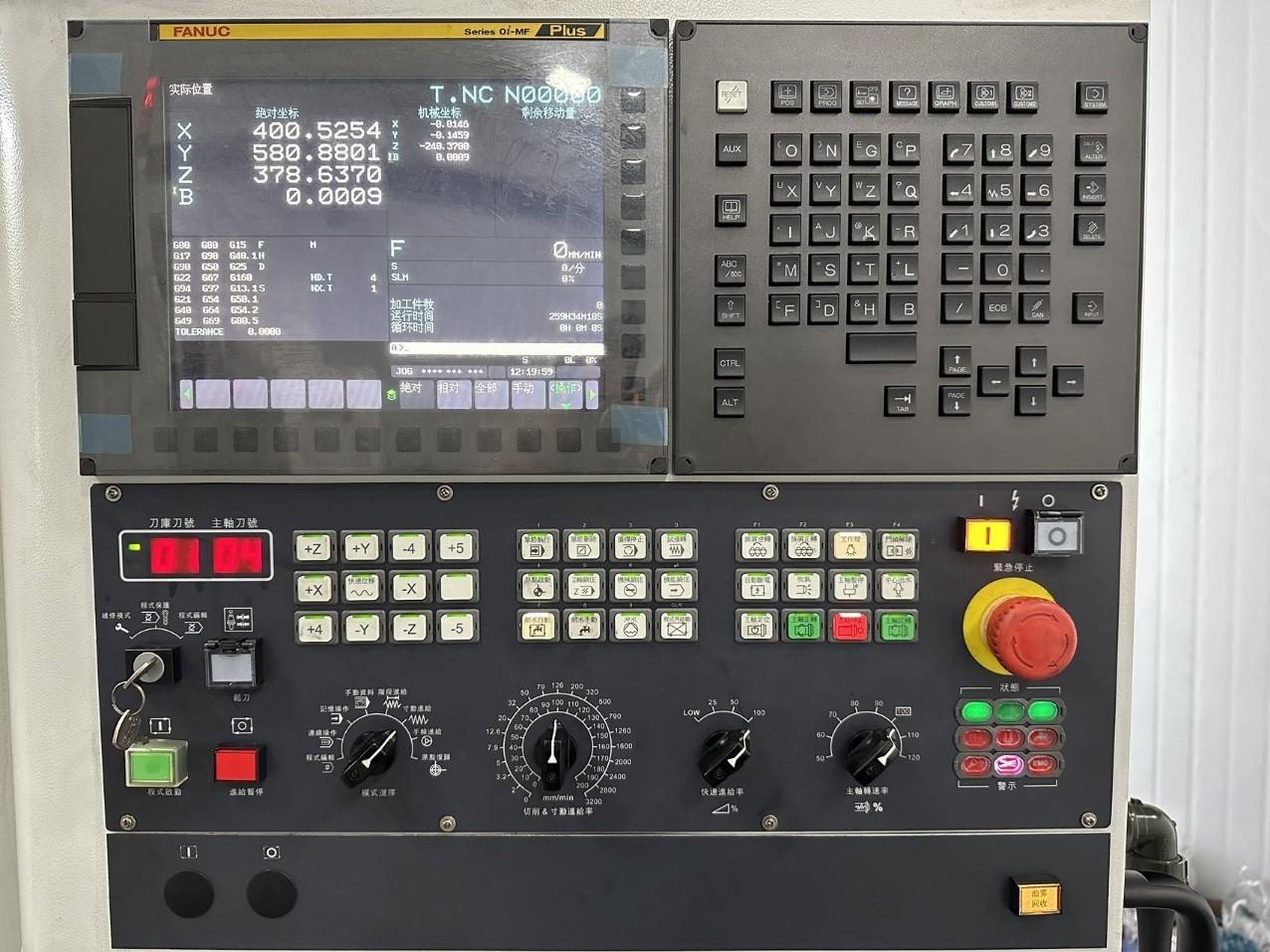

System: FANUC Oi  MF

X-axis travel :700mm

Y-axis travel :650mm

Z-axis travel :650mm

B axis indexing resolution :0.001deg

Spindle nose to worktable distance :50~700mm

X/Y/Z axes fast feed rate: 36m/min

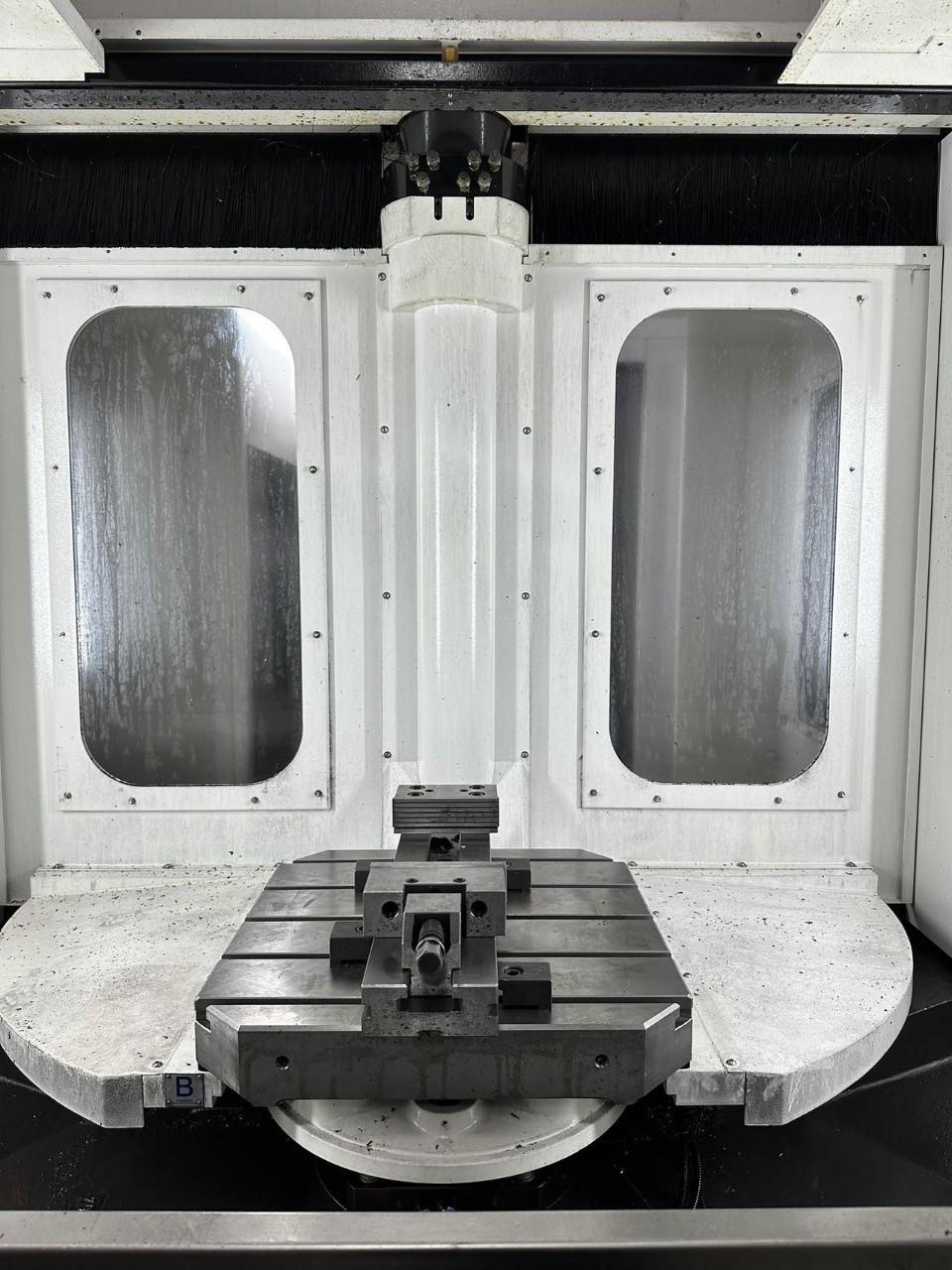

Worktable size :500 x500mm

Maximum workpiece weight: 500Kg

Maximum spindle speed: 6000rpm

Main power: 15kw

Spindle type :BT50

Tool magazine: 40 pieces

Maximum workpiece diameter: 700mm

Maximum tool diameter: 120mm

Maximum tool length: 380mm

Maximum tool weight: 20kg

Number of worktables: 2

Machine footage (length * width * height) : 5000*3200*2980mm

Machine weight: 15000KG
