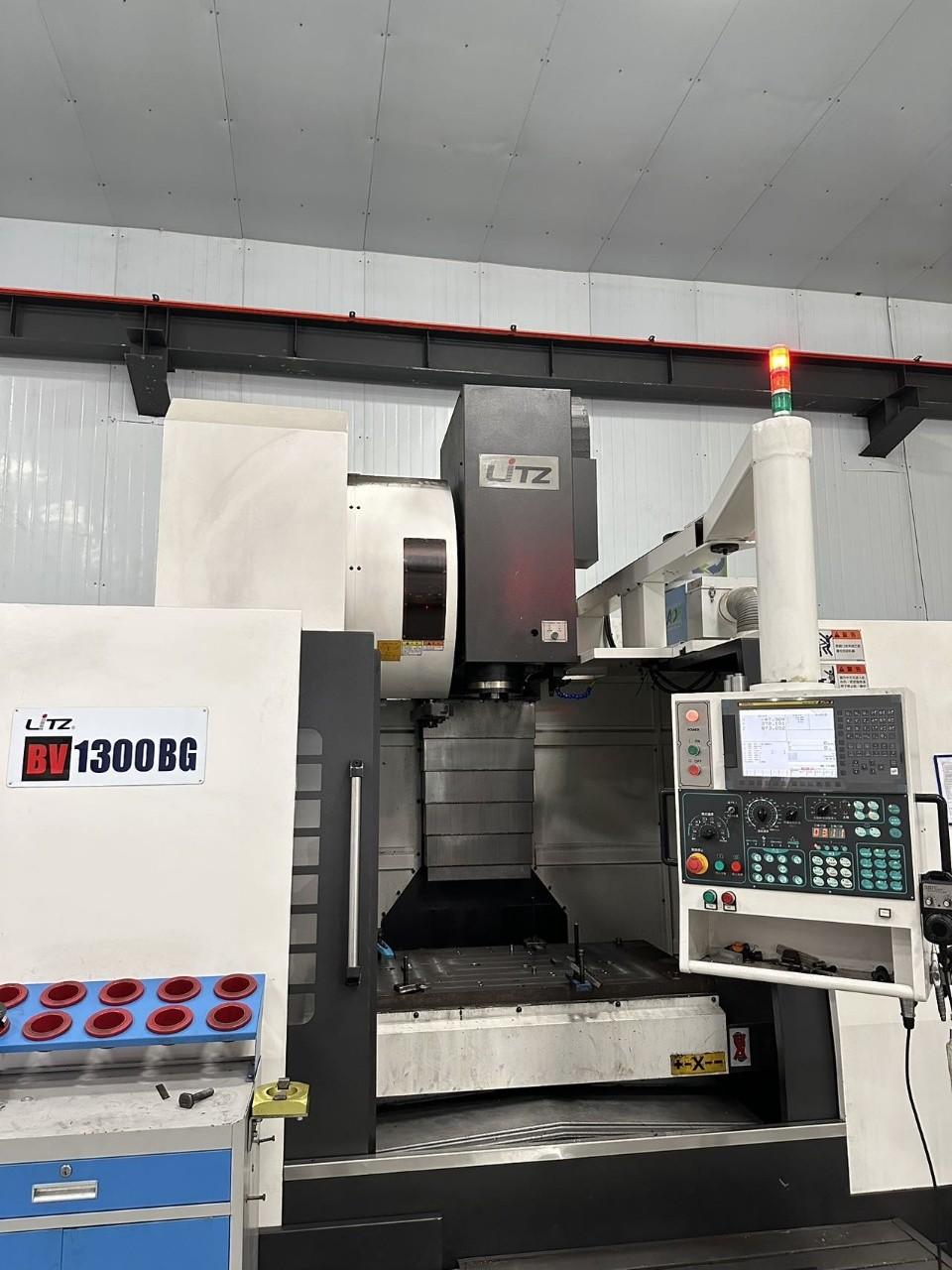

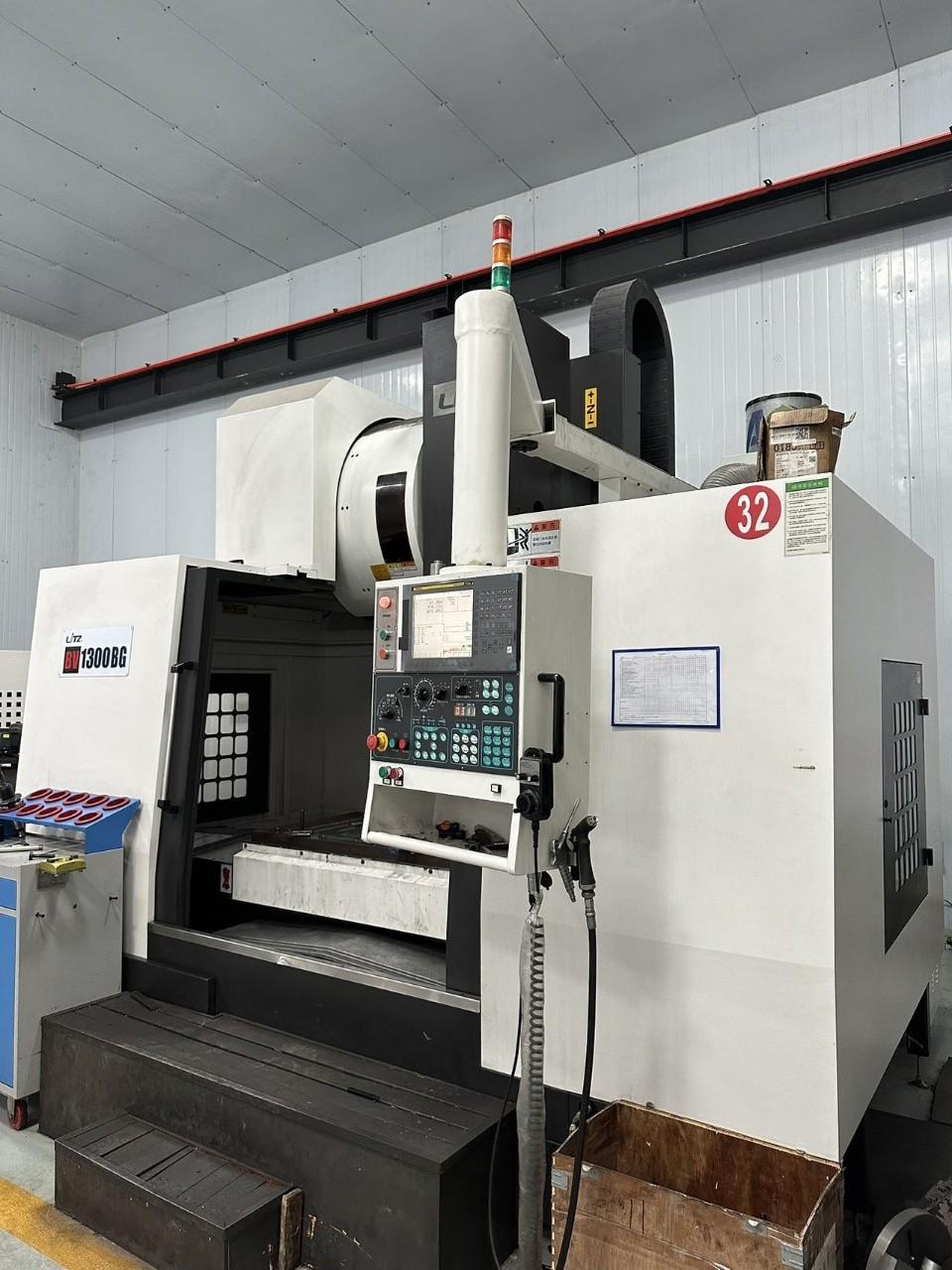

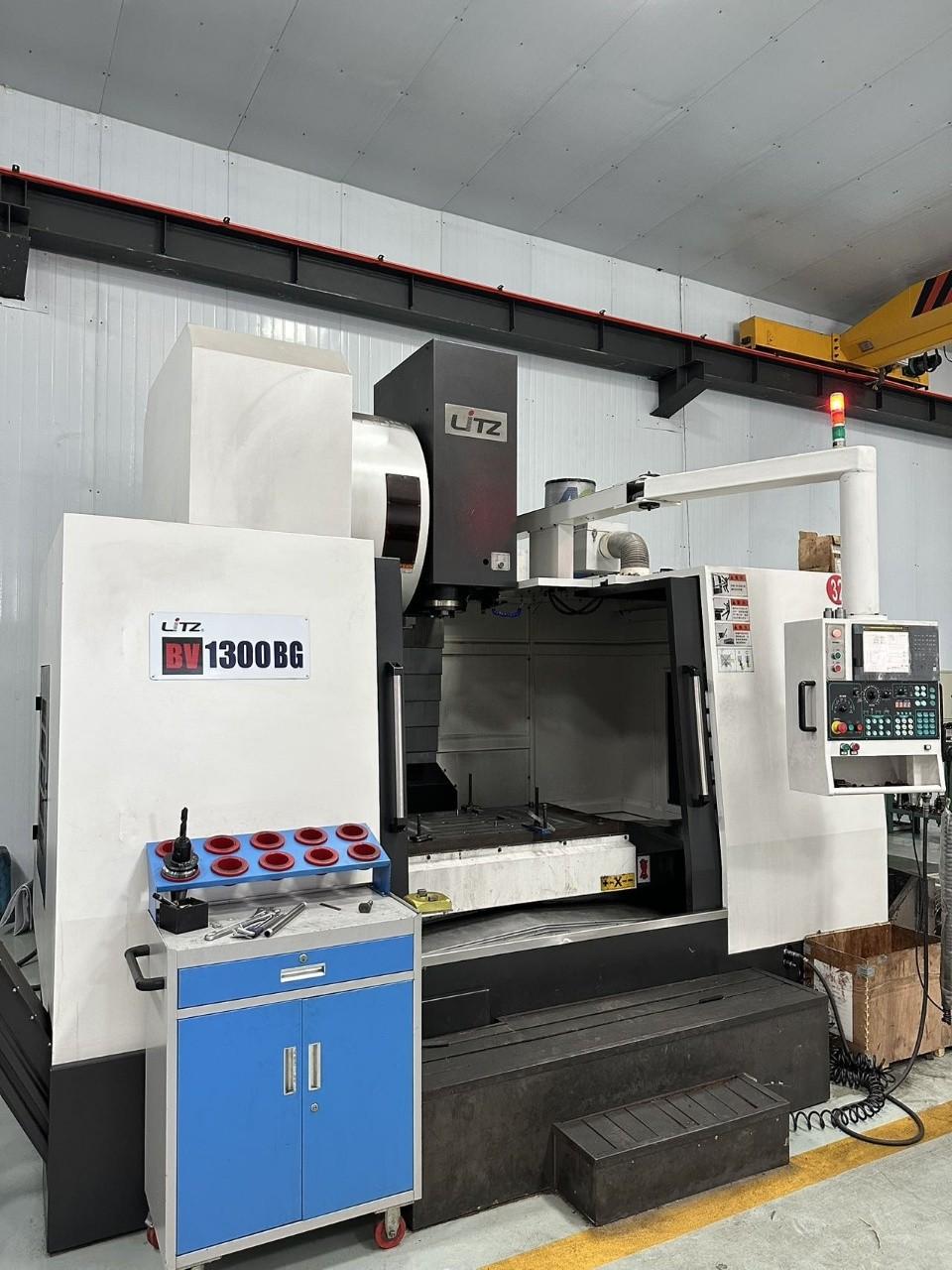

LITZ BV1300BG Vertical Machining centre

System :Fanuc Oi  MF

X-axis travel :1300mm

Y-axis travel :610mm

Z-axis travel :600mm

Distance from worktable to spindle nose: 125-725mm

Worktable size: 1500*600mm

Spindle type :BT-50

Spindle speed :8000rpm(gear spindle)

Tool magazine :30

Maximum load :1000kg

Maximum tool length: 305mm

Maximum tool weight: 15kg

Main motor power: 11kw

X*Y*Z axis moving rate :30*30*24m/min

Machine weight :10000kg

With chip conveyor, transformer, oil cooler
