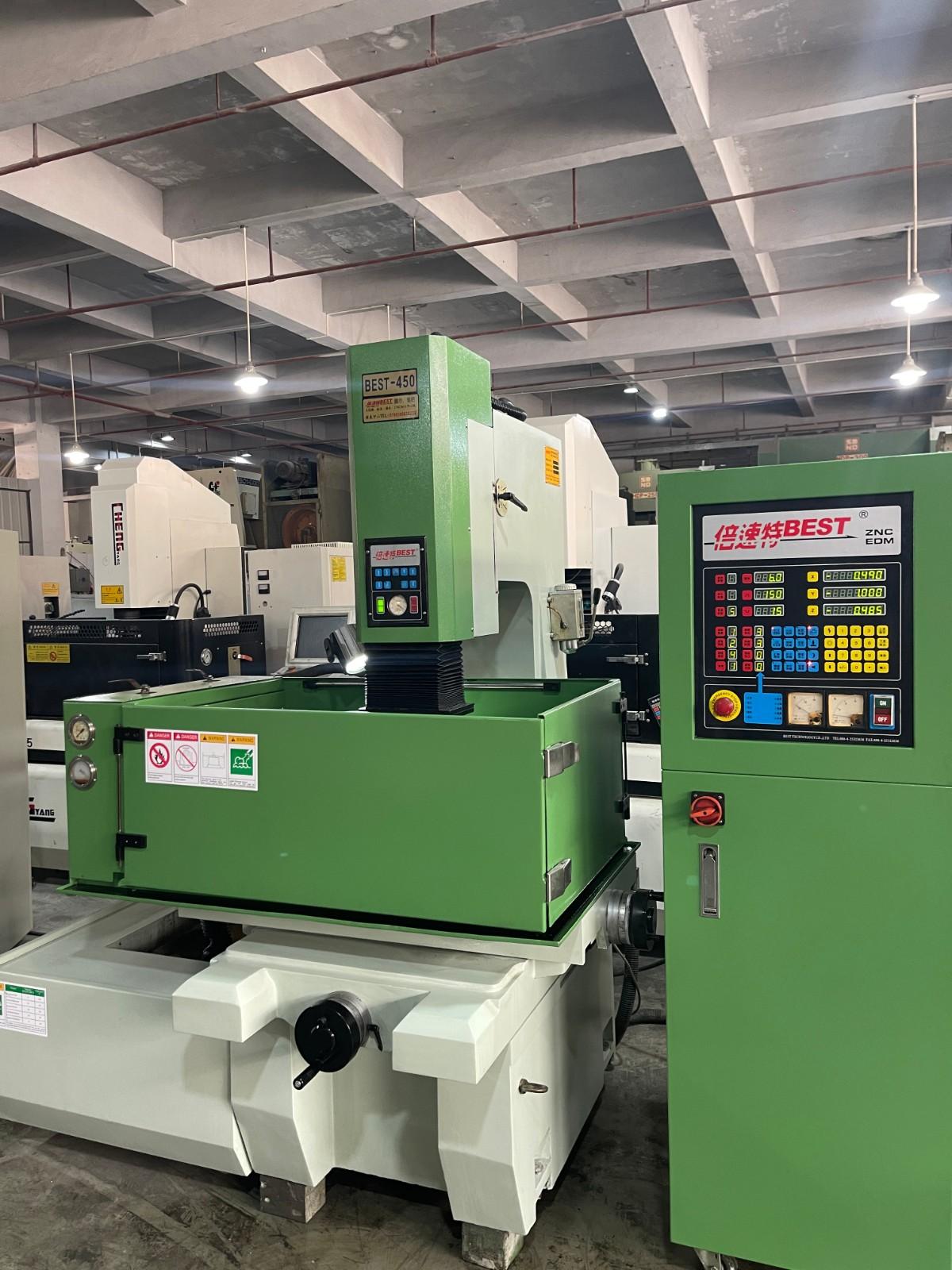

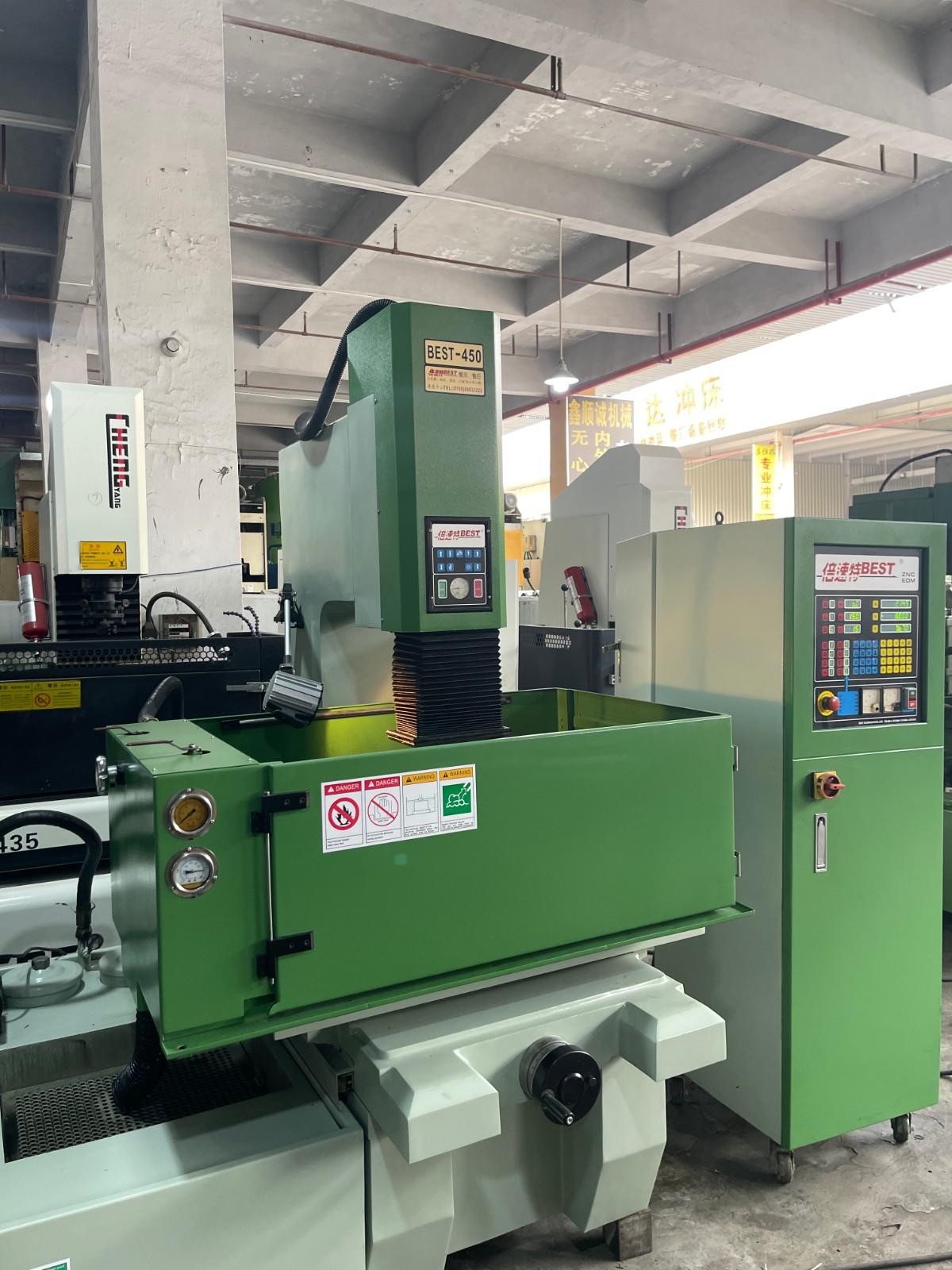

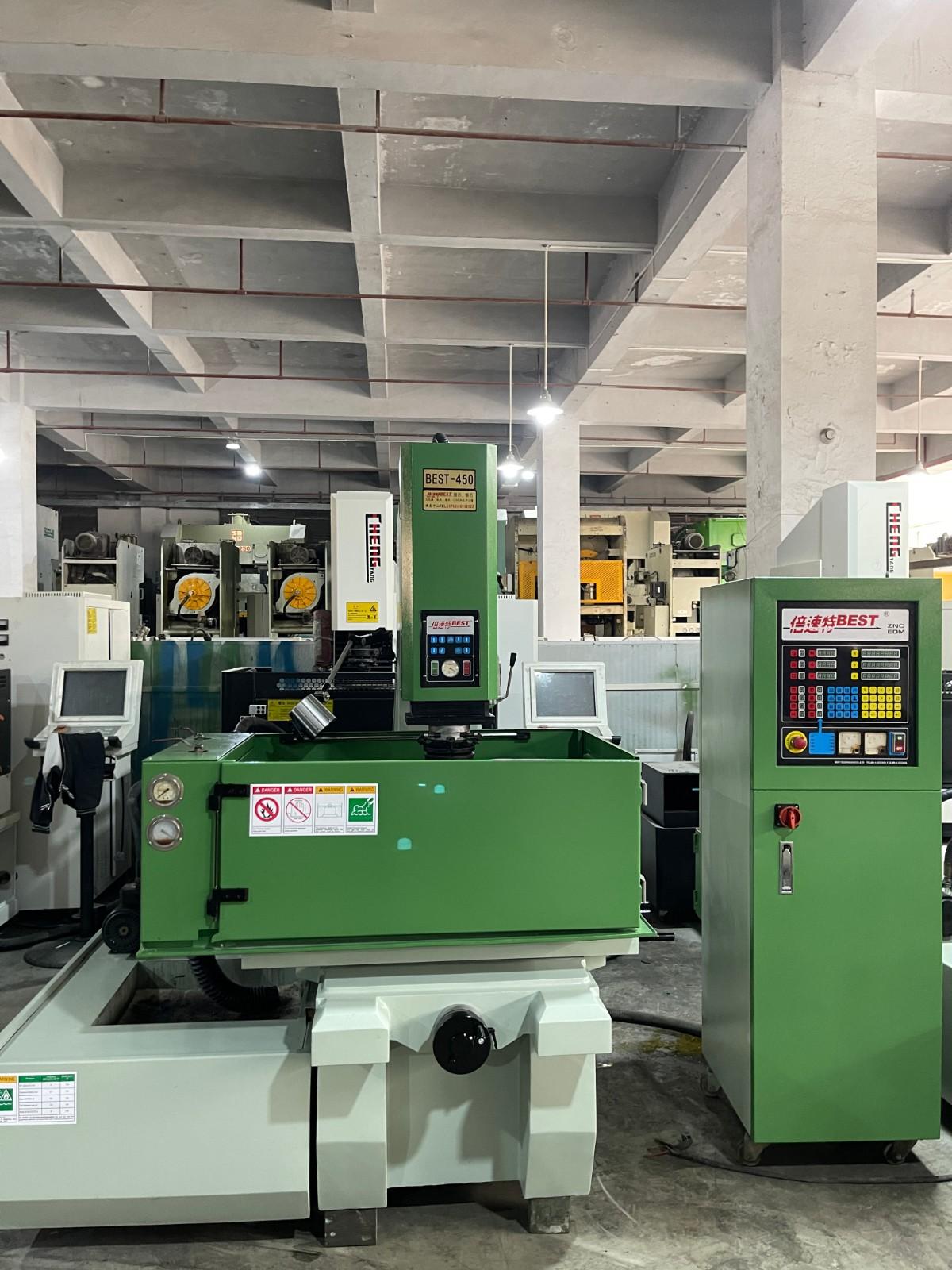

BEST ZNC-450 Spark eroder

(X*Y*(Z+ auxiliary axis)) axes travel: 450*350*(200+250)mm

Worktable size: 400*750mm

Electrode load: 120kg

Worktable load (in worktable center) : 800kg

Maximum working size: 1050*650*560mm

Total Machine weight: 1400kg

Optimum surface roughness: 0.18Raum

Electrode wear: 0.2%

X/Y/Z minimum setting size :0.005mm(0.001mm)

X/Y/Z maximum setting size :9999.995mm(9999.9999mm)

Maximum machining rate:800*900*1000mm/min
