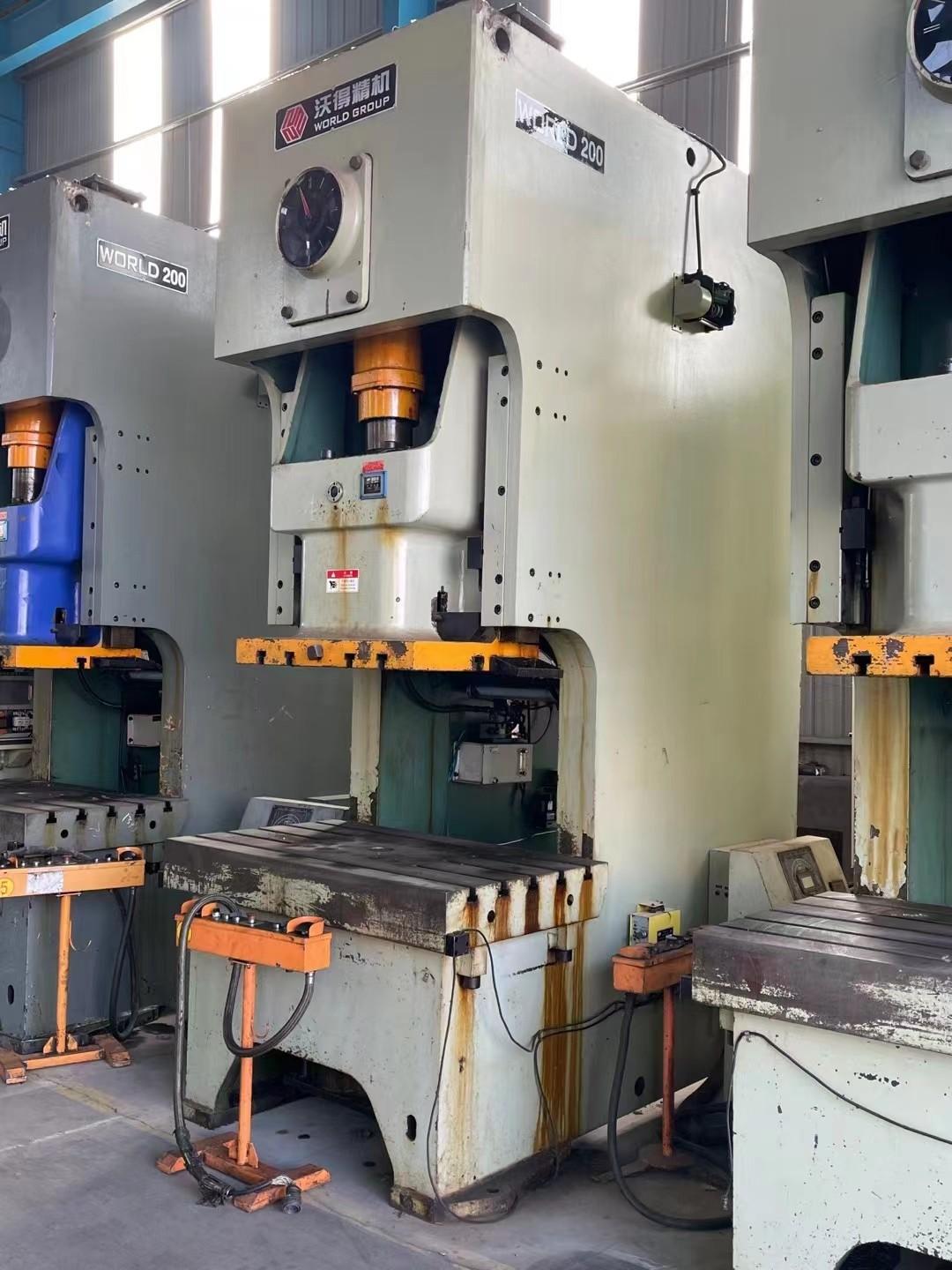

World JH21-200 Press machine

Nominal force: 2000kn

Nominal force stroke: 6mm

Slider stroke: 250mm

Number of strokes: 45spm

Die height: 450mm

Adjustment amount: 110mm

Distance from slider center to machine body: 430mm

Distance between columns : 910mm

Slider bottom area: 880 * 650mm

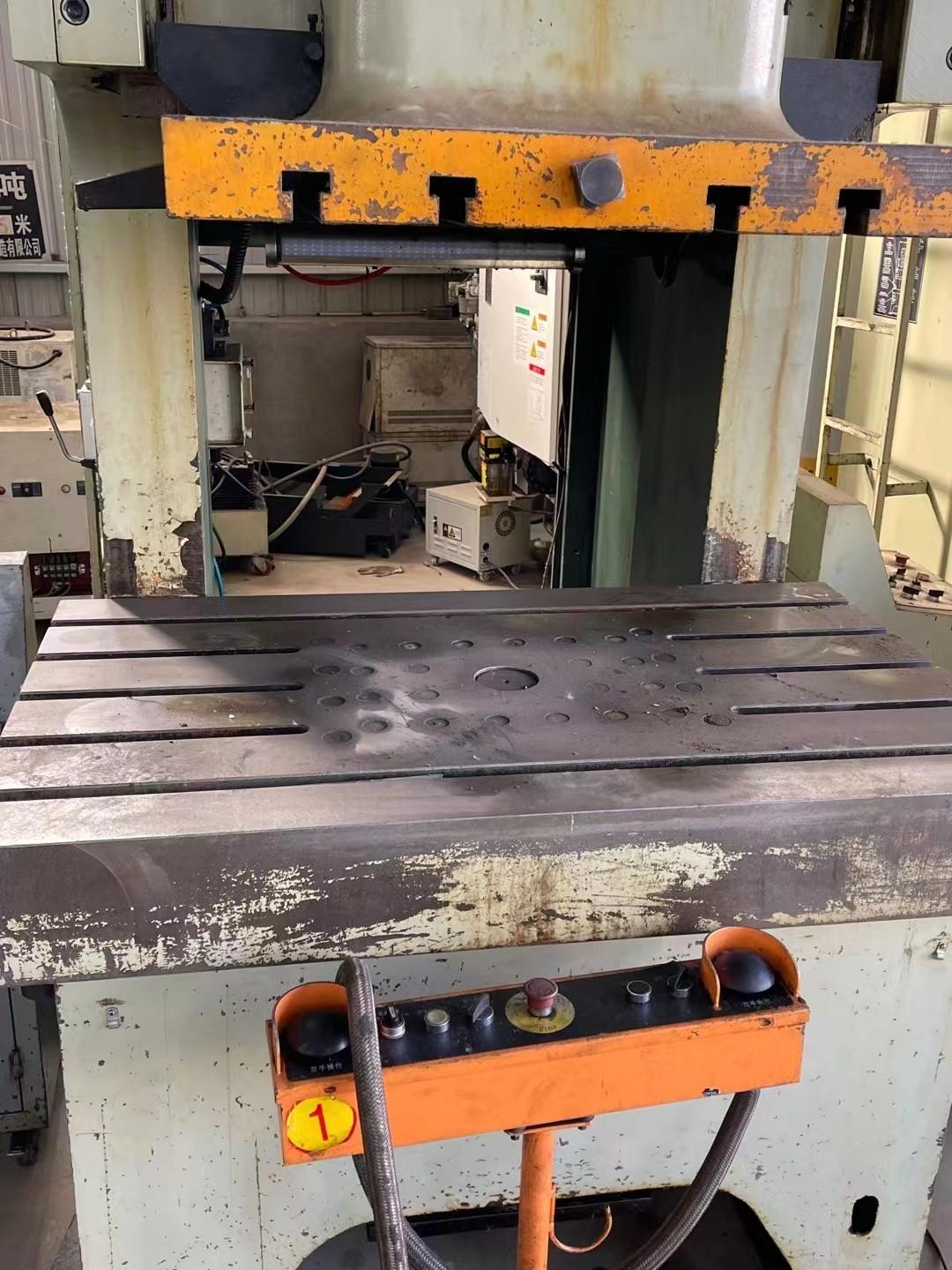

Worktable size: 1390 * 840mm

Loading hole diameter: 200mm

Worktable thickness: 180mm

Distance from worktable to ground: 1000mm

External dimensions: 26001540 * 3800mm

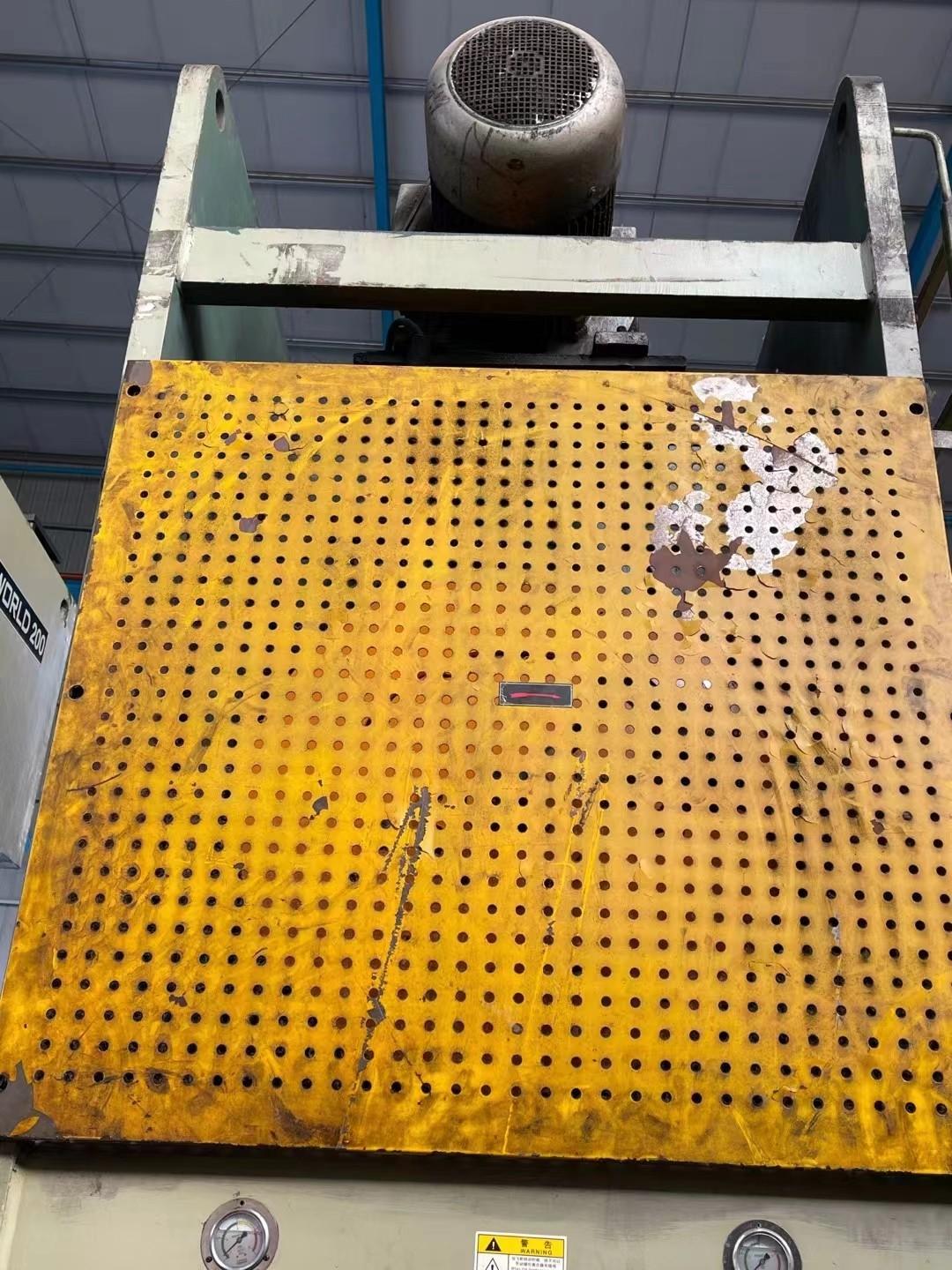

Motor power: 18.5kw

Weight: approximately 19.2t
