OKUMA MACTURN50 Turn Mill Machining Centre

X axis: 598mm(downward: 200)

Y-axis: 230mm (+110~-120)

Z-axis: 1660mm (downward: 1045)

C-axis: 360° (0.001 deg)

Spindle type: JIS A2-8

Spindle through hole diameter: 90[110]mm

Internal diameter of spindle bearing: 130[150]mm

machining length: 1500mm

Rotary diameter: 610mm

Machining diameter: 580mm

Spindle rotation speed: 14~3200rpm

Main motor power: VAC 30/22kw

Tool magazine: 32 BT50

Footages: 5500*3105*2774mm

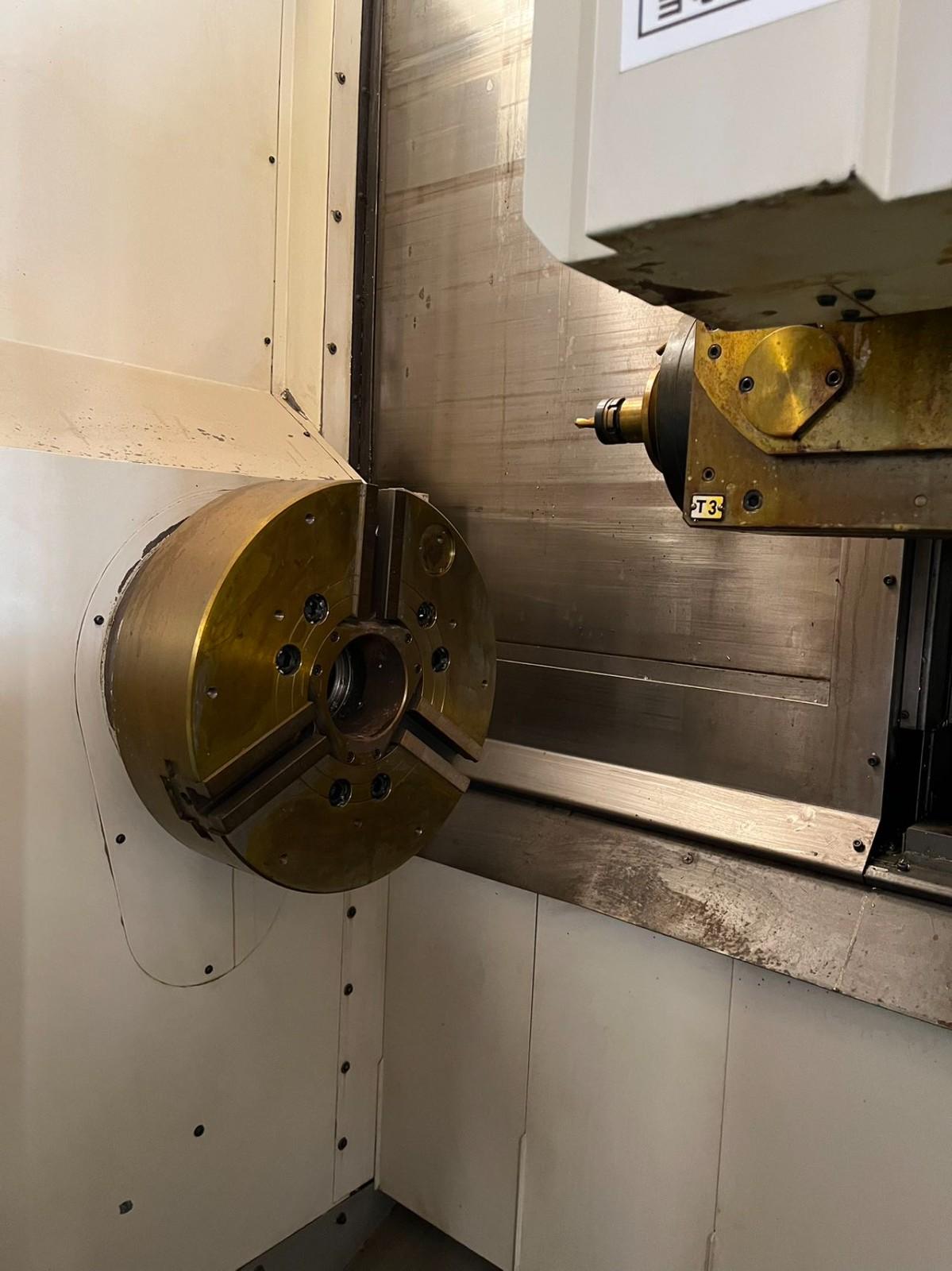

Chuck diameter: 450mm
