LEADWELL T6M CNC turning lathe

[Product Information]:

8-inch chuck through hole: 52mm

Turning diameter: 210 mm

Turning length: 420mm

Bar diameter: 52mm

Spindle nose : A2-5

Spindle speed: 42~6000 rpm

Spindle motor power (continuous/30 minutes): 15/18.5 kW

X/Z axis travels: 125/460 mm

X/Z axis rapid feed rate: 20/24 m/min

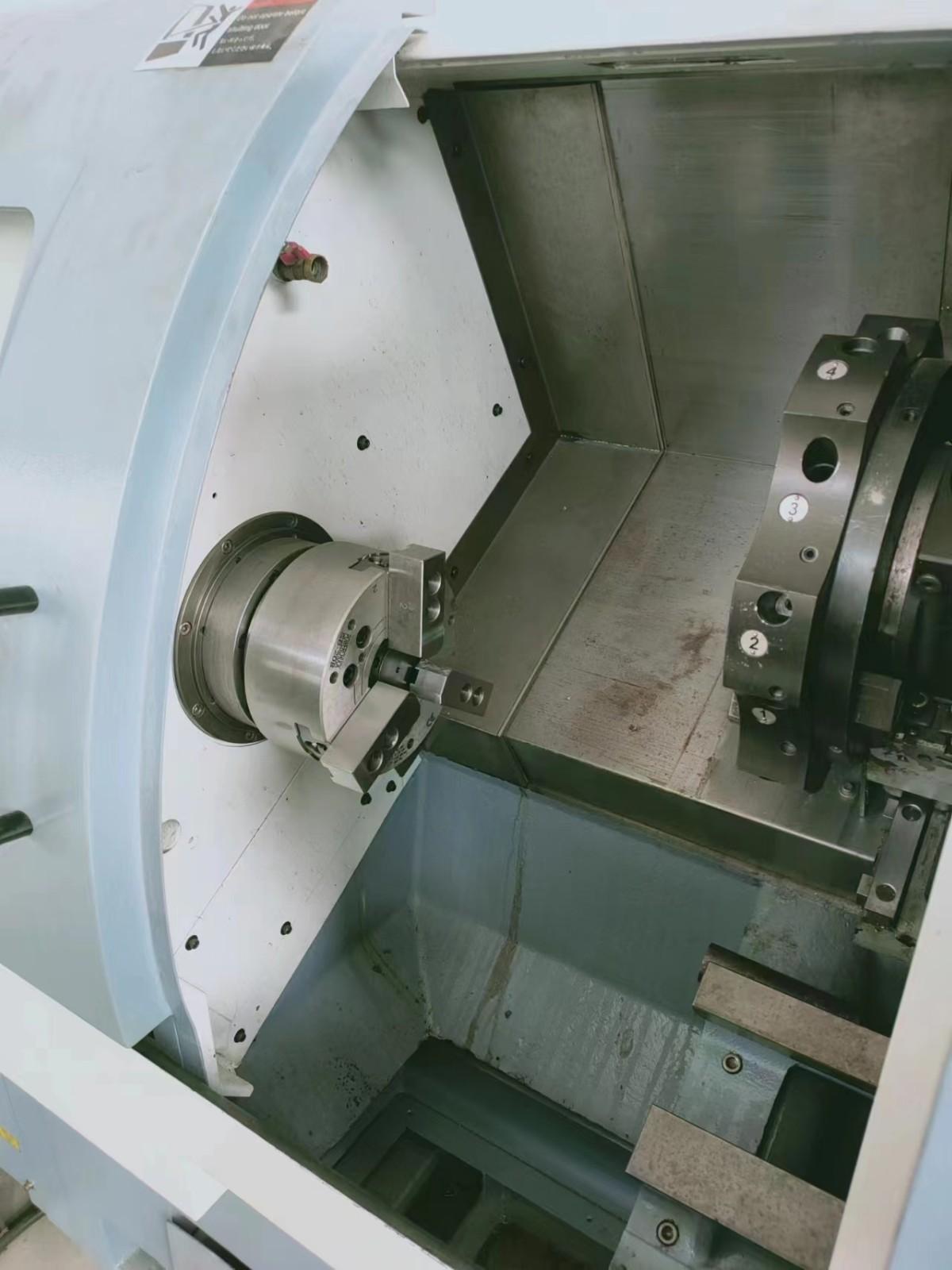

12-position servo turret with power head

Fanuc Oi-TD system

PDF Download Click to Contact Seller
