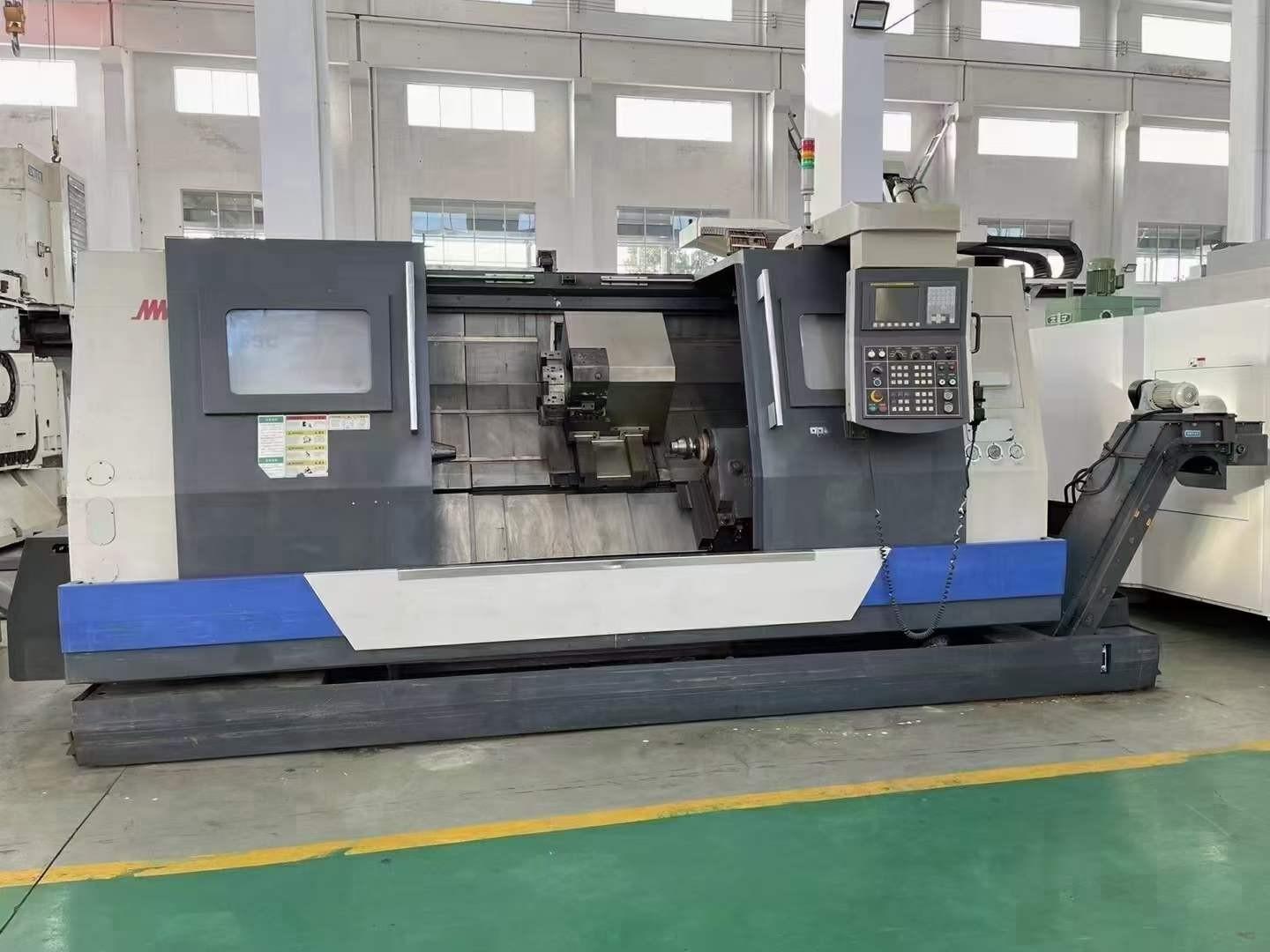

Neway NL635SC CNC inclined lathe

Rotation diameter over bed: 650mm

Rotation diameter over bed saddle : 410mm

Machining diameter: 630mm

Machining length: 1500mm

X * Z axis travels: 330 * 1600mm

Main motor power: 15-18.5kw

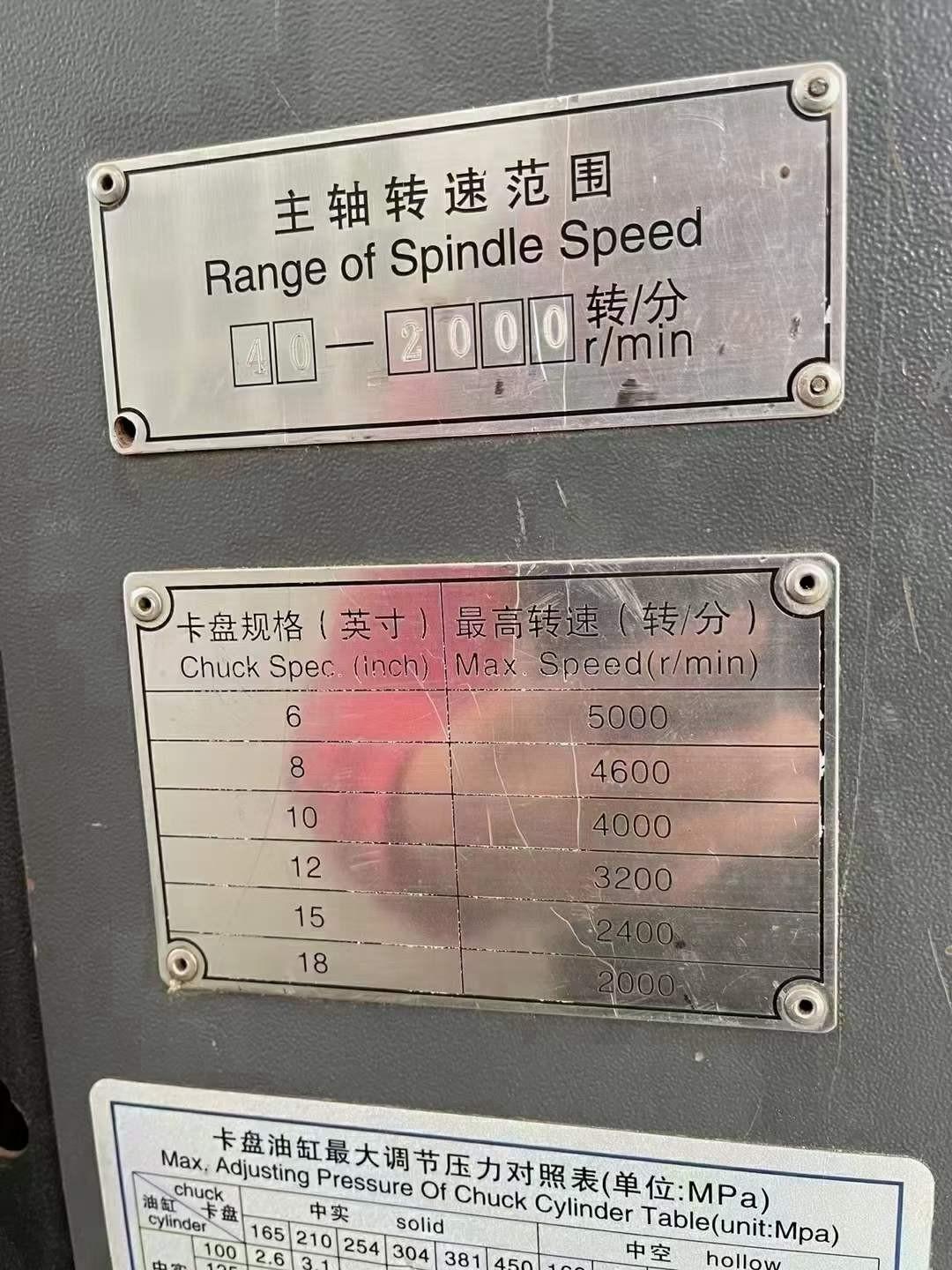

Spindle speed: 2000rpm

Spindle through hole diameter: 87mm

Tailstock quill diameter: 130mm

Tailstock quill travel: 100mm

Machine weight: 8000kg

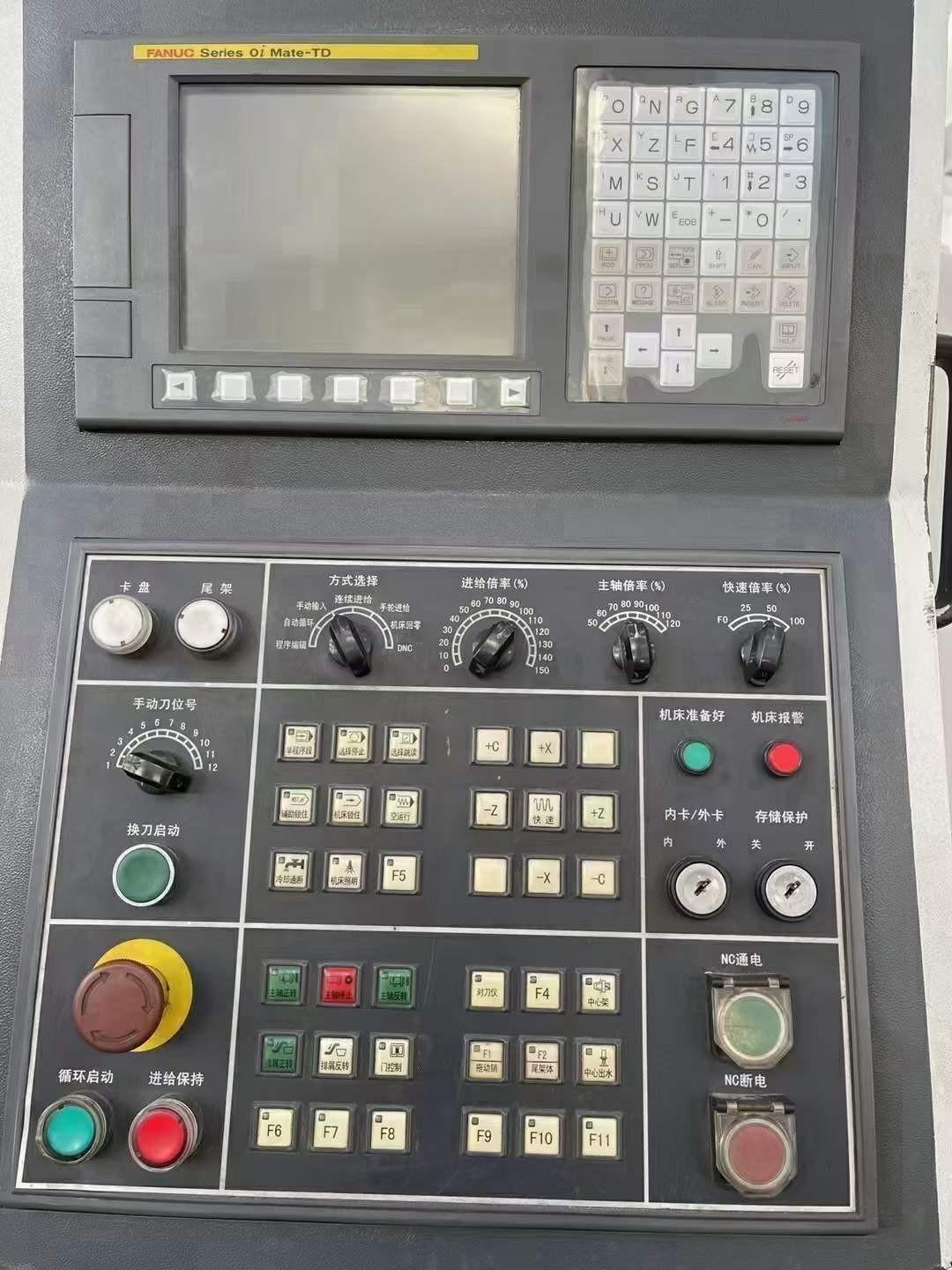

System: Fanuc

With glass scale, servo spindle motor

A2-11 heavy duty spindle

X/Z axis high rigid rectangular rigid guideway

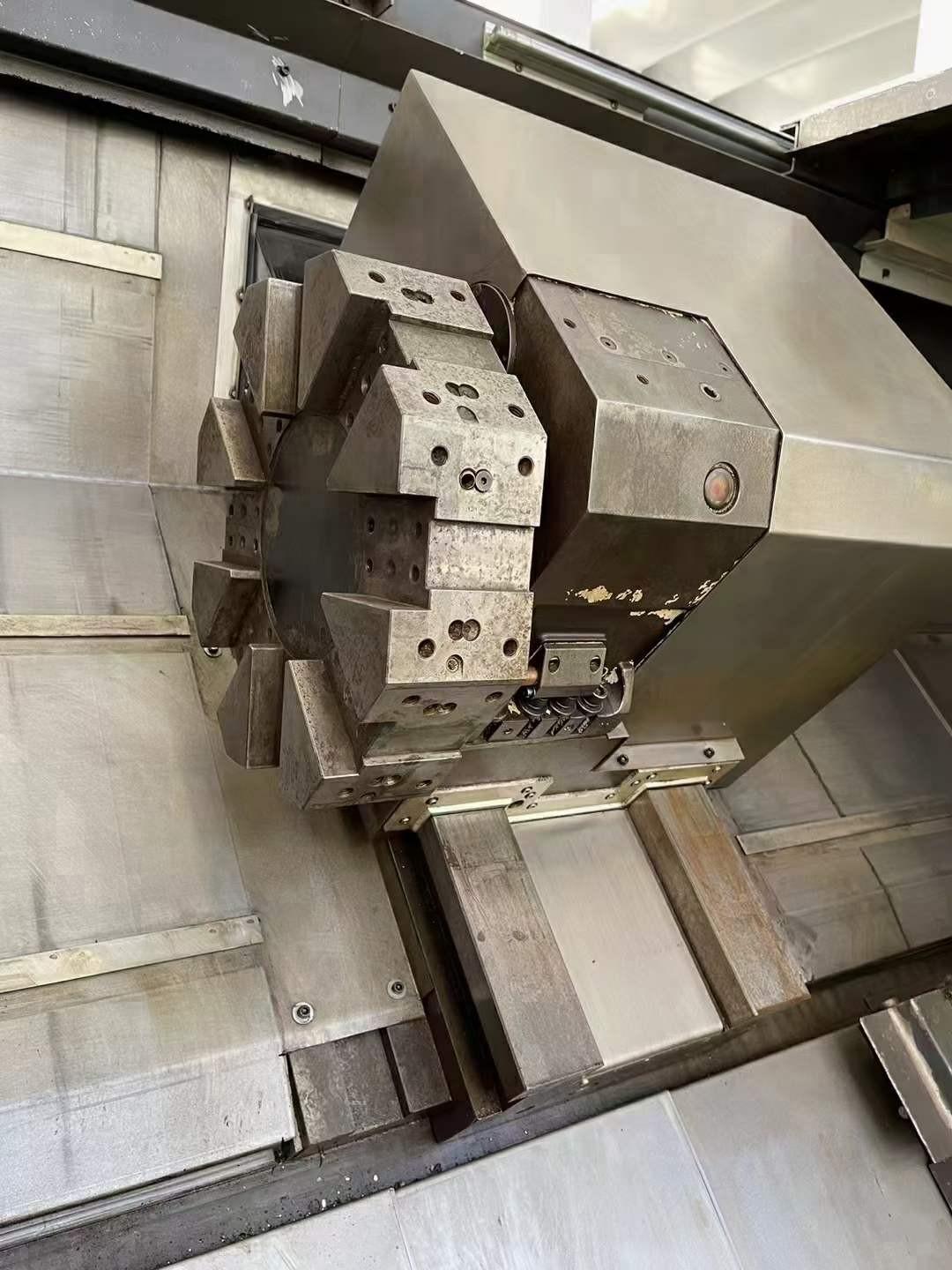

Taiwan LIO SHING 8-positions and large diameter hydraulic turret

With tailstock

Seldom used after installation

Guideway is bright as a mirror, with high rigidity and accuracy
