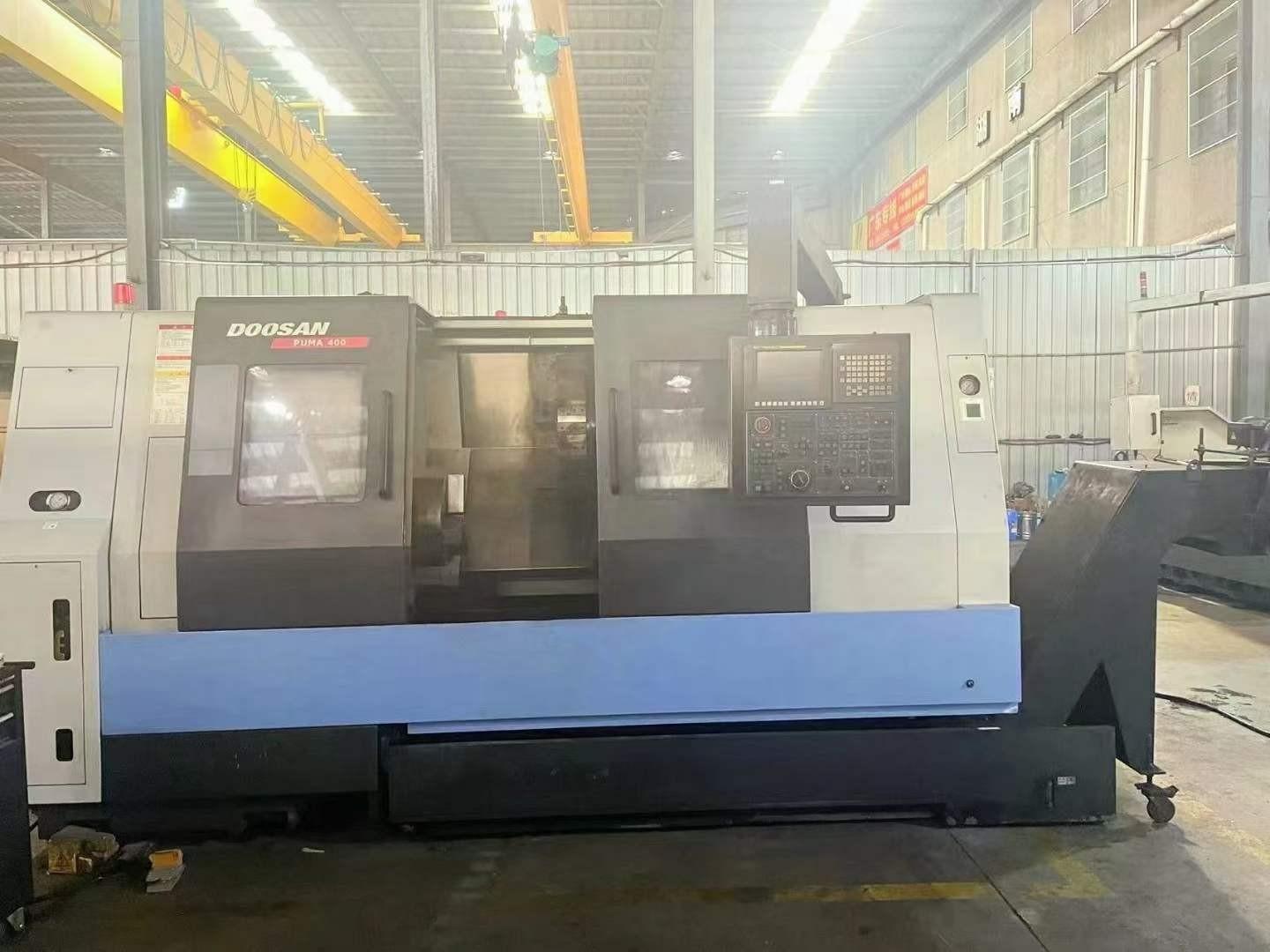

DOOSAN puma400 CNC inclined lathe

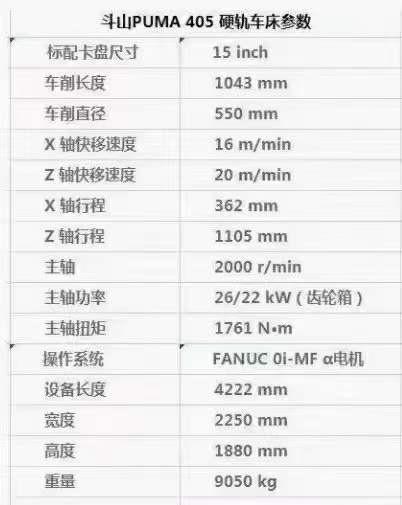

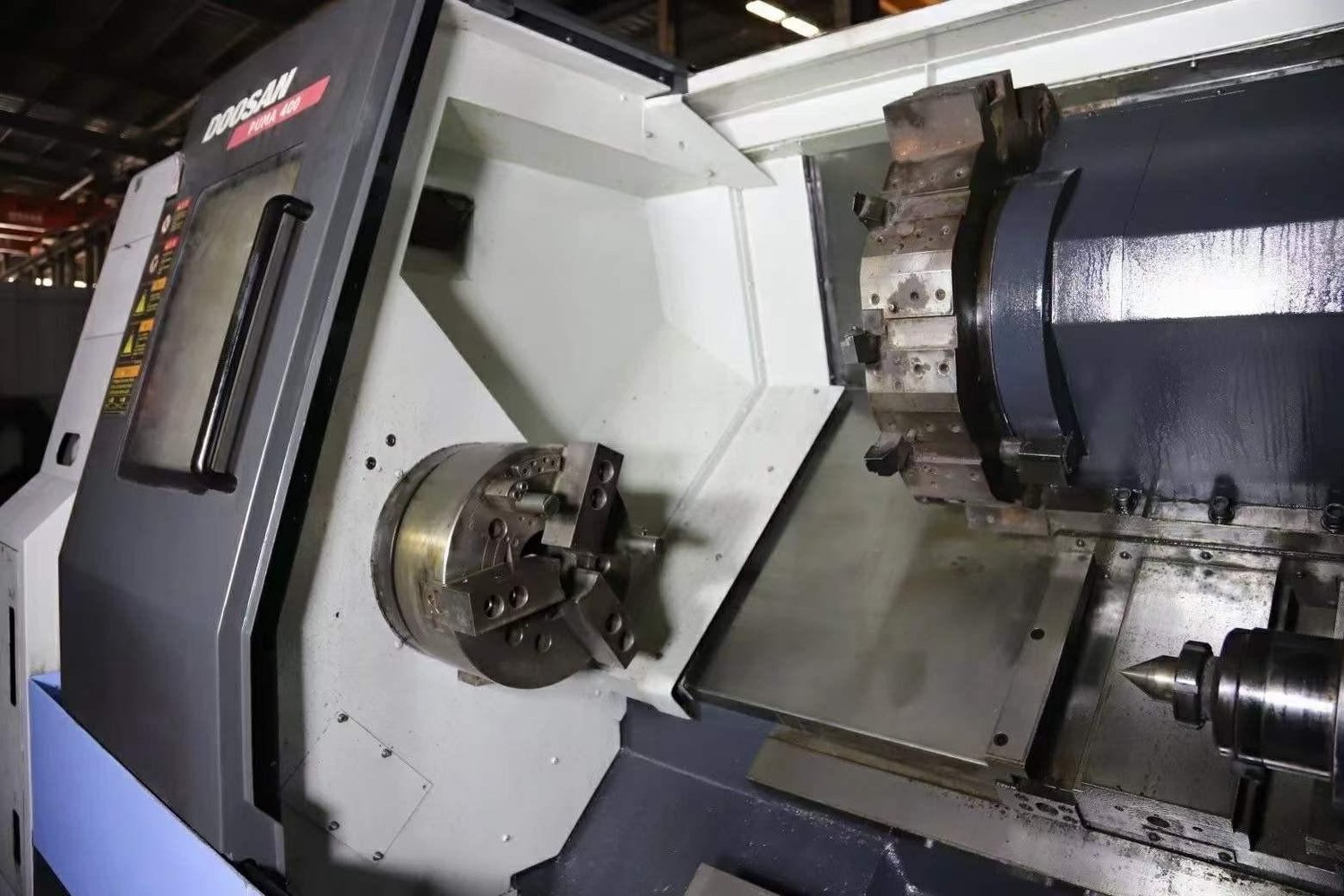

Standard chuck size 15 inches

Machining length 1043mm

Machining diameter 550 mm

X-axis fast moving rate 16m/min

Z-axis fast moving rate 20m/min

X-axis travel 362 mm

Z-axis travel 1105mm

Spindle speed 2000r/min

Spindle power 26/22kw (gearbox)

Spindle torque 1761 Nm

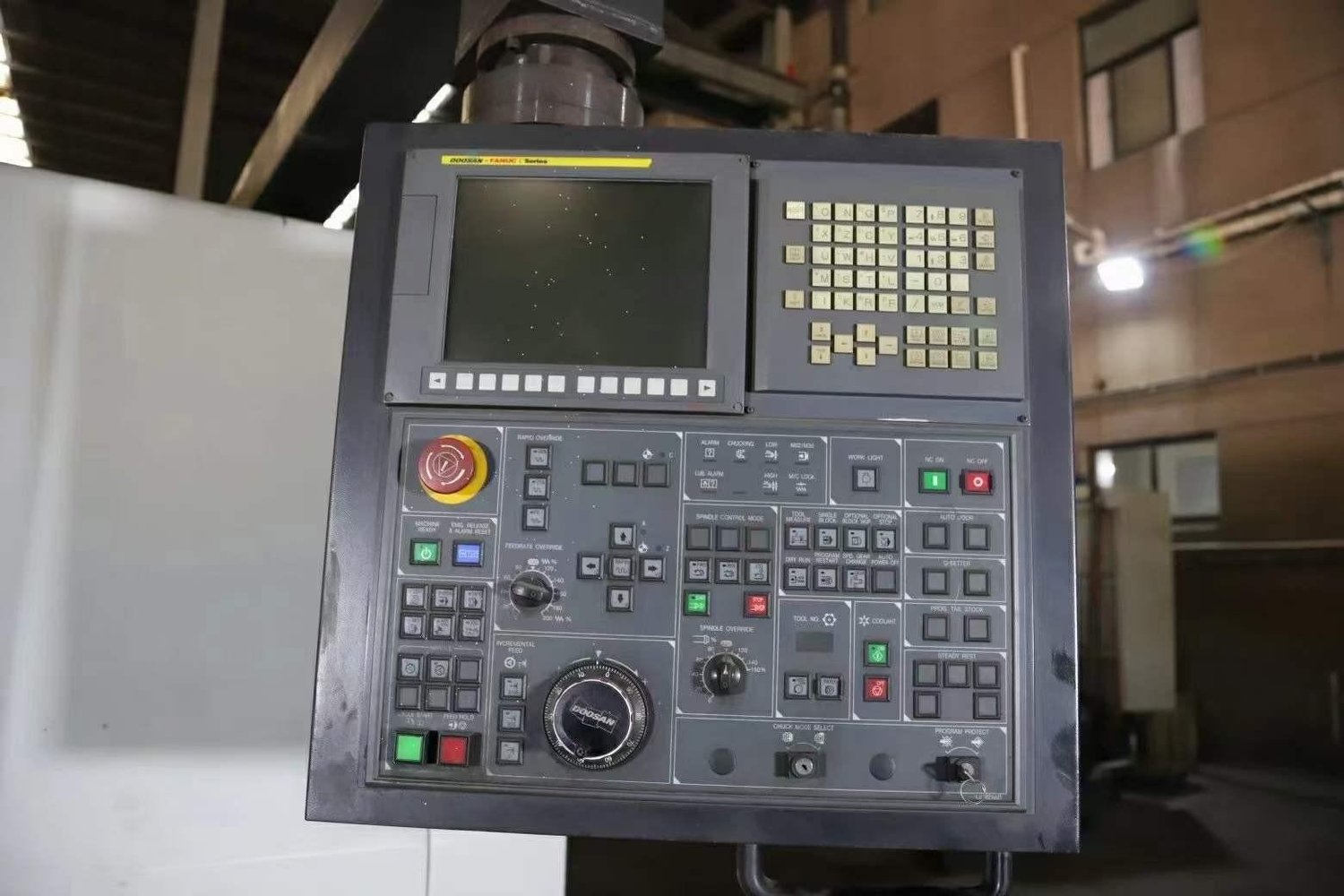

System FANUCOi-MFa

Machine size (length * width * height) 4222 * 2250 * 1880mm

Weight 9050 kg
