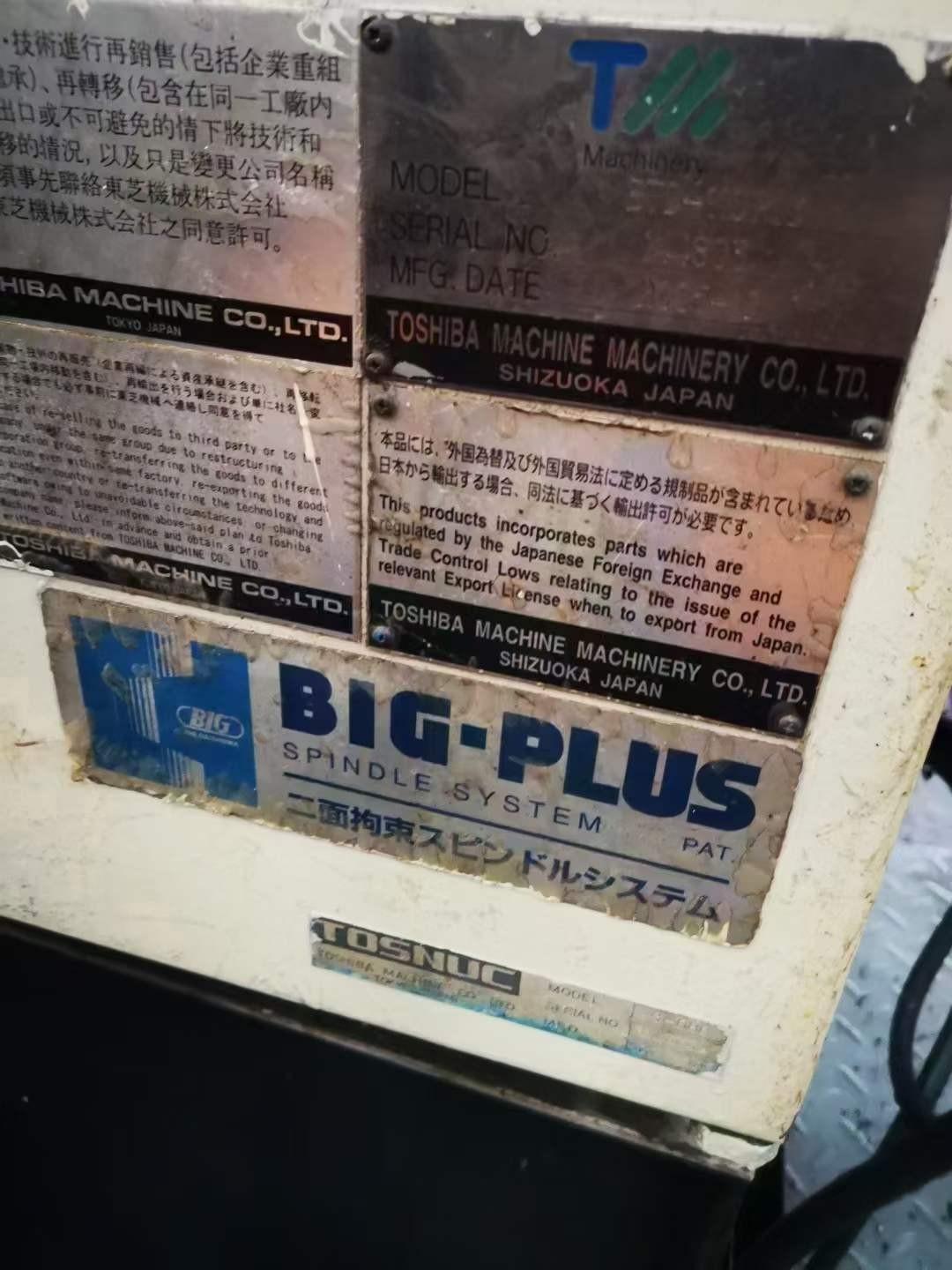

Toshiba BTD-110HR16 CNC boring machine

Spindle type: BT50

X/Y/Z/W axis travels: 2000/1500/1450/500mm

Distance from worktable to spindle center: 0-1500mm

Distance from worktable center to spindle surface: 550-2000mm

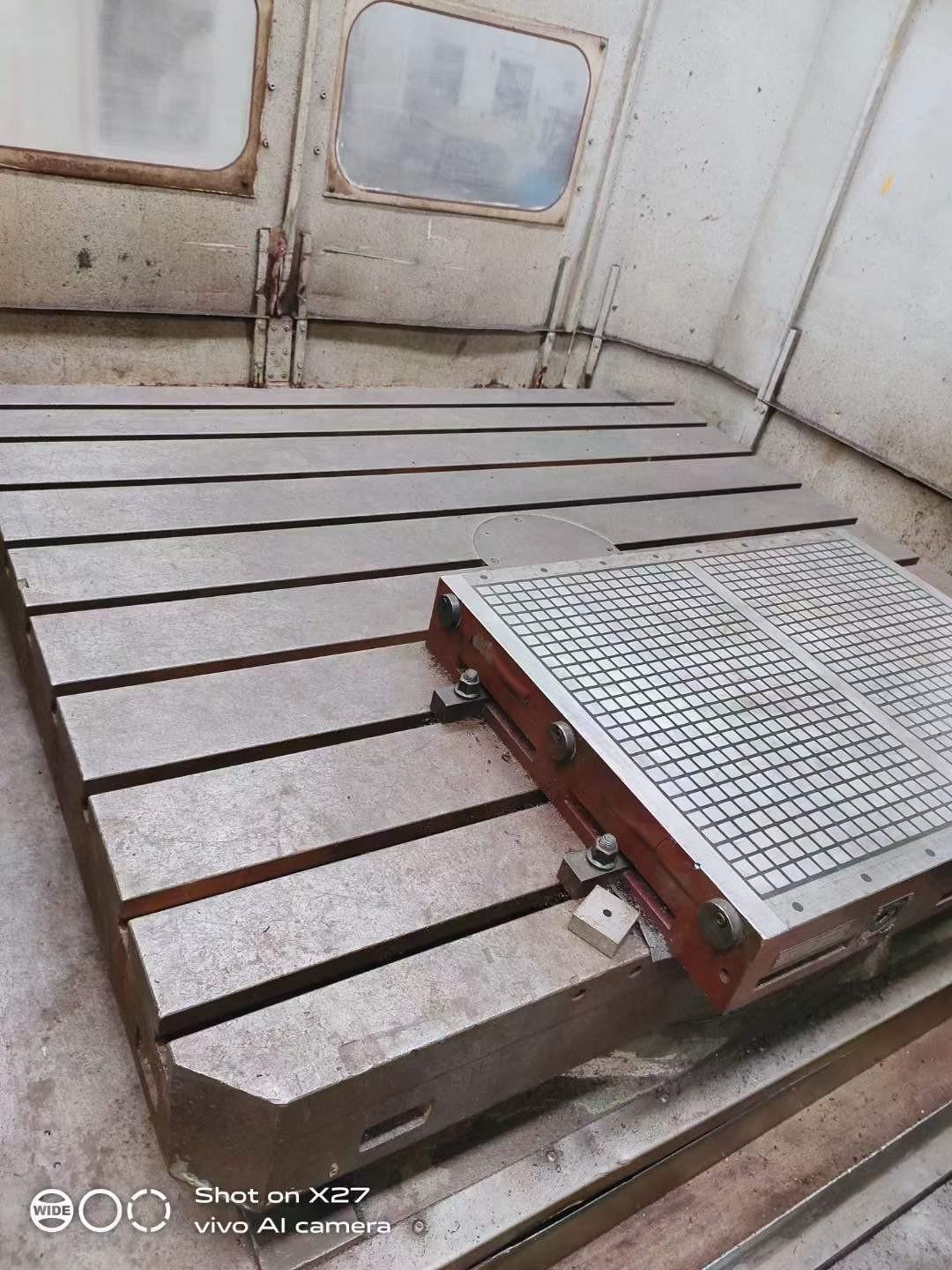

Worktable size: 1400 * 1600mm

Worktable load: 6300kg

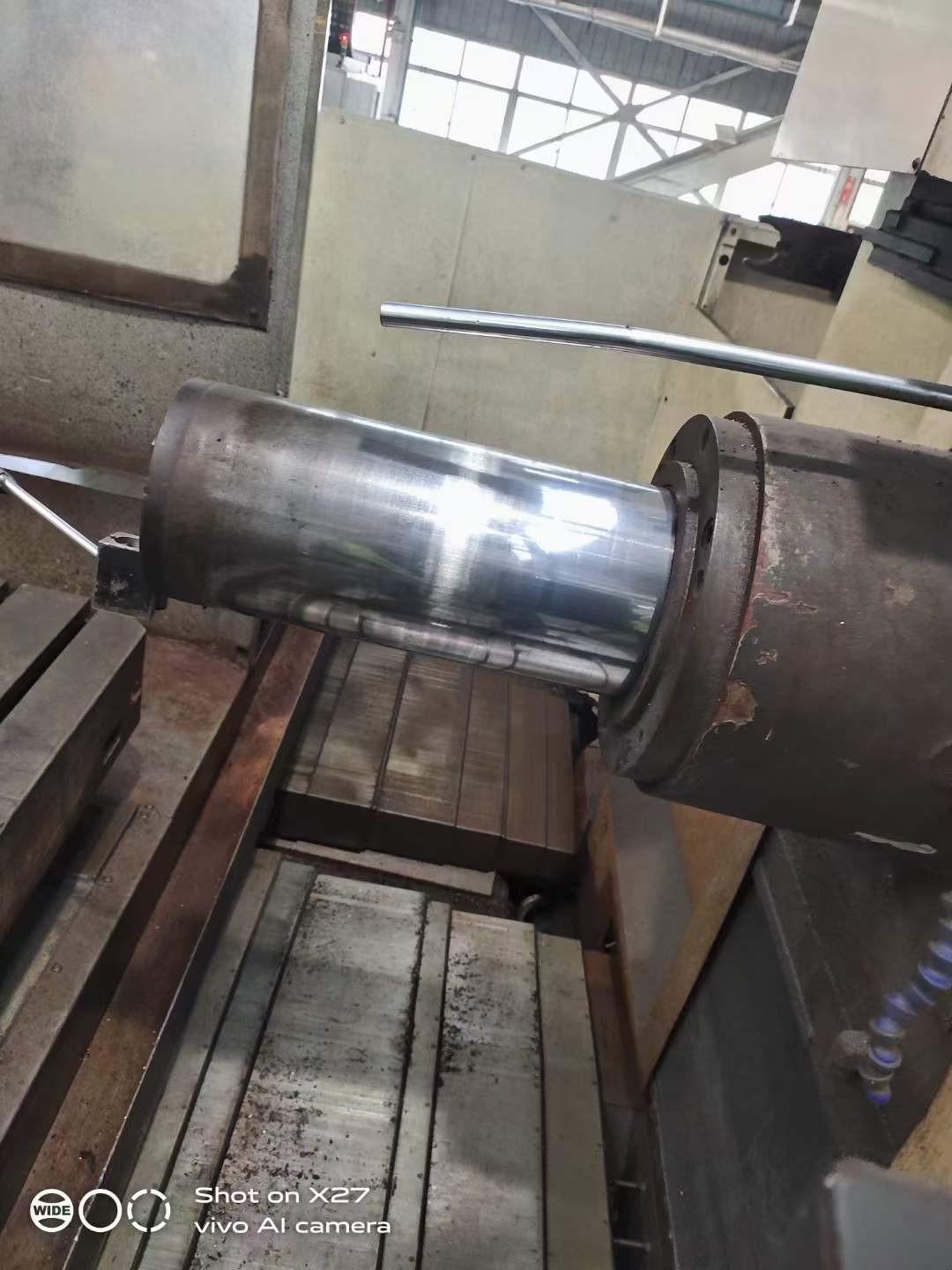

Spindle diameter: 110mm

Spindle speed: 5-3000rpm

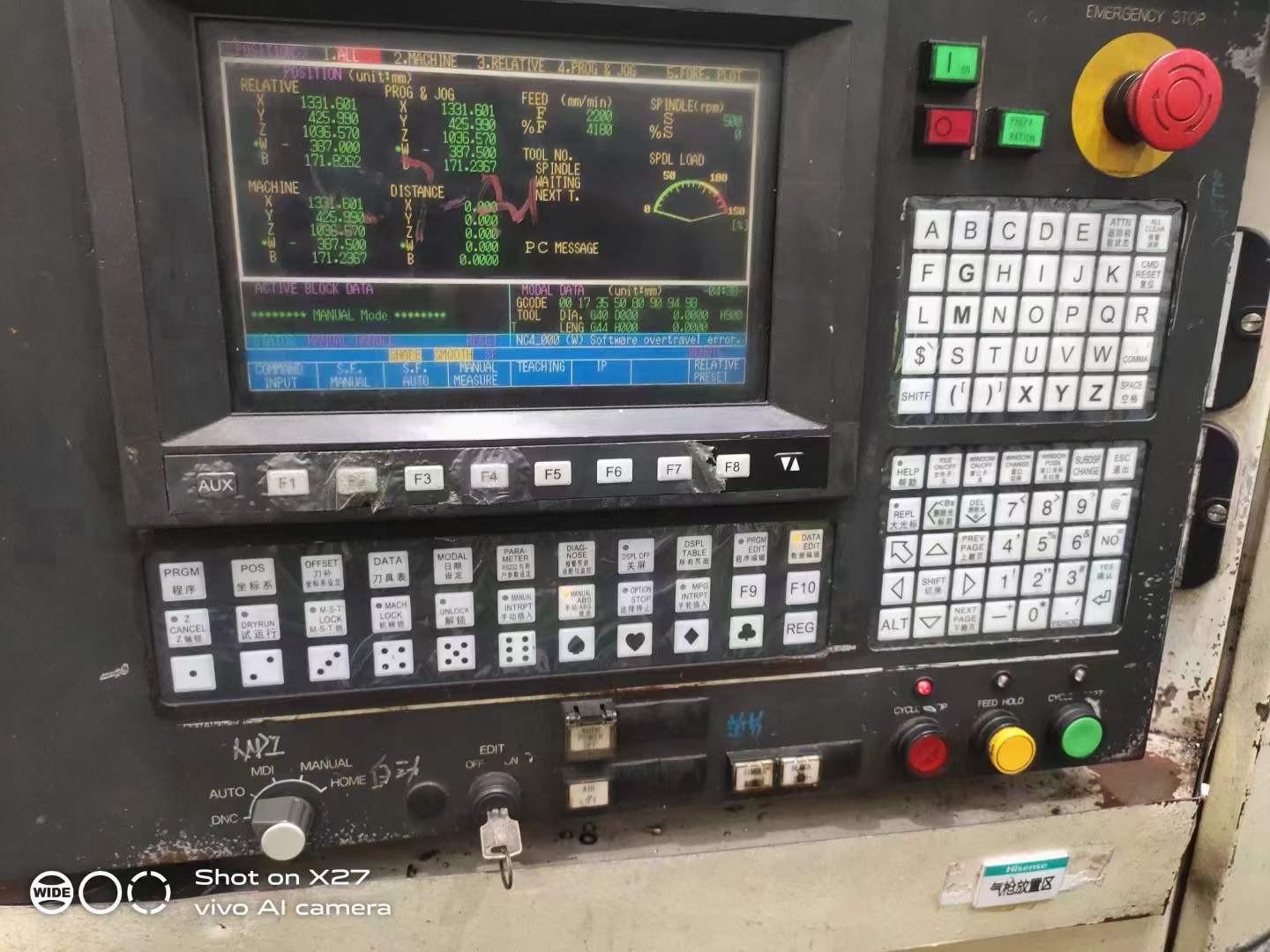

System: Toshiba 888

X/Y/Z/W axis fast feed rate:12/12/12/5 m/min

W-axis feed rate: 1~6000mm/min

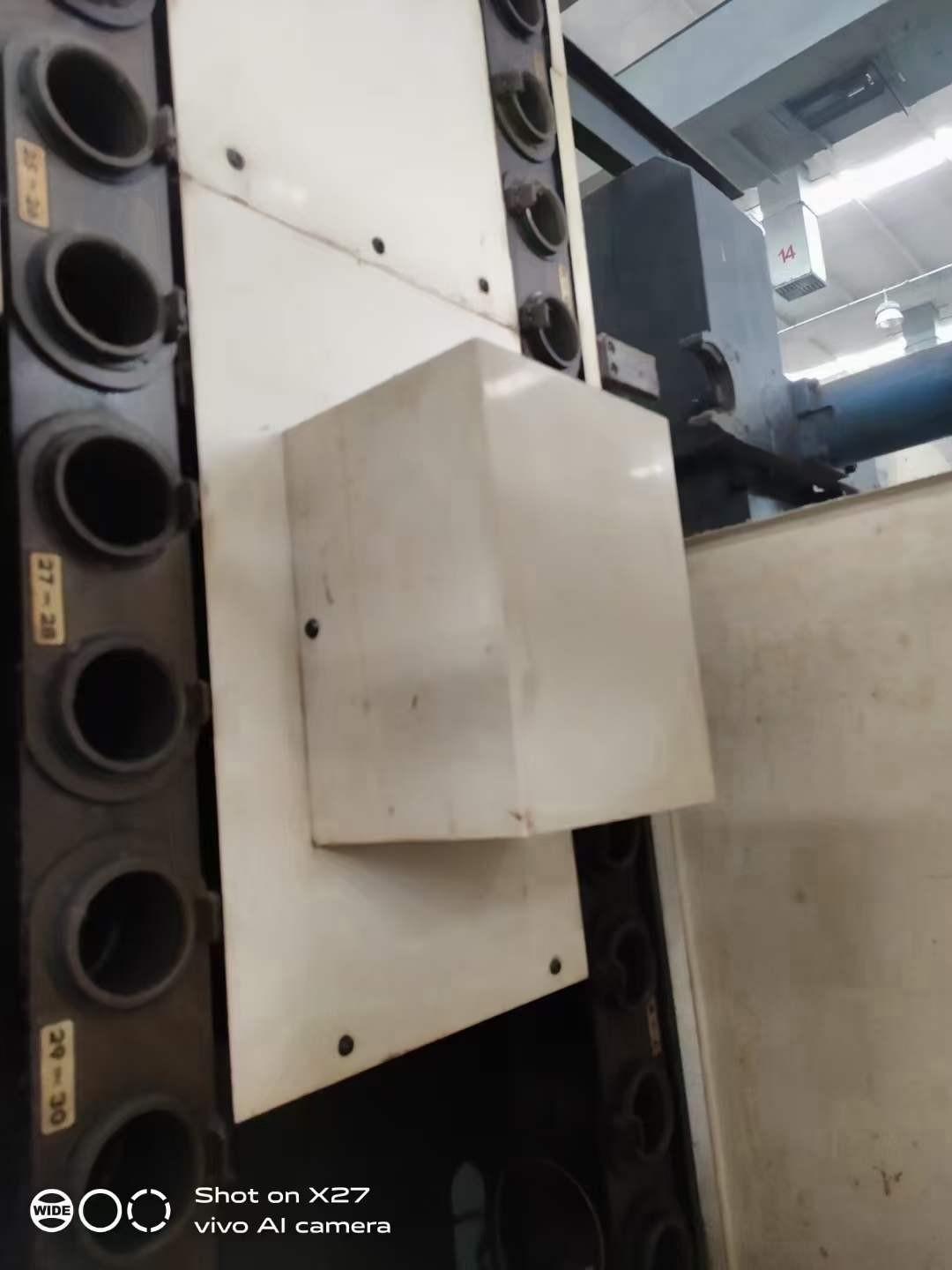

38 tools magazine

B-axis with fully close-loop glass scale

XYZ axes with glass scale

Spindle with center flushing

Rigid guideway

Five axes,four axes simultaneous movement
