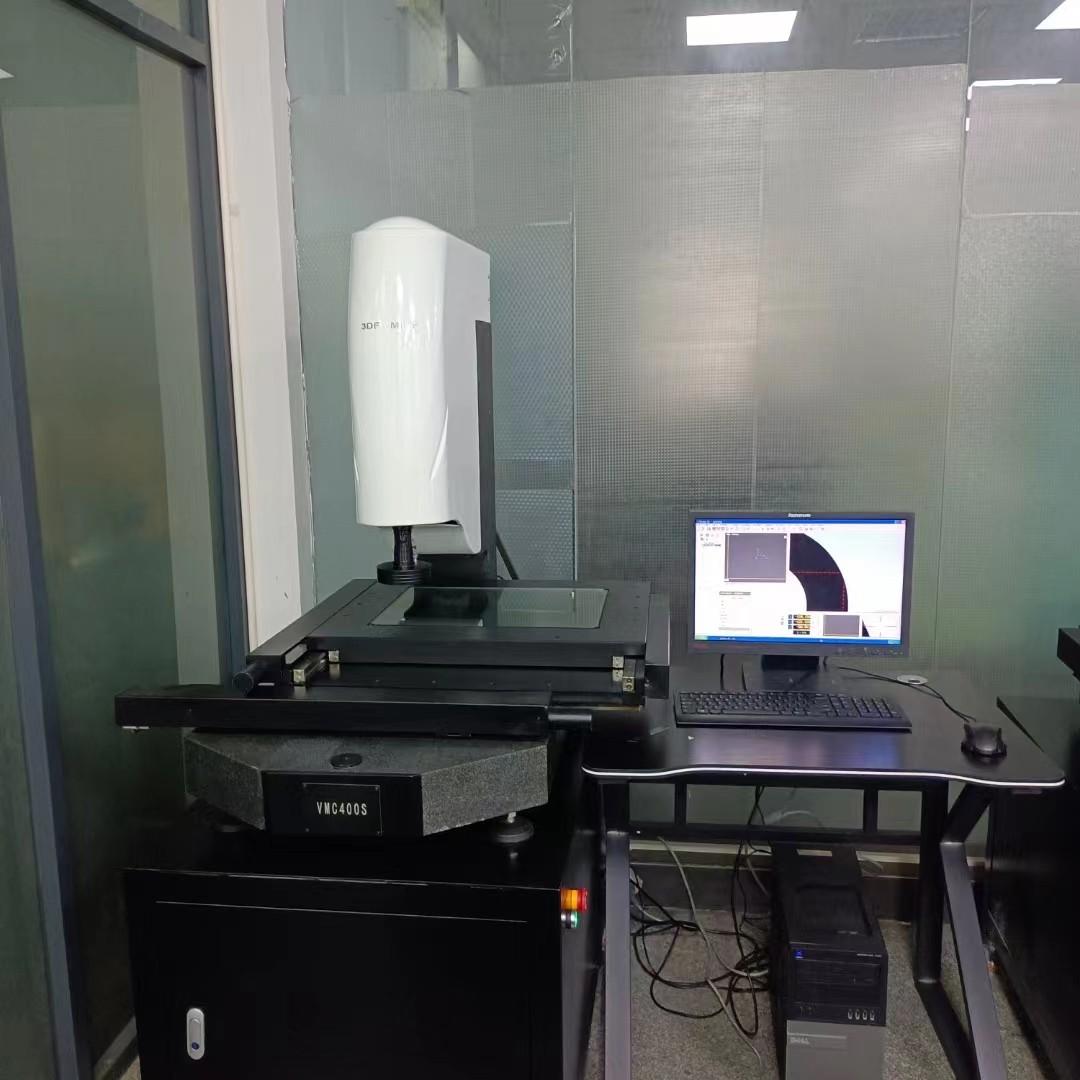

3DFamily 4030 Lathe

Travel: 400x300x200mm

Machine footages: 800x500x1650mm

CCD:   430,000 pixels, colourful

Lens: 3DFAMILY-P type stop-motion clip lens

Magnification: Optical magnification: 0.7-4.5x; Image magnification: 28-180x

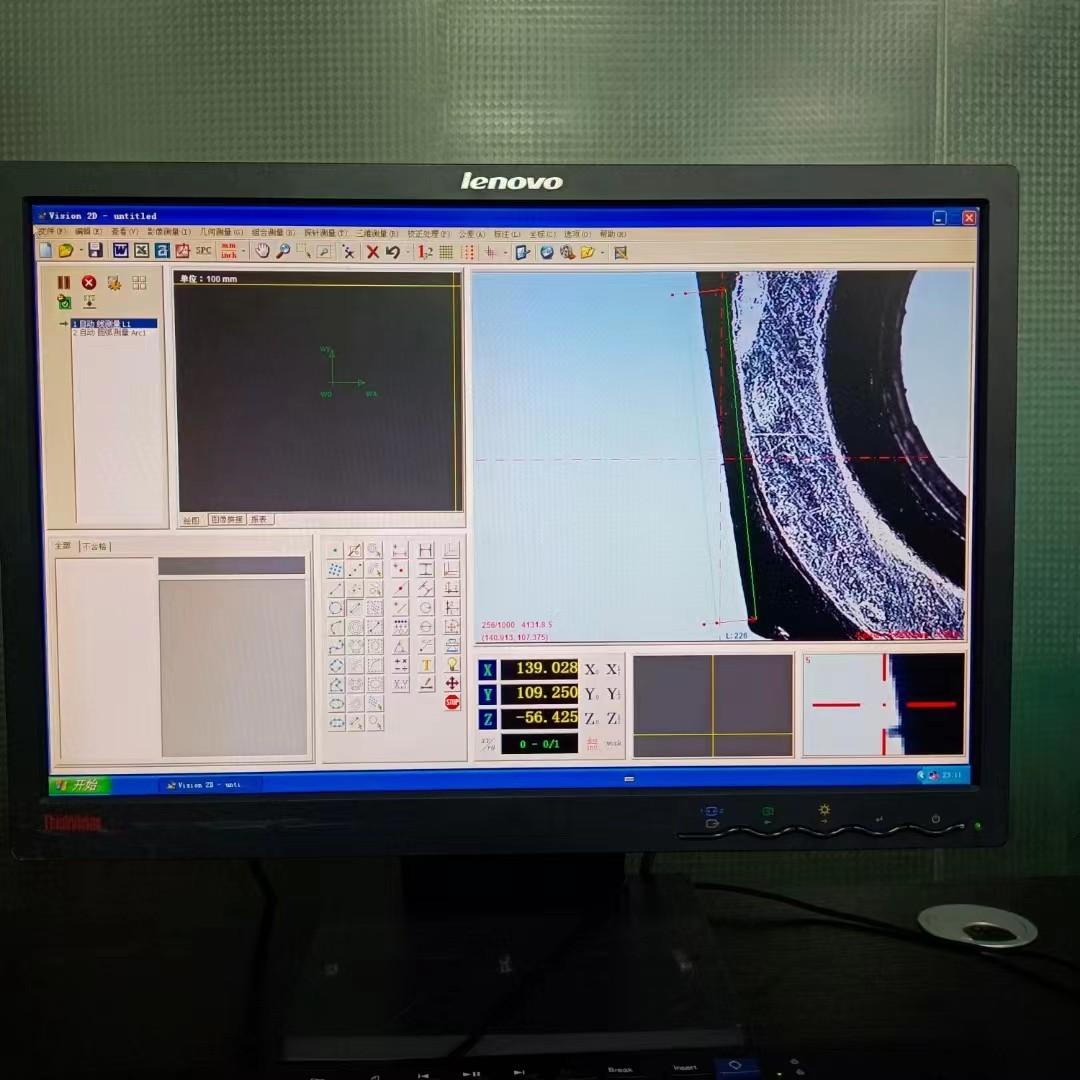

Software: OVM Pro 3.0

Optical scale resolution 1μm

Repetition accuracy   2 MIKRONs

Measurement accuracy (3+L/200) μm

Worktable load 30kg

Power supply: 110V ~ 220V±10%  50/60HZ

Temperature: 20±5℃

Humidity: 45%-75%
