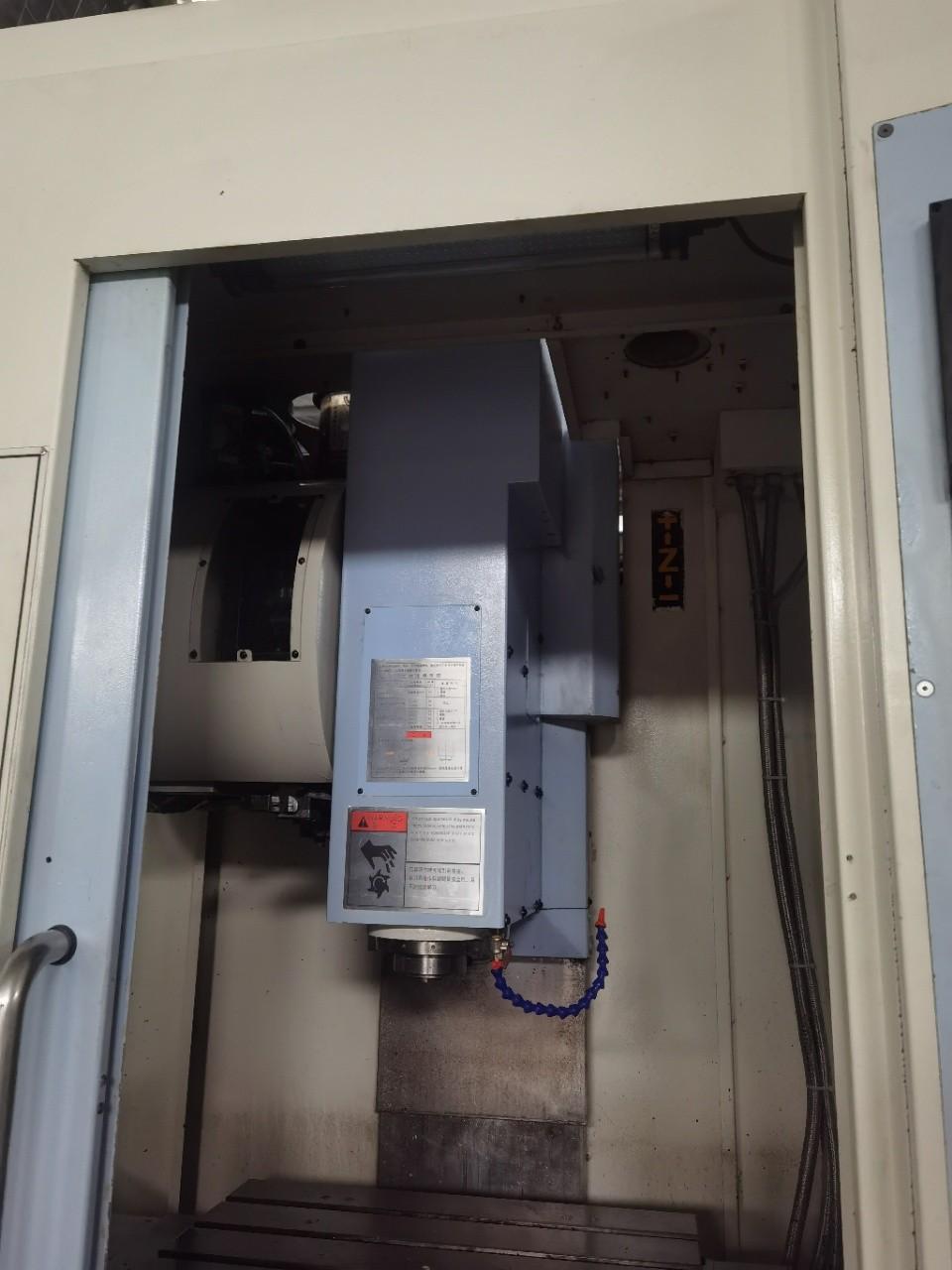

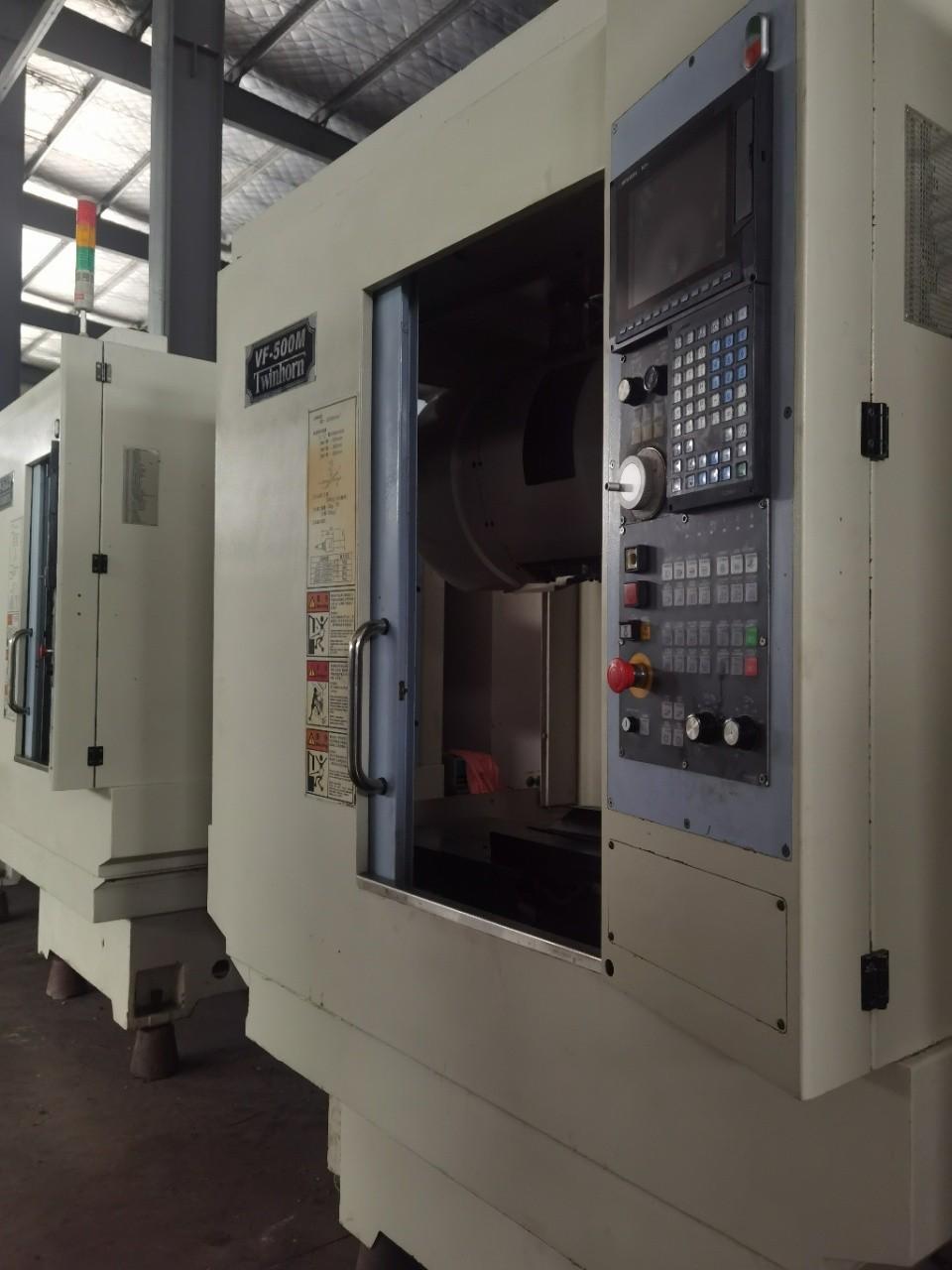

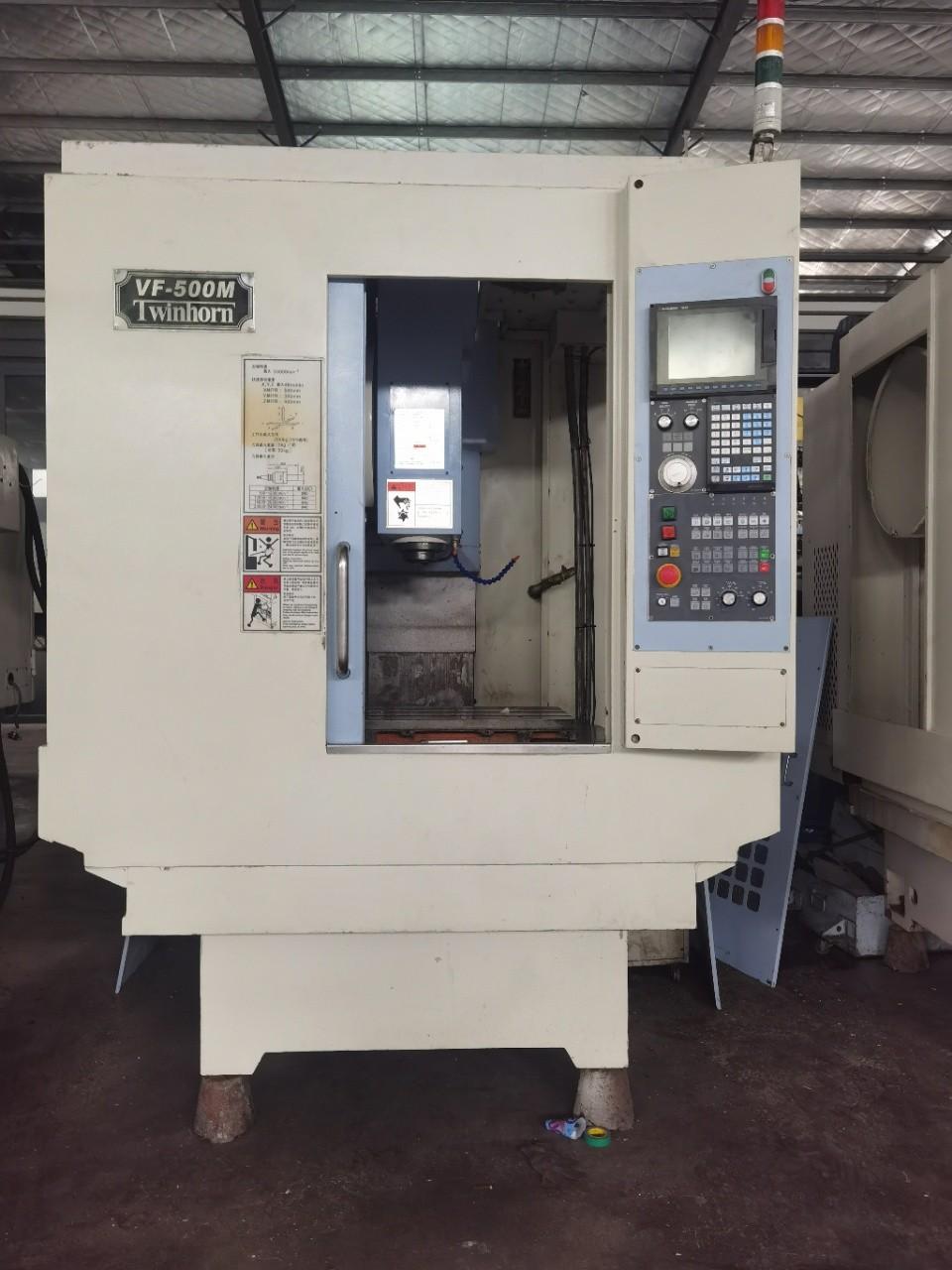

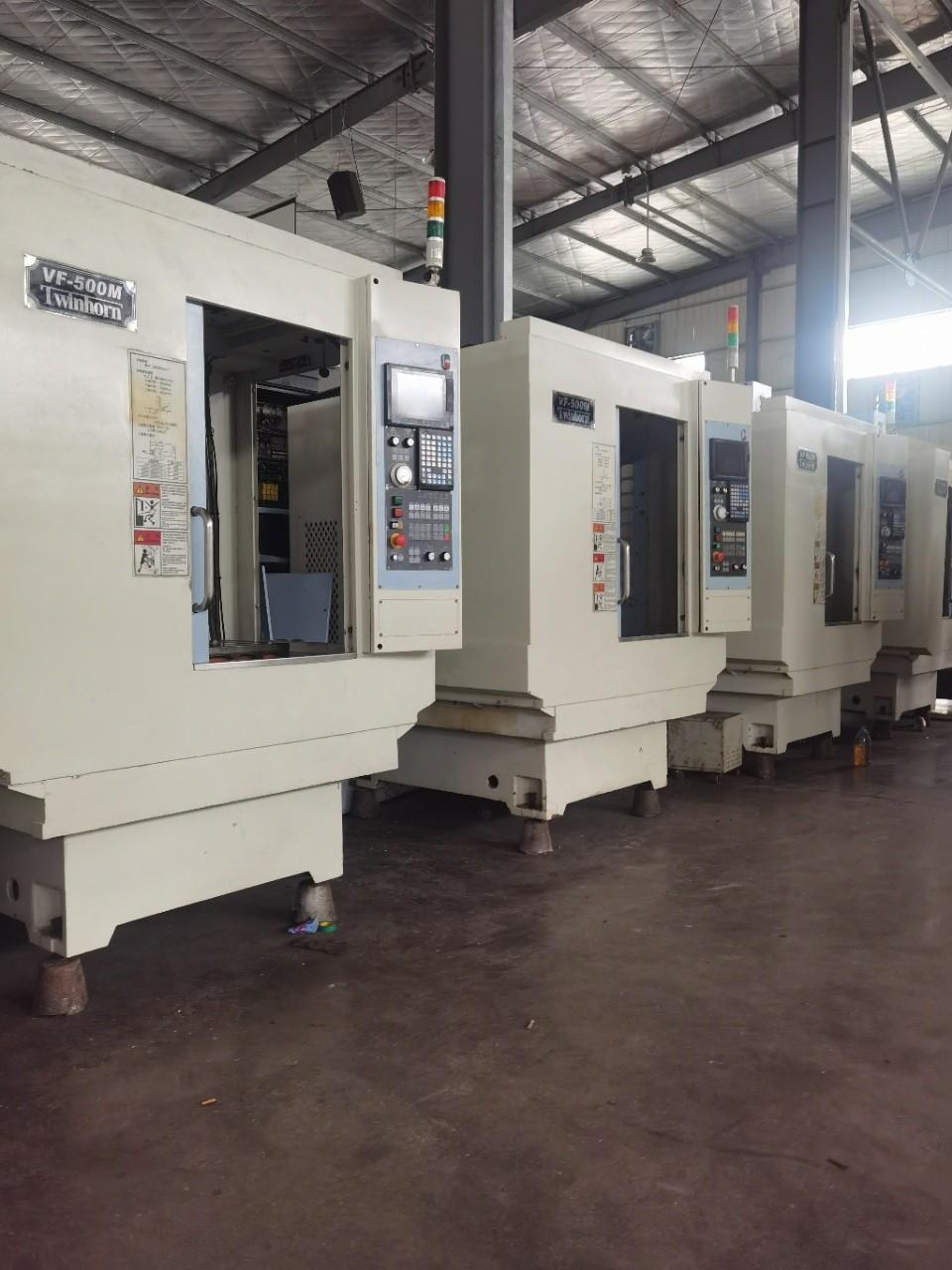

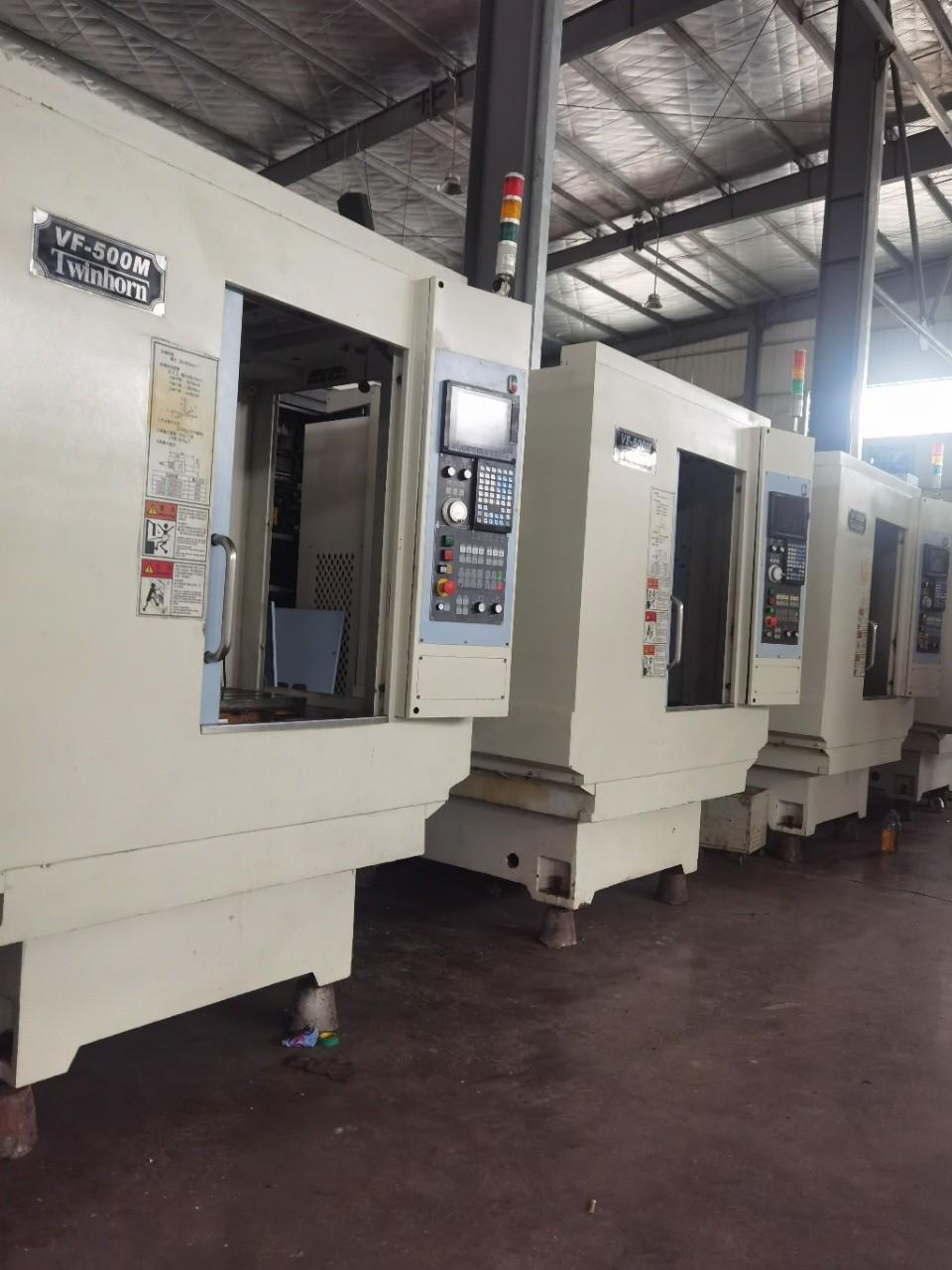

Twinhorn VF-500 Tapping machine

X axis travel :500mm

Y axis travel :380mm

Z axis travel :400mm

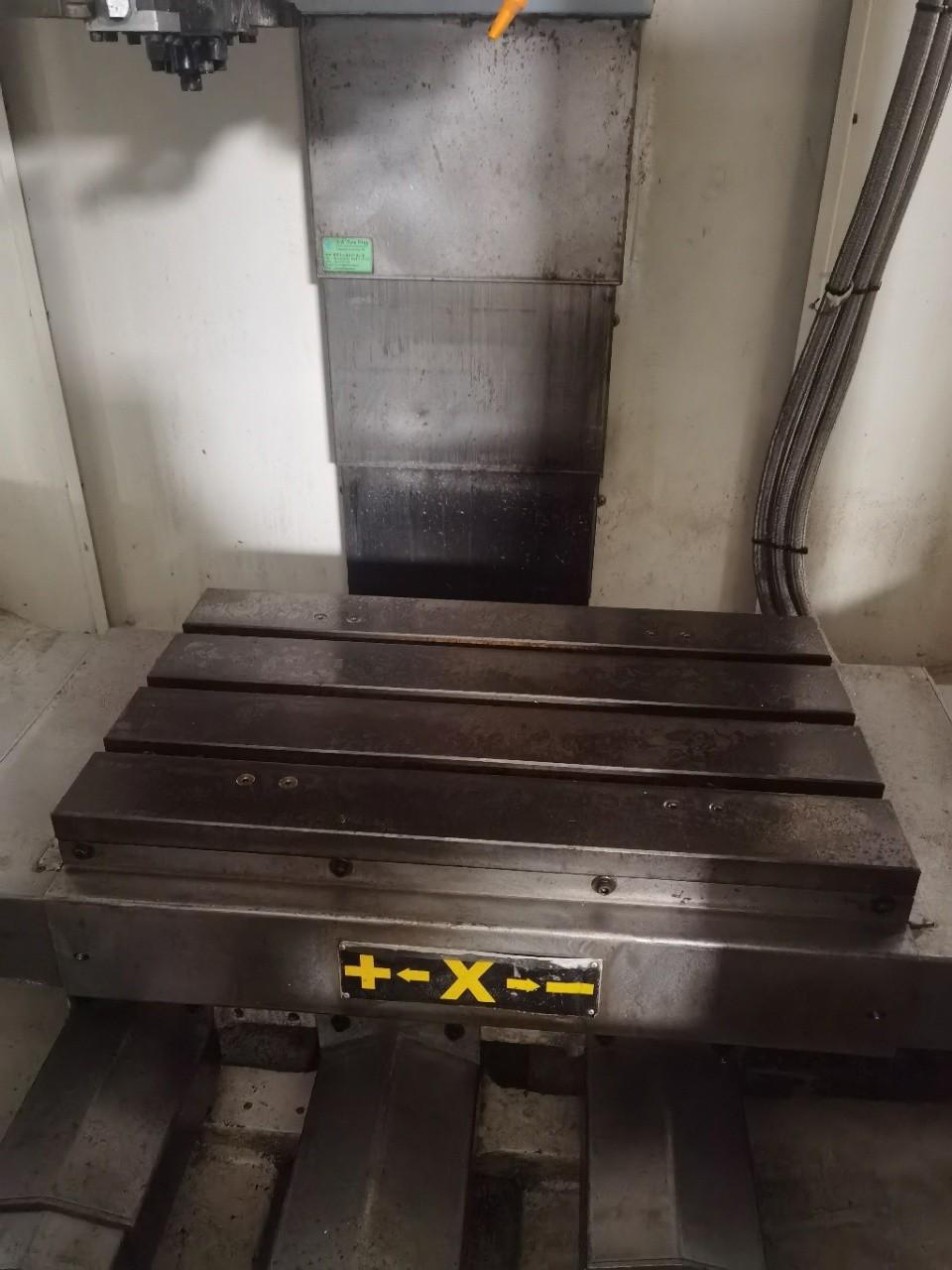

Worktable size :650× 380mm

T-slot (quantity × size × distance): 3×18 mm×100 mm

Maximum worktable load: 200kg

Distance from spindle nose to worktable: 150-550mm

Distance from spindle center to machine body front: 430mm

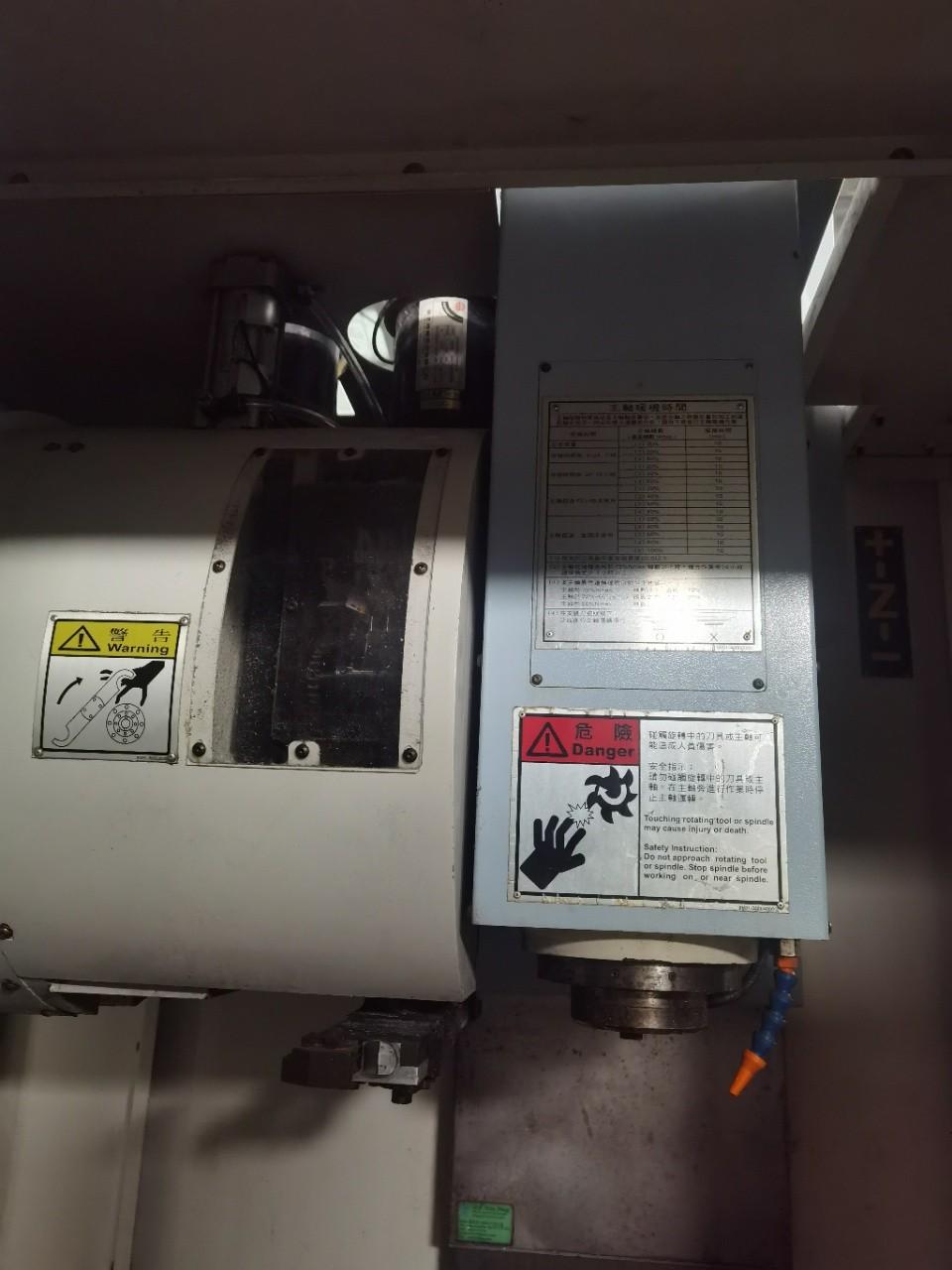

Spindle taper: 7/24 NO.30

Spindle speed (direct connected type) : 20000rpm

Spindle bearing diameter: 50mm

Fast moving rate (X/Y/Z) : 48/48/48 m/min

Cutting feed rate: 10 m/min

Ball screw diameter & pitch: 32mm, P16

Repetition accuracy: PS 0.010mm

Tool holder: BT30

Number of tool arm type tools: 20

Tool changing time: 60Hz/T-T 1s, C-C 2.5s

Broach Screw: MAS 403 P30T-1

Maximum tool diameter (with adjacent tool) : 60mm

Maximum tool diameter (without adjacent tool) : 100mm

Maximum tool length: 200mm

Maximum tool weight: 3kg

Spindle motor: 3.7kw / 5.5kw (15min)

Feed axis motor (X/Y/Z) : 1.5/1.5/2kw

Power supply capacity: 9KVA

Pressure capacity: 5~6kg/cm², 150L/min

Machine footages (W×D×H) : 1624×2160×2370㎜

Machine weight: 2800kg
