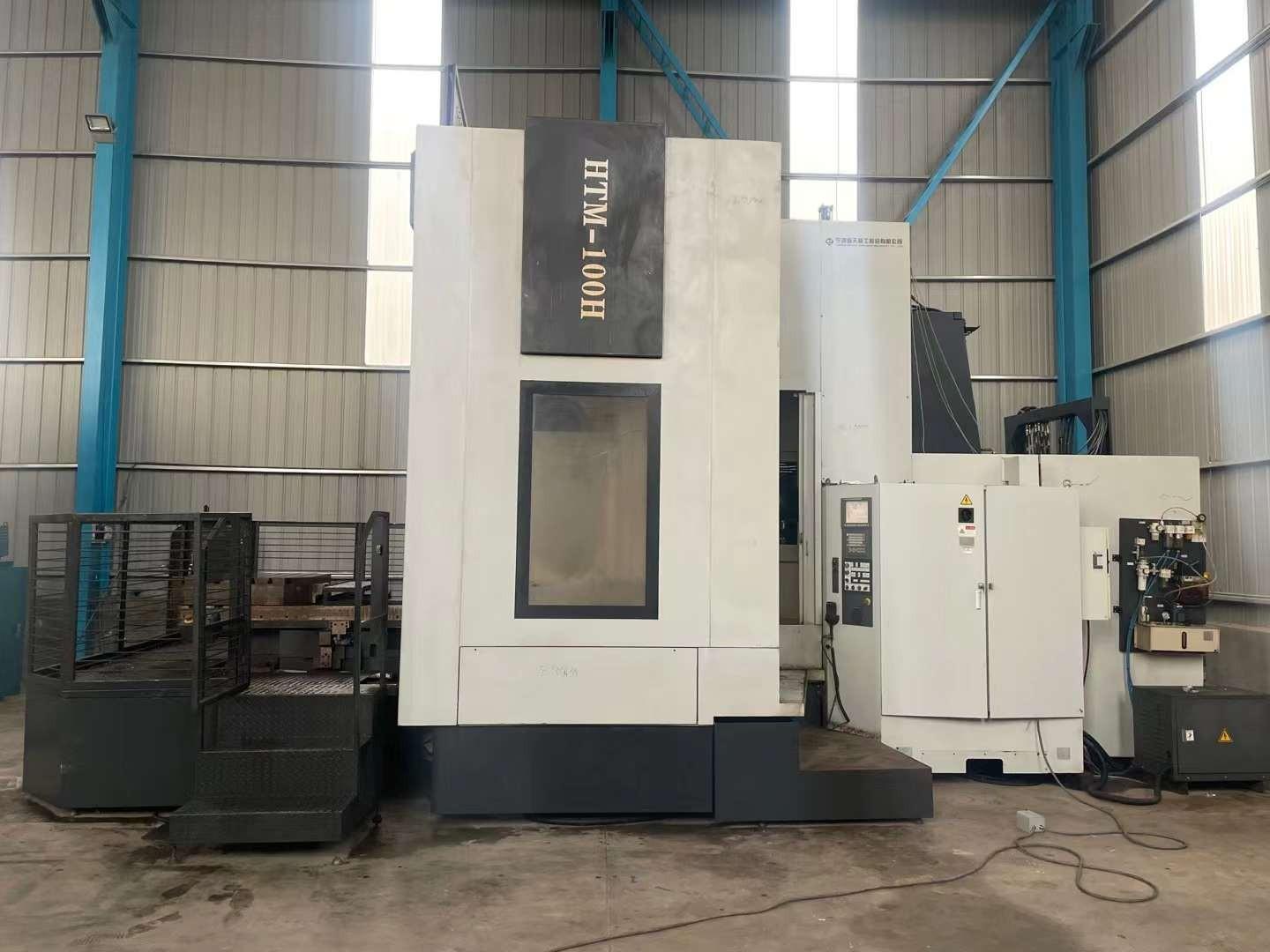

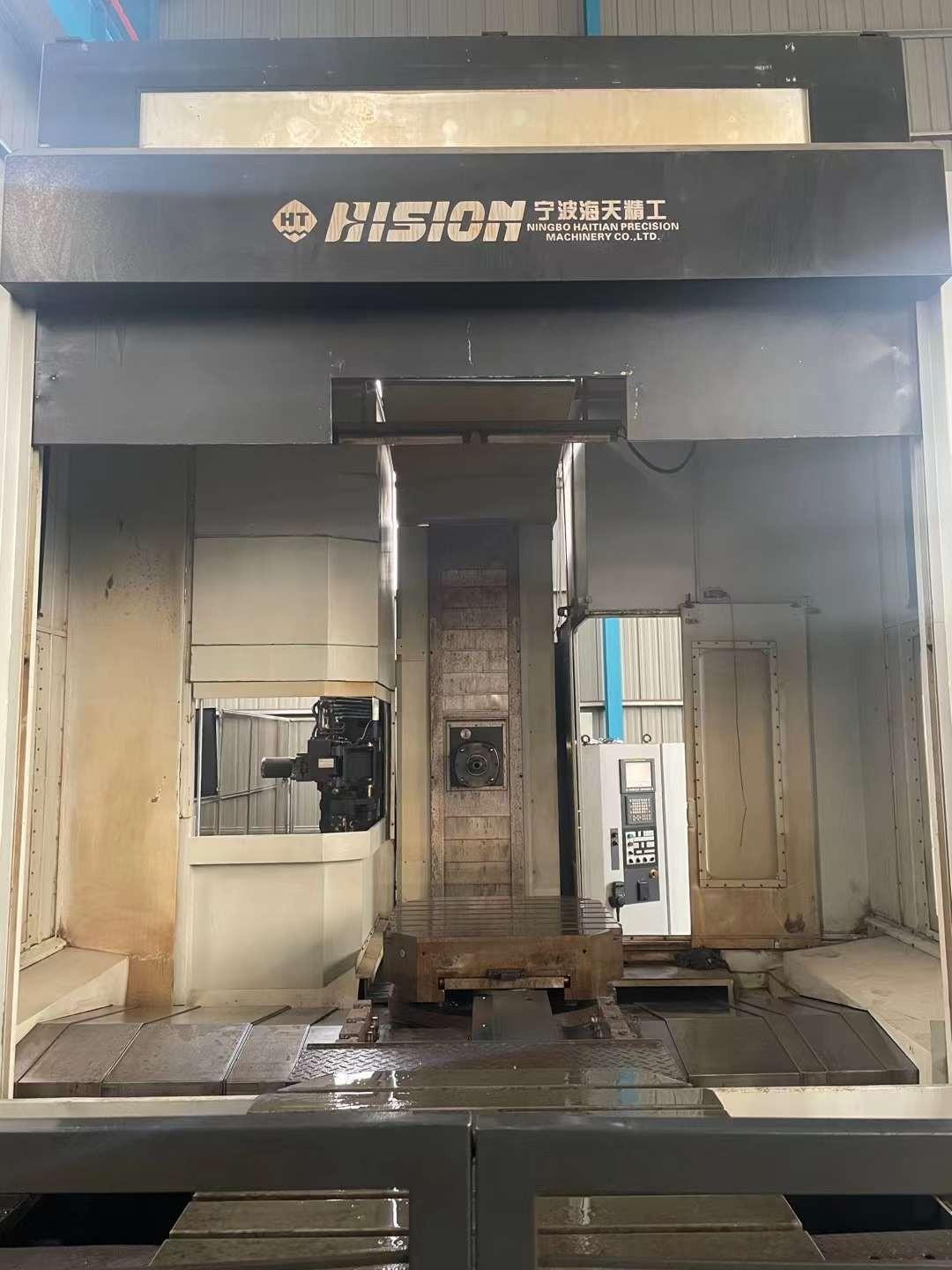

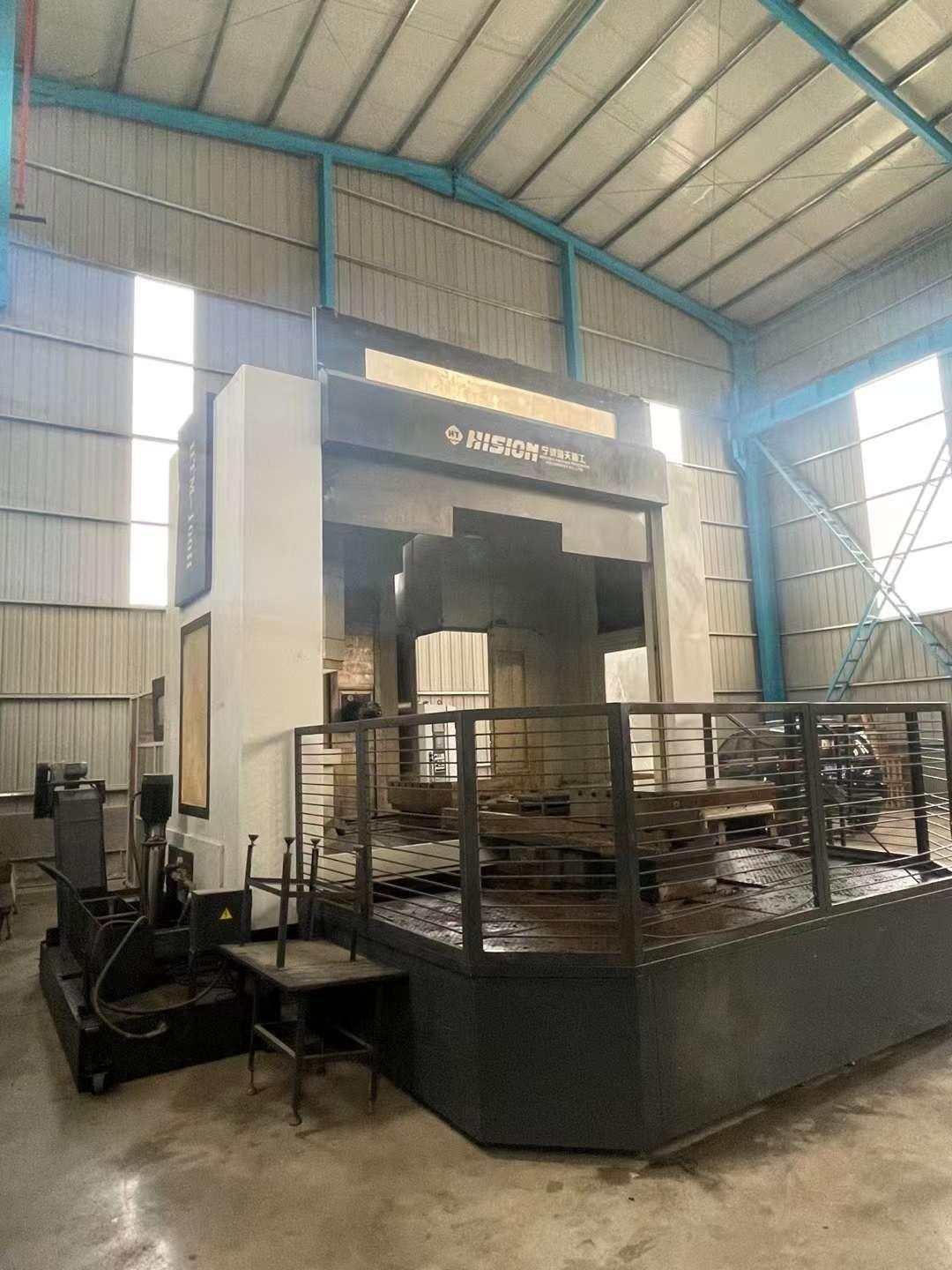

Hision HTM-100H Horizontal Machining centre

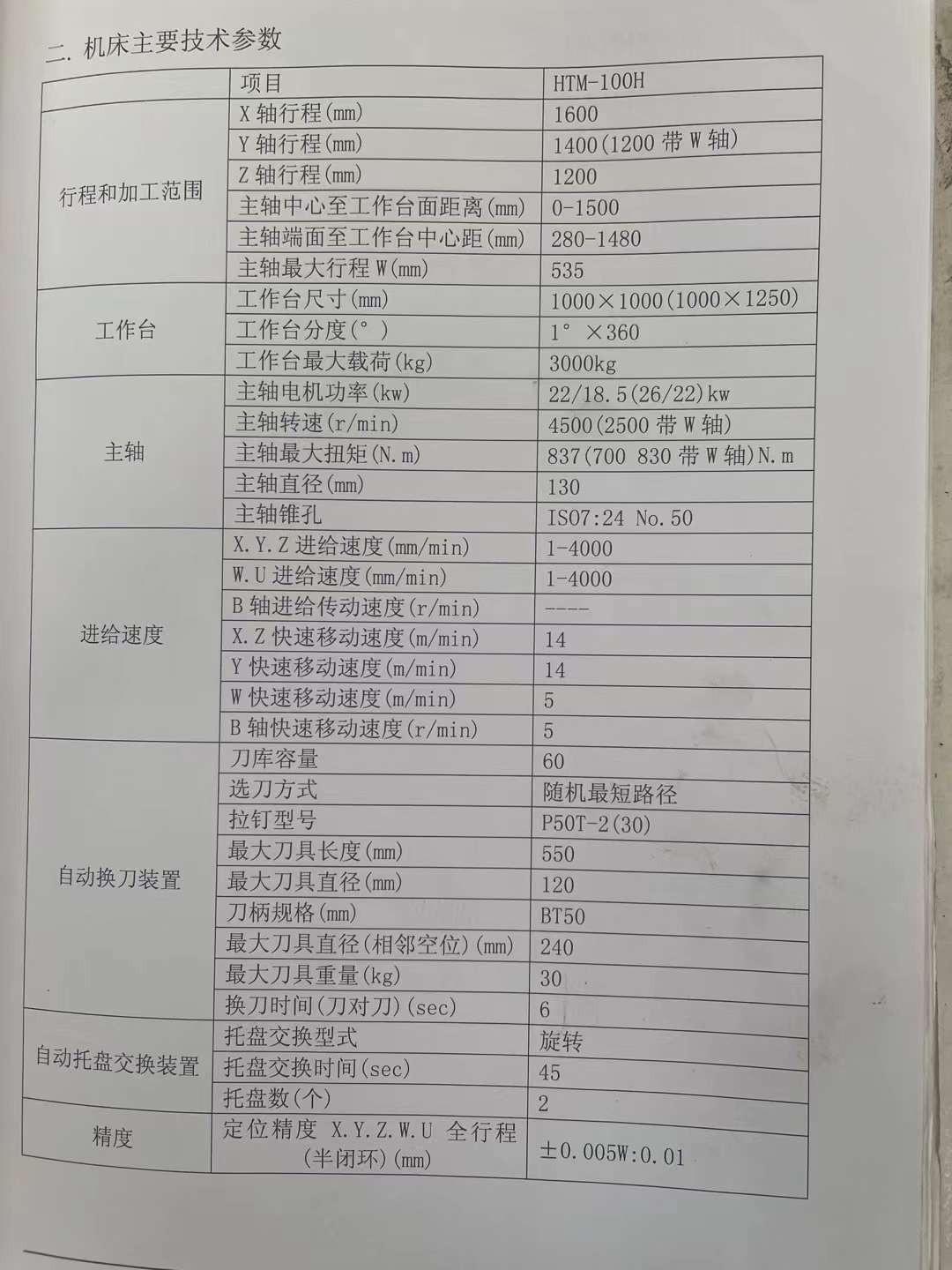

X axis travel: 1600mm

Y-axis travel: 1400mm

Z-axis travel: 1200mm

Distance from spindle center to worktable surface: 0-1500mm

Distance from spindle nose to worktable center: 280-1480mm

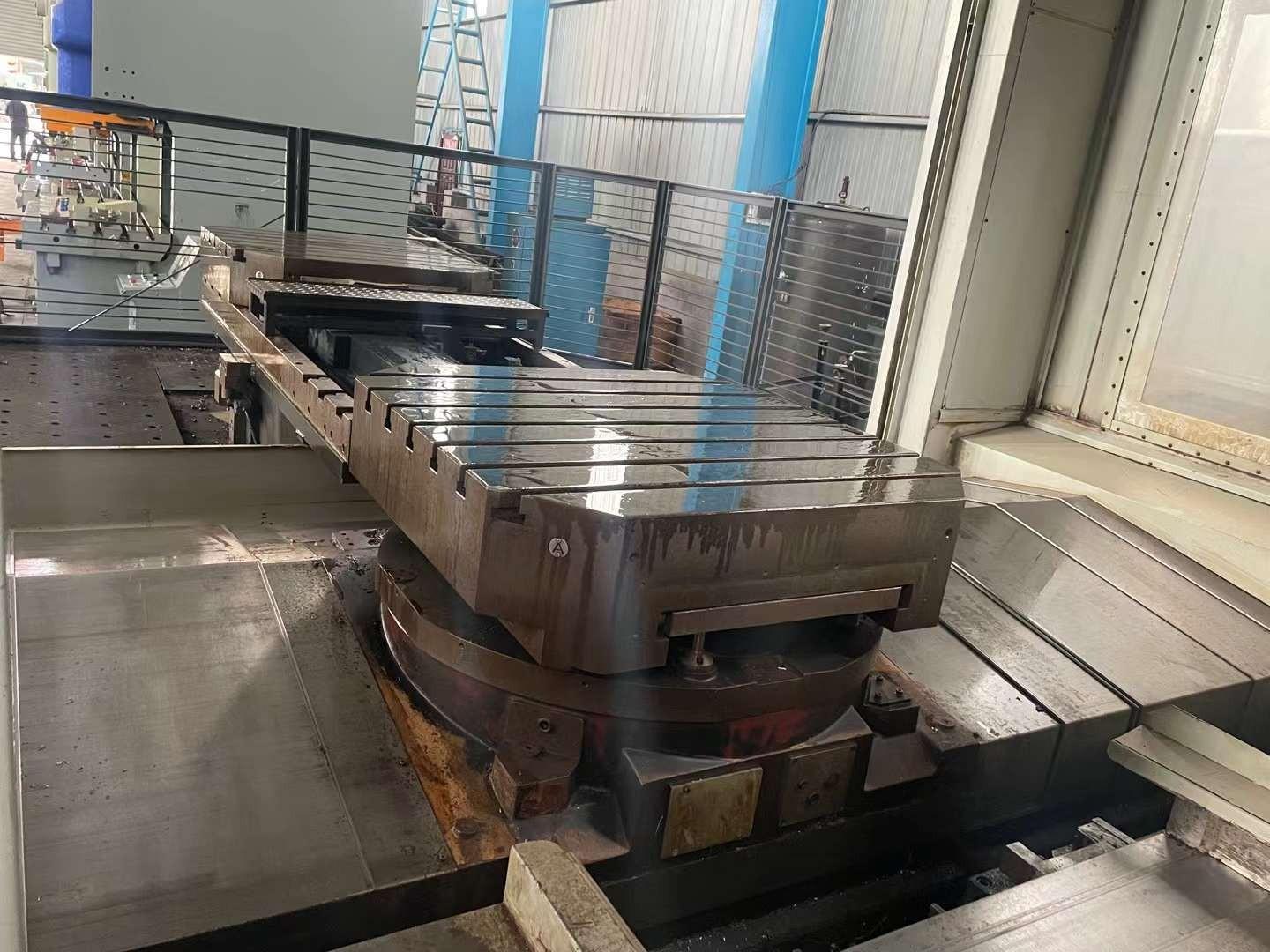

Worktable size: 1000 x 1000mm

Worktable indexing resolution: 1×360°

Worktable load: 3000kg

Spindle motor power: 22/18.5kWAC

Spindle speed: 20-4500rpm

Spindle torque: 837N.m

Spindle taper: No.50

Fast feed rate: 14m/min

Cutting feed rate: 1-4000mm/min

Tool holder form: BT50
