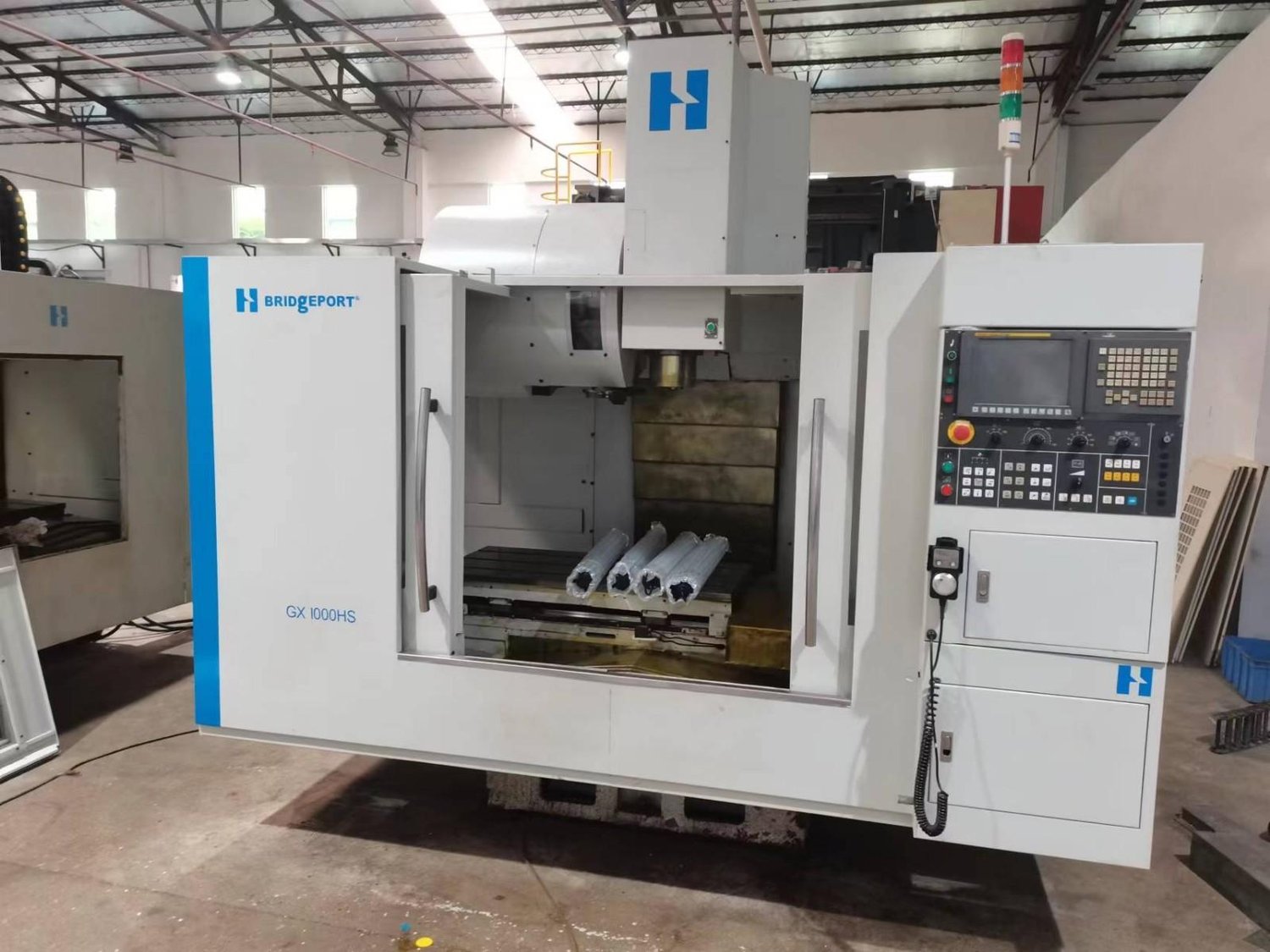

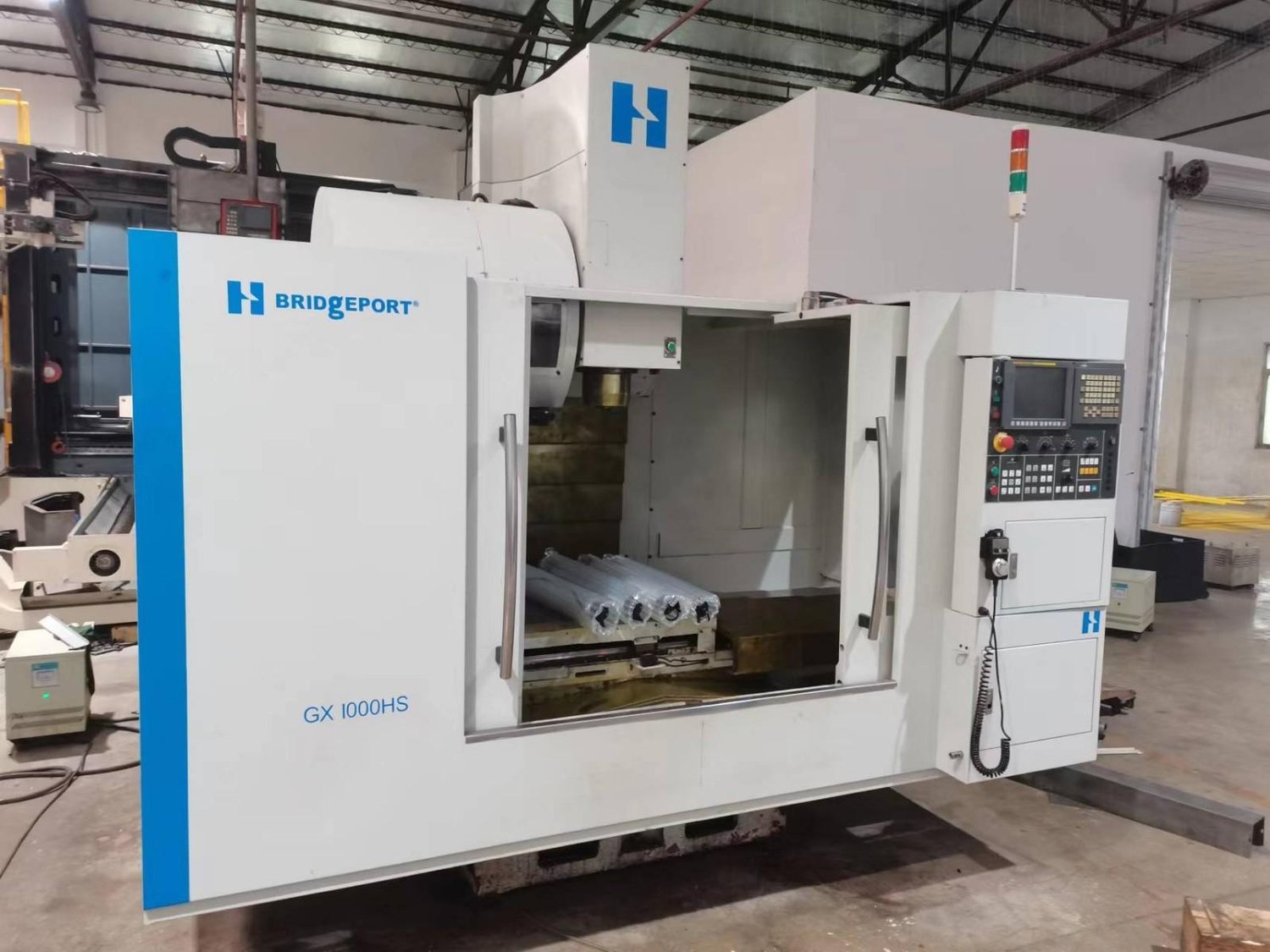

HARDINGE GX-1000HS Machining centre

Three-axis stroke: 1020x540x540mm

Distance from spindle nose to worktable 145-685mm

The distance from the front end of the workbench to the door edge is 1836mm

Distance from spindle center to column 584.2mm

Workbench size 1120x540mm

Working platform bearing 800kg

T-shaped groove 18mmx3x160

Spindle model No.40

Maximum spindle speed 12000 rpm

Maximum feed rate 36m/min

Maximum cutting feed rate 12m/min
