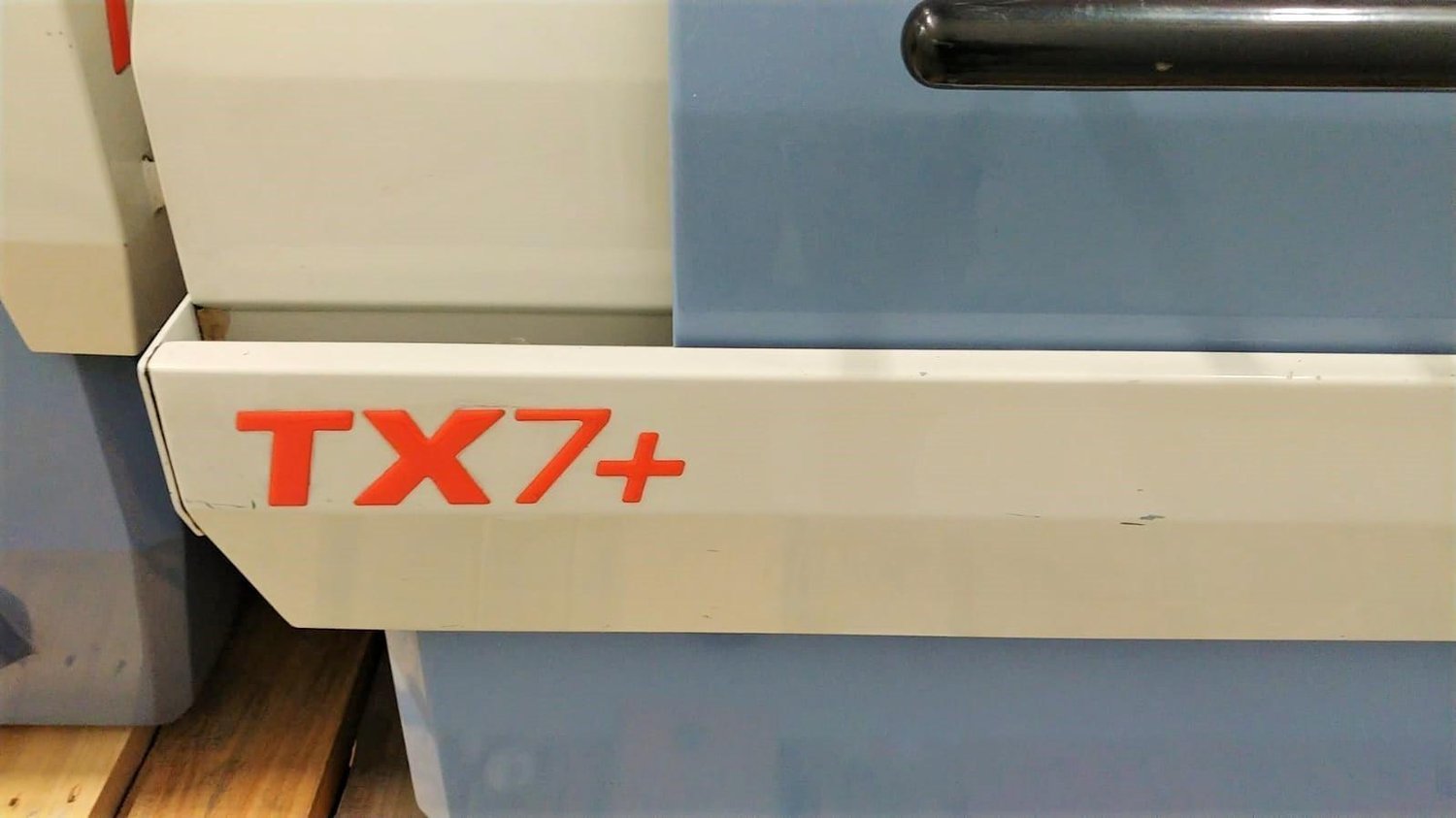

ANCA TX7+ Tool grinder

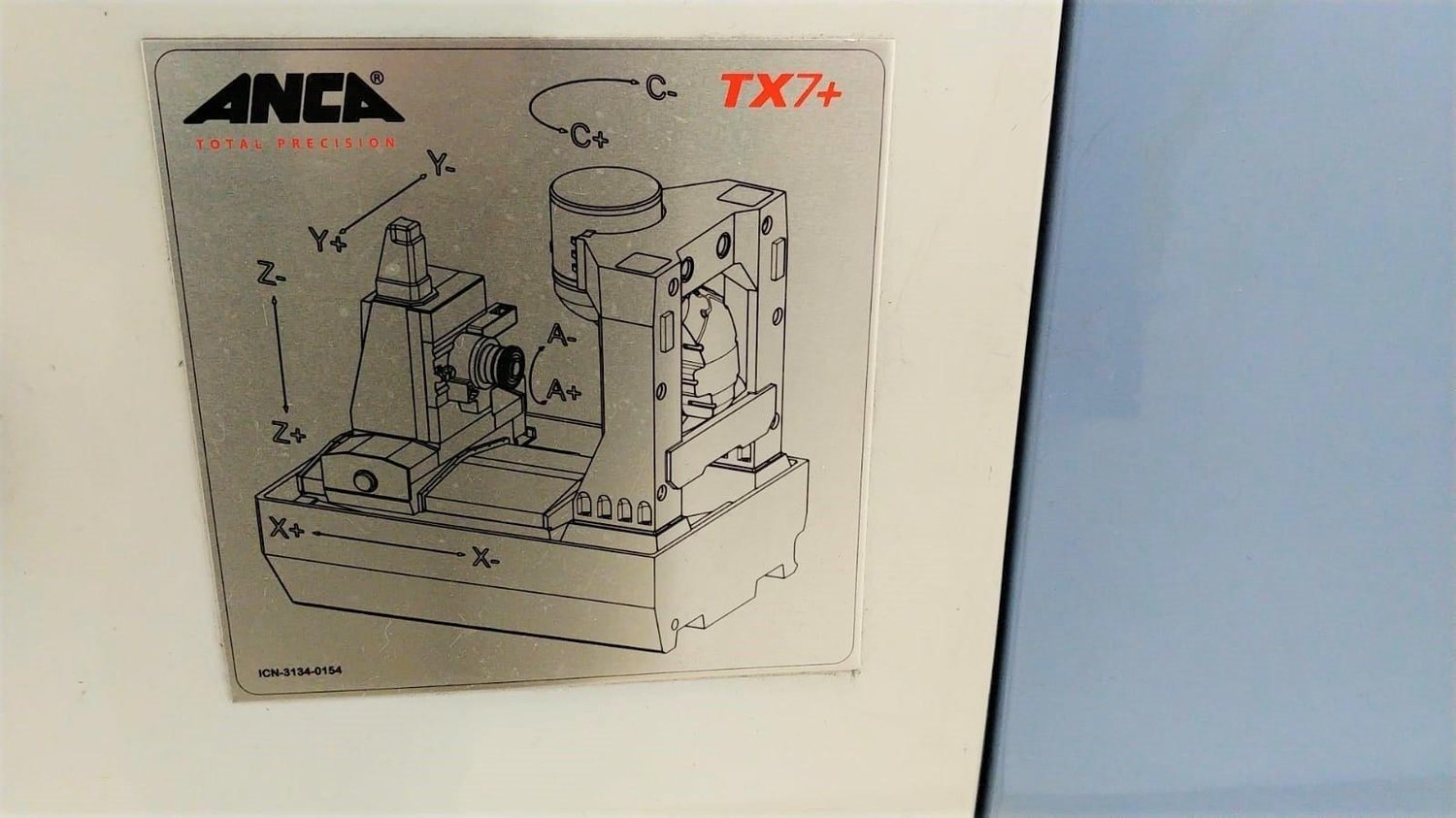

Number of axes: 5

Swing: 12 inches

Distance between centers: 15.75 inches

Grinding wheel diameter: 8 inches

Power: 49HP

Maximum spindle speed: 10000 RPM

X/Y/Z axes travel: 23.6/9.8/16"

C-axis: 264deg

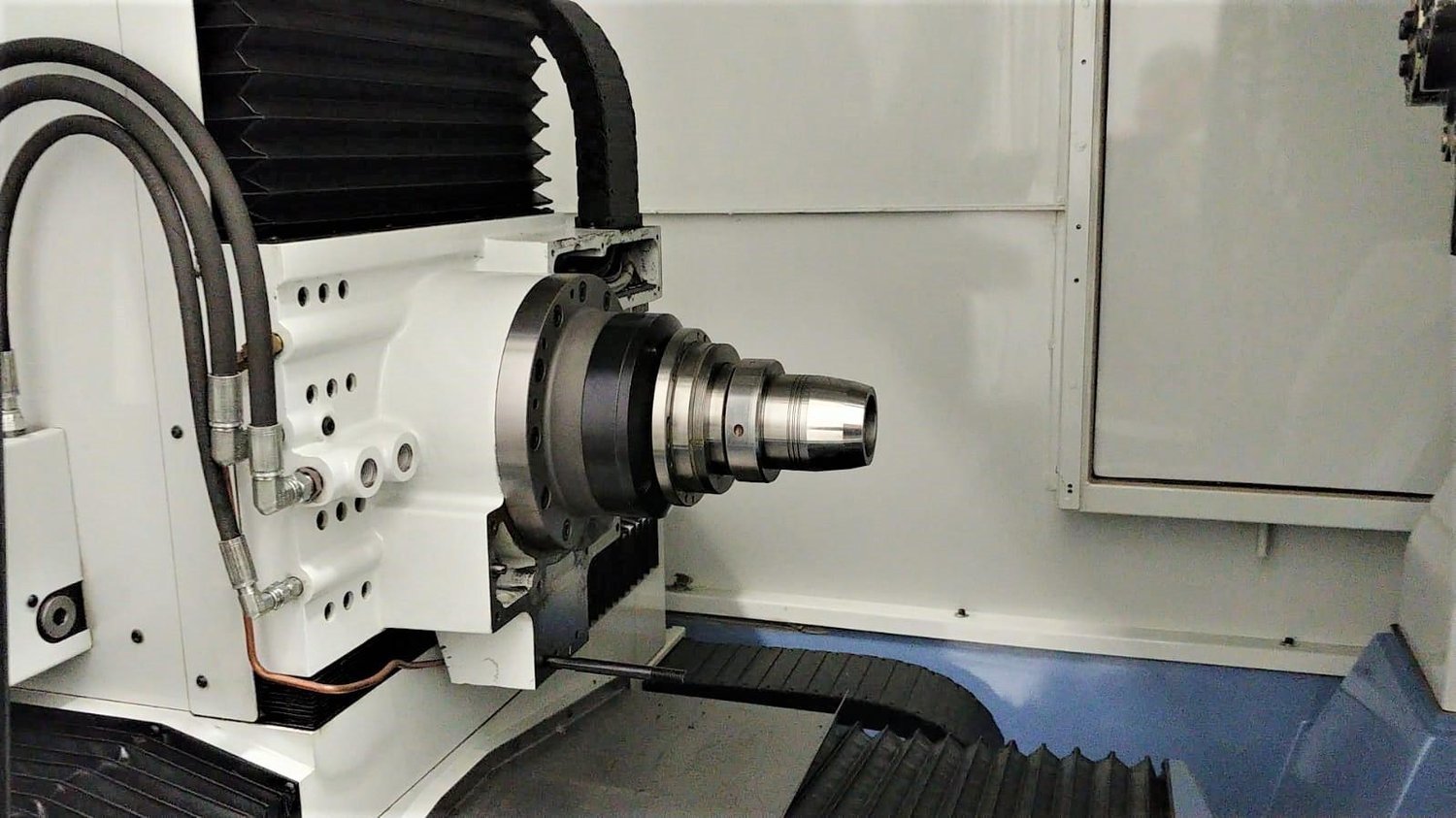

A axis rotation range: 360deg

Maximum tool diameter: 12"

Maximum tool length: 15.75 "

Maximum tool weight: 55 LBS

Position feedback resolution (X/Y/Z axes) : 0.0000039 ".

Programming resolution (X/Y/Z axes) : 0.000039 ".

Position feedback resolution (C/A axis) : 0.0001 degree

Programming resolution (C/A axis) : 0.001 degrees

Grinding spindle power: 49HP

Maximum grinding spindle speed : 10000rpm

Grinding wheel diameter: 8"

Grinding wheel through hole diameter: 2"

Machine Footages (excluding loader) : 100x 59 inches

Machine height: 88 "

Machine weight: 17,000 pounds

Accessories:

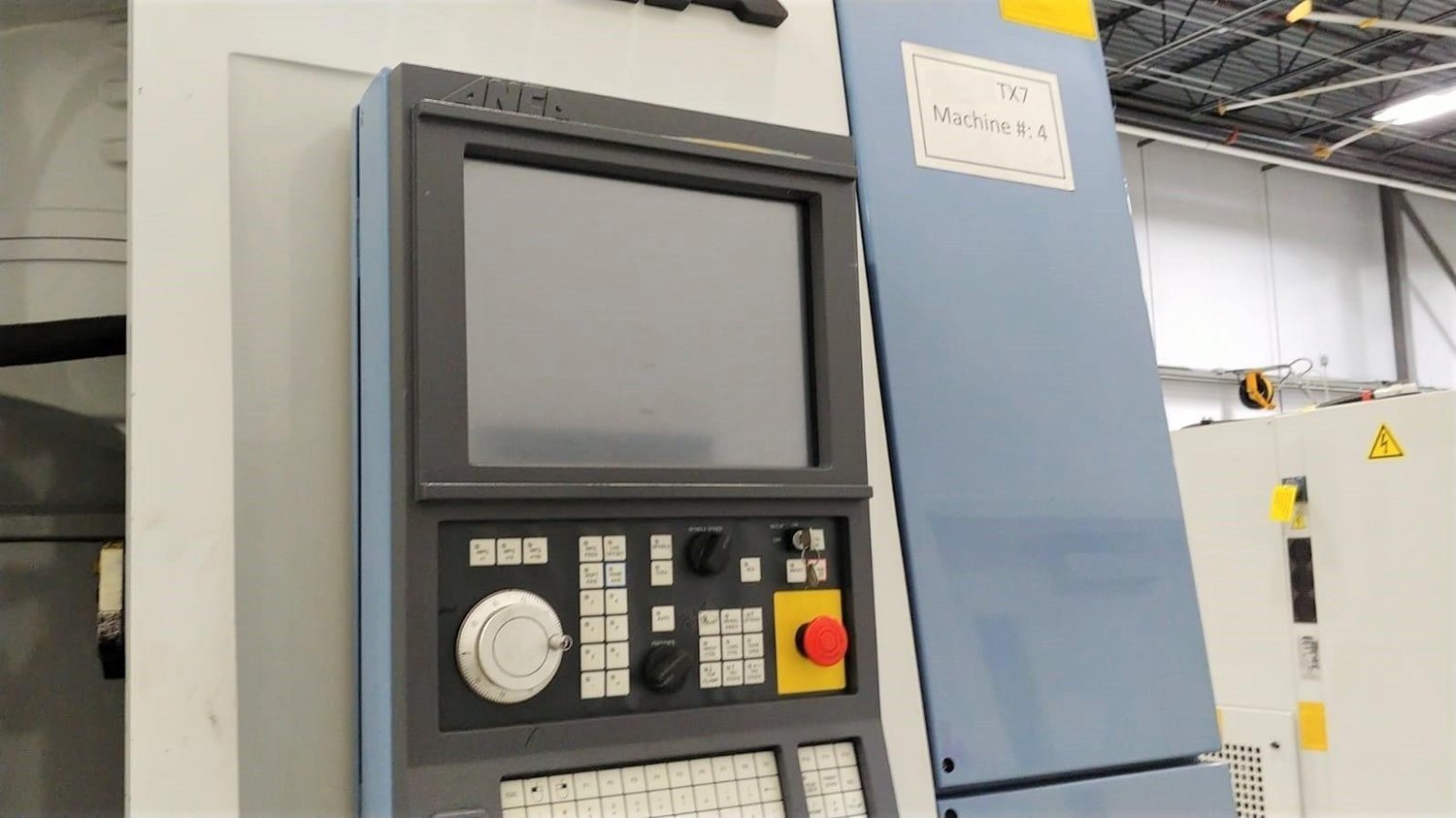

Windows 8 system

RN34 Upgrade USO56758

Manage suite OPC UA RedaX machine

AMCore software

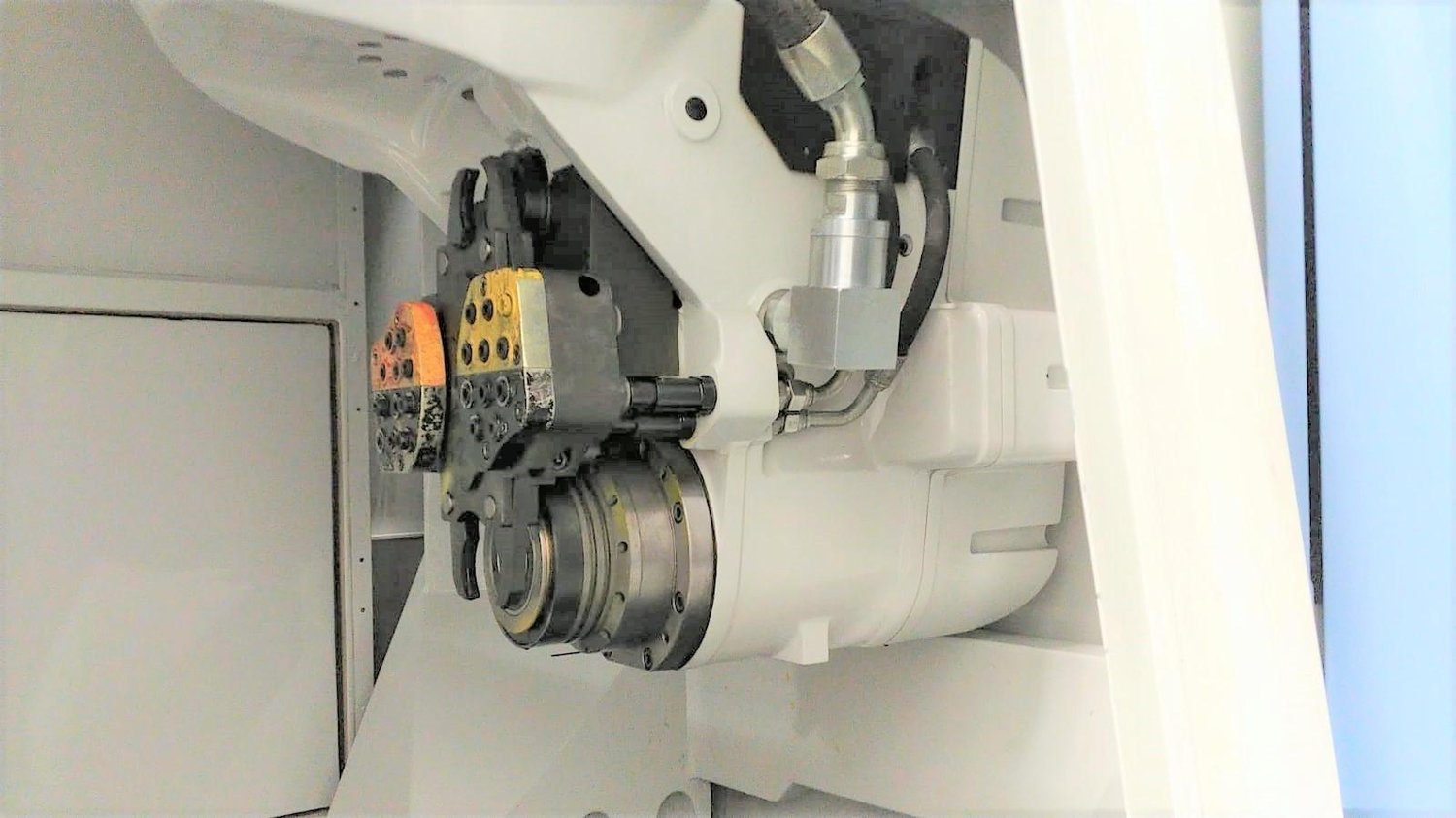

Tool magazine

Row slot

Wheel mandrel

Fire extinguisher

2x coolant concentrated pipe
