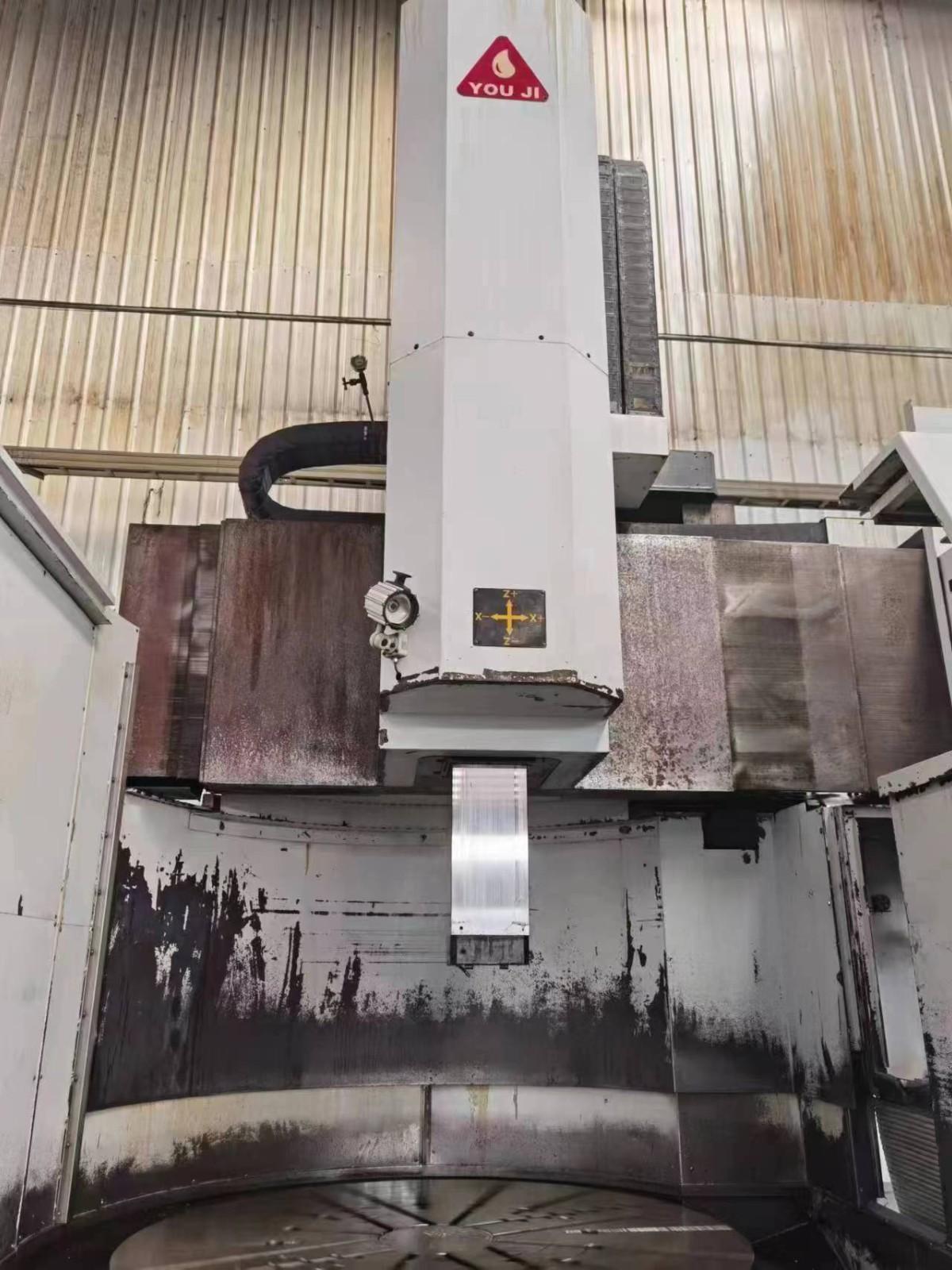

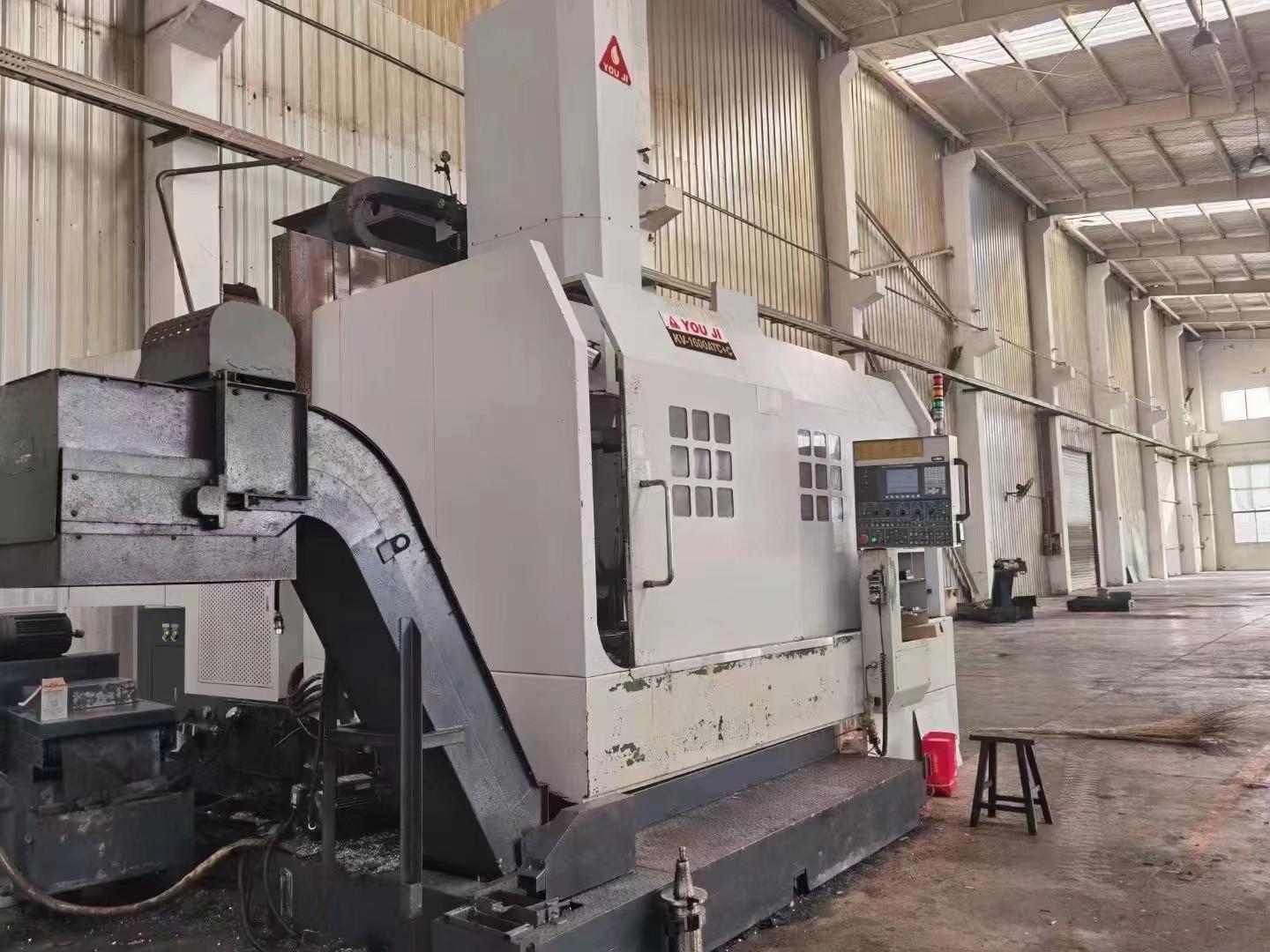

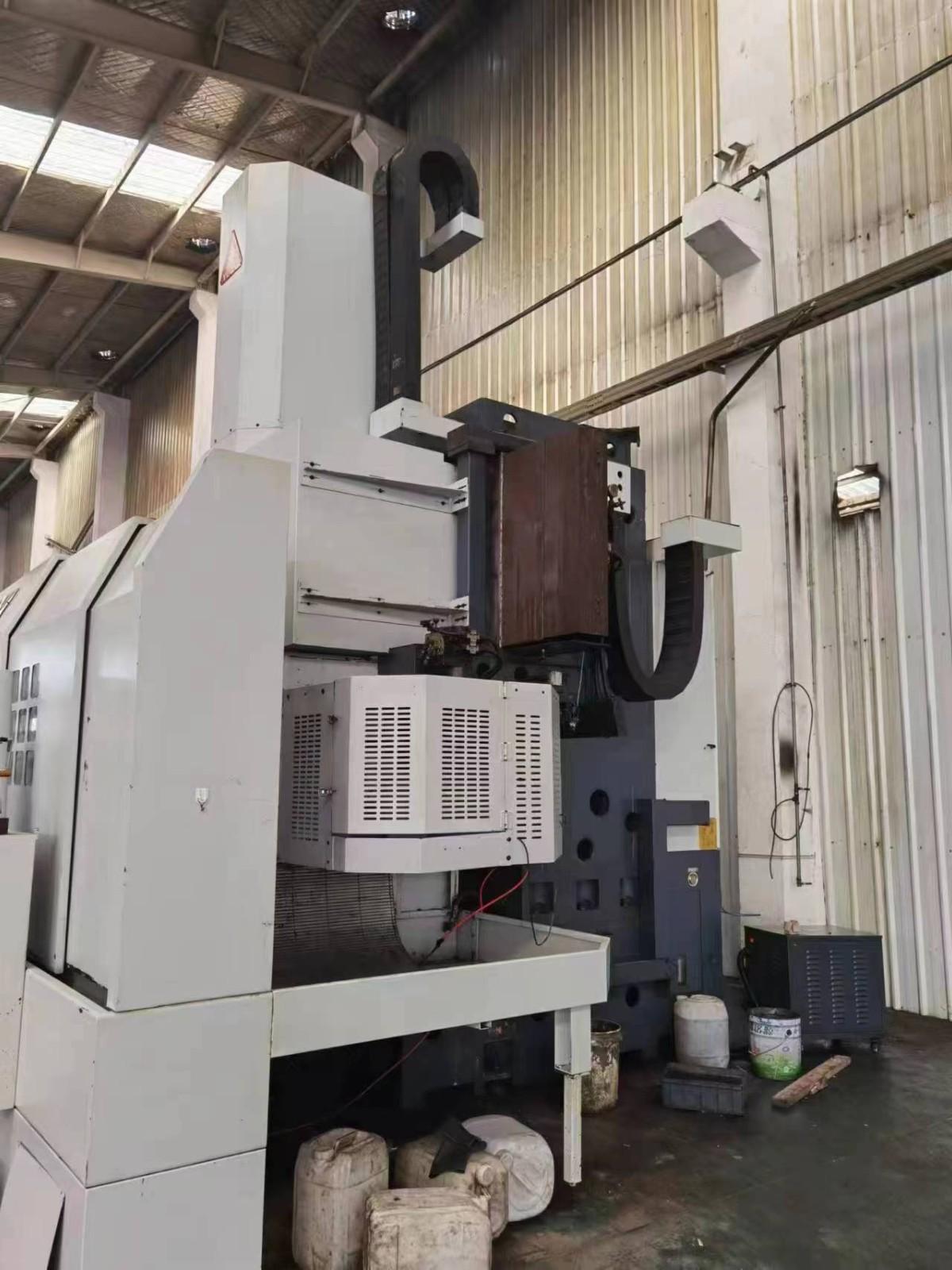

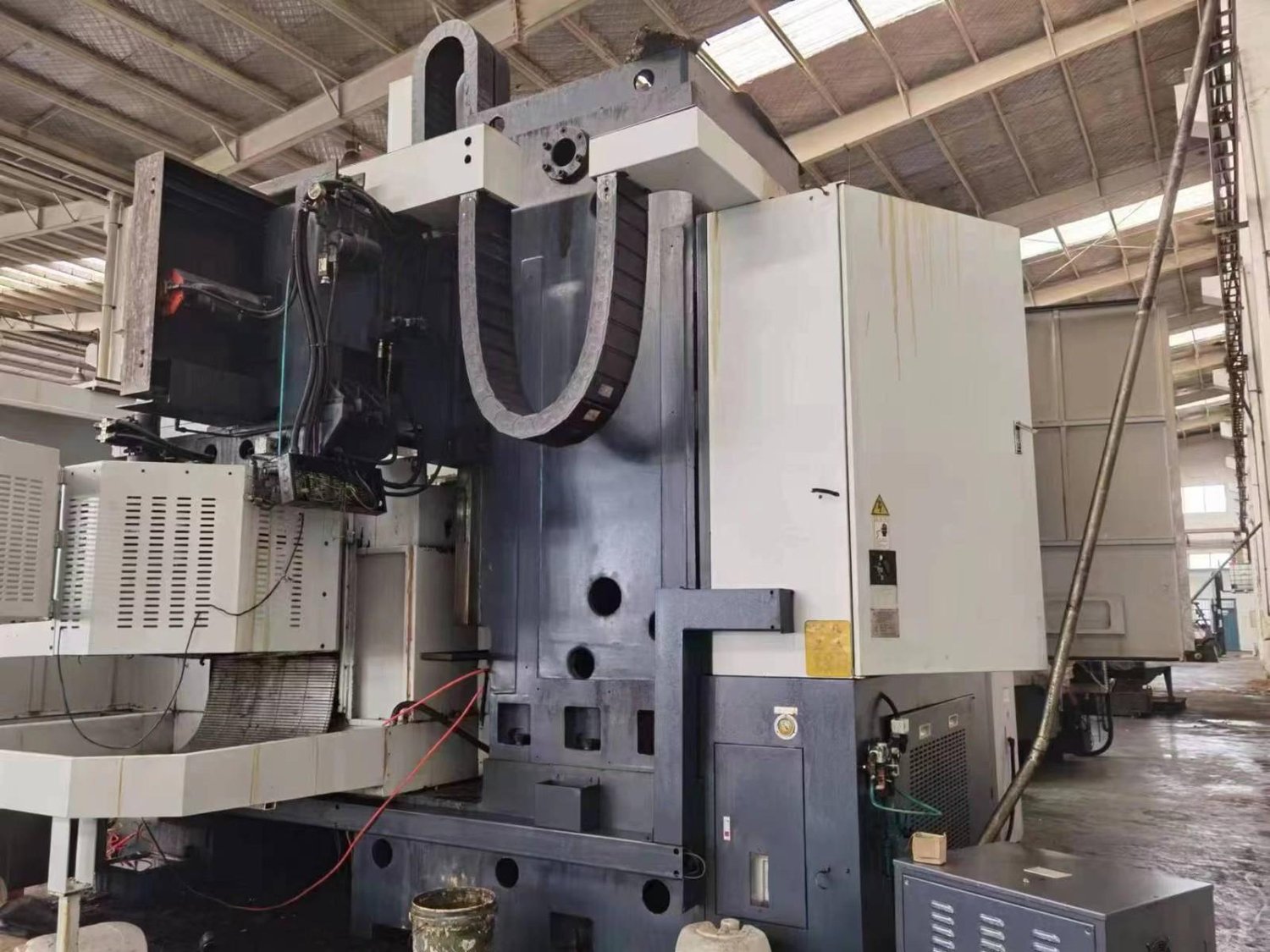

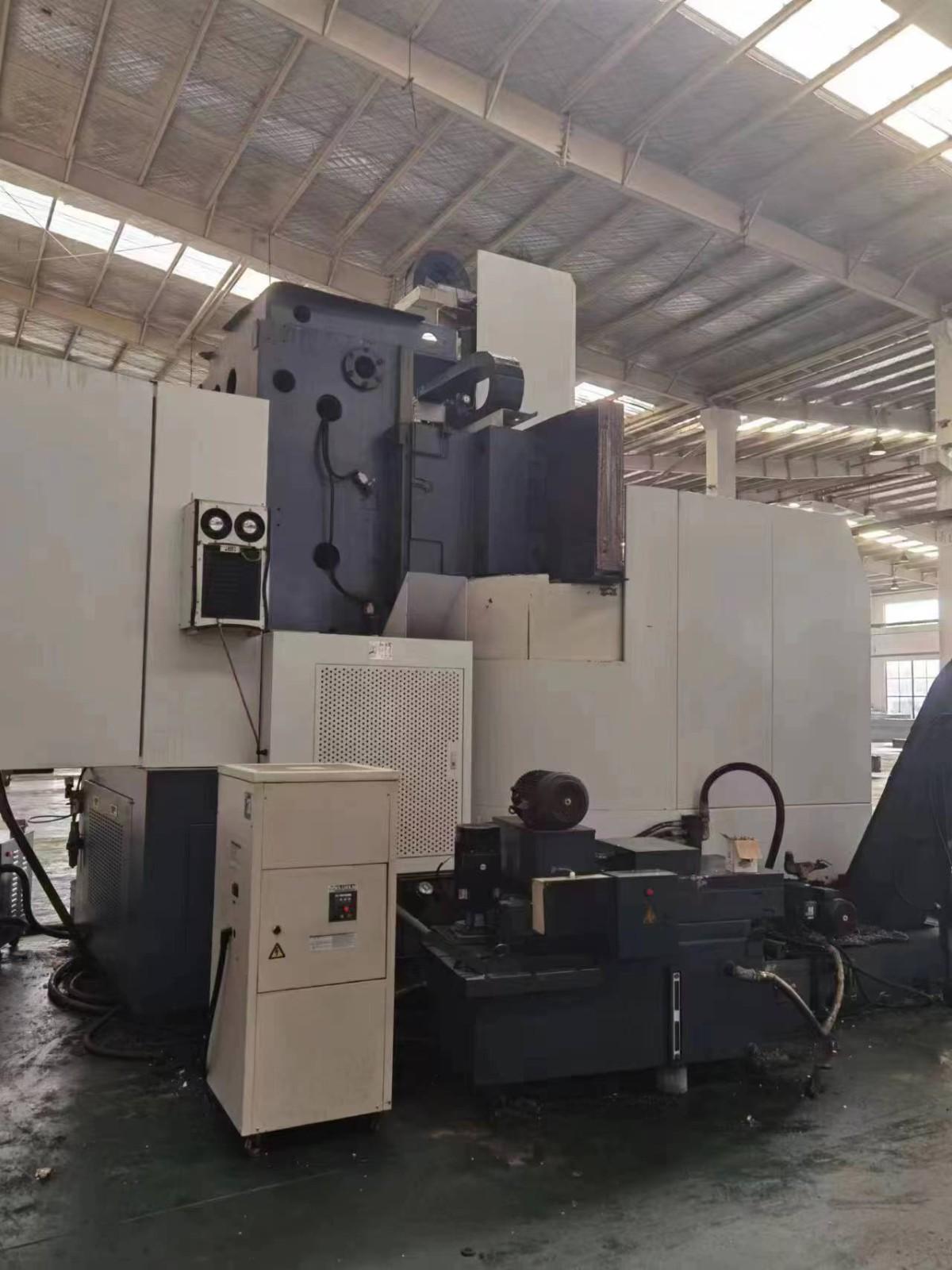

YOUJI KV-1600ATC+C CNC vertical lathe

Maximum rotary diameter  Ø 2000 mm

Maximum cutting diameter  Ø 1800 mm

Maximum workpiece height  1200mm

Maximum workpiece weight  8000kg

Manual four-jaw chuck  Ø 1600 mm

Spindle speed:

Low speed  1~62rpm

High speed  62~250rpm

Second spindle speed:

Low speed  2~1200rpm

High speed  1200~2400rpm

Spindle bearing diameter  Ø 580 mm

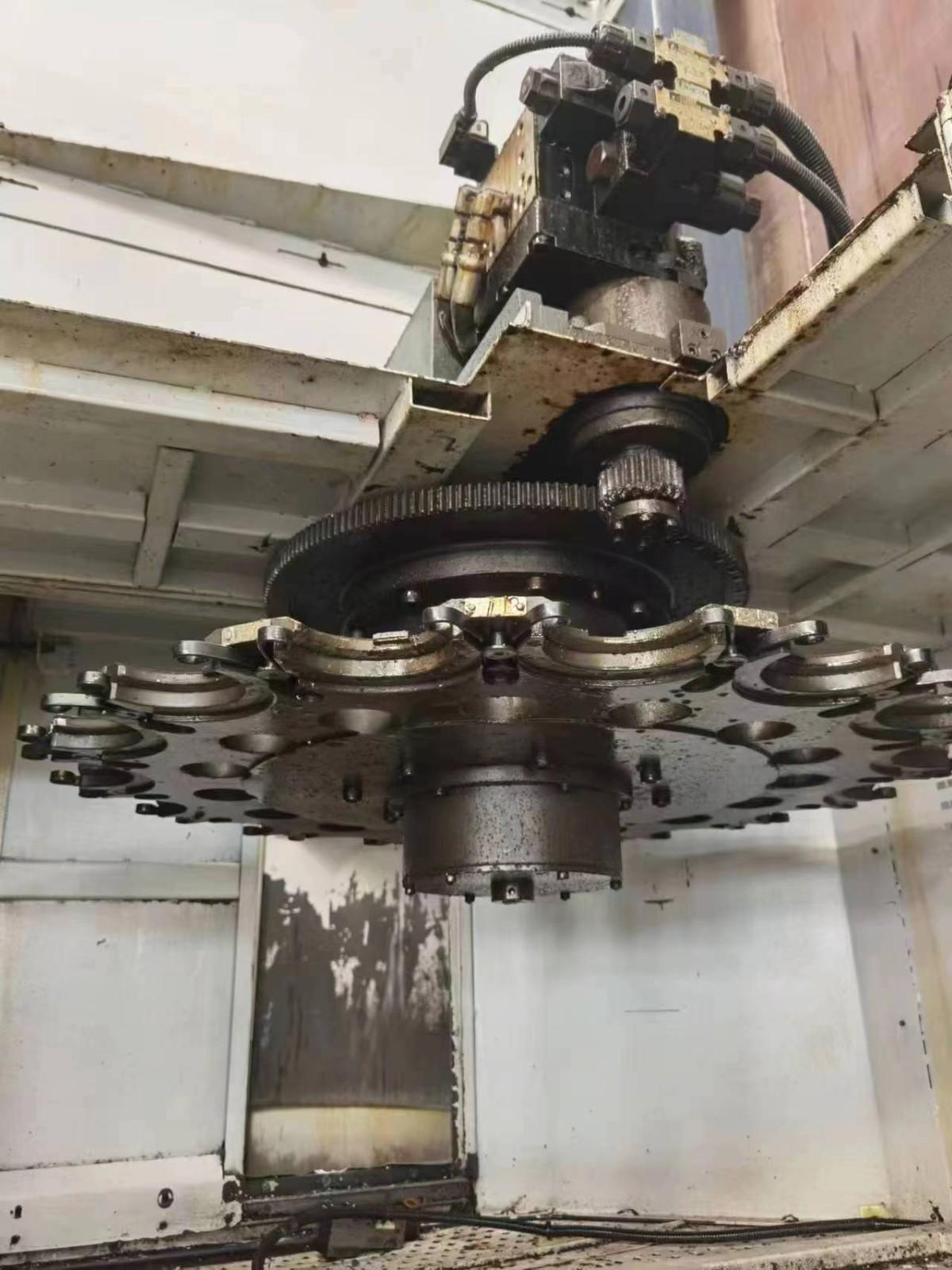

Tool turret type  ATC+C

Number of tool turret positions  16

Tool hoder type  BT 50

Maximum tool weight  50kg

Maximum tool magazine load  360kg

Tools changing time  40s

X-axis travel  -100/+1125mm

Z-axis travel  850mm

W-axis travel  750mm

X axis rapid feed rate  12m/min

Z-axis rapid feed rate   10m/min

Spindle motor FANUC  37/45kw

Second spindle motor FANUC  7.5/11 kw

X-axis servo motor FANUC  6(a40i)kw

Z-axis servo motor FANUC  6(a40 iβ)kw

CF axis servo motor FANUC  6(a40i)kw

Cutting oil motor 1.5kw

Hydraulic oil tank capacity  130L

Coolant tank capacity  550L

Lubricating oil tank capacity  4.6 L

Machine footages (length x width x height)  5550x5300x5000mm

Net machine weight  25000 kg

Total electricity capacity  80KVA
