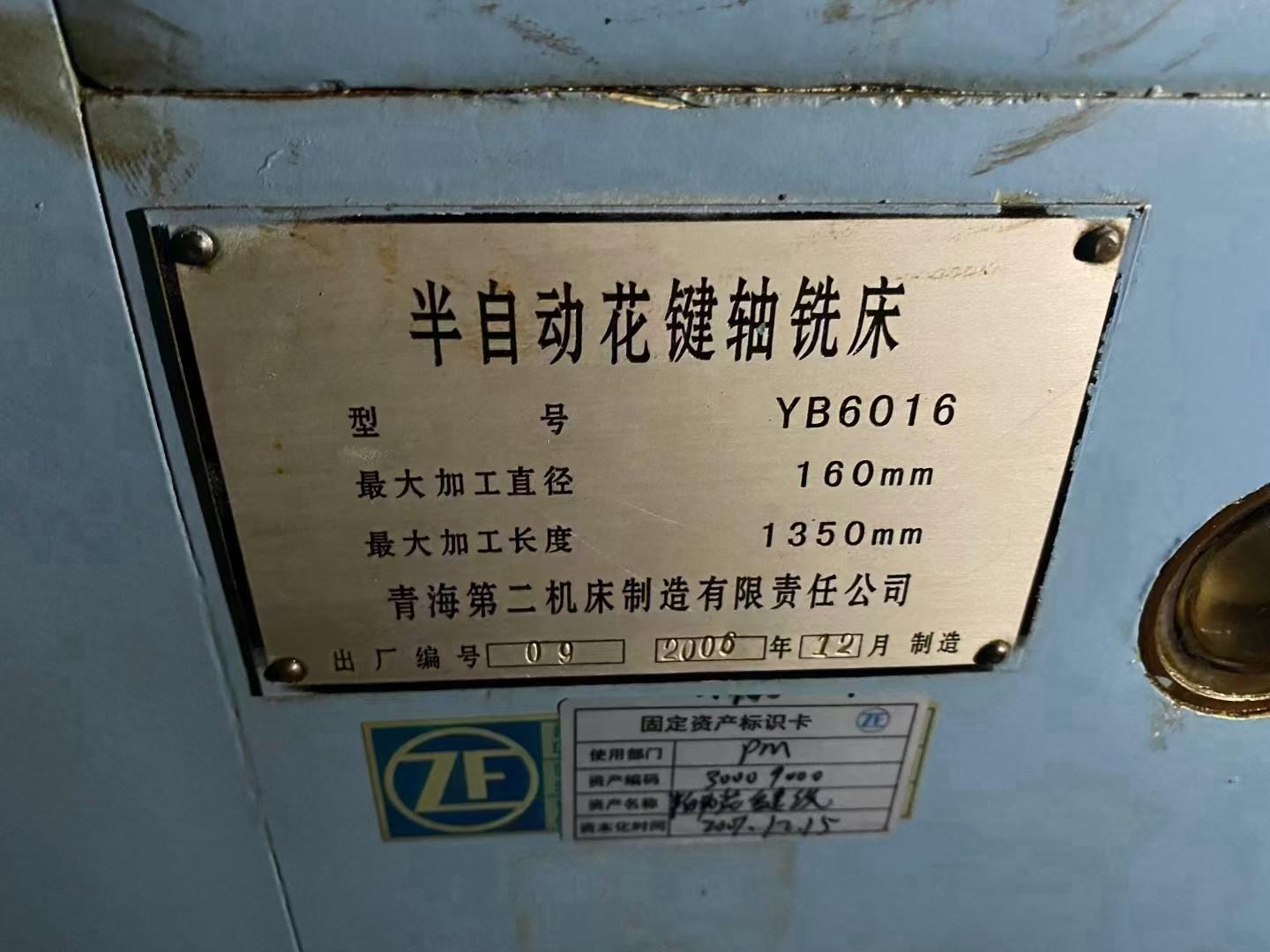

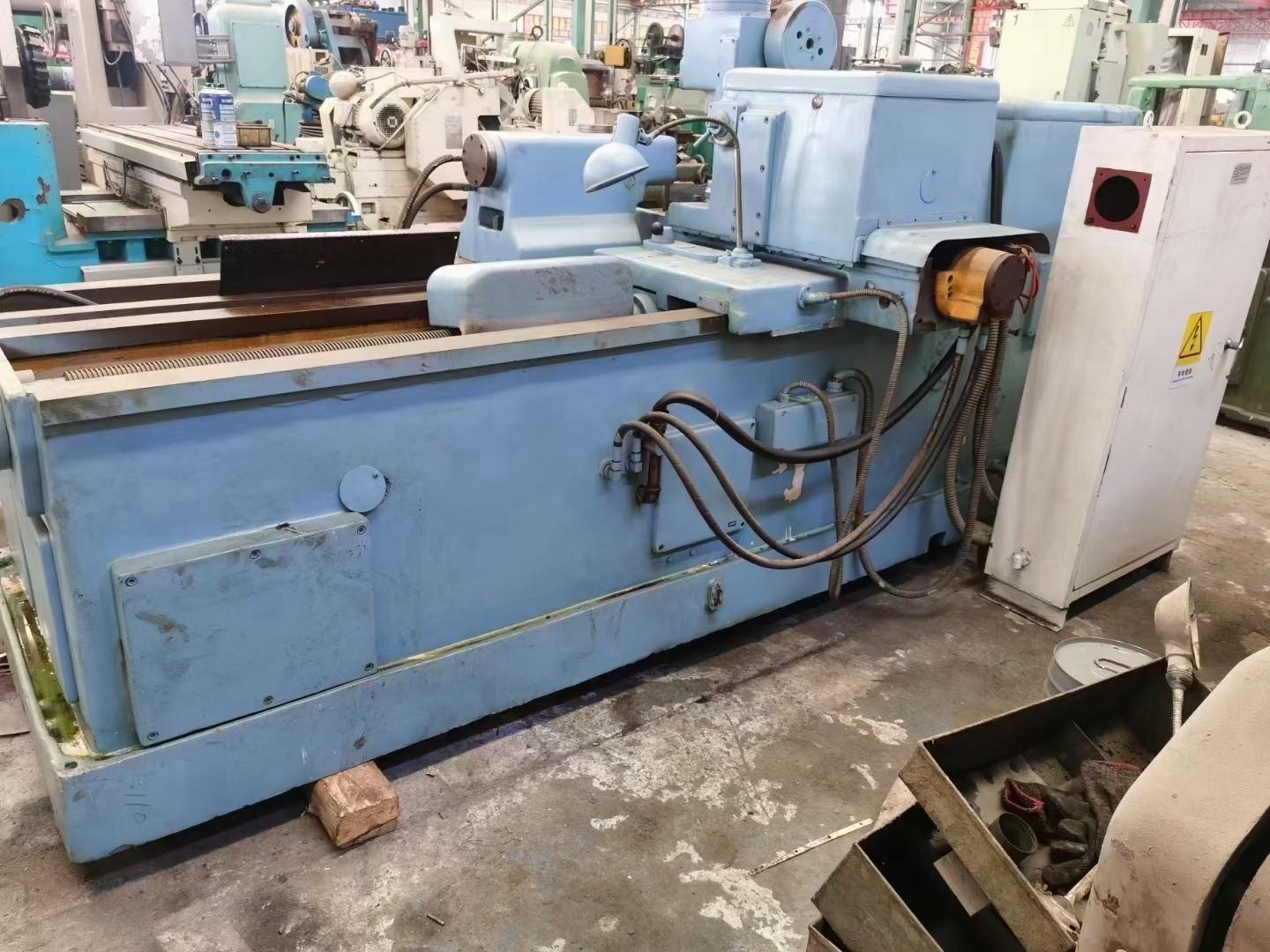

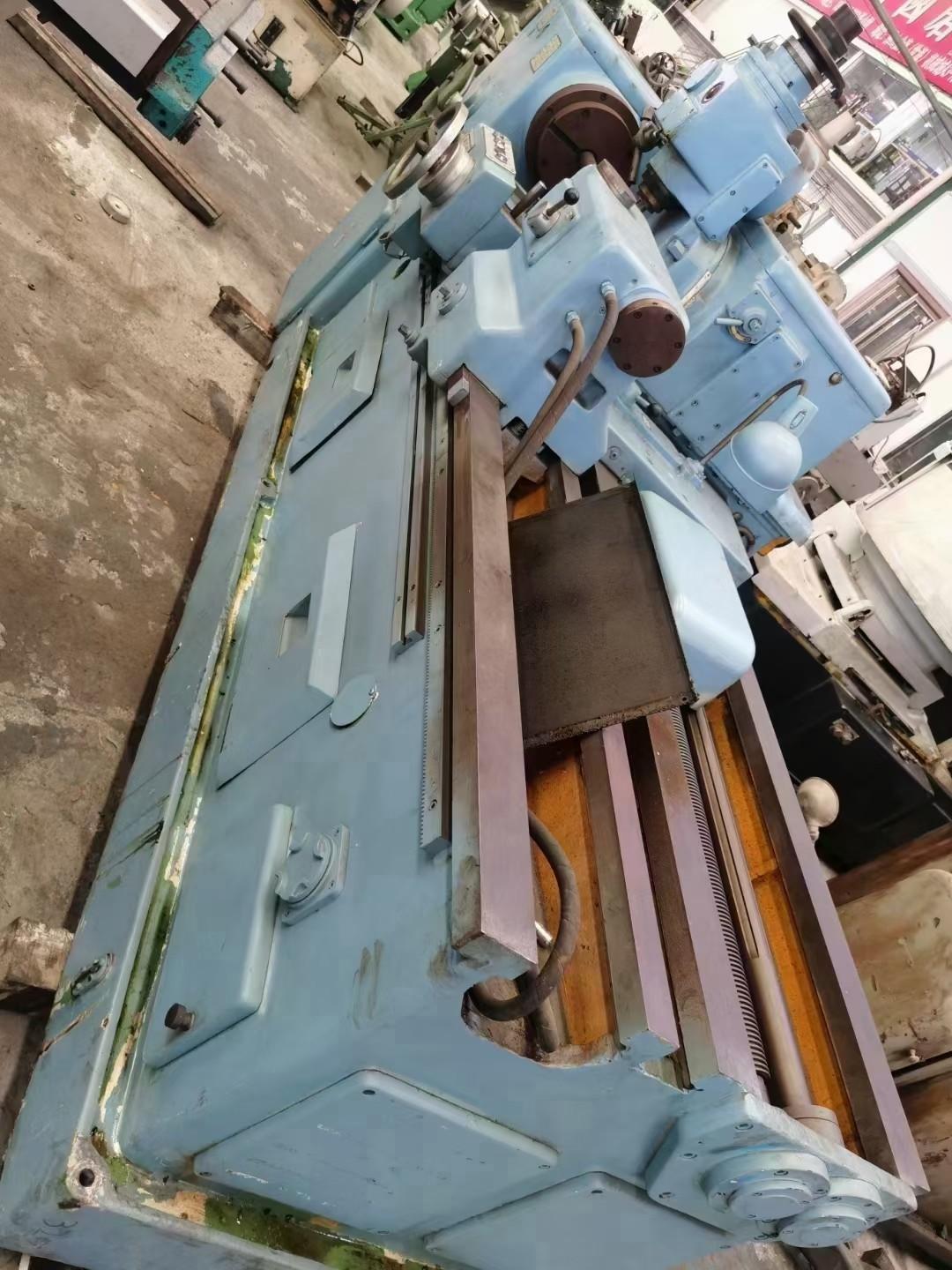

QⅡJ YB6016 Milling machines

[Product Information]:

Machining diameter :160mm

Machining length :1350mm

Installation diameter :500mm

Number of machining spline tooth :4-36

Milling cutter speed :50-160rpm

Distance between workpiece center and milling cutter center line :50-145mm

Main motor power :4kw

Machine weight :6800kg

Machine footages :3225x1607x1640mm
