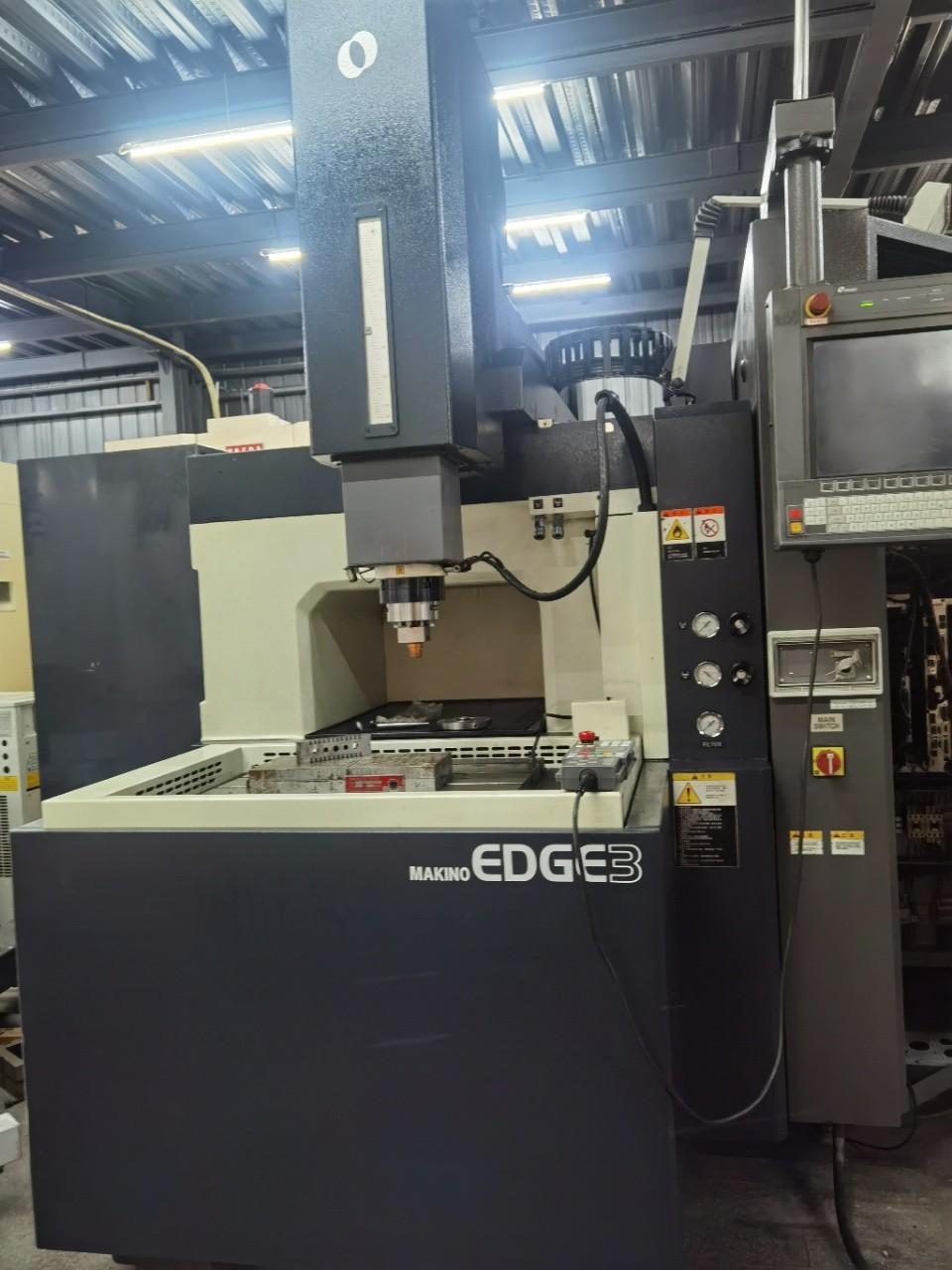

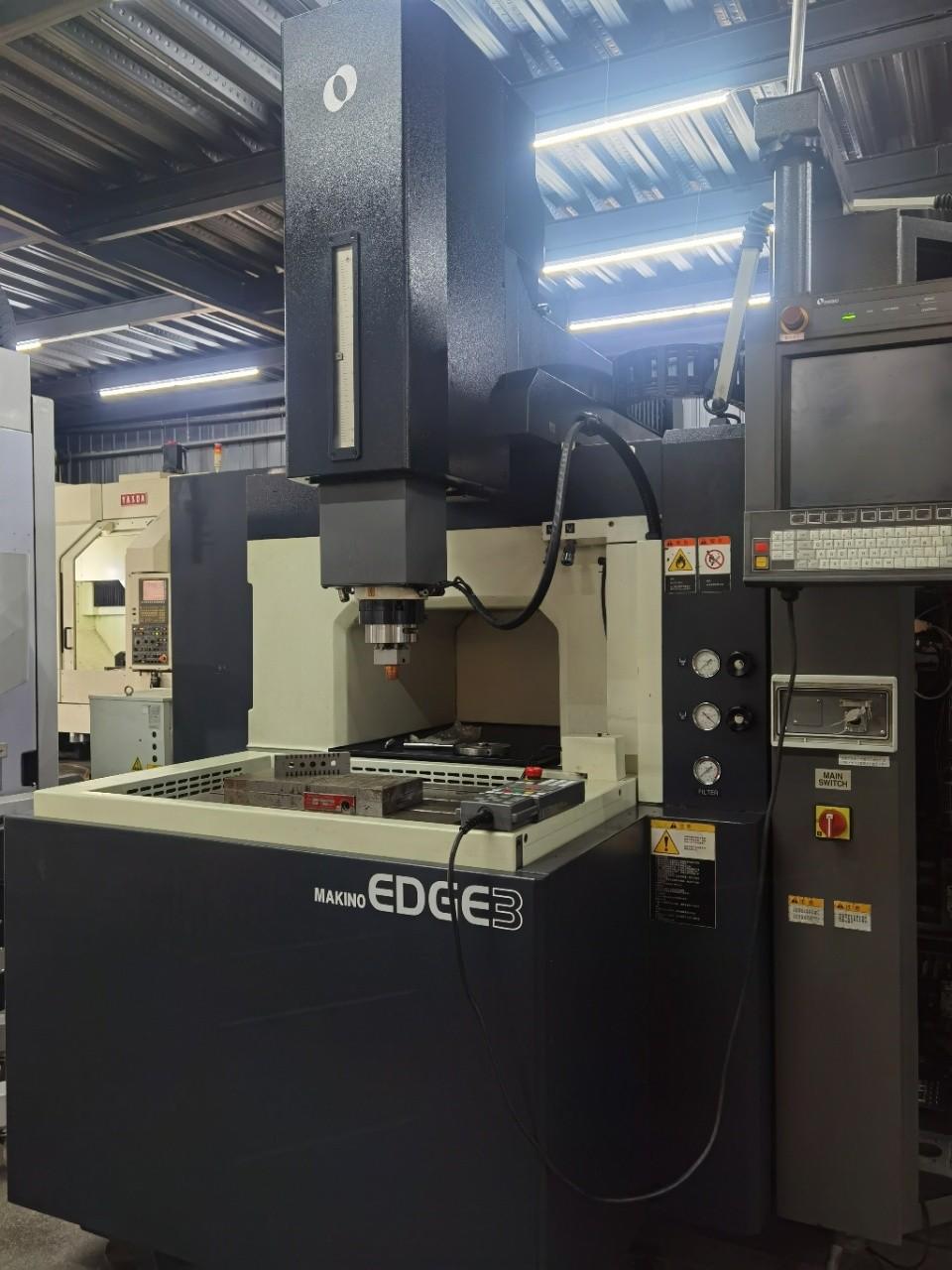

makino EDGE3 Spark eroder

X axis travel :450mm

Y axis travel :350mm

Z axis travel :350mm

Working tank internal size :850×650×400mm

Worktable size :700×500mm

Maximum motor weight :75KG

Maximum workpiece weight :800KG

Fast feed rate :5000mm/min

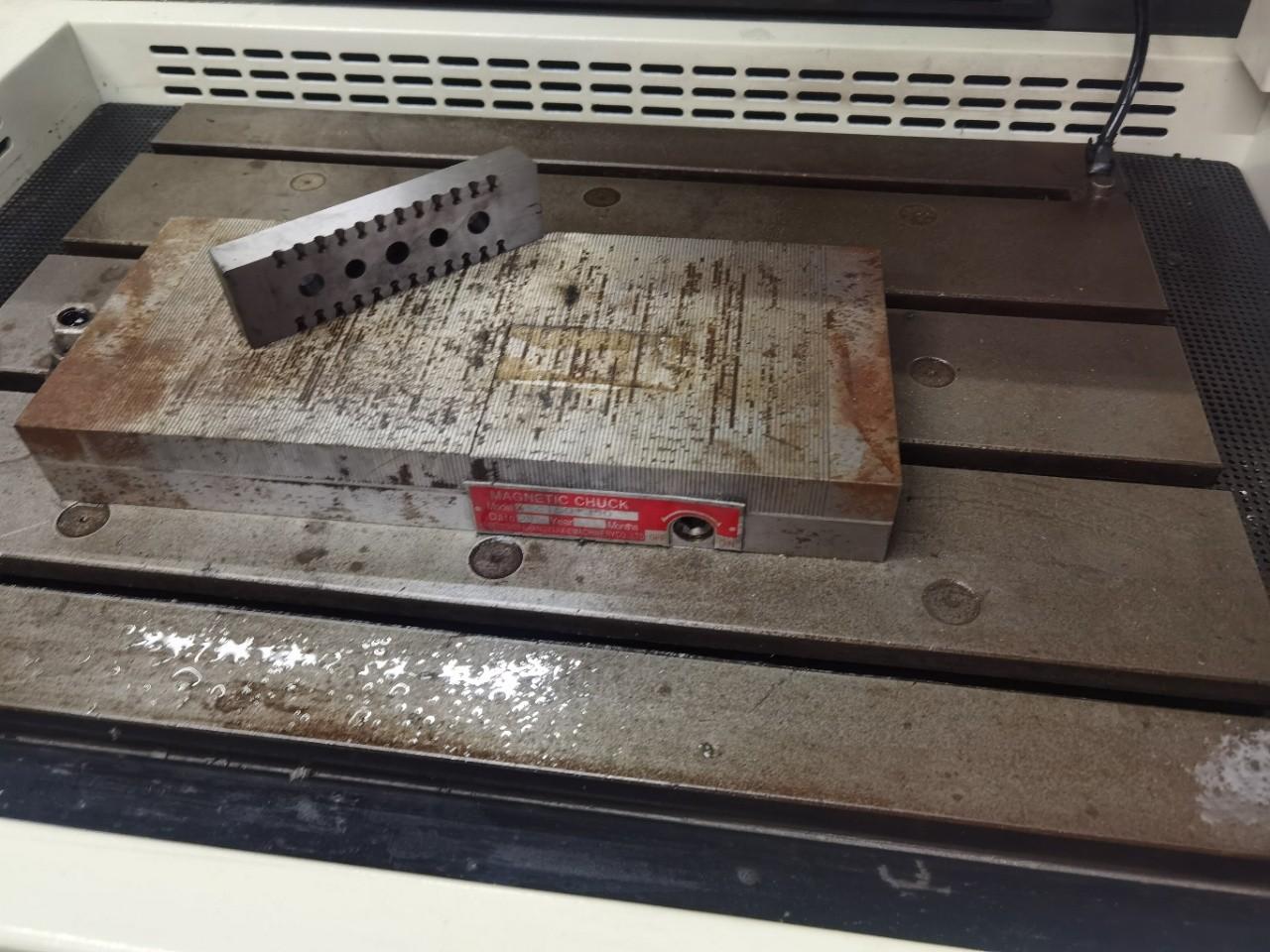

Worktable T-slot: 14*4mm

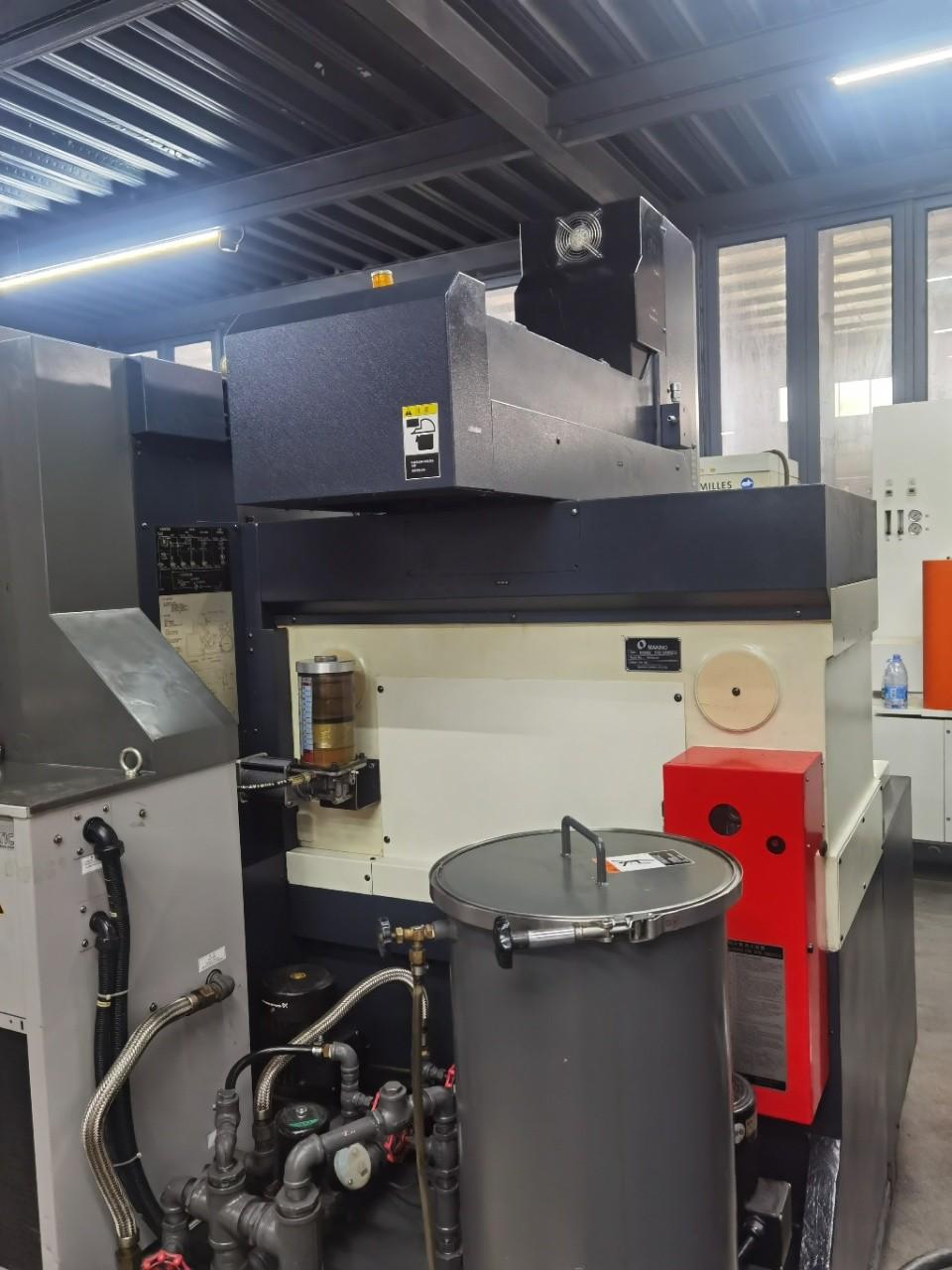

Machining water tank total capacity :450L

Machining current: 40A

Machine footages: 1500*2310*2600mm

Machine weight: 4875kg
