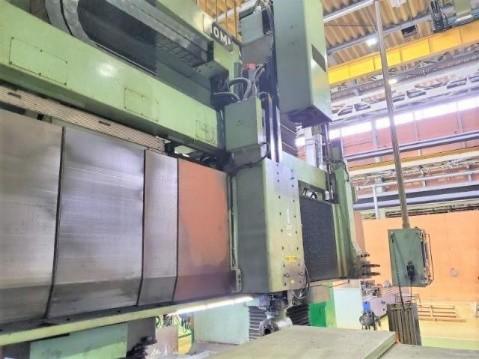

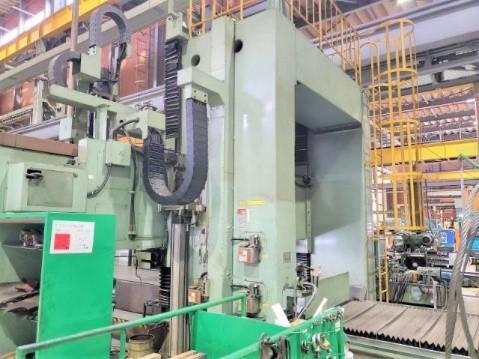

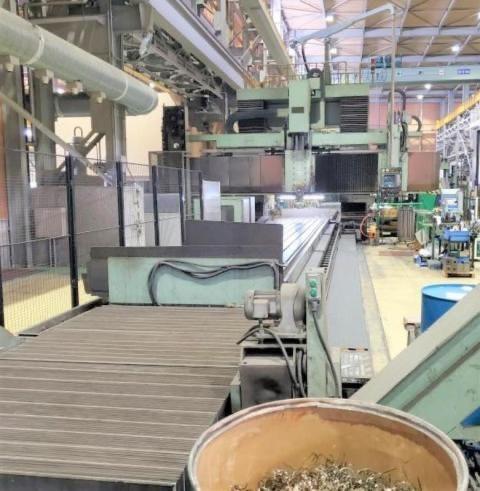

Honma HNS-10GS Gantry machining centre

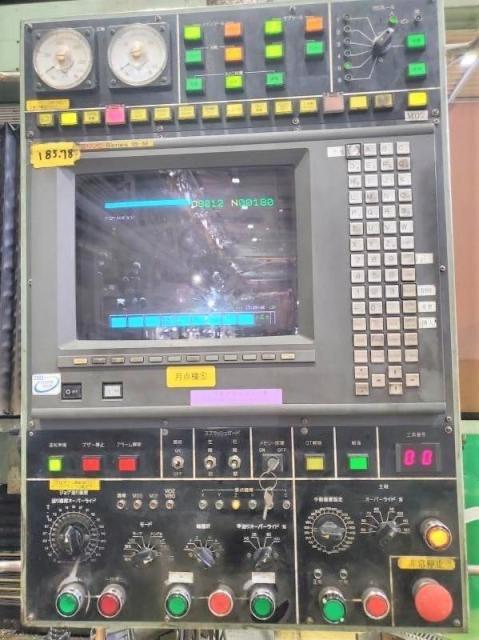

System: F-15MB

X/Y/Z/V/W travels :10,500/3,800/800/1400mm

ATC: 60

Tool holder type: BT50

Spindle speed: 2,250RPM

Effective gantry width: 2,250mm

Distance from worktable surface to spindle nose: 1930mm

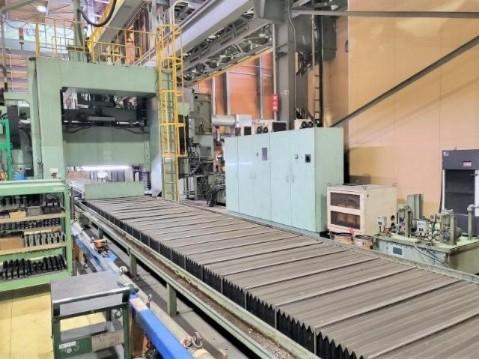

Worktable size: 1,650*10,500mm

Maximum machining size (angle milling head) : 2100*10500mm

Load: 20,000kg
