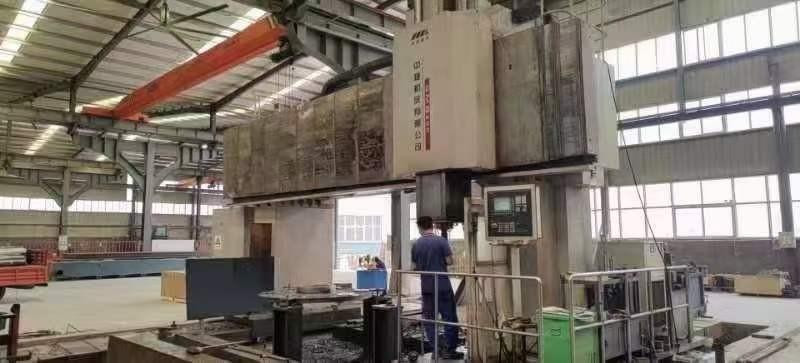

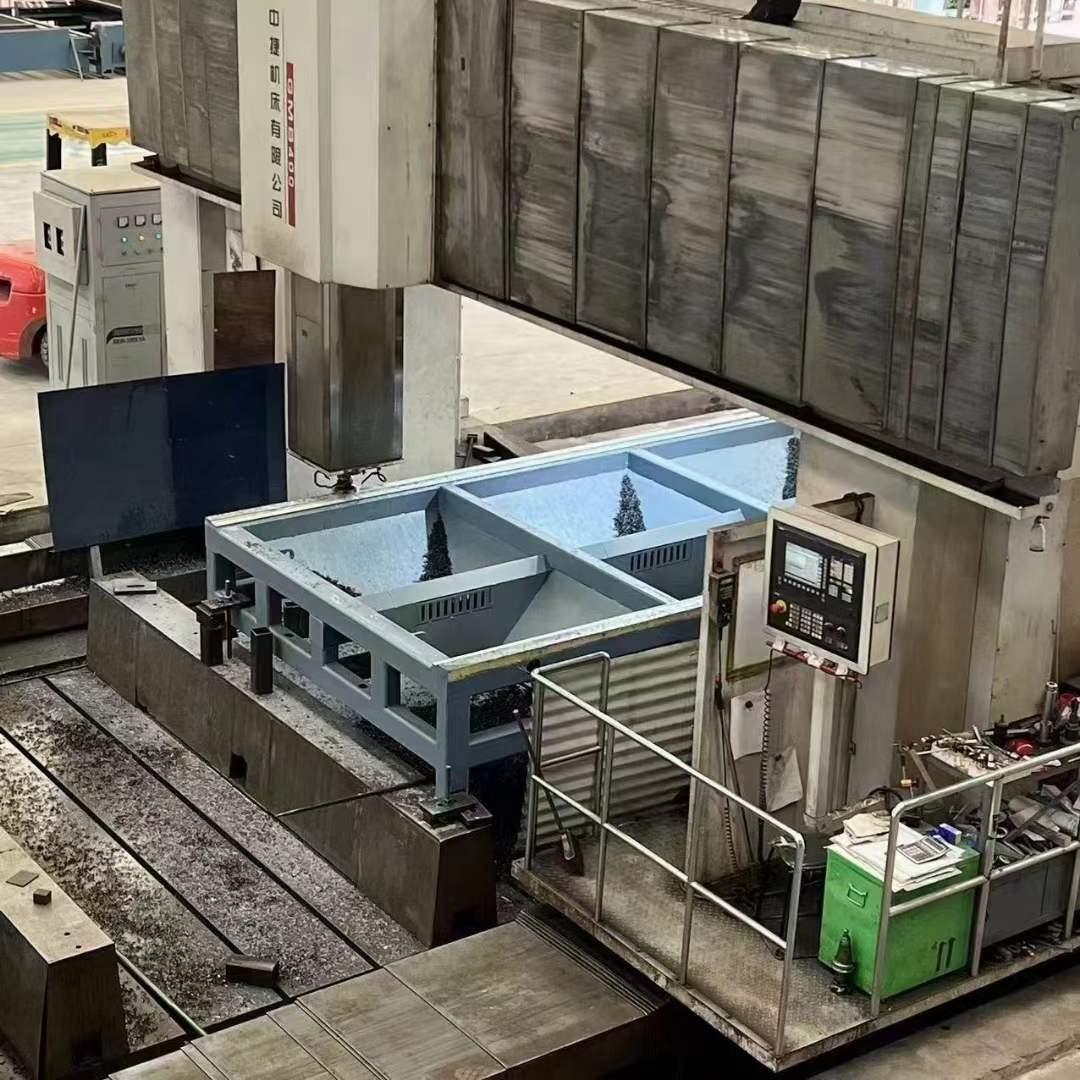

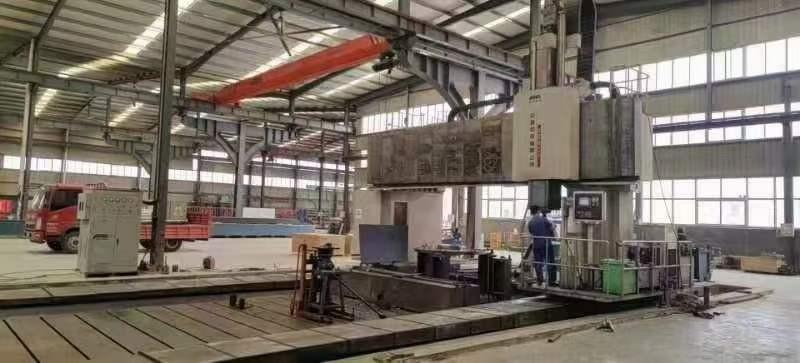

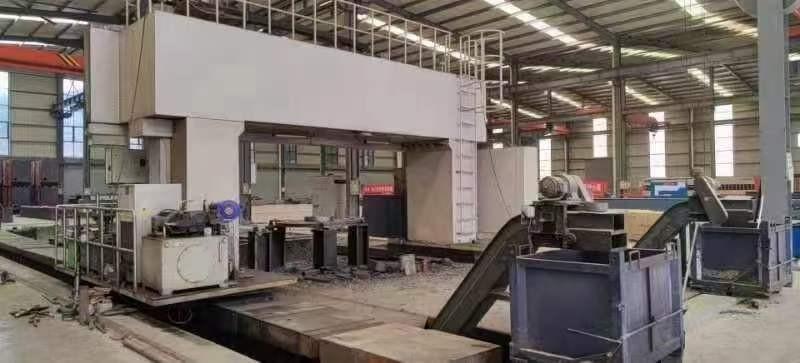

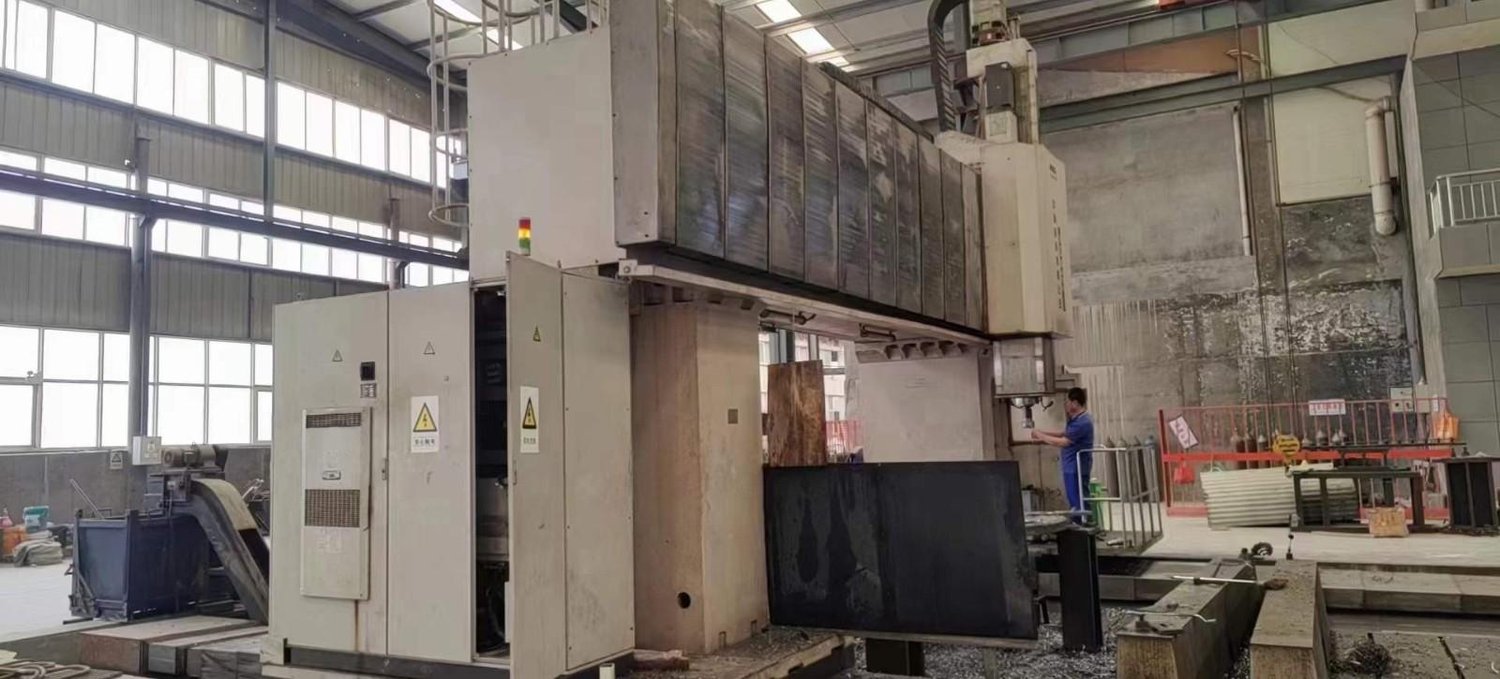

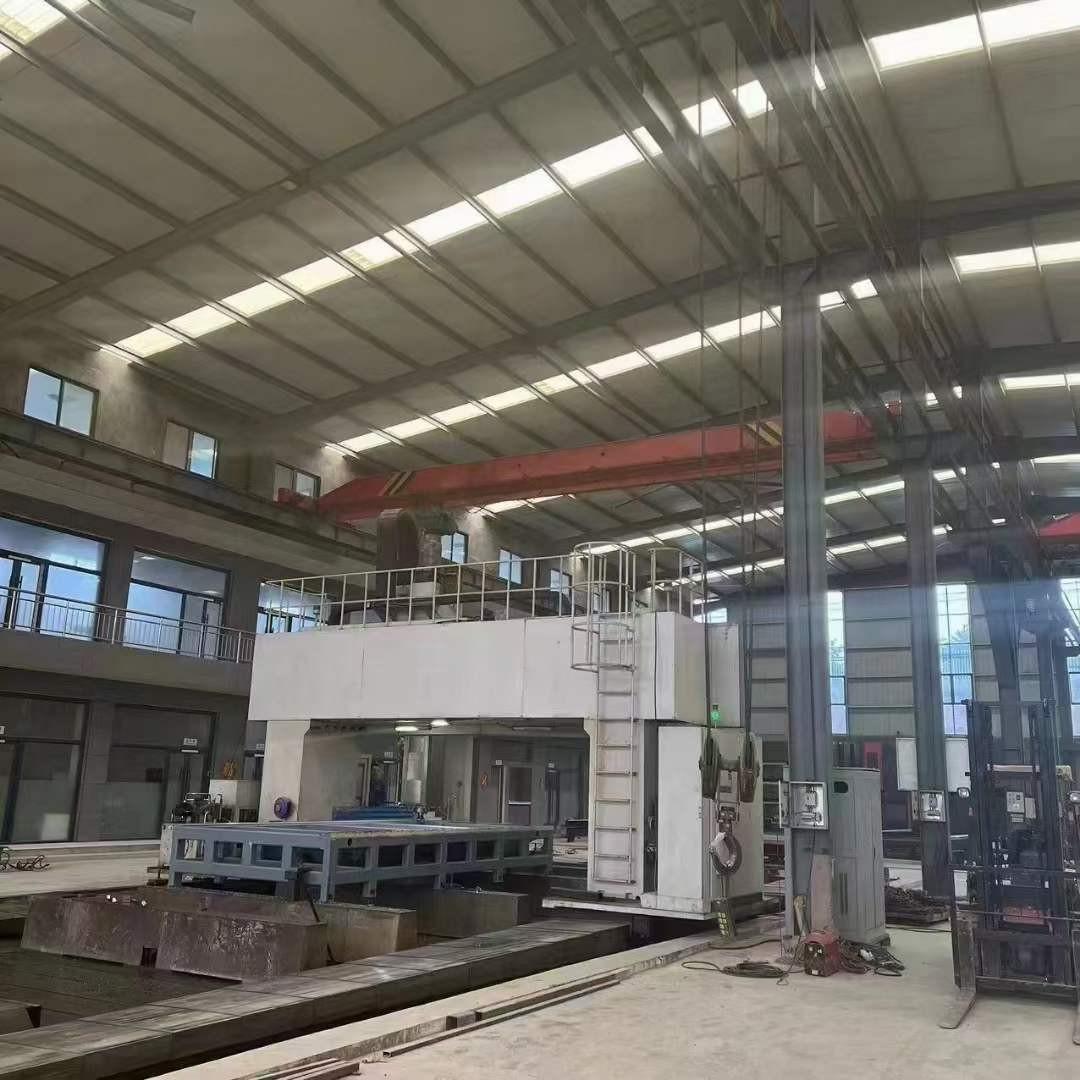

ZOJE GMB400 Gantry boring and milling machine
[Product Information]:
- Inventory number：80493
- Brand：ZOJE
- Model：GMB400
- Origin：China
- Location：China
- Year：2010
- Create Time：2023-03-17
Specifications:
Z axis square ram: 500×500mm
Worktable size: 4000×16000mm
Distance between two columns: 5050mm
Maximum worktable load: 7t
Three-axis travels (X/Y/Z) : 16500/4800/1500mm
Maximum distance from spindle nose to column surface: 2500mm
Gear spindle speed: 40 ~ 2000rpm
Main motor power: 37/51kw
Siemens 840D system
Three axes with glass scale
