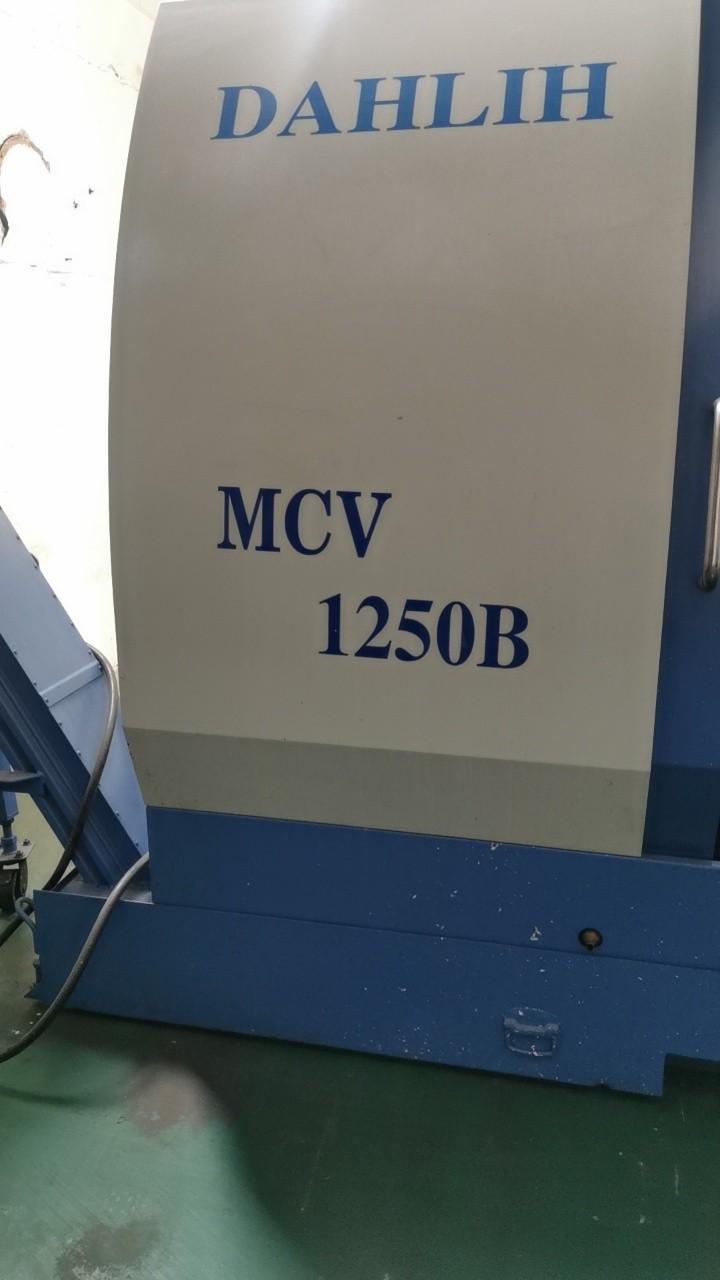

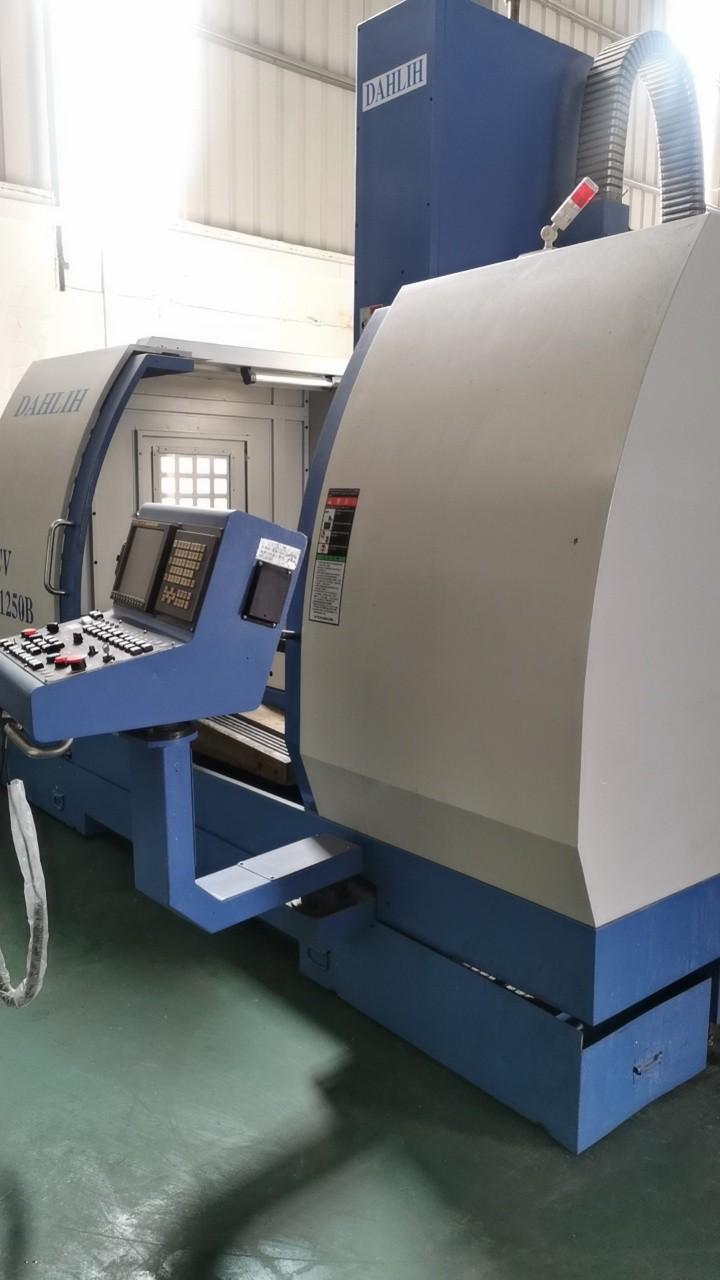

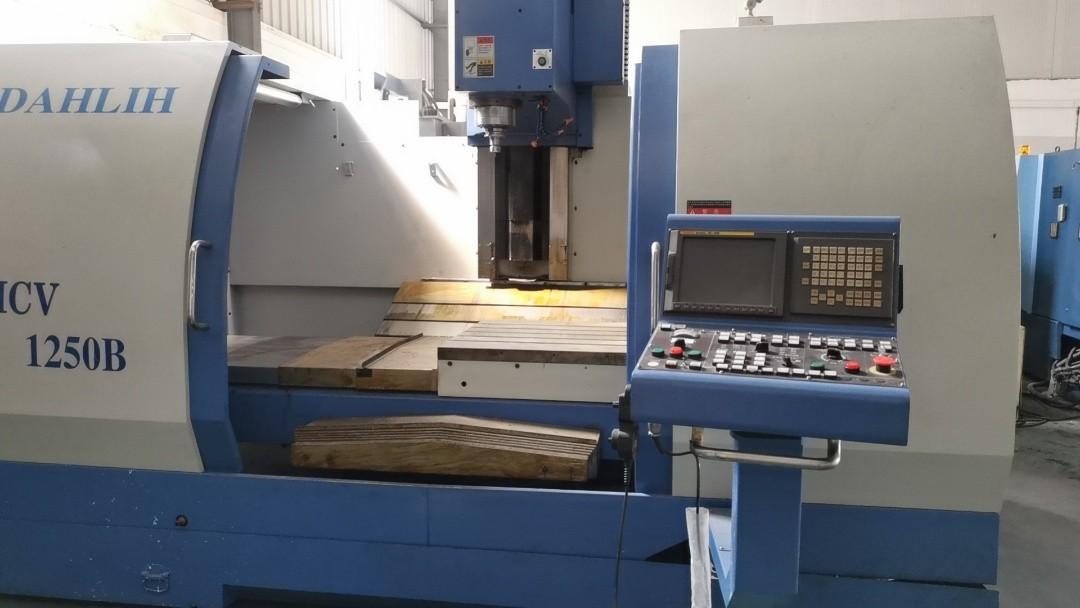

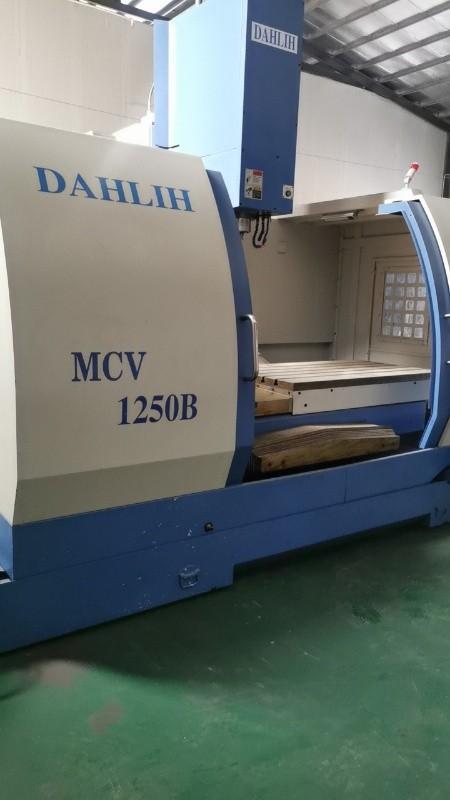

DAHLIH MCV-1250B Machining centre

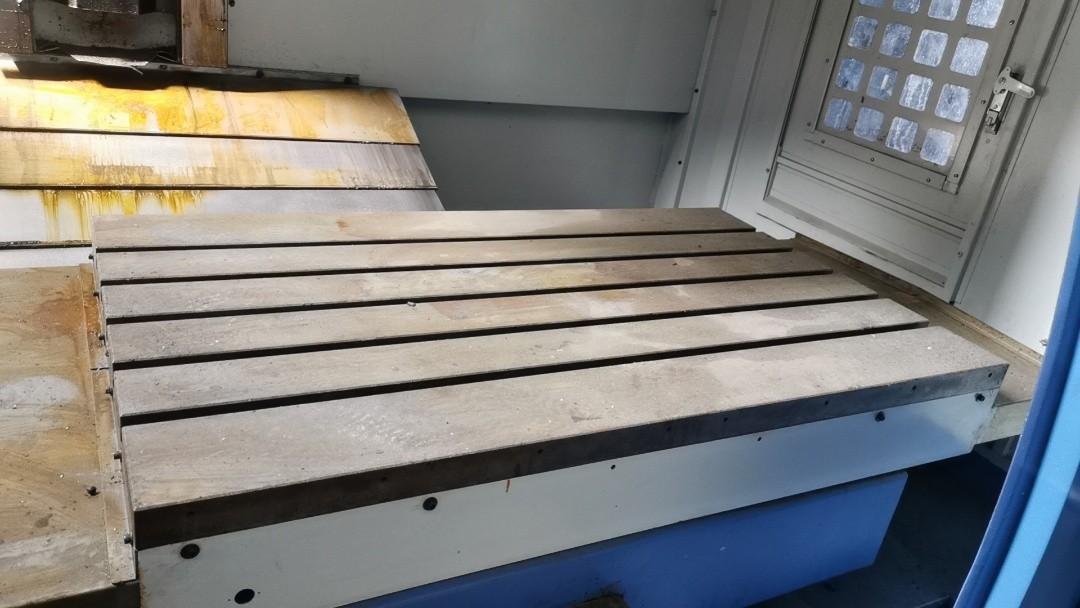

Worktable:

Worktable size 1400 x 820 mm

T-slot (width x number of slots) 22 x 5 mm

Maximum worktable load 1500 kg

Travels:

X-axis travel  1250 mm

Y-axis travel  650 mm

Z-axis travel  700 mm

Distance from spindle nose to worktable  200~900 mm

Distance from spindle center to column surface 710 mm

Feed:

X-axis fast moving rate 20 m/min

Y-axis fast moving rate 20 m/min

Z-axis fast moving rate 12 m/min

Cutting feed rate 10000 mm/min

Minimum feed 0.001 mm

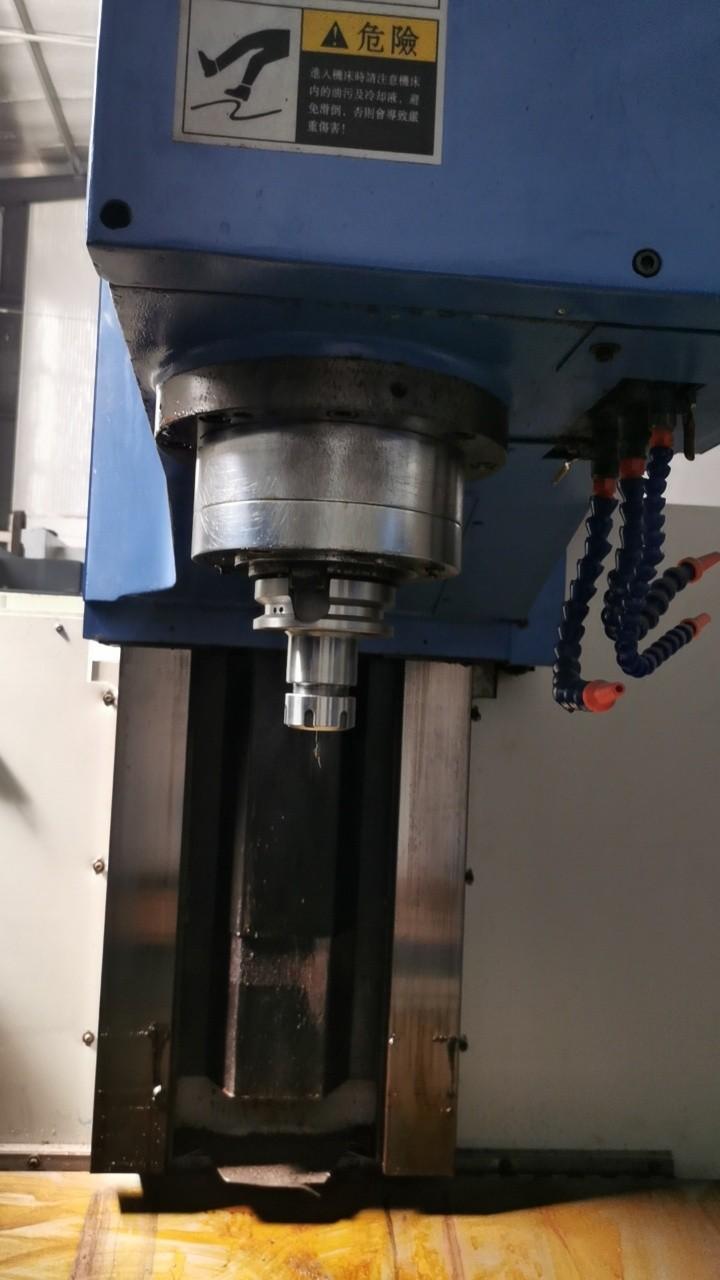

Spindle:

Spindle taper  N.T.40

Spindle speed 8000 rpm

Automatic tool changer (A.T.C)

Magazine capacity 24

Tool holder type B.T.40

Maximum tool diameter x length Ø 95 x 185 mm

Maximum tool weight 7 kgw

Motor:

Spindle drive motor 30 min rated 11 Kw

Spindle drive motor running continuously 7.5 Kw

X-axis drive motor 4 Kw

Y-axis drive motor 4 Kw

Z-axis drive motor 3 Kw

Other:

Machine weight 10500 kg

Floor area 5006 x 4256 mm
