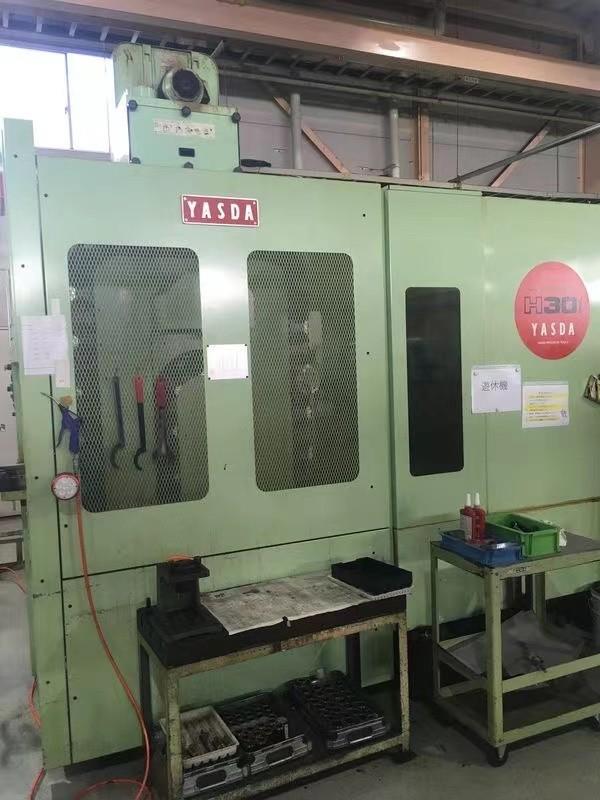

YASDA H30i 5 axis machining centre
[Product Information]:
- Inventory number：80448
- Brand：YASDA
- Model：H30i
- Origin：Japan
- Location：China
- Year：
- Create Time：2023-03-09
Specifications:
X/Y/Z axis travel: 650/560/560mm
B axis angle: - 135 °~30 °
A axis resolution: 0.0001 °

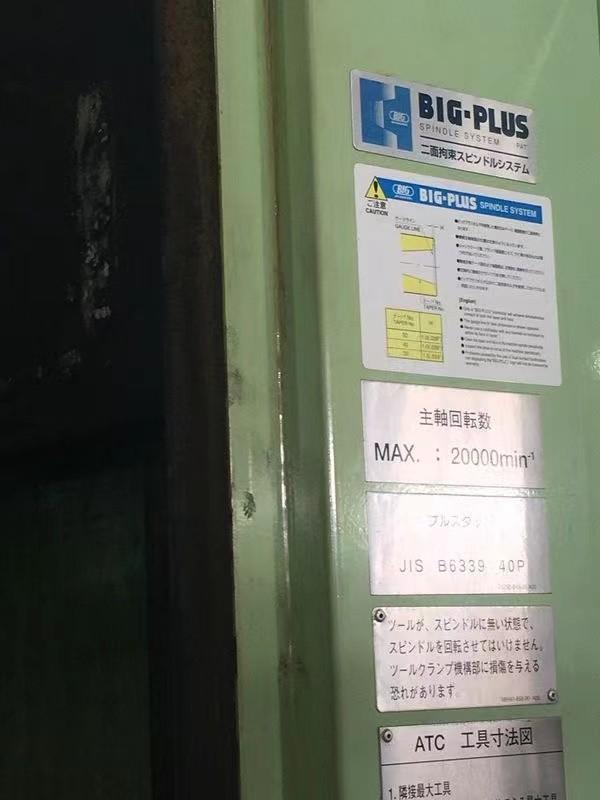

Spindle type: BIG+BT40
Spindle speed: 20000 rpm
ATC tool magazine: 60 tools, AWC60 system
Glass scale
XYZBA axis with feedback
Maximum workpiece diameter 100mm
Maximum workpiece rotation diameter 300mm
Touching type probe
Tool length measuring instrument
Center flushing
Coolant absorber
Chip conveyor
Machine weight: 14t
