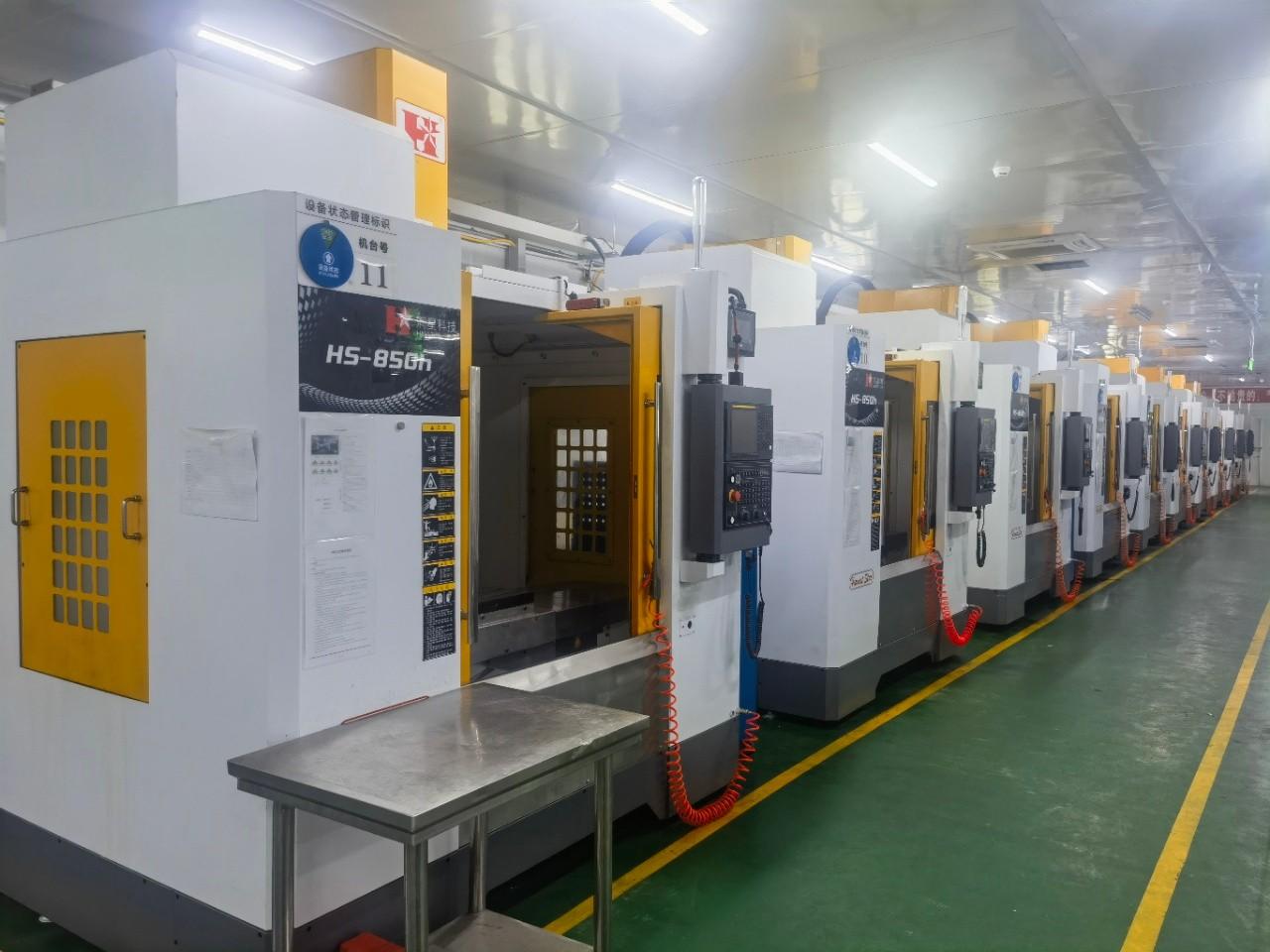

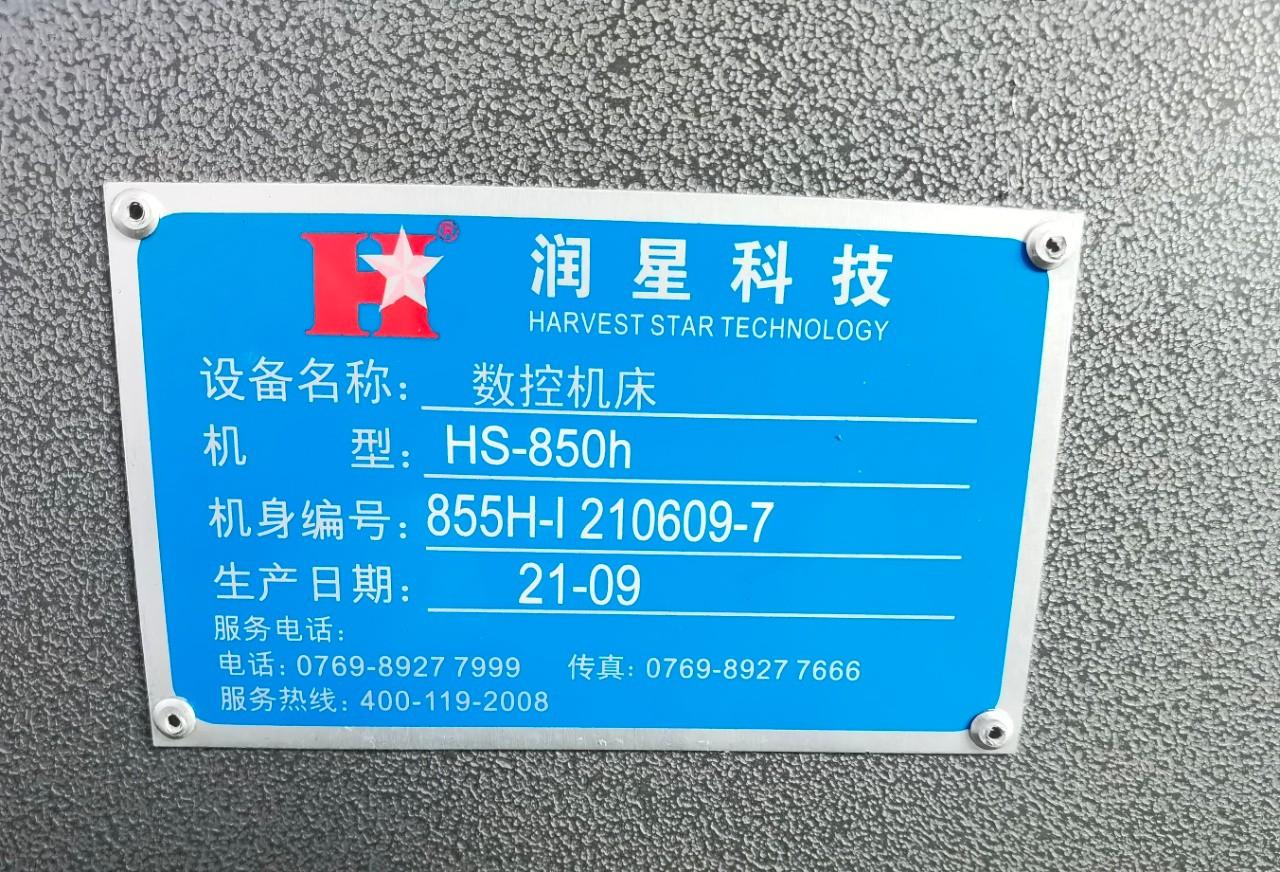

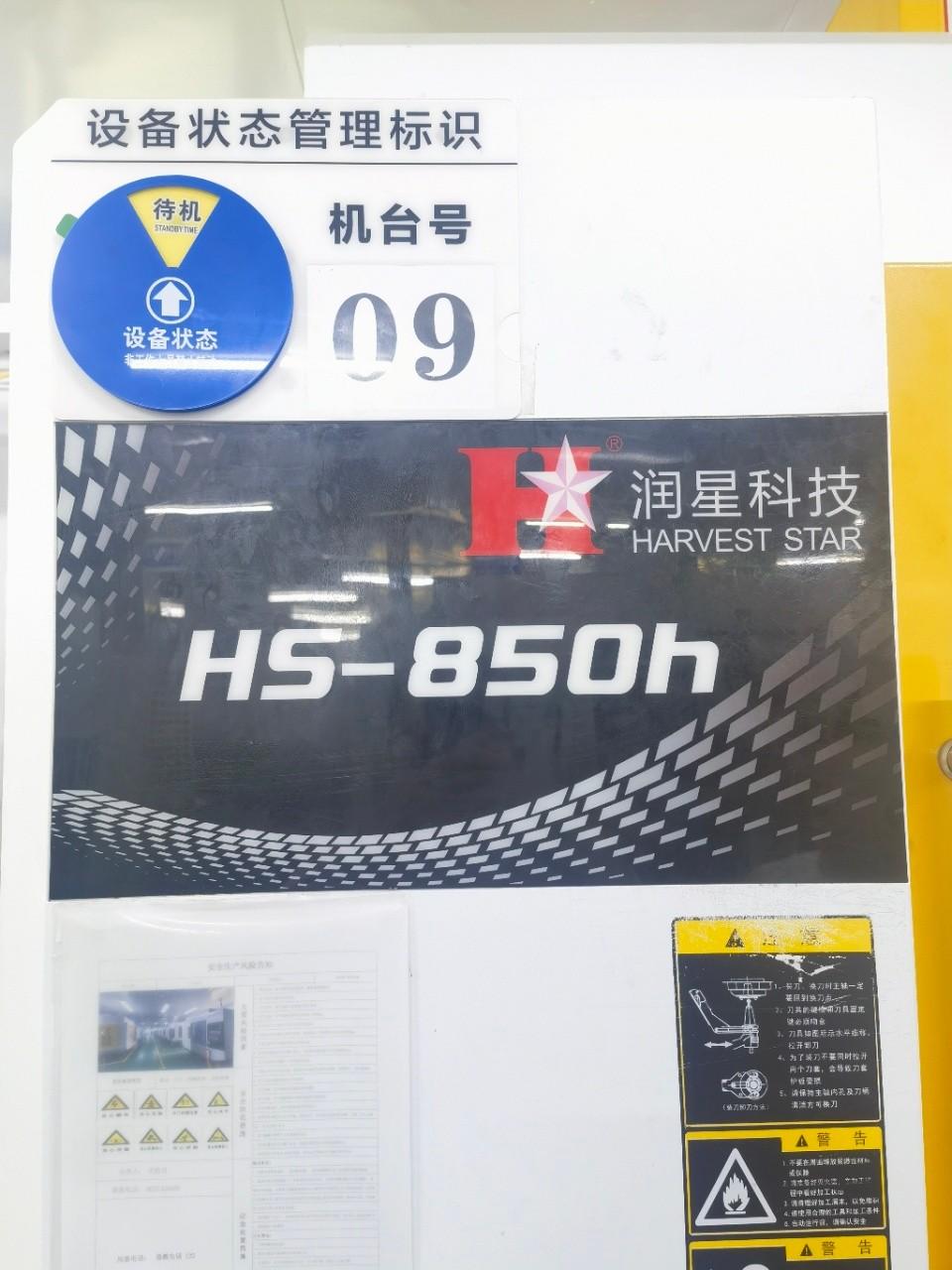

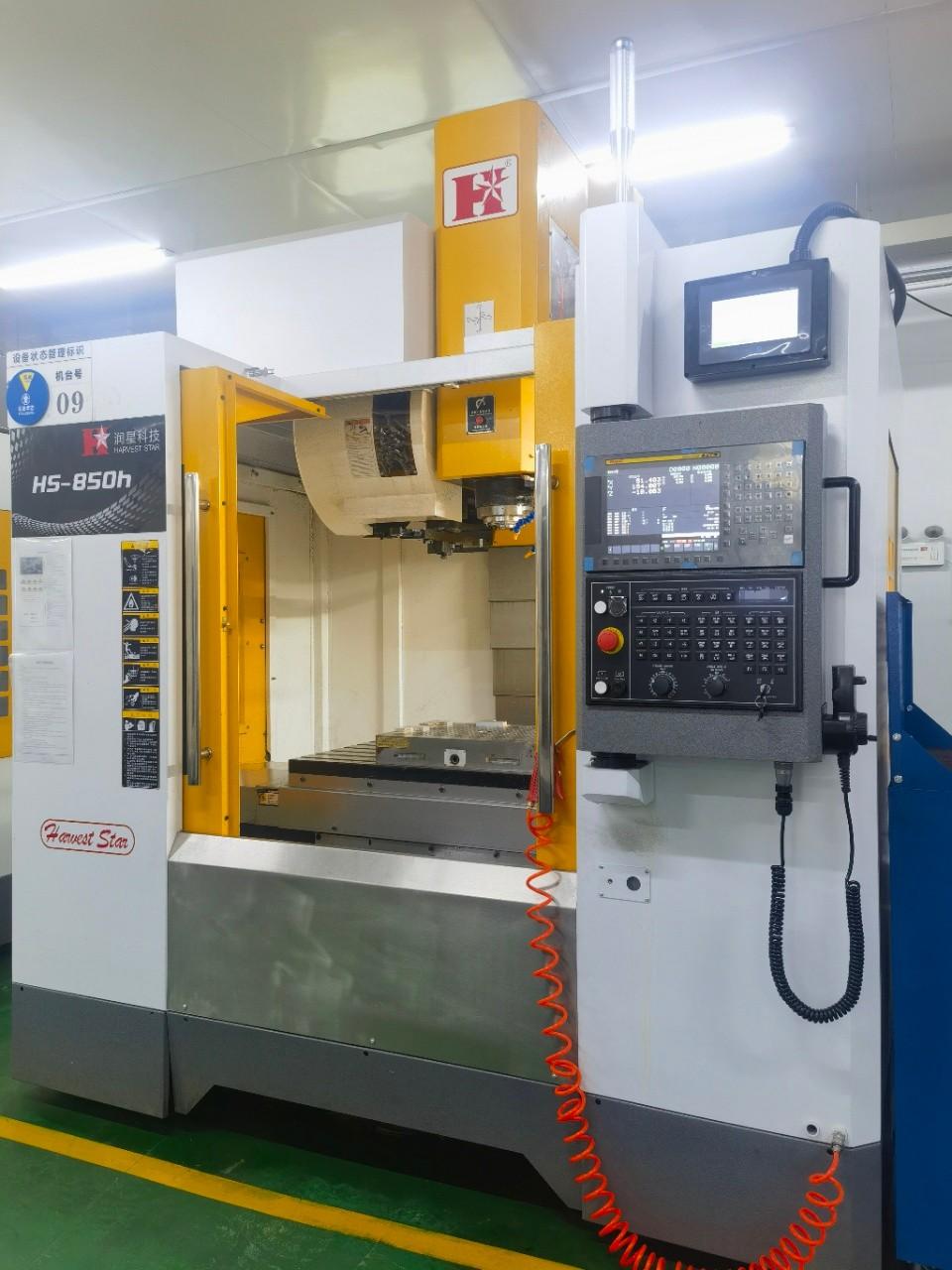

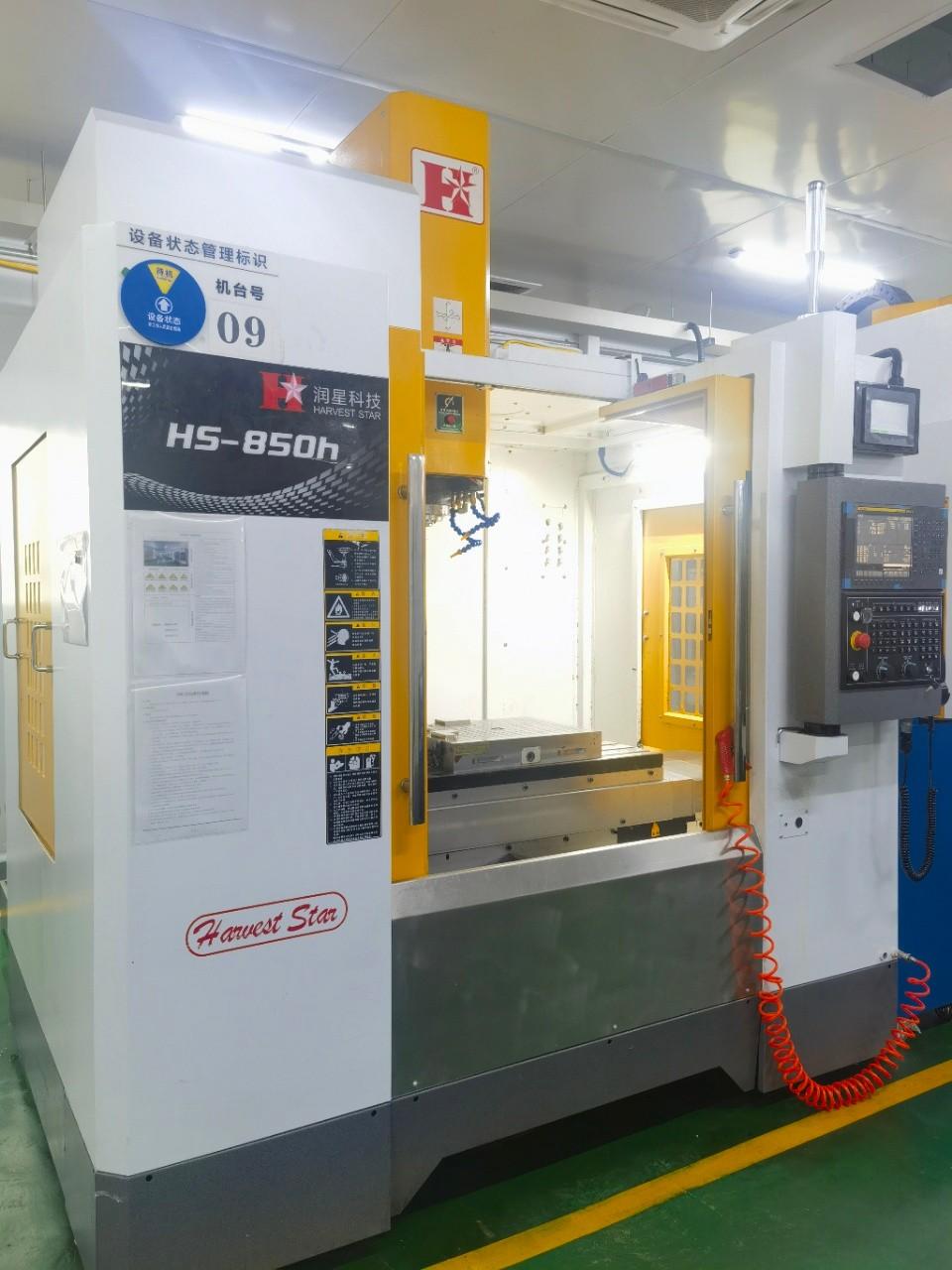

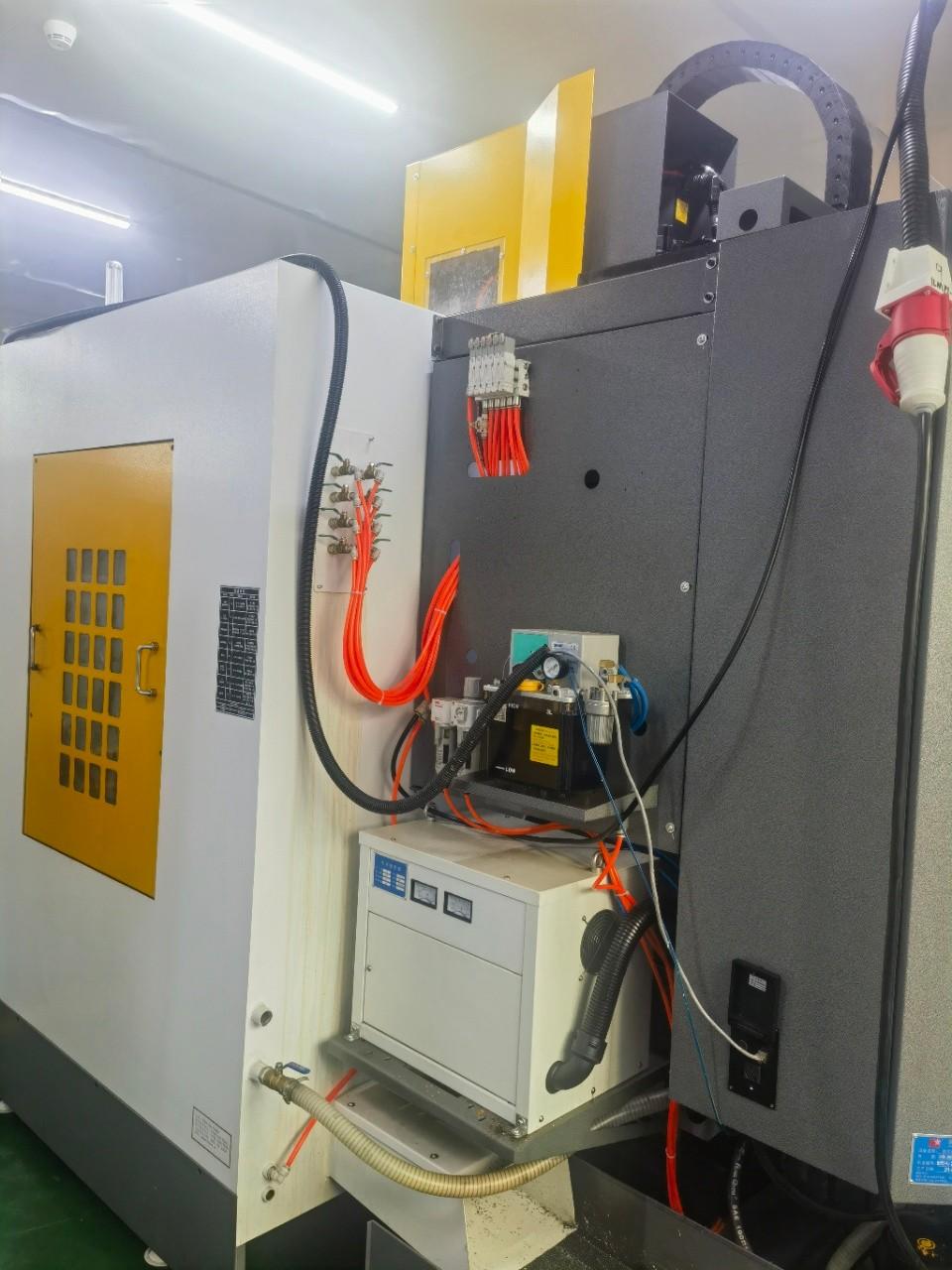

HARVEST STAR HS-850h Machining centre

X/Y/Z travel   800/550/600 mm

Distance between spindle nose and worktable  100-700mm

Distance from spindle center to Z axis shield  560 mm

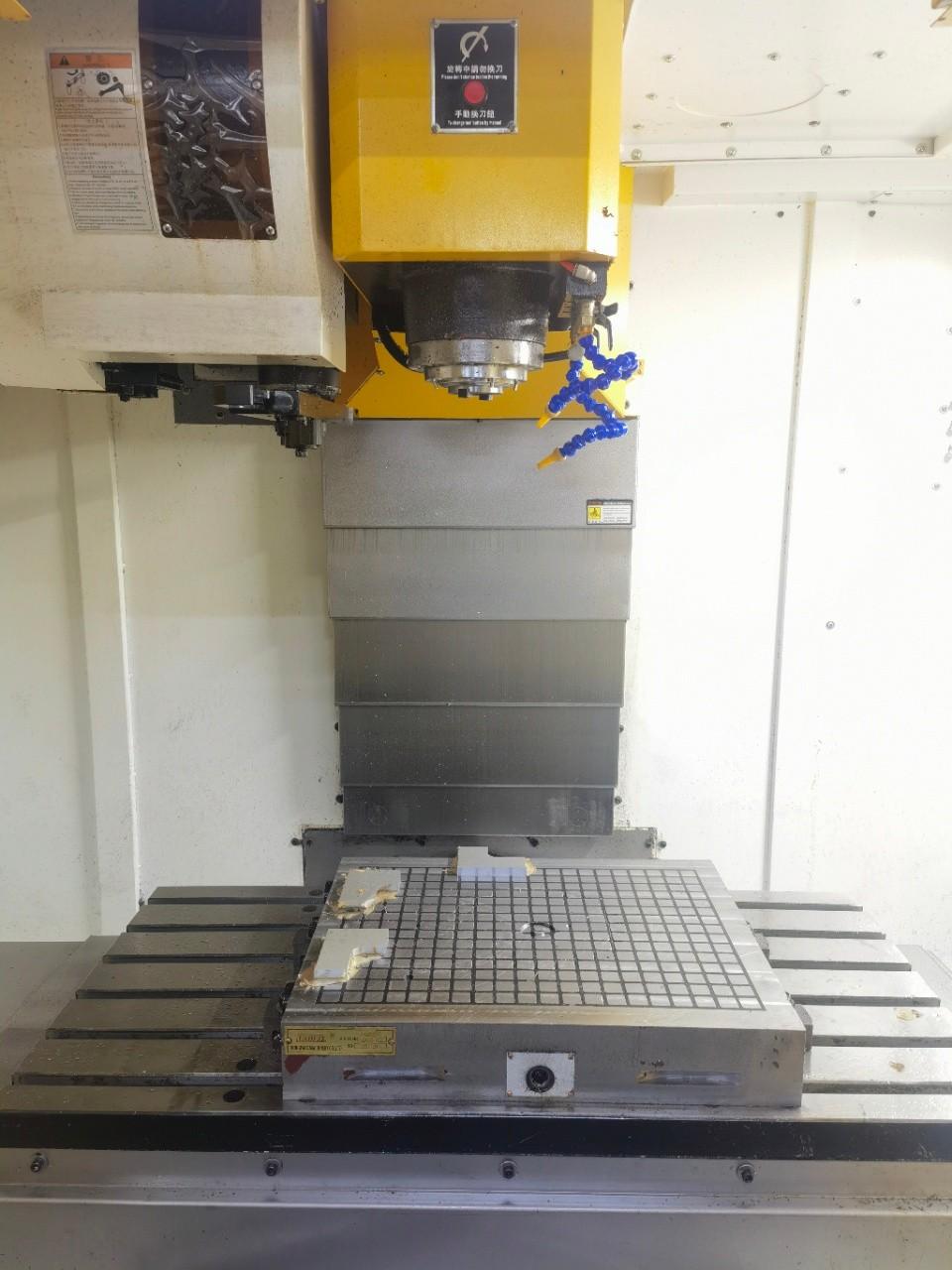

Worktable size  1000x500 mm

T-slot (quantity x size x spacing)  6x18x80 mm

Worktable load   600 kg

Spindle speed  12000 rpm

Spindle power (continuous /25%)  7.5(11)kW

Spindle torque (continuous /25%)  35.8(70) N·m

Cutting rate  1-10000 mm/min

X/Y/Z fast moving rate  48/48/48 m/min

Positioning accuracy  ±0.005/300 mm

Repeated positioning accuracy  ±0.003/300 mm

Machine weight   5800 kg

Machine footages  2300x3310x2750 mm
