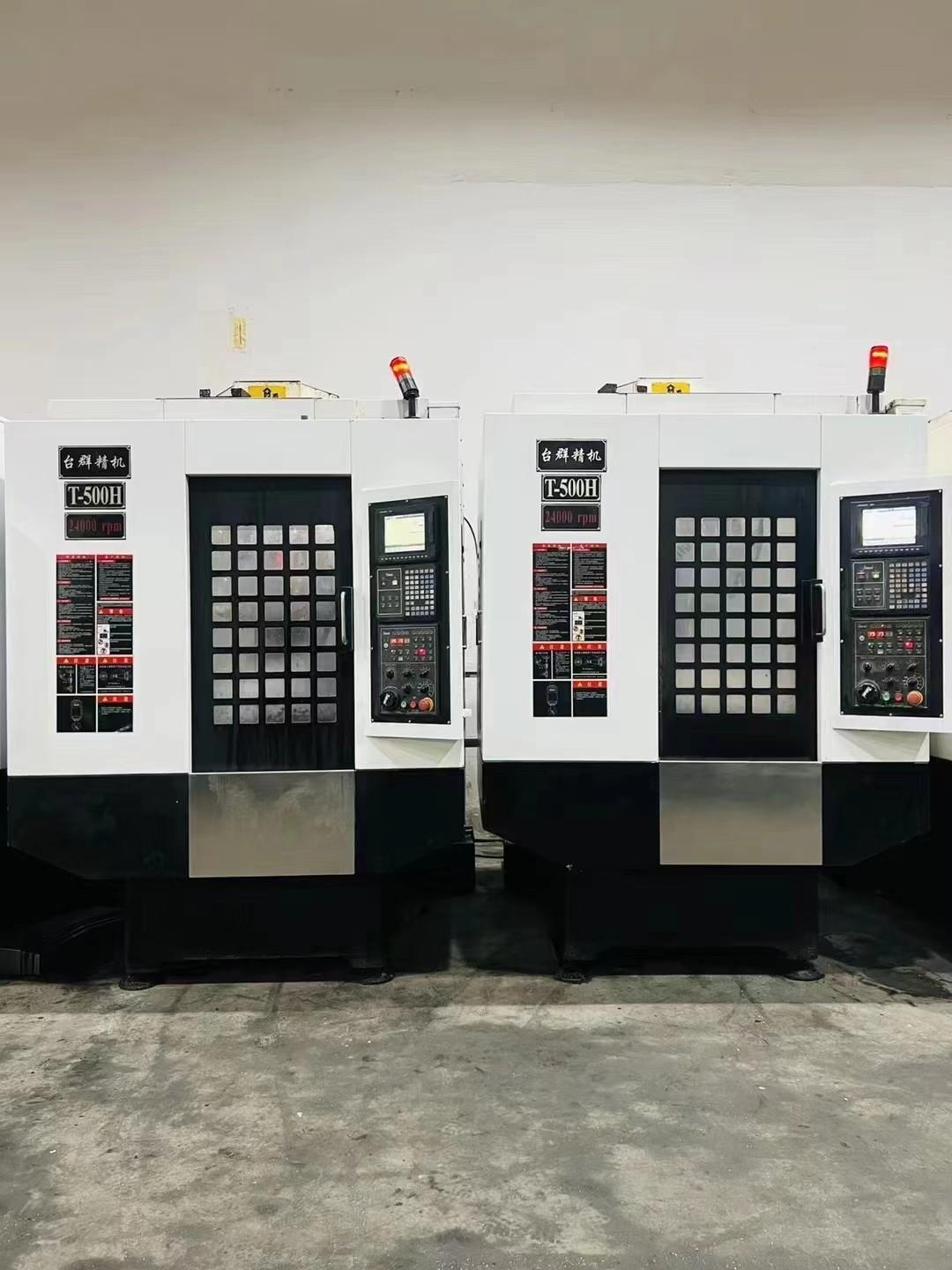

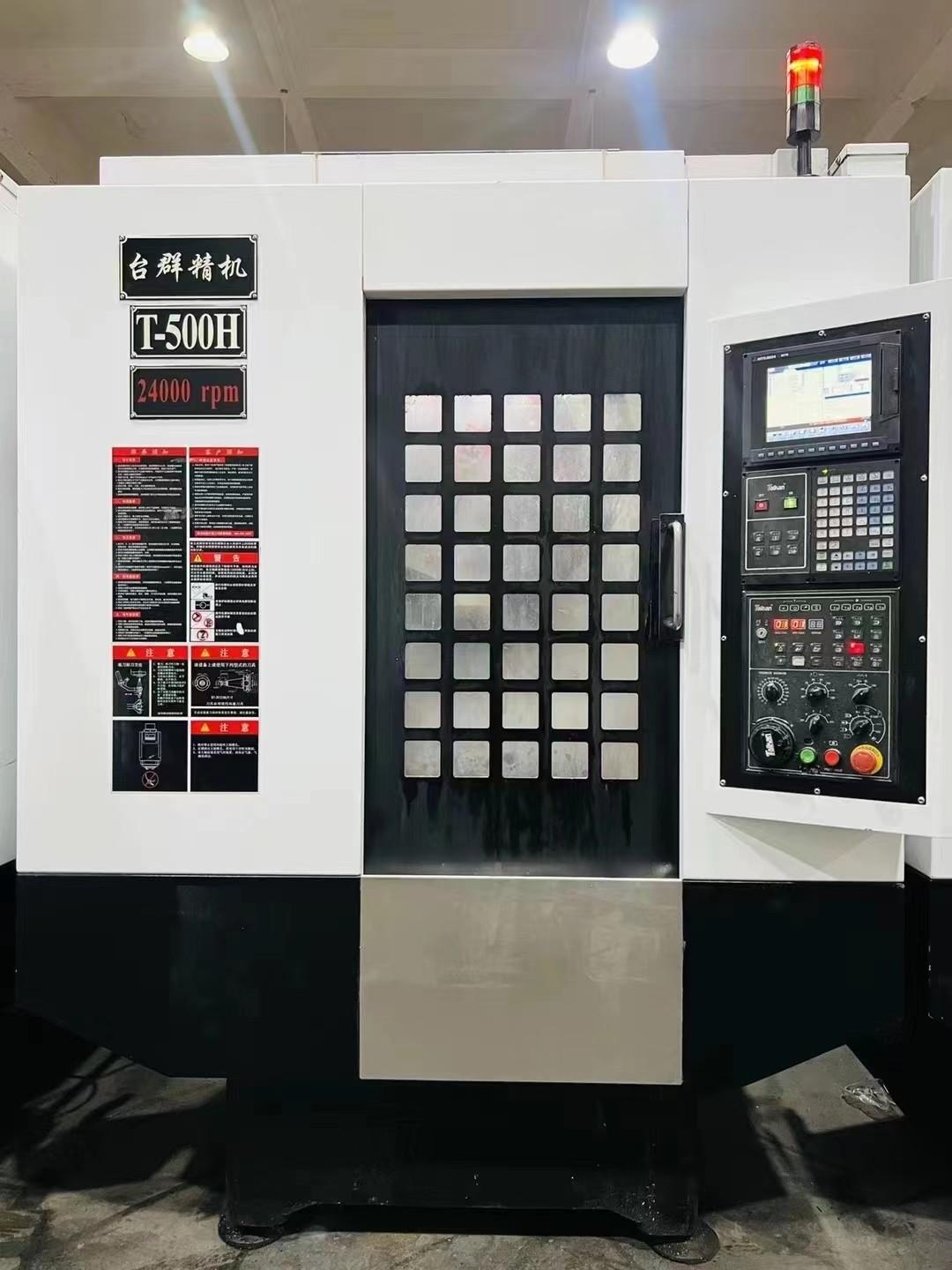

Taikan T500H Tapping machine

Worktable size: 620×390mm

X axis travel: 500mm

Y-axis travel: 390mm

Z-axis travel: 320mm

T-slots number - Size: 3-14×120mm

Distance from spindle nose to worktable: 180-500mm

Distance from spindle center to machine column surface: 445mm

Spindle speed: 50-20000/24000rpm

Spindle taper: BT-30

Spindle power: 3.7kw

X axis fast movement rate: 60m/min

Y axis fast movement rate: 60m/min

Z-axis fast movement rate: 60m/min

Cutting rate: 1-30000m/min

Three-axis motor power: 1.5/1.5/2.2kw

Total power consumption: 12kw

Positioning accuracy: 0.005mm

Repeated positioning accuracy: 0.003mm

Maximum load: 250Kg

Machine weight: 3100Kg

Overall footages (length * width * height) : 1690*2600*2600mm

Mitsubishi new HF series servo motor

Mitsubishi M70 system, 16 servo tools magazine
