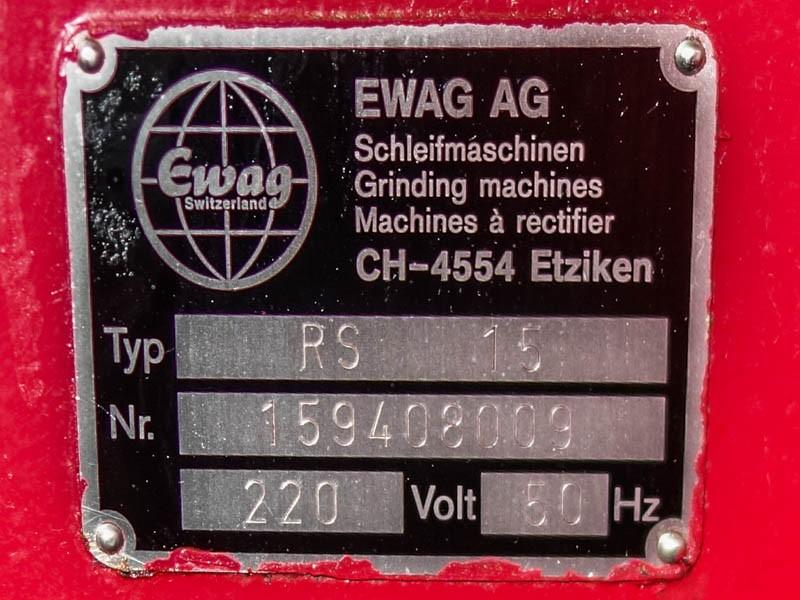

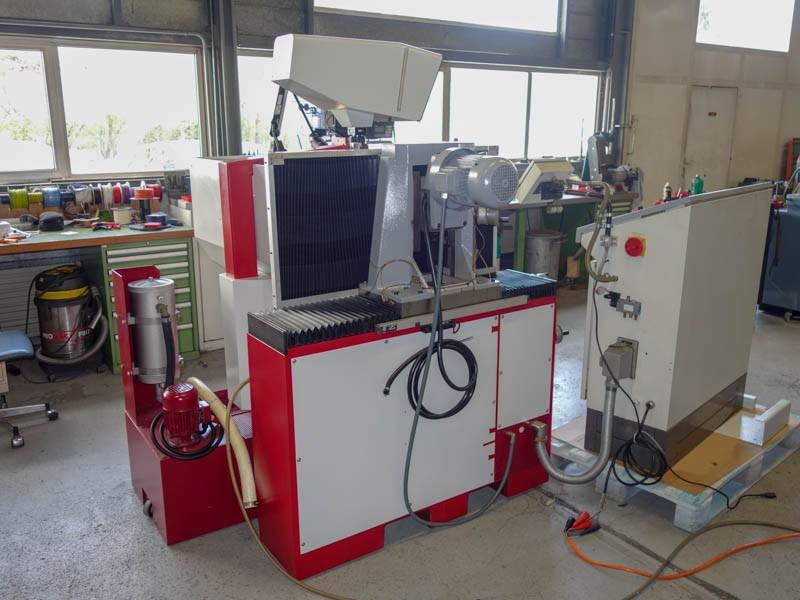

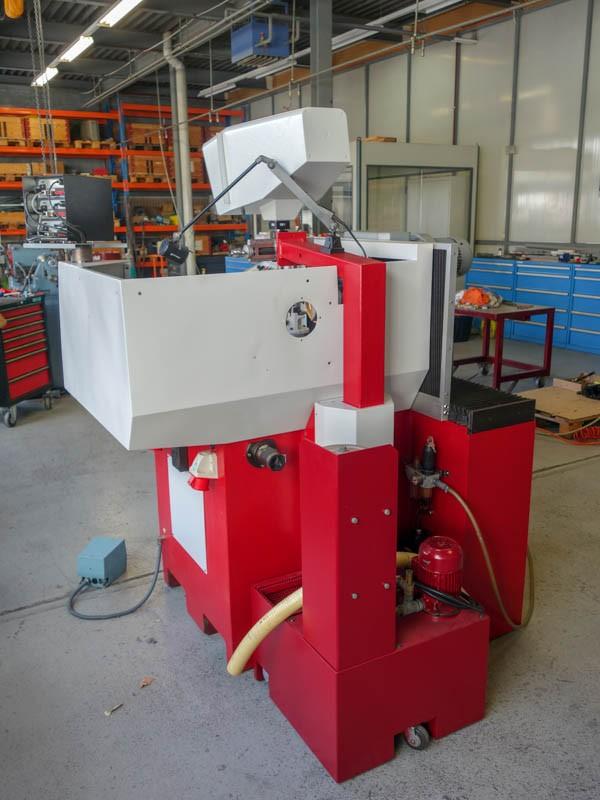

EWAG RS15 Grinding machines

Grinding wheel head:

Motor power: 2.2kw

Spindle speed (stepless variable speed) : 1000-800  rpm

A axis angle: -10  deg to +27deg

Spindle angle setting accuracy: 1 minute

Y-axis travel: 130 mm

X axis travel: 490 mm

Oscillating travel during operation: 0-68 mm

Oscillation frequency: 0-68 min^-1

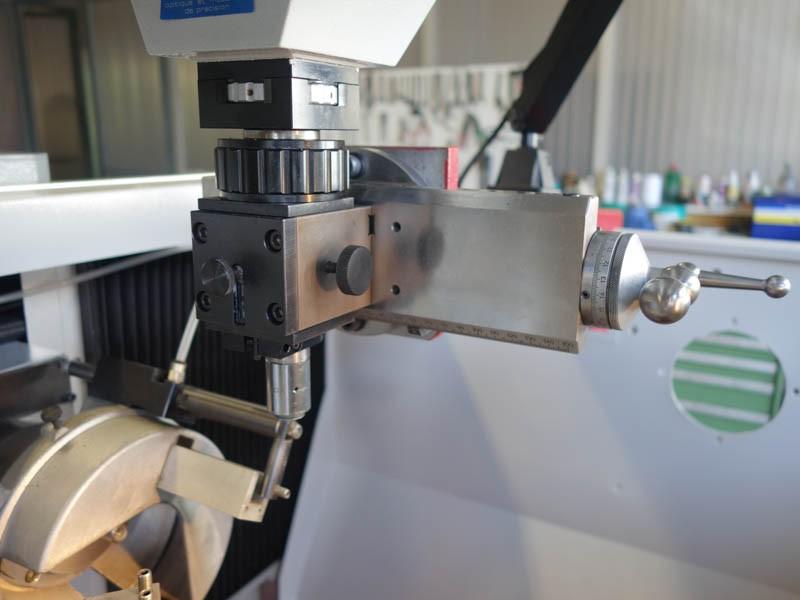

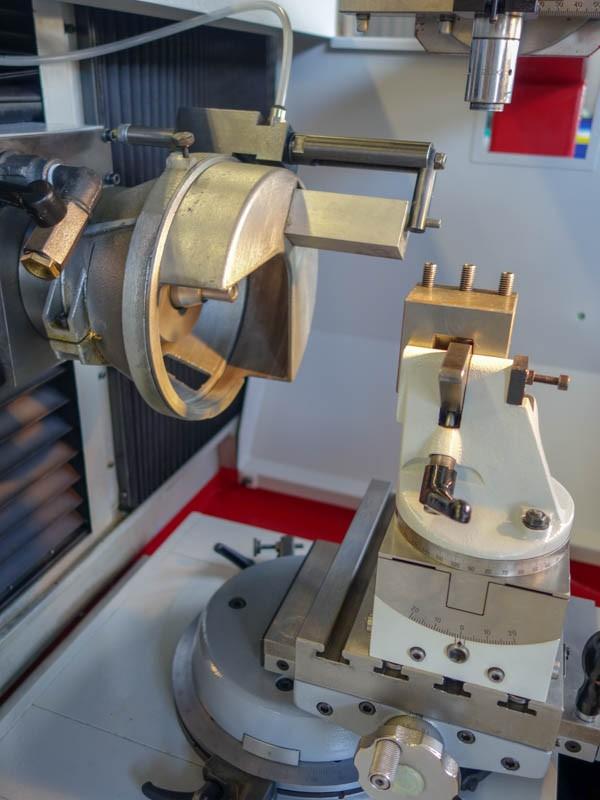

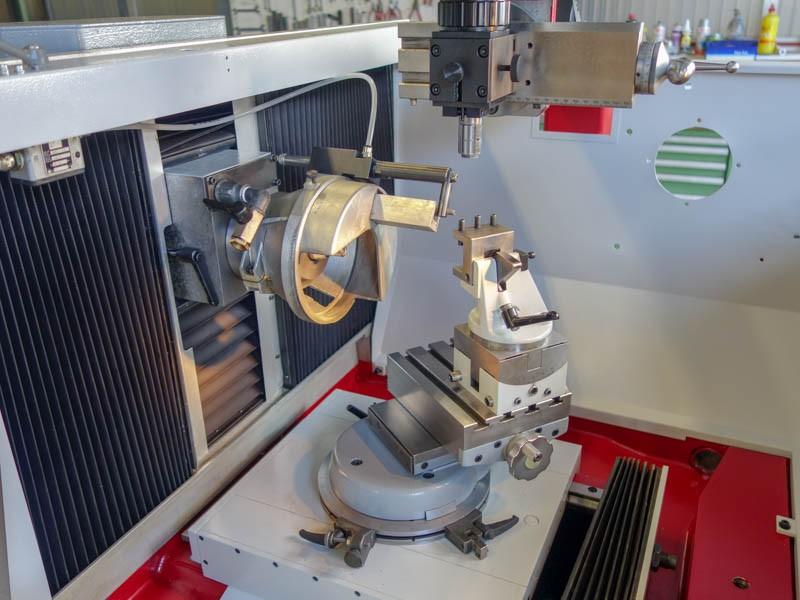

Workhead:

Z axis adjustment range: 0.01-120 mm

Z axis adjustment accuracy: 0.01mm

Maximum slider shrinkage from grinding position to measuring position: 120 mm

Clamping surface area of cross Worktable: 155x205 mm

Maximum B axis rotation angle : 260°

Power supply: 3x380V

Components:

FR 15 spindle drive with variable speed

Variable grinding pressure AV15

Electromagnetic locking device SB15-EM

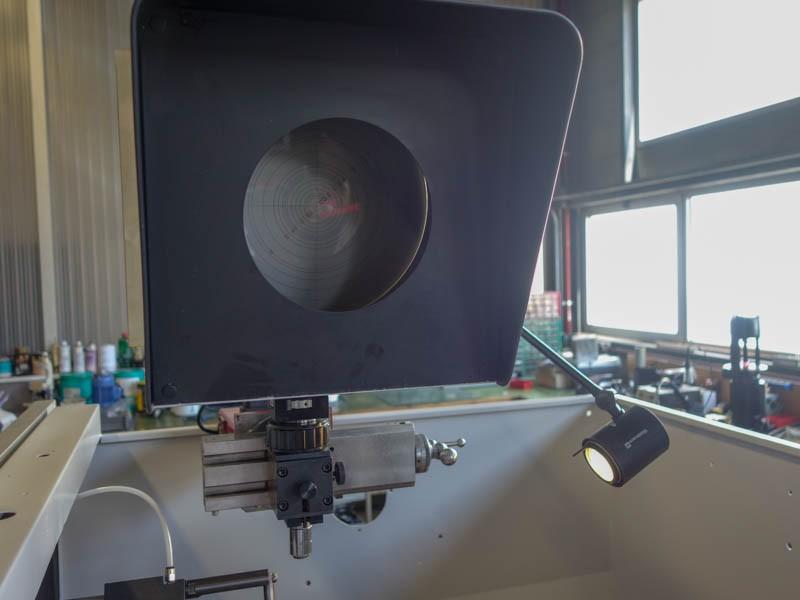

Projector metric assembly PRO 15M

Projector with screen of 250 mm diameter serial number 7-0015

Interchangeable objective lens 20x

Reticule (glass)

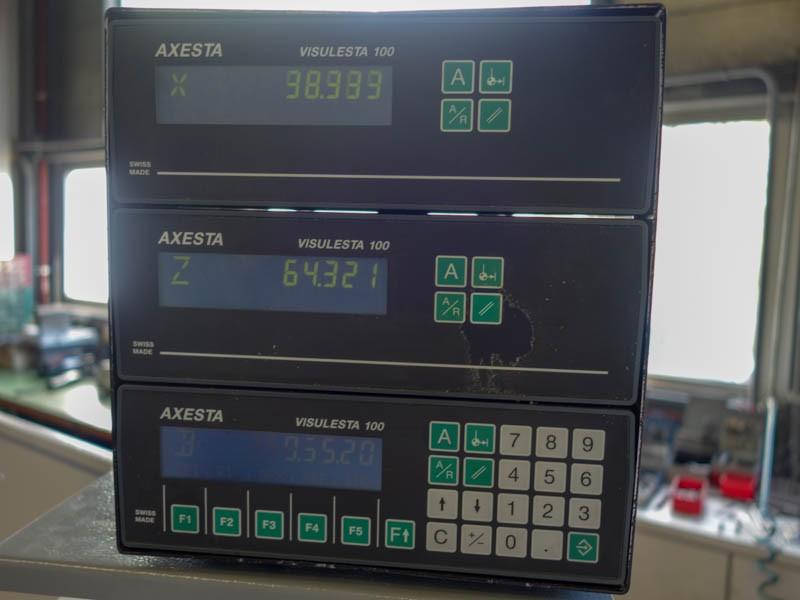

3-axis digital readout DIG 15-3 (X, B, Z axis)

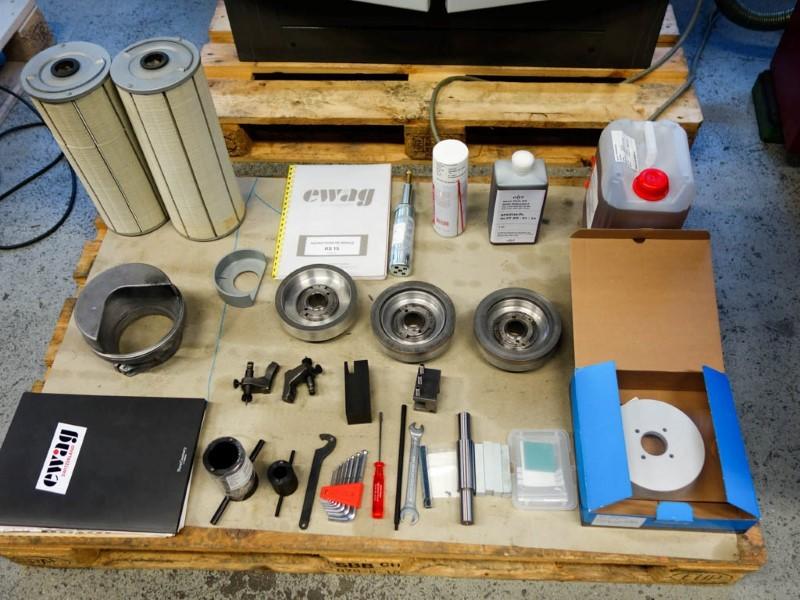

Accessories:

New type balanced mandrel AQ40

4 Grinding wheel adapters Q40-fix-19-0CB

New type standard diamond grinding wheel

4 different grinding wheels

Universal worktable 3 CV

Quick clamping device 8AU-L (left side)

2 workpiece holders 8C

Middle block AZ 12

New recyclable wheel cover

New 4 renew stones

Recyclable accessory AD15

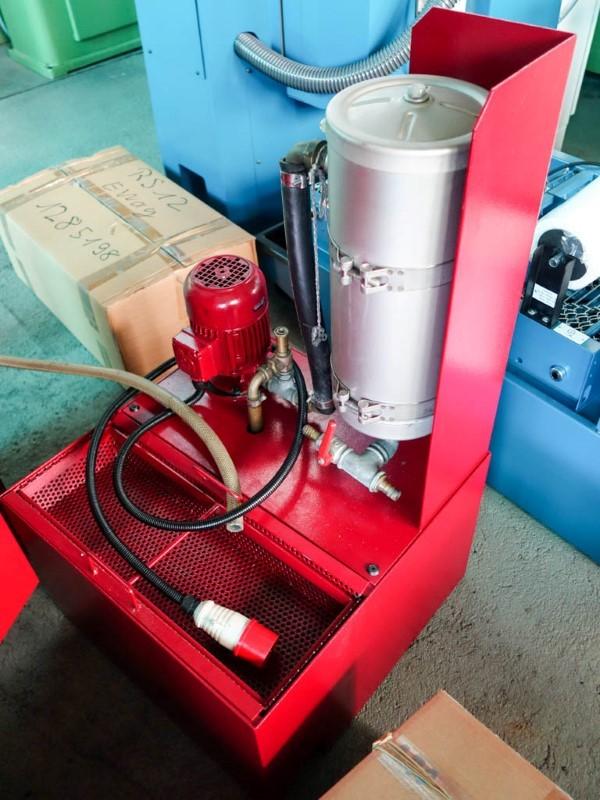

Complete cooling system K3P

Halogen lamp

A new set of standard accessories

A set of anti-vibration elements

English instruction manual
