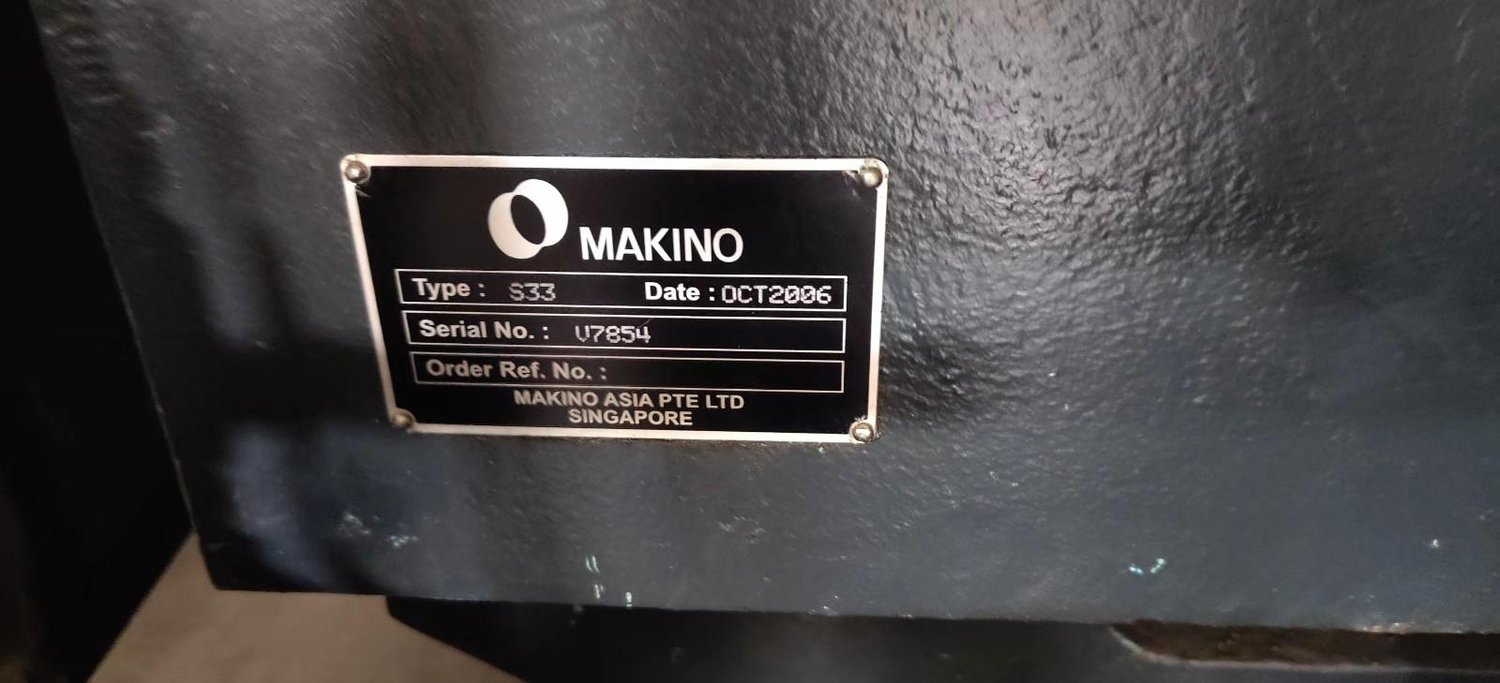

makino S33 Vertical Machining centre

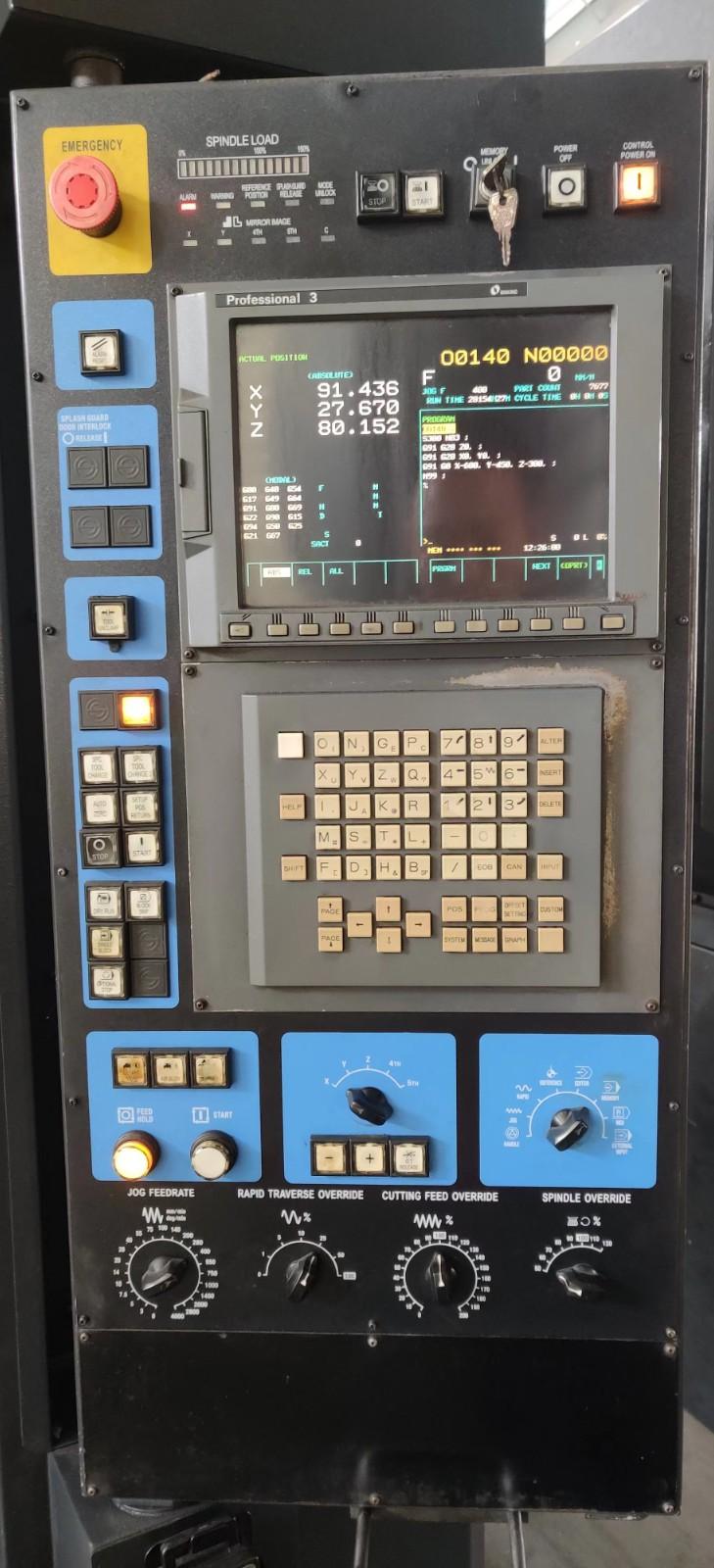

System: Professional 3 system

Three axes travel: 600*400*350mm

Distance from spindle nose to worktable :150 ~ 600 mm

Distance from spindle center to machine column surface:500 mm

Spindle taper :N.T. 40

Spindle speed :20000 r.p.m

Cutting feed rate:40,000 mm/min

Fast moving rate: 40/40/32 m/min

Minimum input increment: 0.001mm

Tool holder type :BT 40

Tool magazine :30,ATC

Maximum tool diameter *length :90*300mm

Maximum tool weight :6kg

Spindle drive motor: 7.5Kw

Rated power for 30 min continuous operation :11 Kw

Drive motor X,Y,Z axis :3 (4), 3 (4), 3 (4) Kw (HP)

Floor area: 2,045 X 2,250mm

Net weight of machine :7000kg
