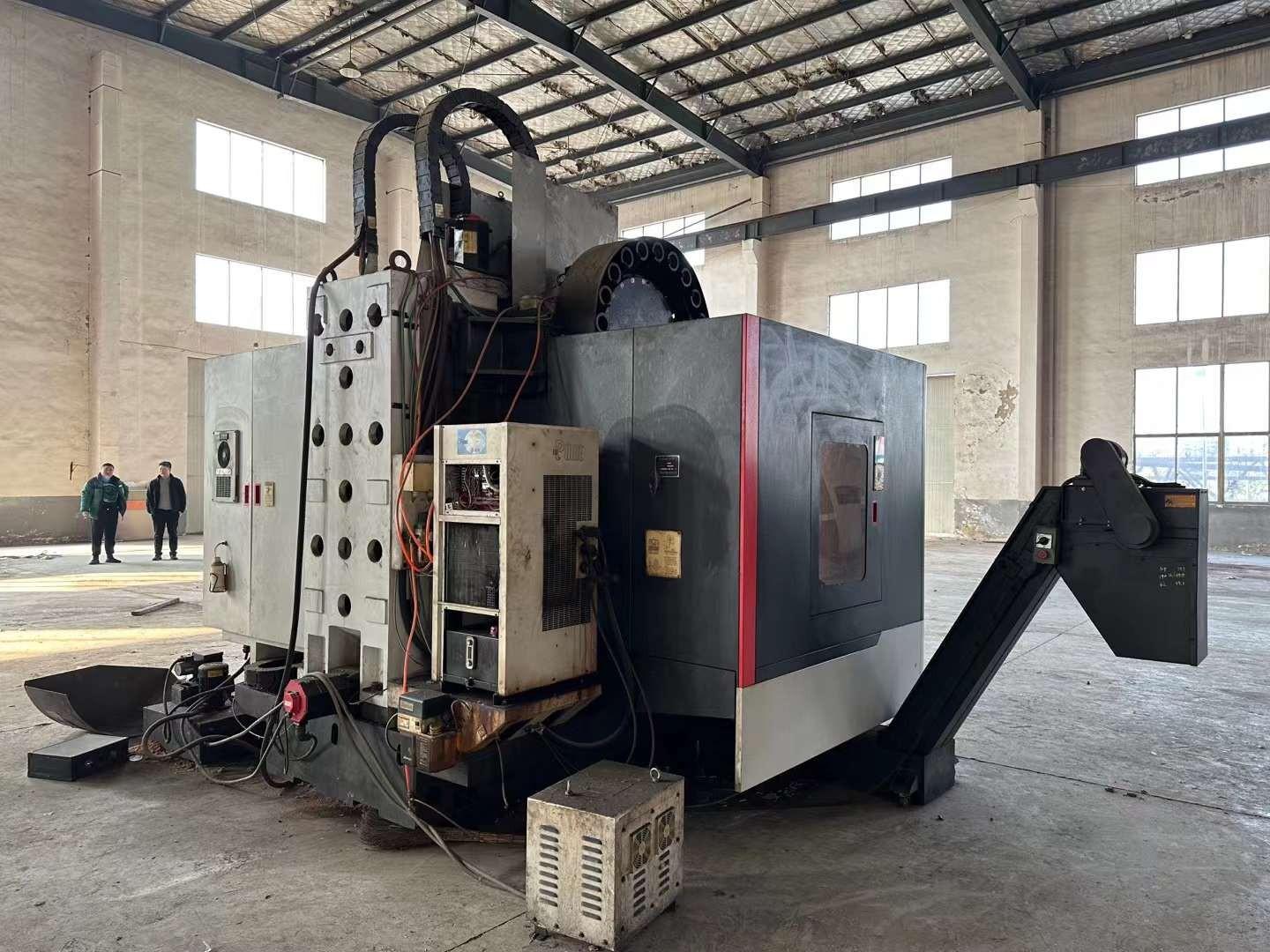

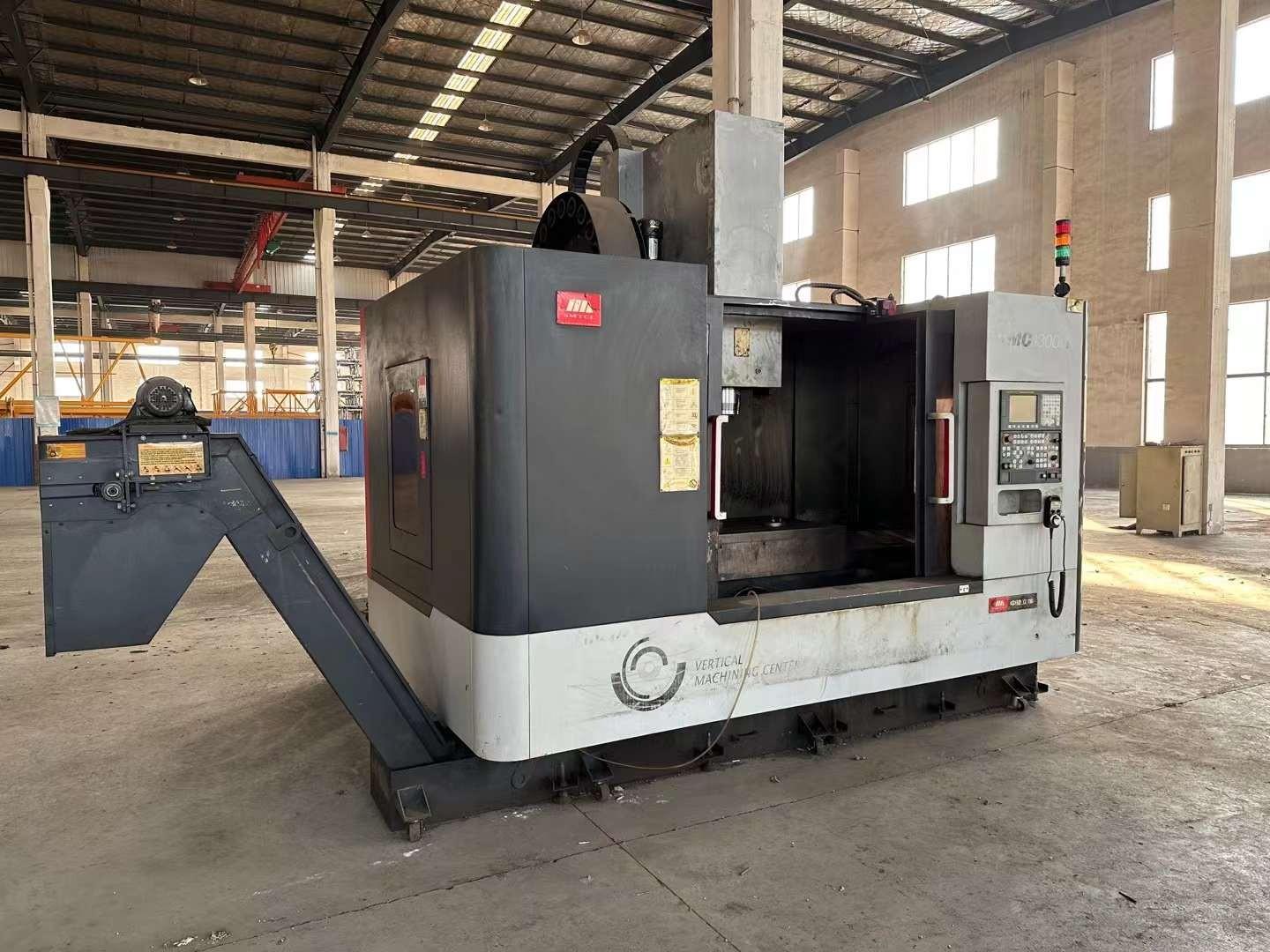

SMTCL VMC1300B Vertical Machining centre

Worktable size 1400×700 mm

Worktable load 1000 kg.

T-slot size 18×5 mm

X axis travel 1300 mm

Y axis travel 700 mm

Z axis travel 700 mm

Spindle taper (7:24) BT50

Spindle 50 to 6000 r/min

Spindle torque 71.7N.m

Spindle motor power 15/18.5 kw

Spindle drive mode  Synchronous gear belt

Fast moving rate（X*Y*Z axis）24*24*20m/min

Three-axis drive motor Power (X/Y/Z)  2.5/2.5/2.5 kw

Feed rate 1-10000 mm/min

Magazine mechanical arm tool type

Tool selection mode bi-directional and nearby type tool selection

Tool magazine 20

Max. tool length 300 mm

Max. tool weight 15 kg

Distance between tools when full tools  φ133 mm

Distance between tools when adjacent position without tools φ250 mm

Tool changing time 3.5

Machine weight 11000 kg

Machine tool footages 3500 * 3232 * 3361mm
