GoldSun GSVM8050A Machining centre

[Product Information]:

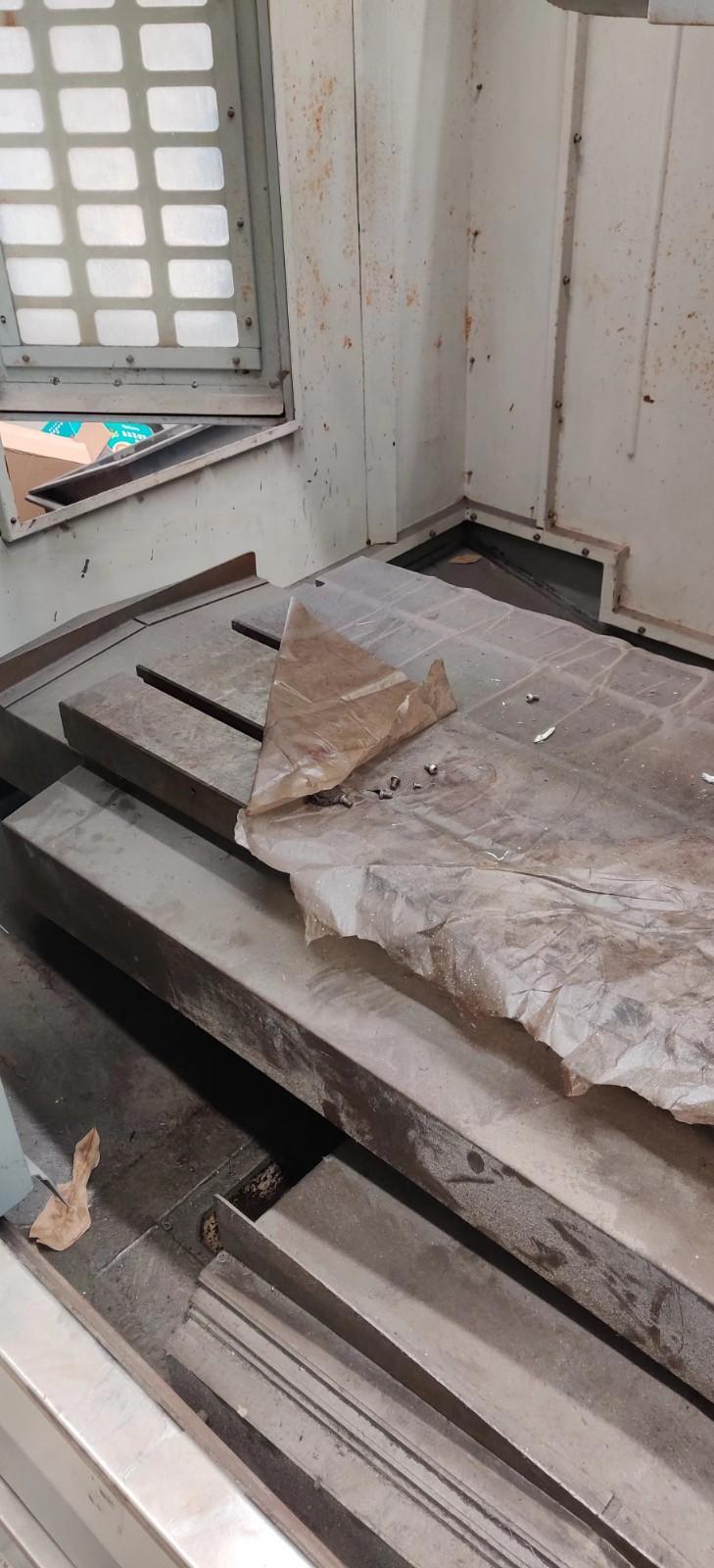

Worktable size: 1050x500mm

Worktable load: 600kg

T-slot: 3x18x100mm

X axis travel: 800mm

Y-axis travel: 500mm

Z-axis travel: 550mm

Distance from spindle nose to worktable: 105-655mm

Distance between spindle center and column guideway surface: 550mm

Spindle speed: 8000rpm

Main motor power: 11kw

Machine weight: 5500kg

Machine footages: 2900x2300x2750mm

Three axes rigid guideway

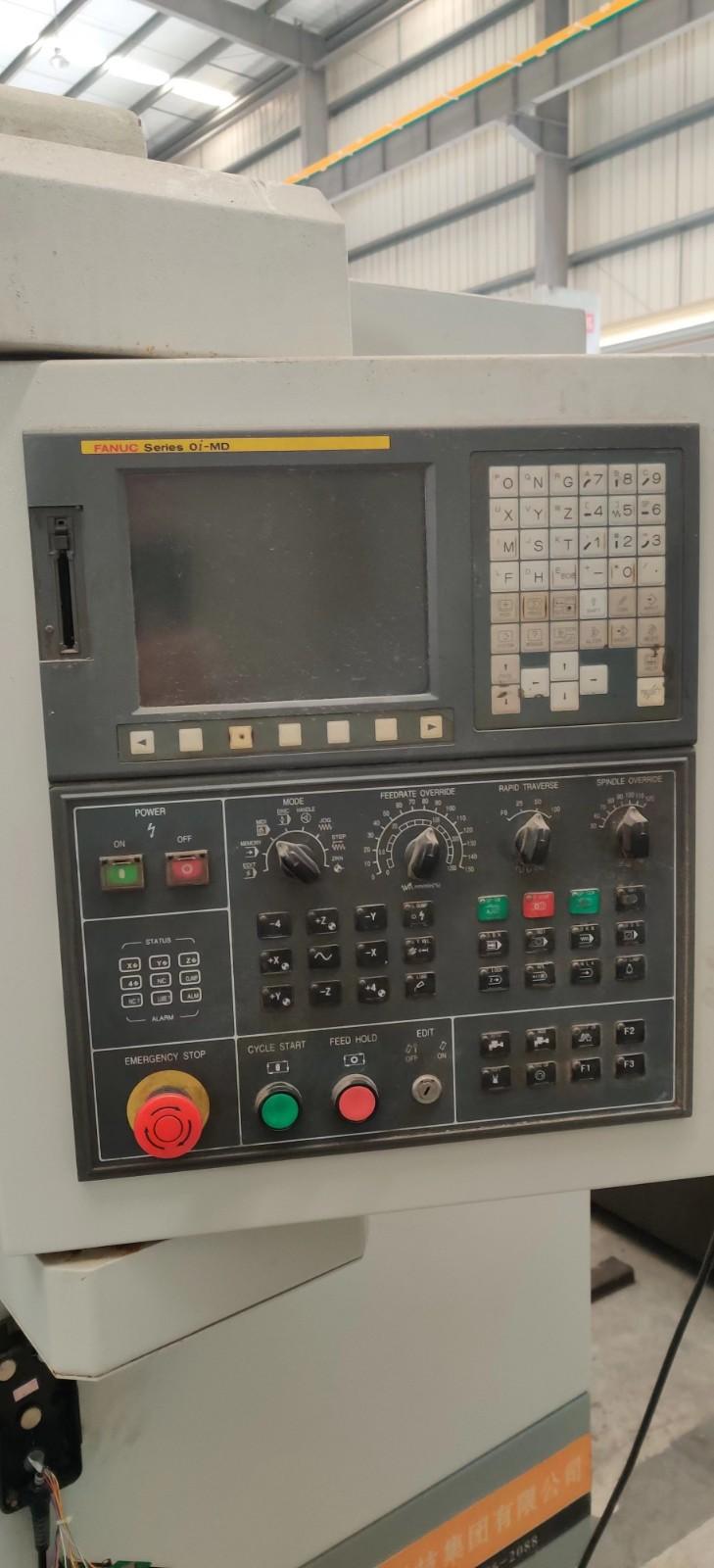

Fanuc system
