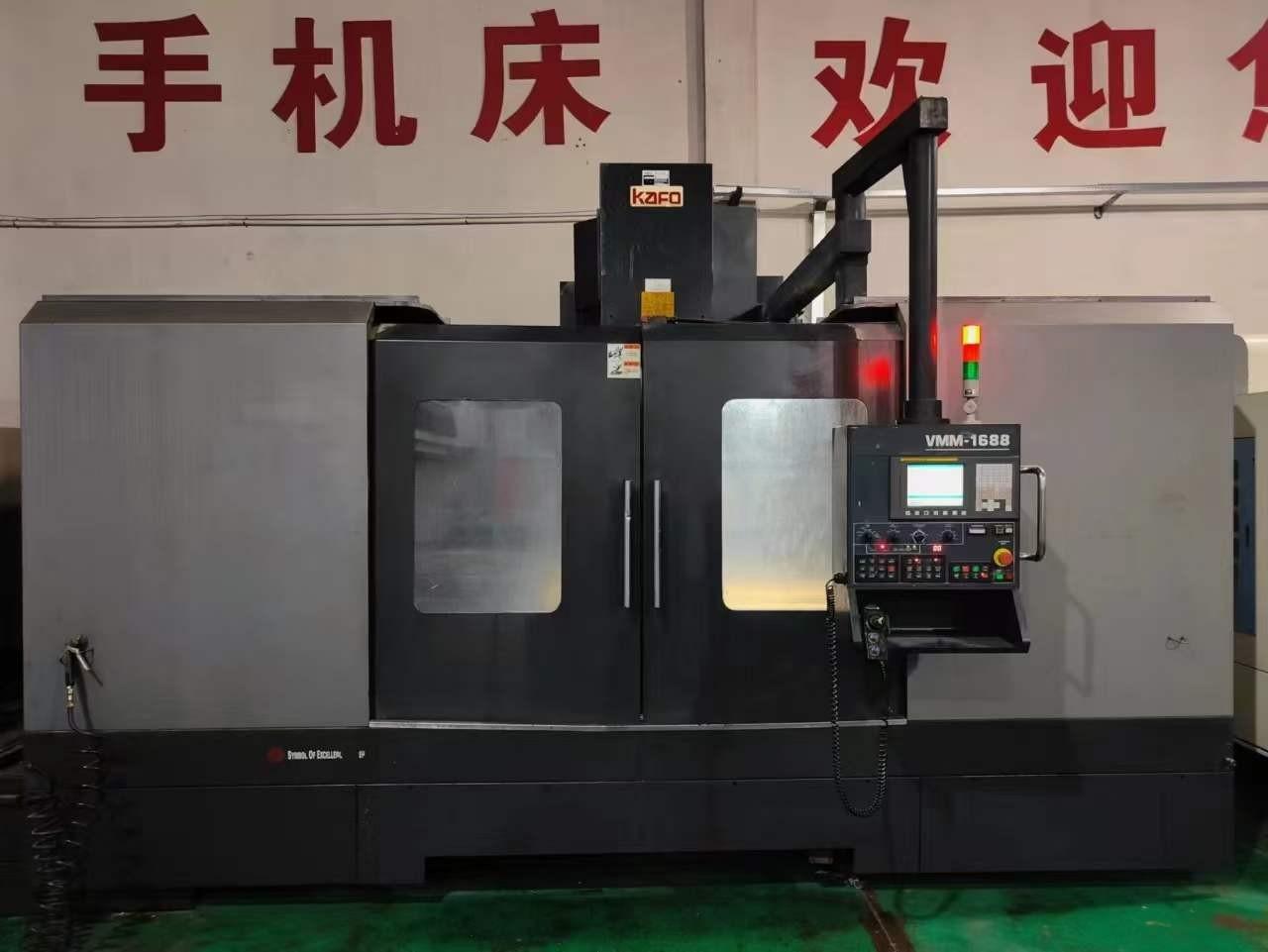

KAFO VMM1688 Vertical Machining centre

[Ex-factory Year] 2013

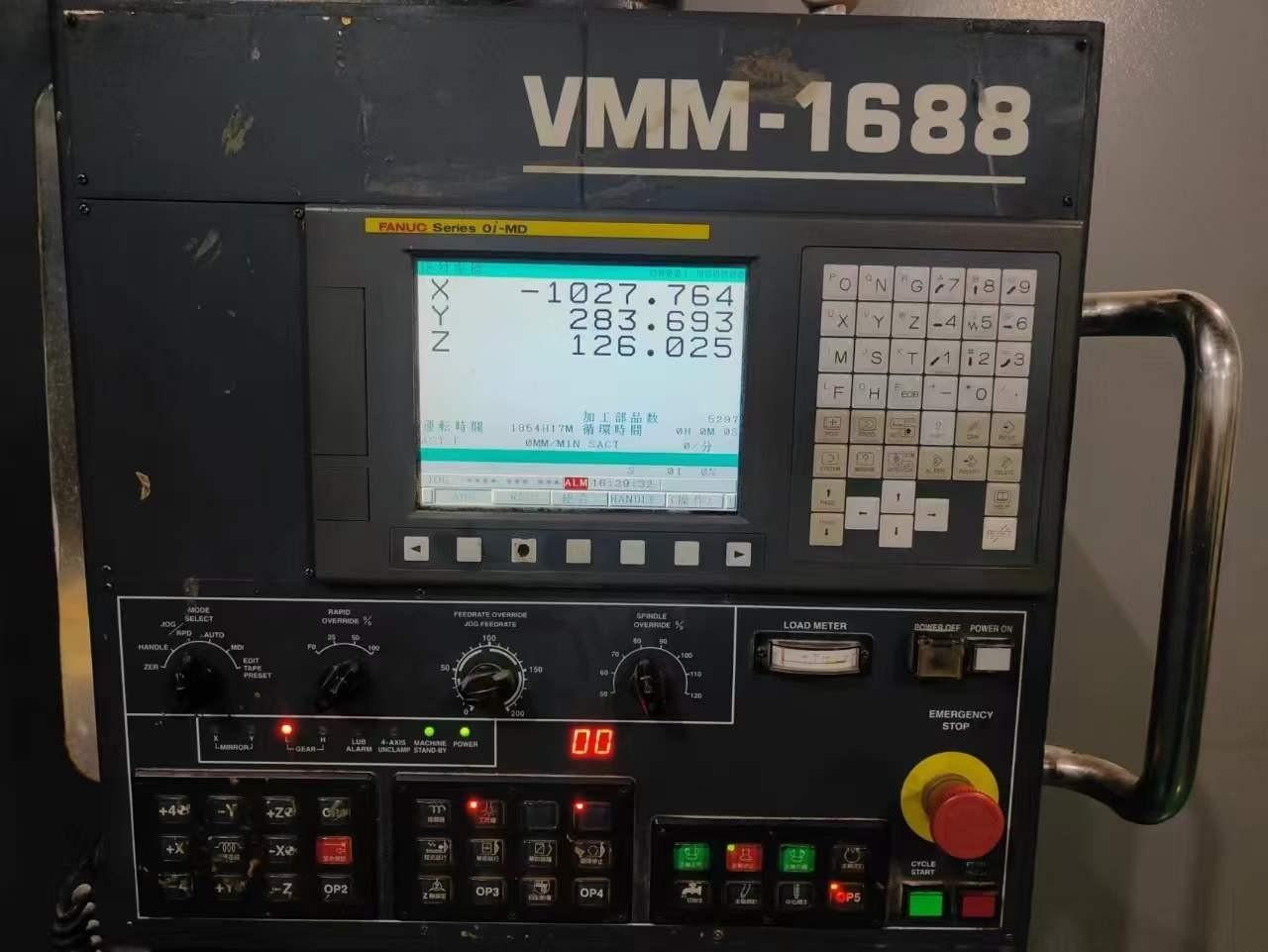

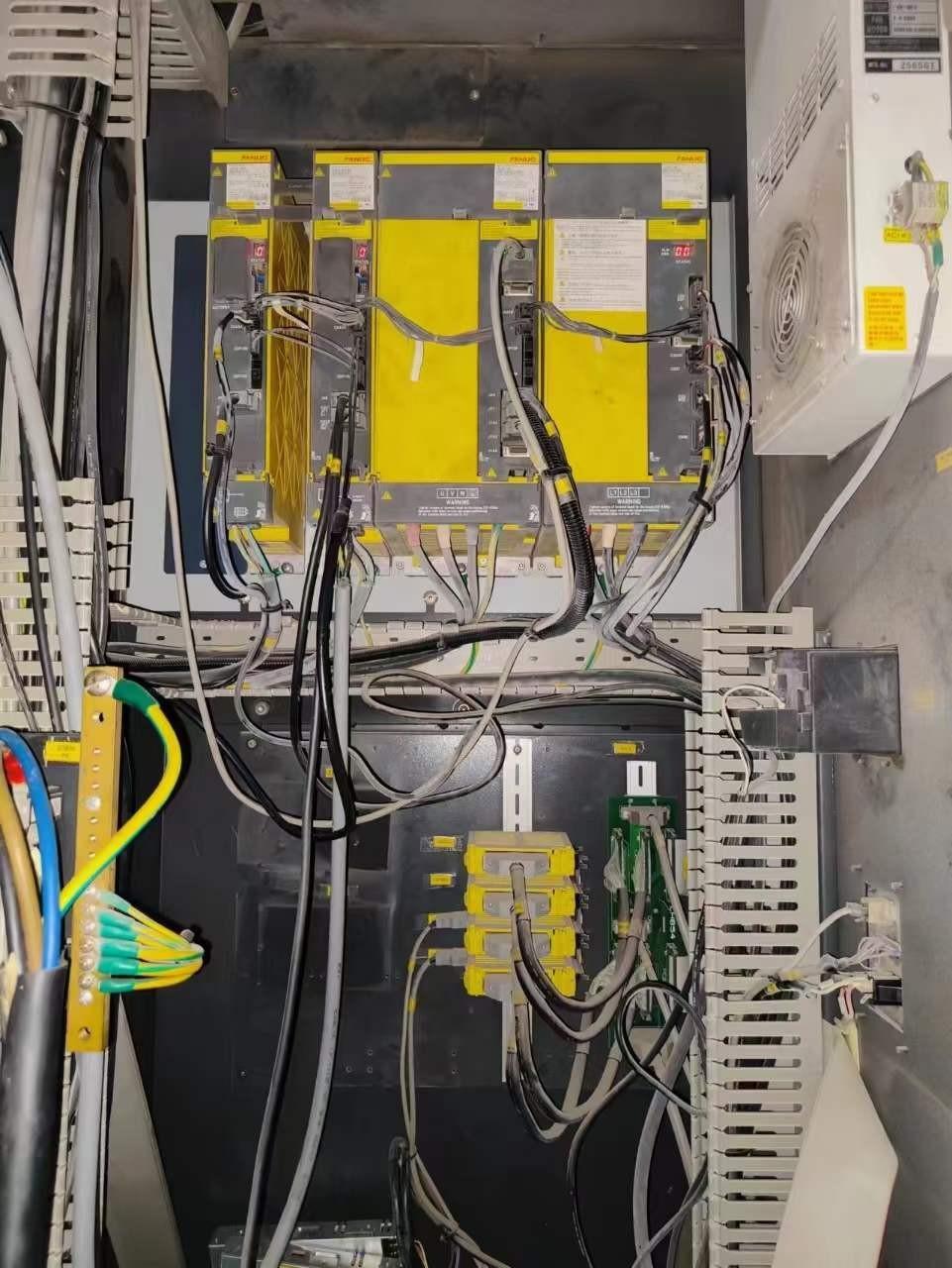

[System] Fanuc Oi-MD 1 series , Alpha motor drive

[Spindle] Taiwan BT50 direct-connected main spindle, 10000rpm

[Motor power]spindle motor 18.5KW ,three-axis motor 4/4/7 KW

[Travels] X: 1600 mm Y: 880 mm Z: 700 mm

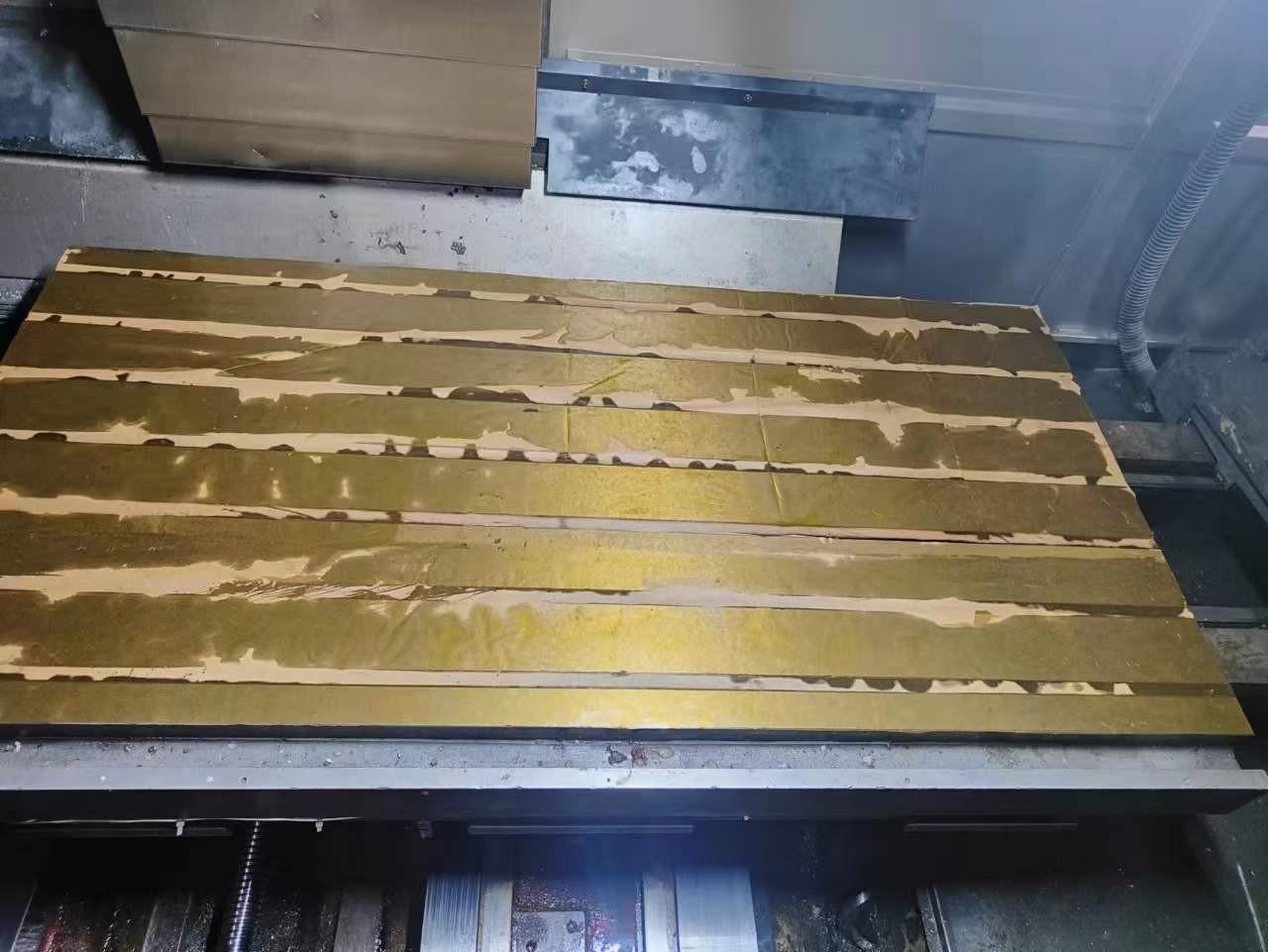

[Worktable] size 1900X950mm, load 2500KG

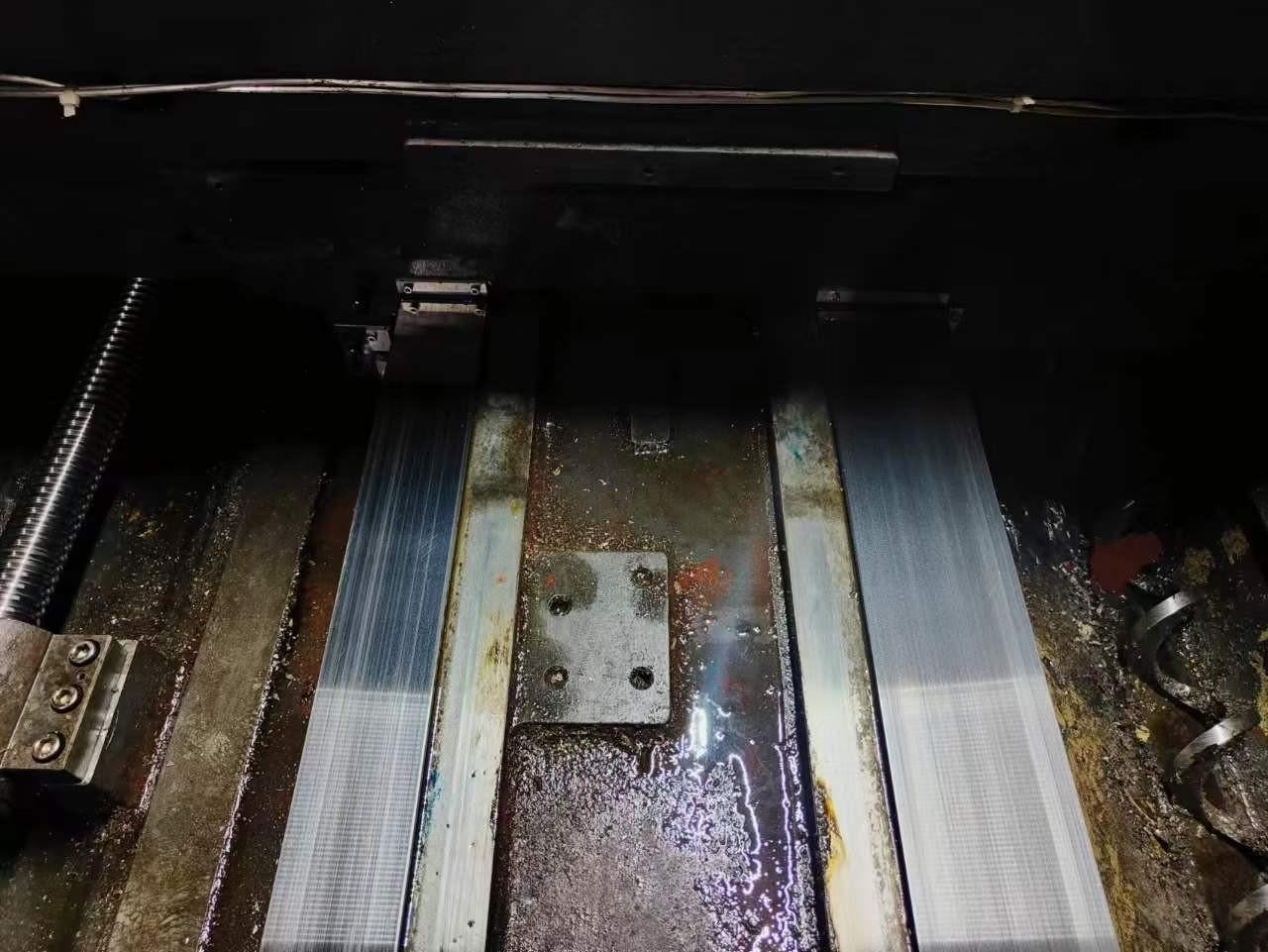

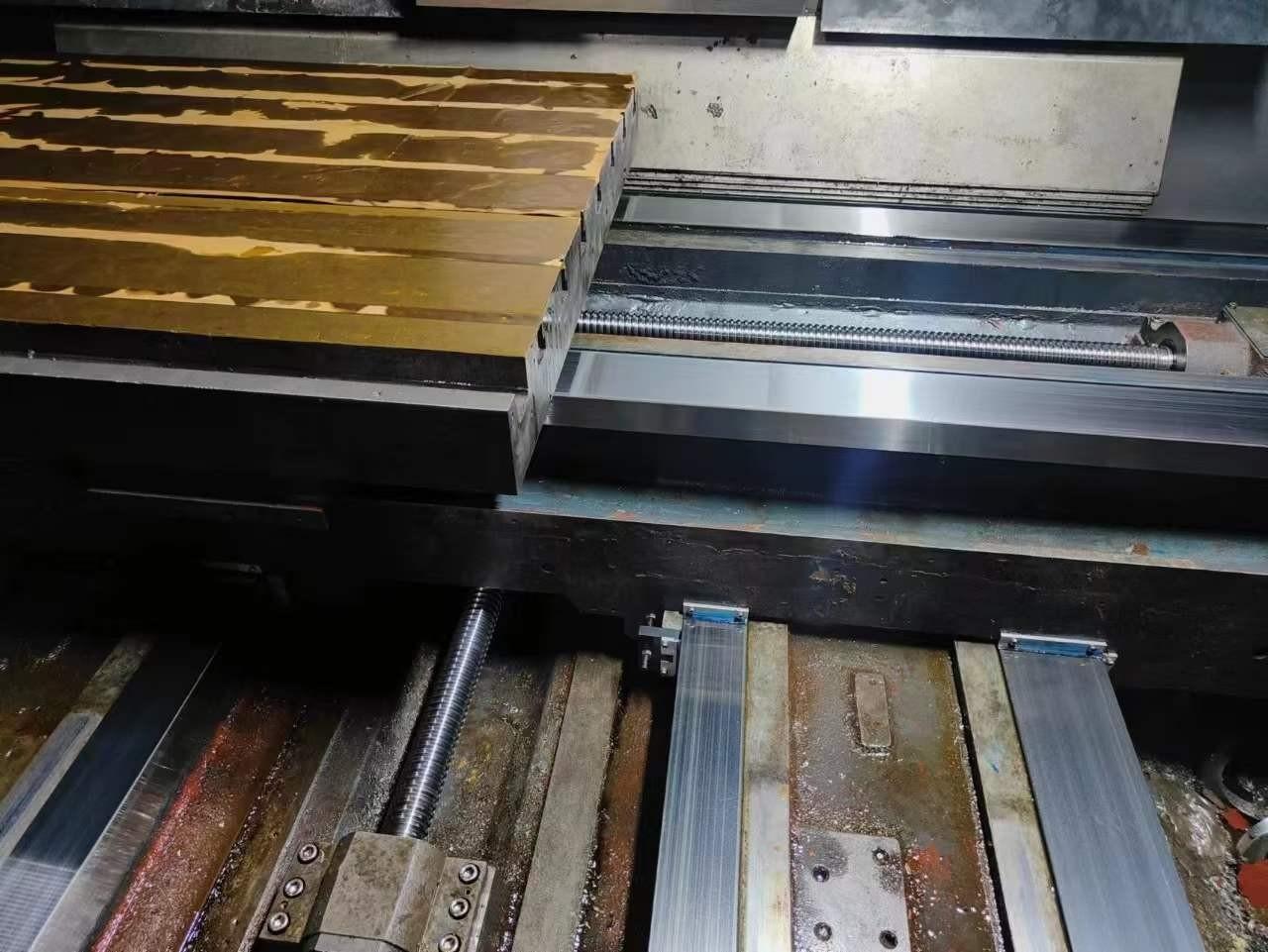

[Guideway] Three axes rigid guideway, Y-axis with 4 guideways

[Remark] Front water tank, three screw chip conveyors
