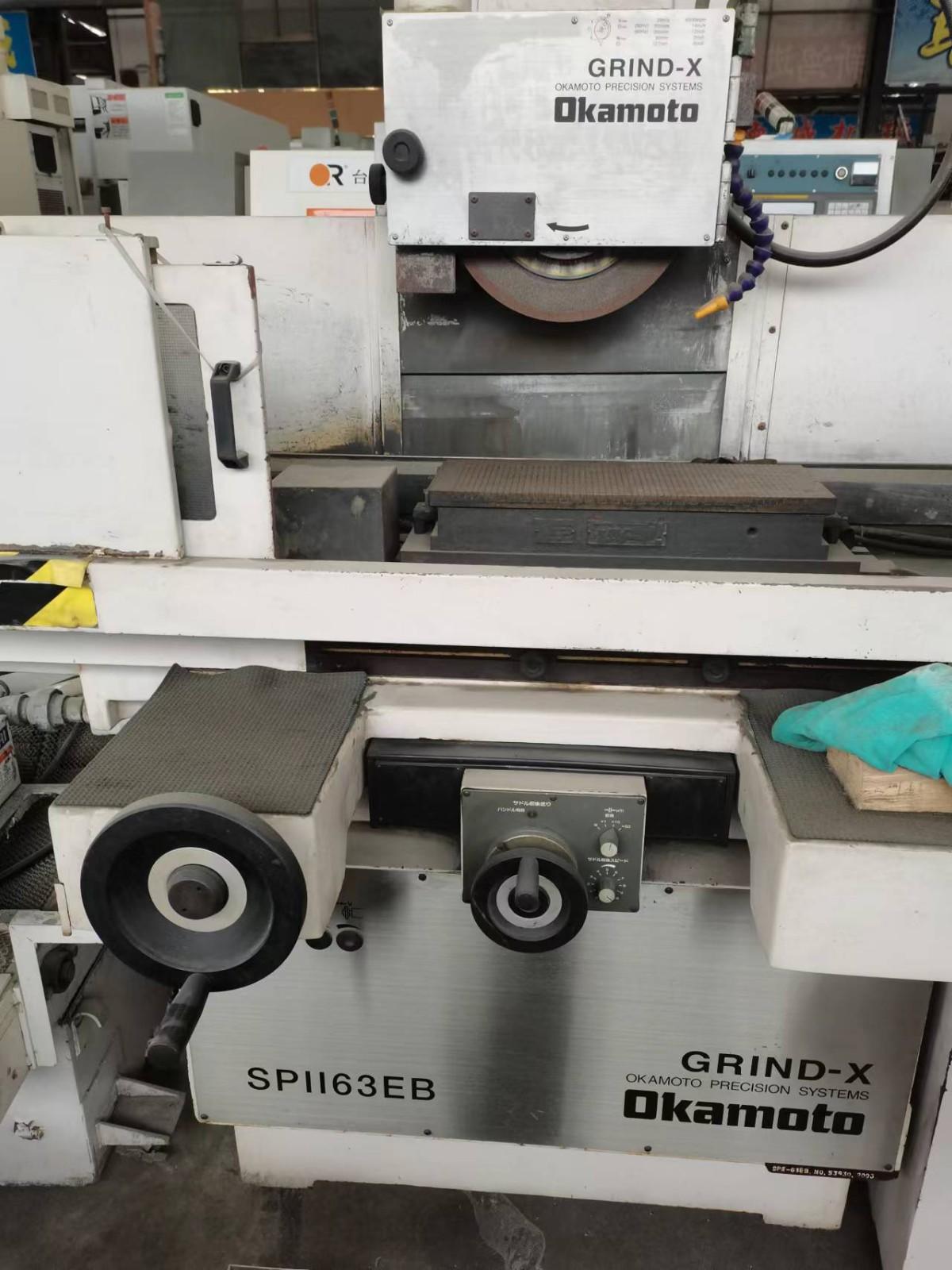

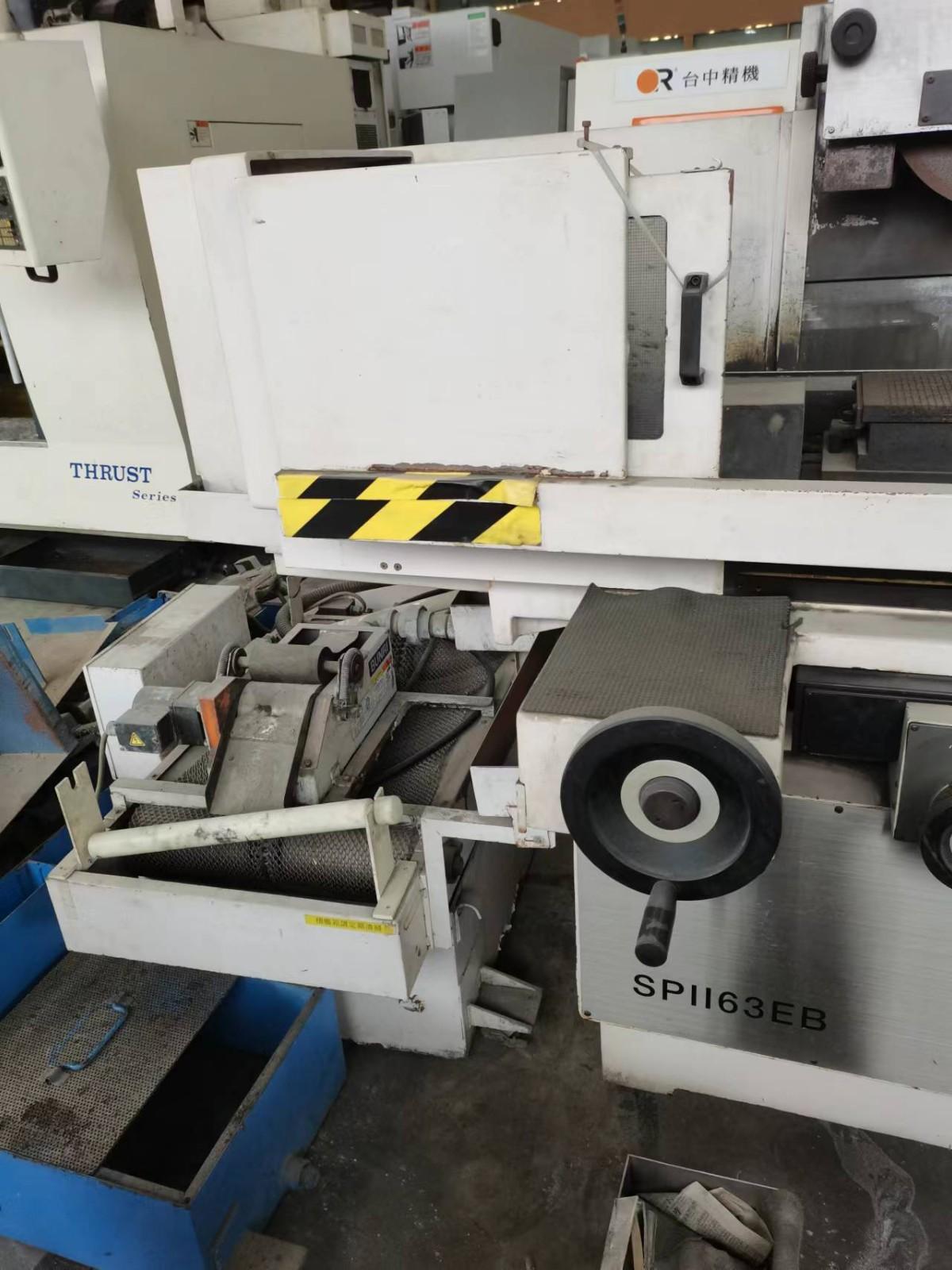

Okamoto SPll63EB Surface grinder

Worktable machining size: 600X300mm

Standard chuck size: 600X300X80mm

Worktable load (including magnetic worktable): 420KG

T-slot (number X width): 17X3mm

Y Maximum feed rate: 750mm

Y average feed rate: 0.3~25mm/min

X Maximum feed rate: 340mm

X intermittent feed: 0.5~20mm

X continuous feed: 0.1~1.0m/min

Z Rapid feed rate: 600mm/min

Grinding wheel size (50/60HZ) diameter * width * inner diameter: 355/305 * 38 * 127mm

Wheel speed (50/60HZ): 1500/1800rpm

Spindle motor power: 3.7/4kw/p

Hydraulic pump: 1.5/4kw/p

Floor area: 2737X1929X1808mm

Weight: 2800KG
