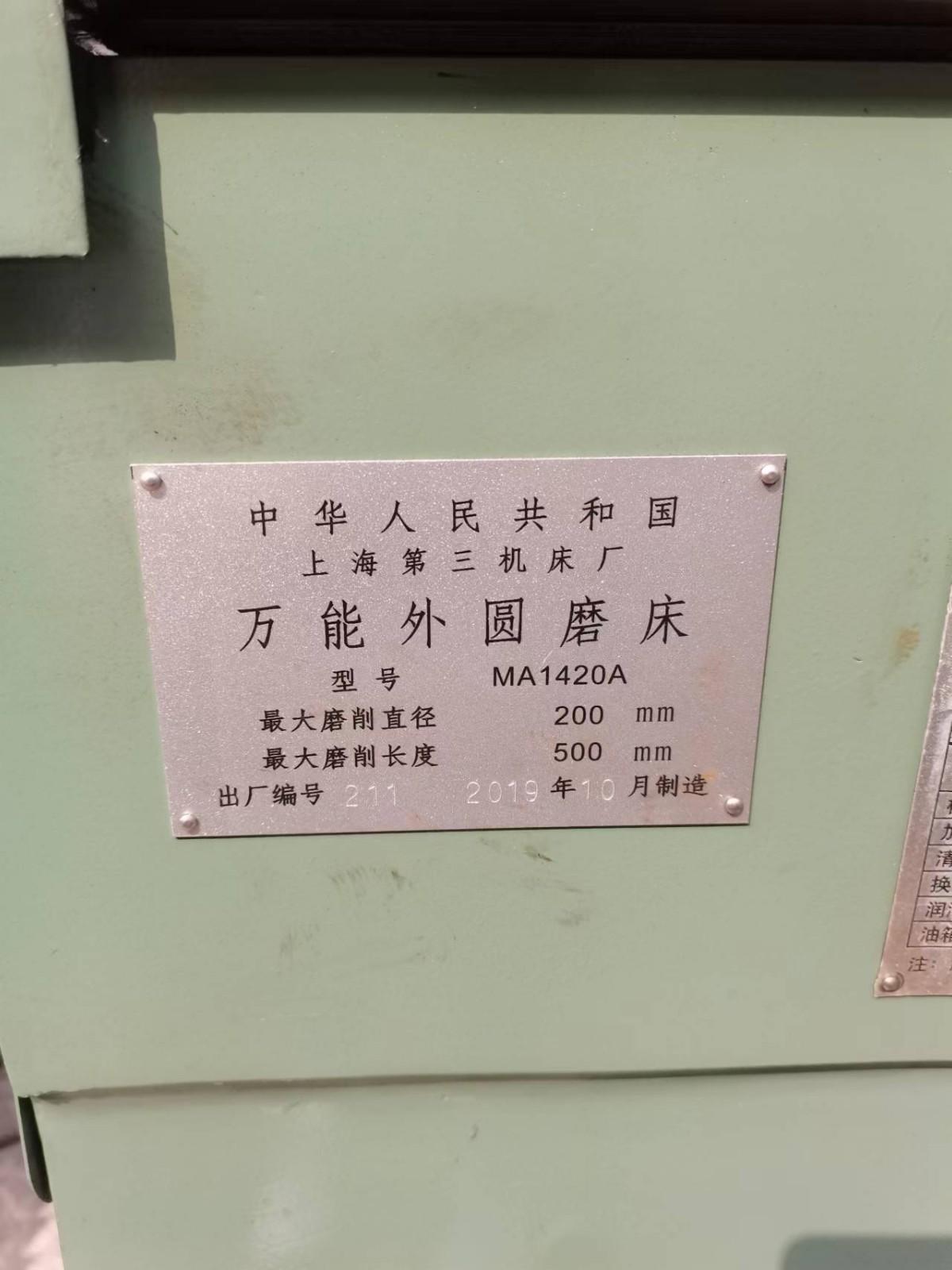

Shanghai No. 3 Machine Tool Factory MA1420A Automatic lathe

Grinding diameter range 8~200 mm

Grinding hole diameter range: 13~80 mm

Maximum grinding length 500 mm

Maximum grinding depth 125 mm

Maximum movement of worktable 600 mm

Hydraulic moving rate 0.1~4 m/min

Worktable rotation range - 5 °~+9 °

Maximum linear speed of grinding wheel 35 m/s

Maximum grinding wheel diameter 300 mm

Workhead spindle speed 60,85,230 rpm

Total motor capacity 4.24 kw

Overall footages of machine (length * width * height) 2000X1420X1600 mm

Machine weight 2100 kg
