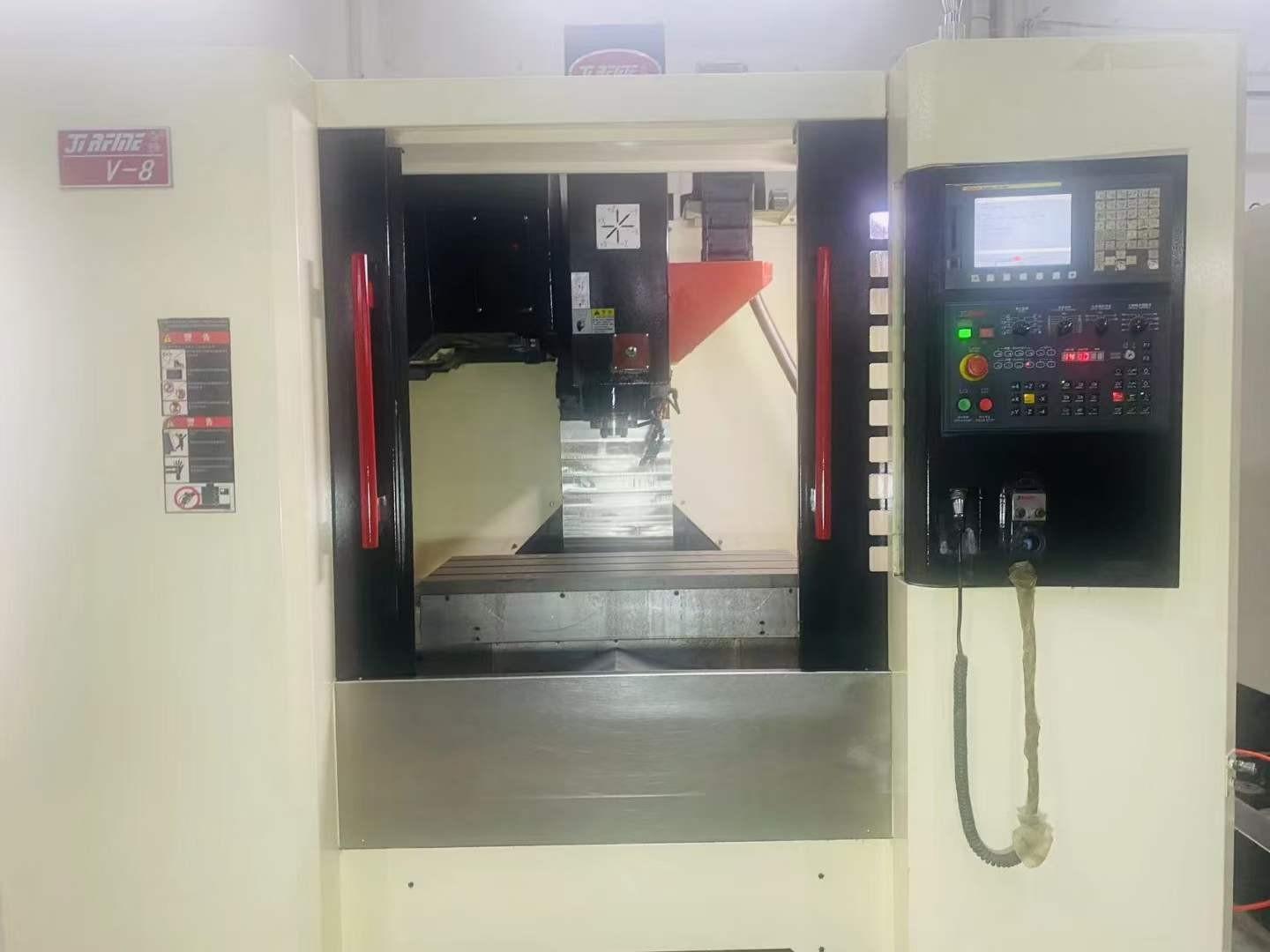

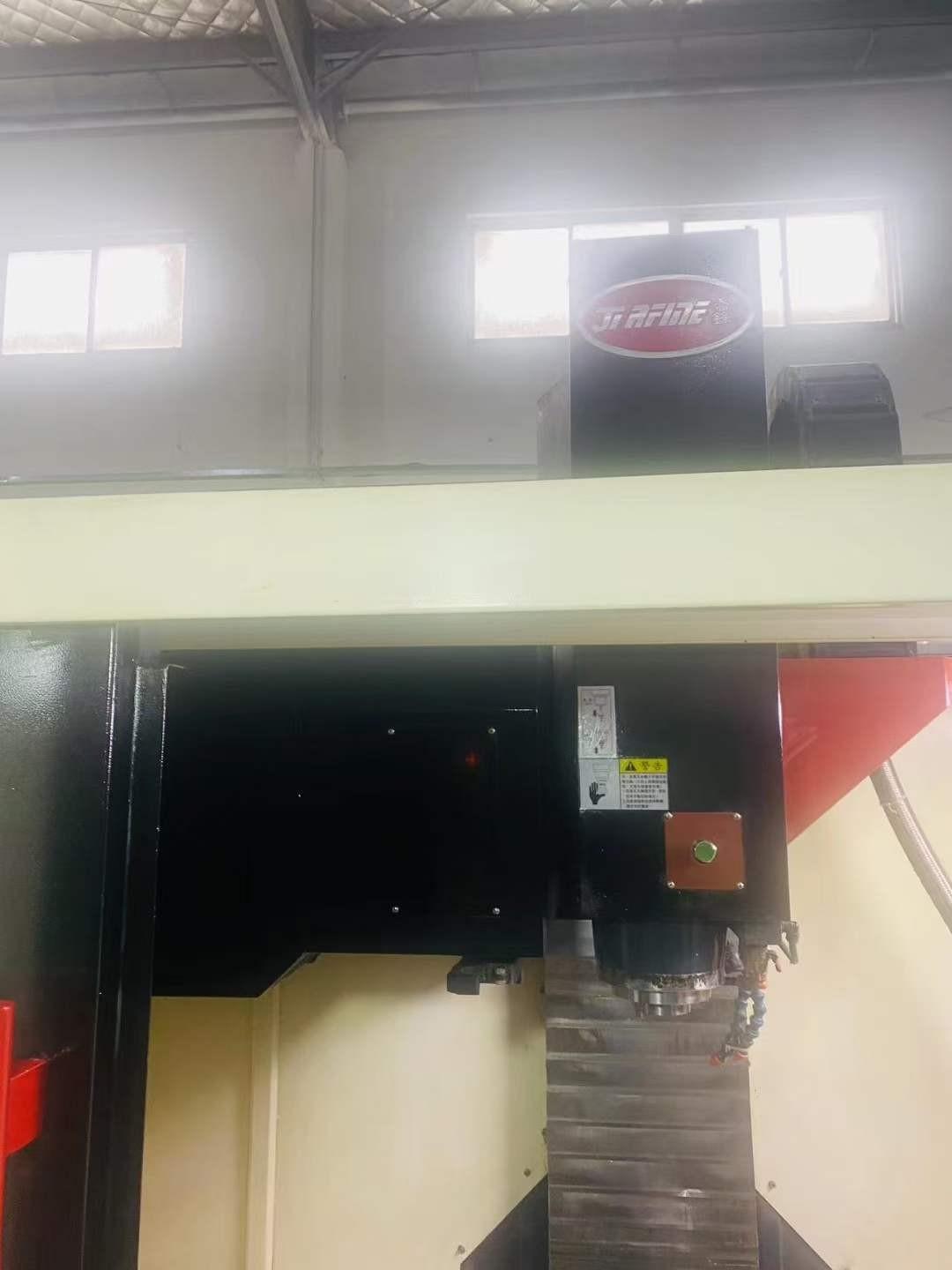

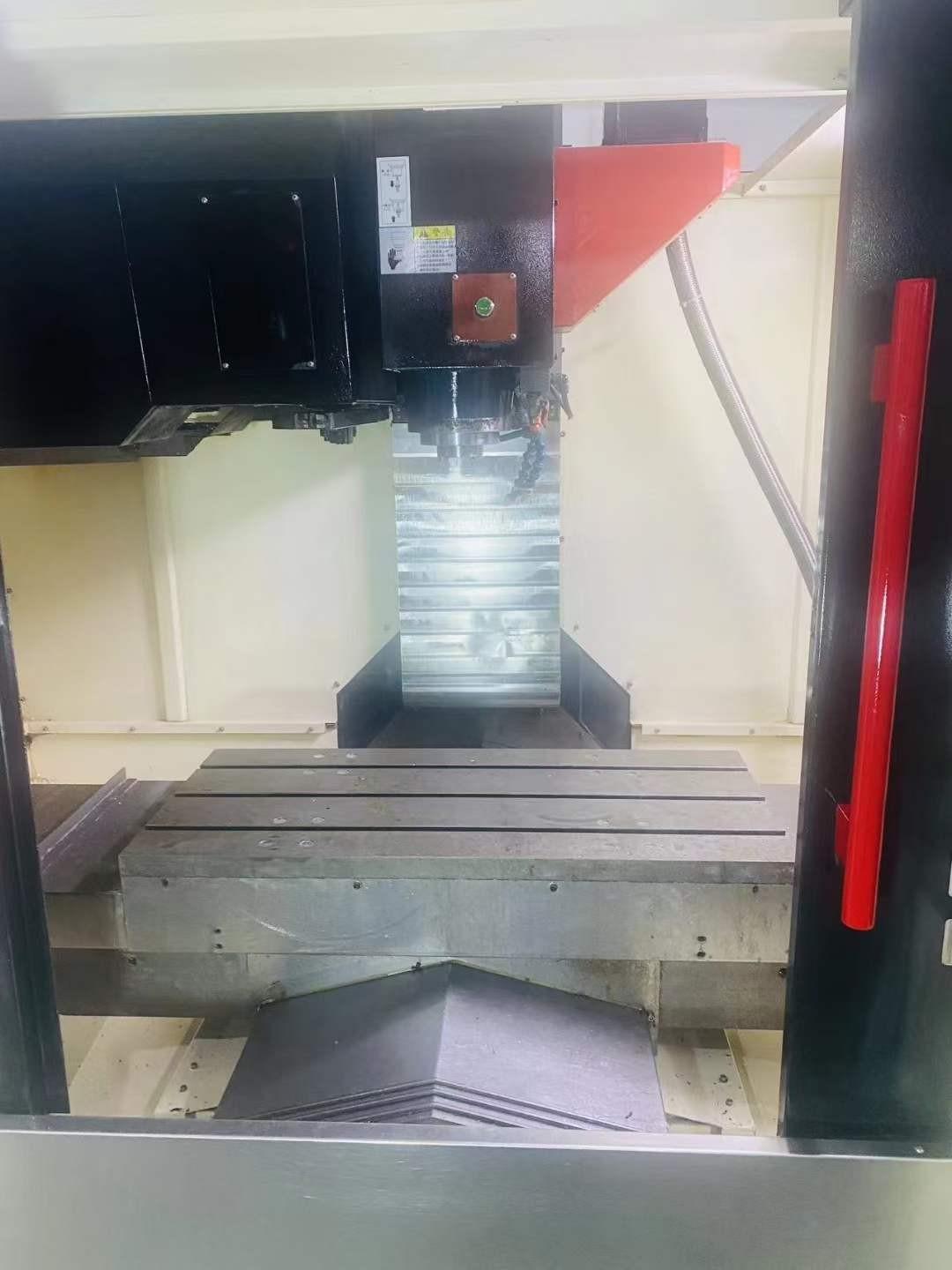

JIRFINE V-8 Vertical Machining centre

XYZ axis travel: 800 * 500 * 550mm

Spindle speed: 12000 rpm

Spindle type: BT40

Distance from spindle center to column: 550mm

Distance from spindle nose to worktable: 120-670mm

Fast feed rate: 48/48/48m/min

Feed rate: 10000mm/min

Workbtable size: 1000 * 500mm

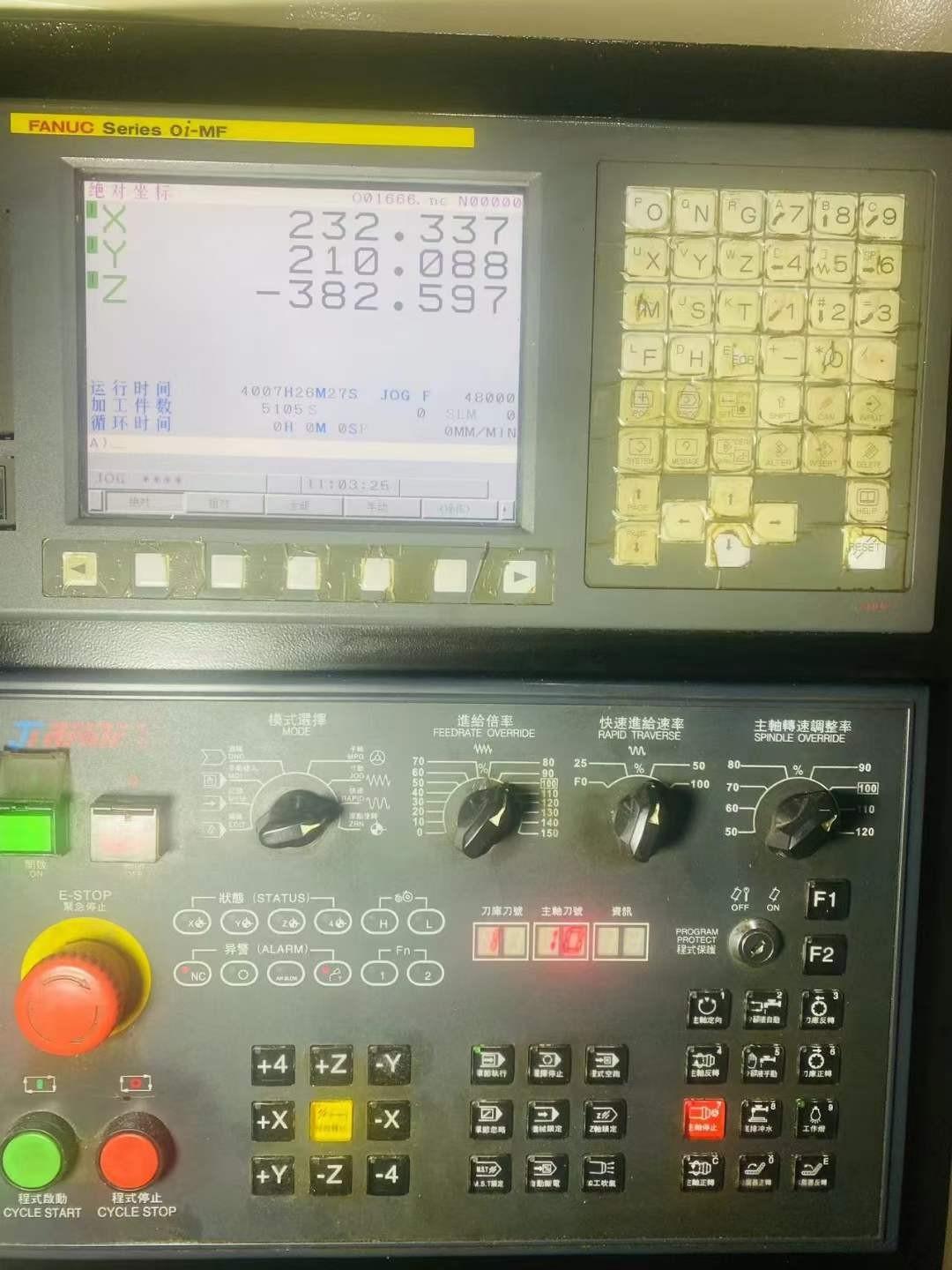

Three axes roller linear guideway, spindle with oil cooling, 24 mechanical arm tools magazine, Fanuc MF system
