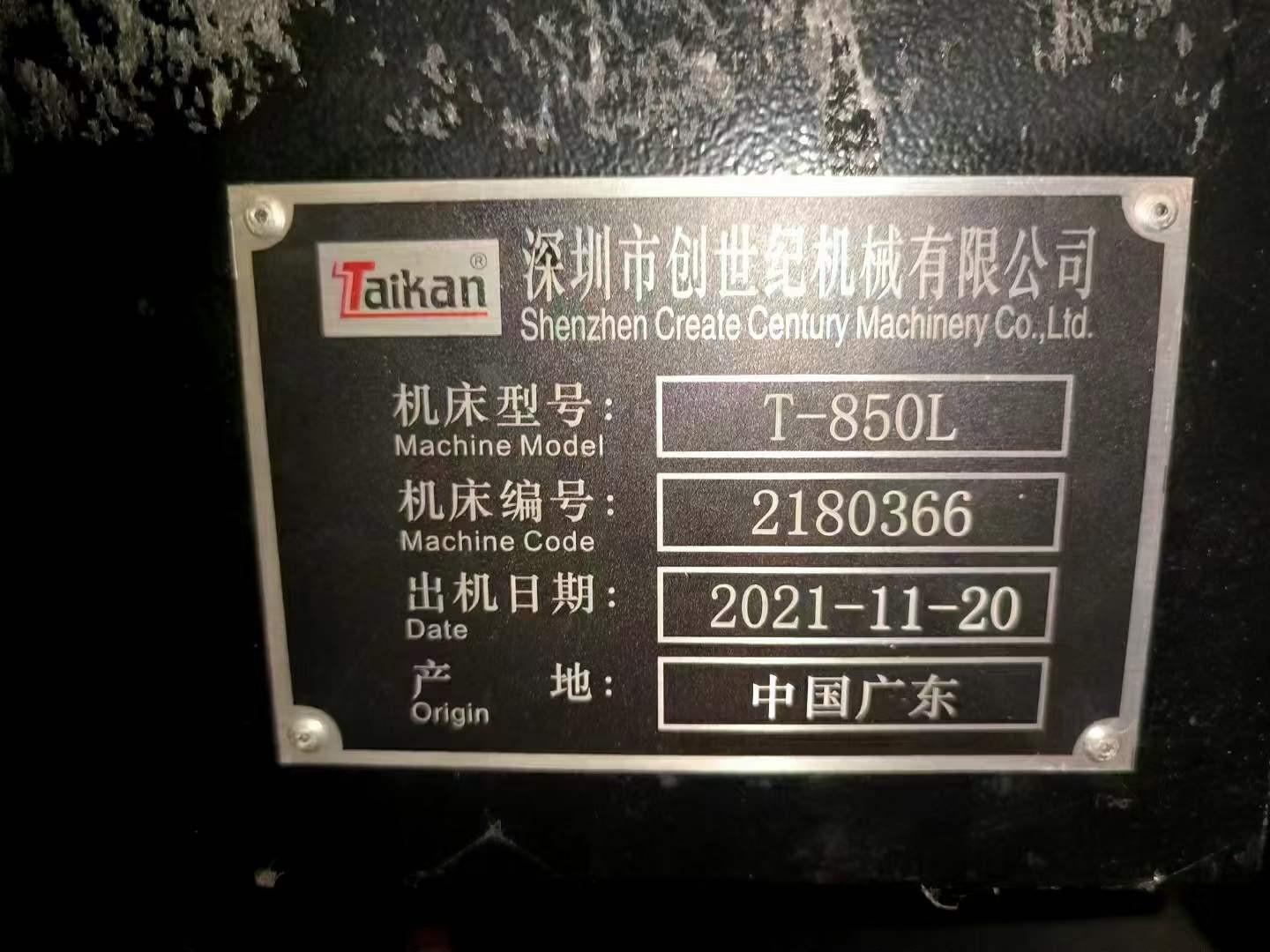

Taikan T-850L Vertical Machining centre

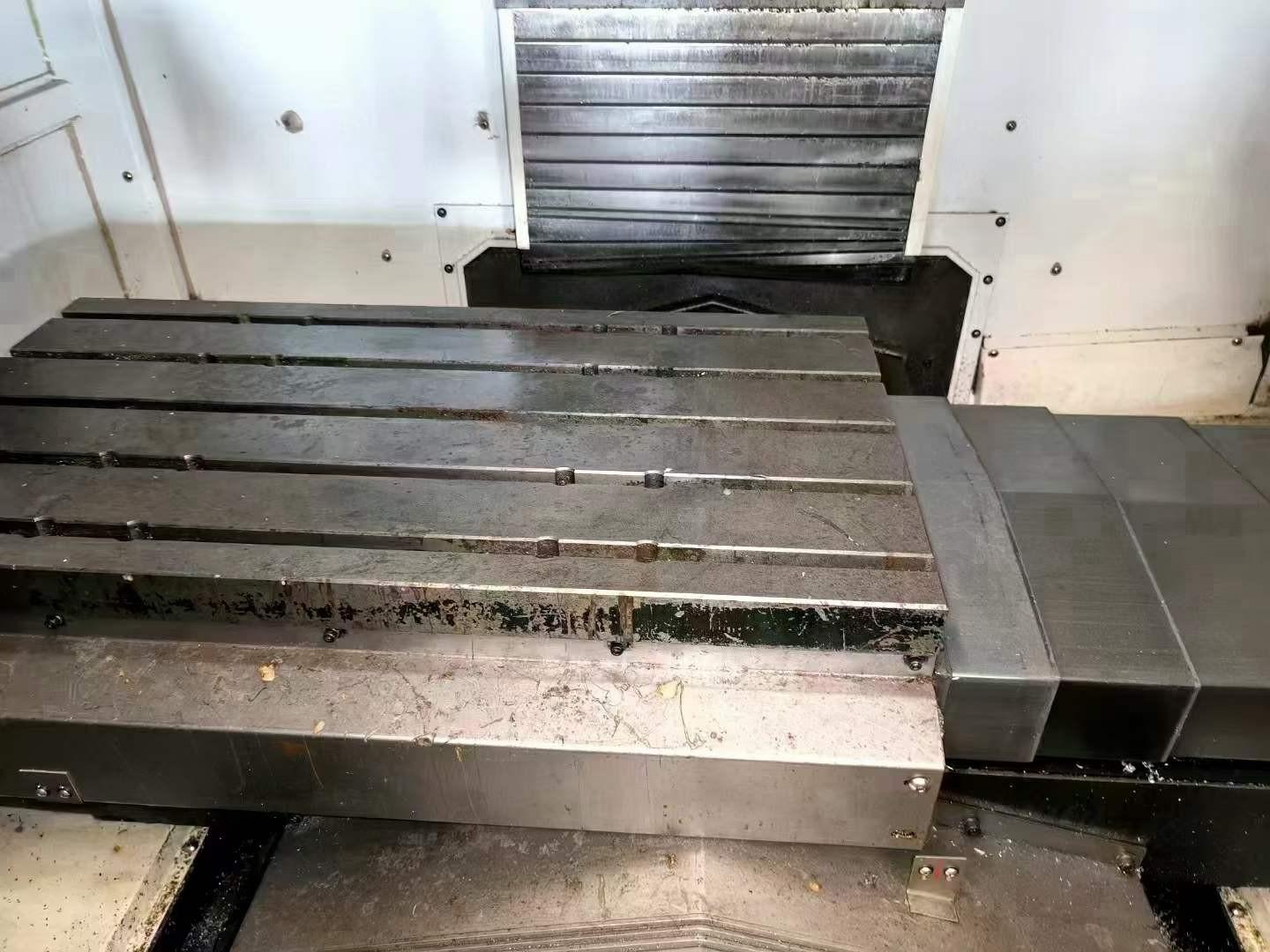

Worktable size :1000x500mm

Three axis travels :800x500x500mm

T-slot :5x18-90mm

Distance from spindle nose to worktable :160-660mm

Distance from spindle center to machine body nose :560mm

Spindle taper :BT40

Spindle speed :50-8000rpm

Fast movement rate :24000-24000-16000mm/min

Cutting feed rate :1-10000 mm/min

Main motor power :11kw

Positioning accuracy :0.008-0.005mm

Load: 600kg

Machine weight :4500kg

Dimensions of machine :2660x2370x2740mm
