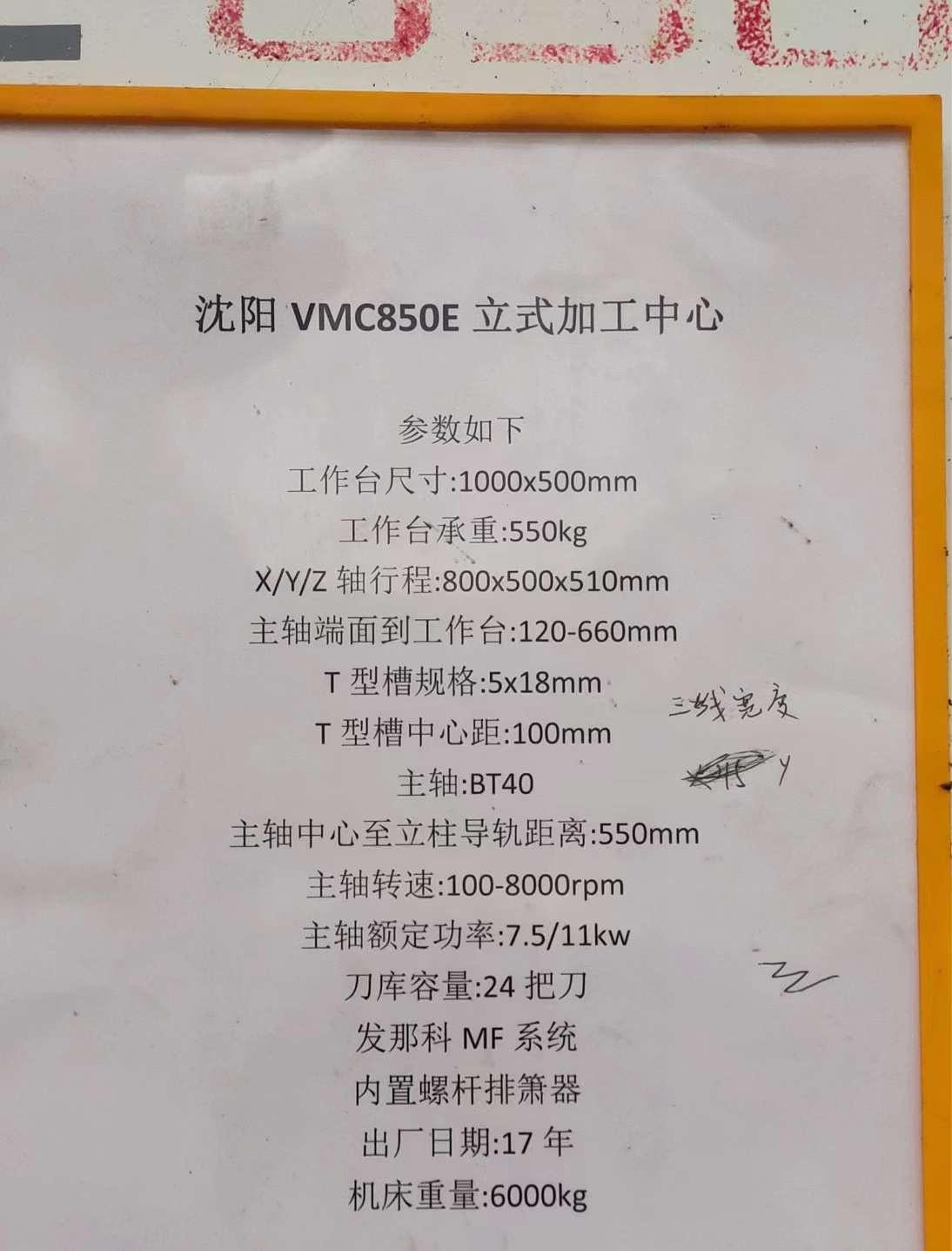

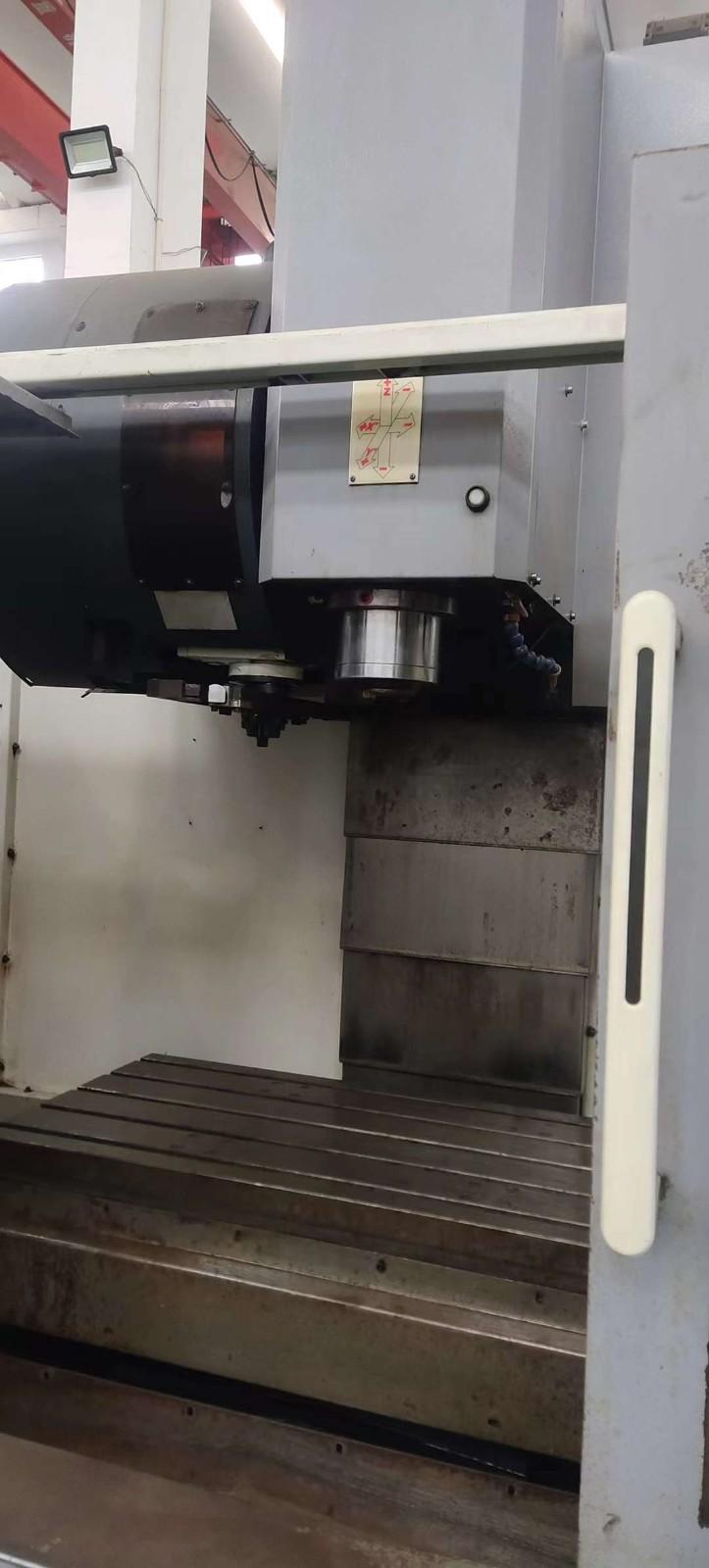

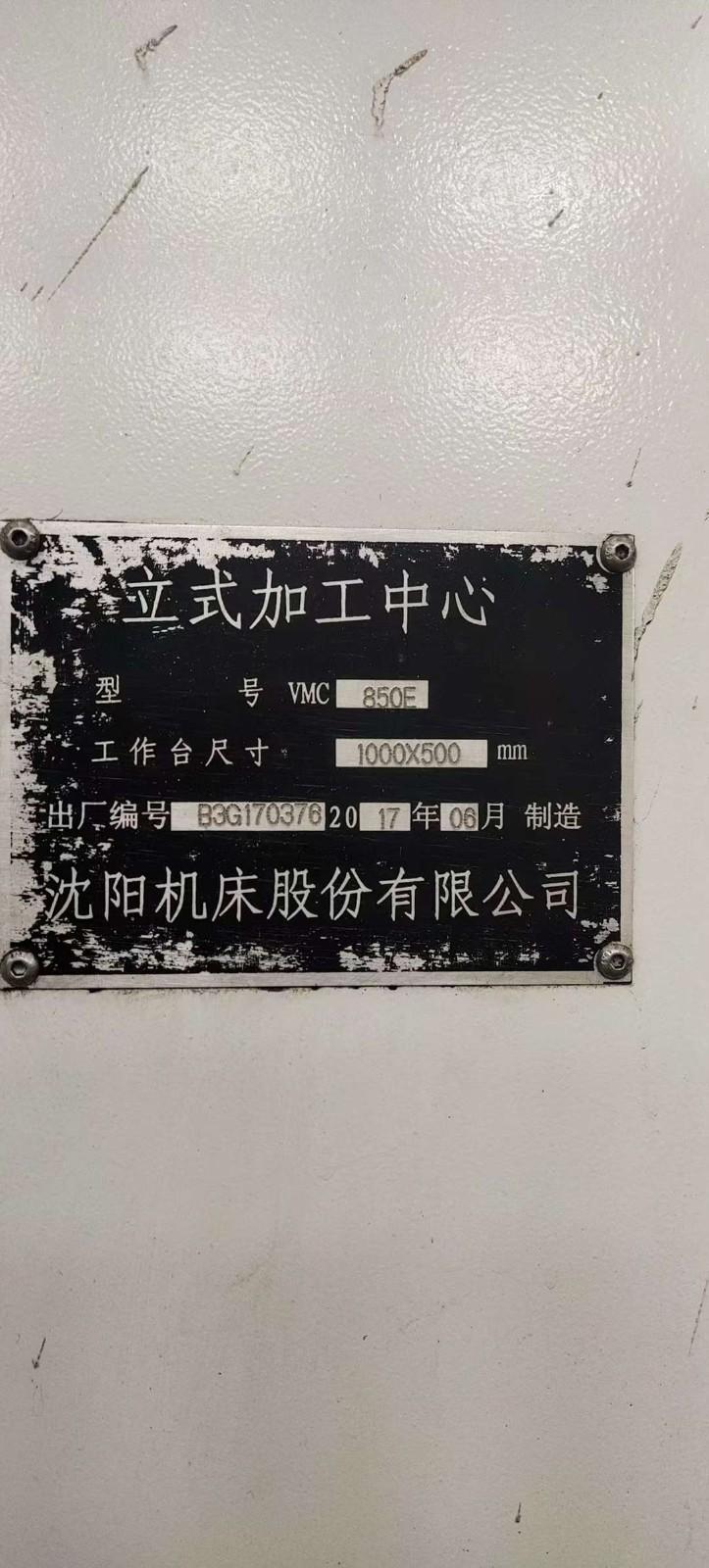

SMTCL VMC850E Vertical Machining centre

Worktable size: 1000*500mm

Worktable load: 550kg

x/y/z three-axis travels: 800*500*510mm

Distance from spindle nose to worktable: 120-660mm

T-slot size: 5*18mm

T-slot centers space: 100mm

Spindle type: BT40

Distance between spindle center and column guideway: 550mm

Spindle speed: 100-8000rpm

Spindle power: 7.5/11kw

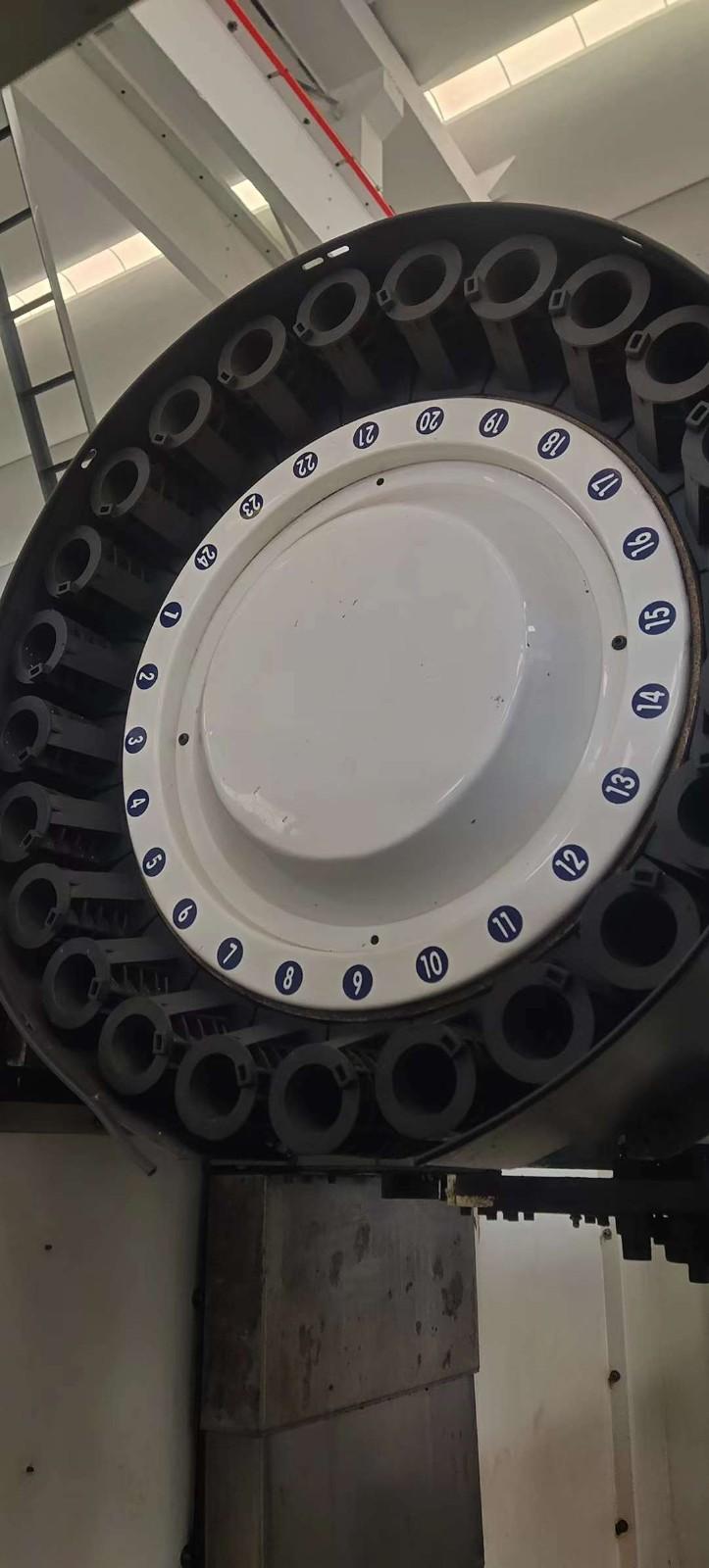

Tool magazine: 24 tools

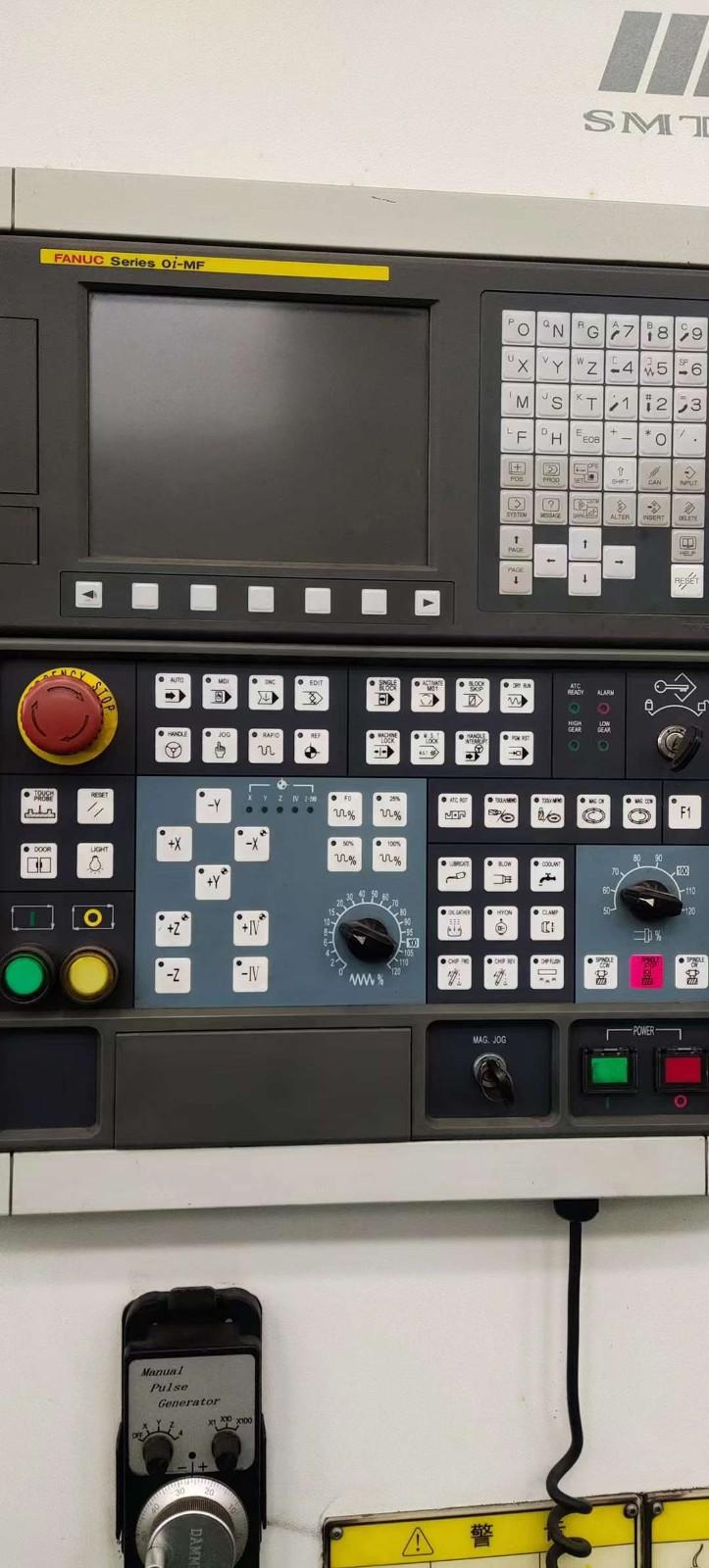

Fanuc MF system

Built-in screw chip conveyor

Machine weight: 6000kg
