Chinfong OCP-200 Punch / press

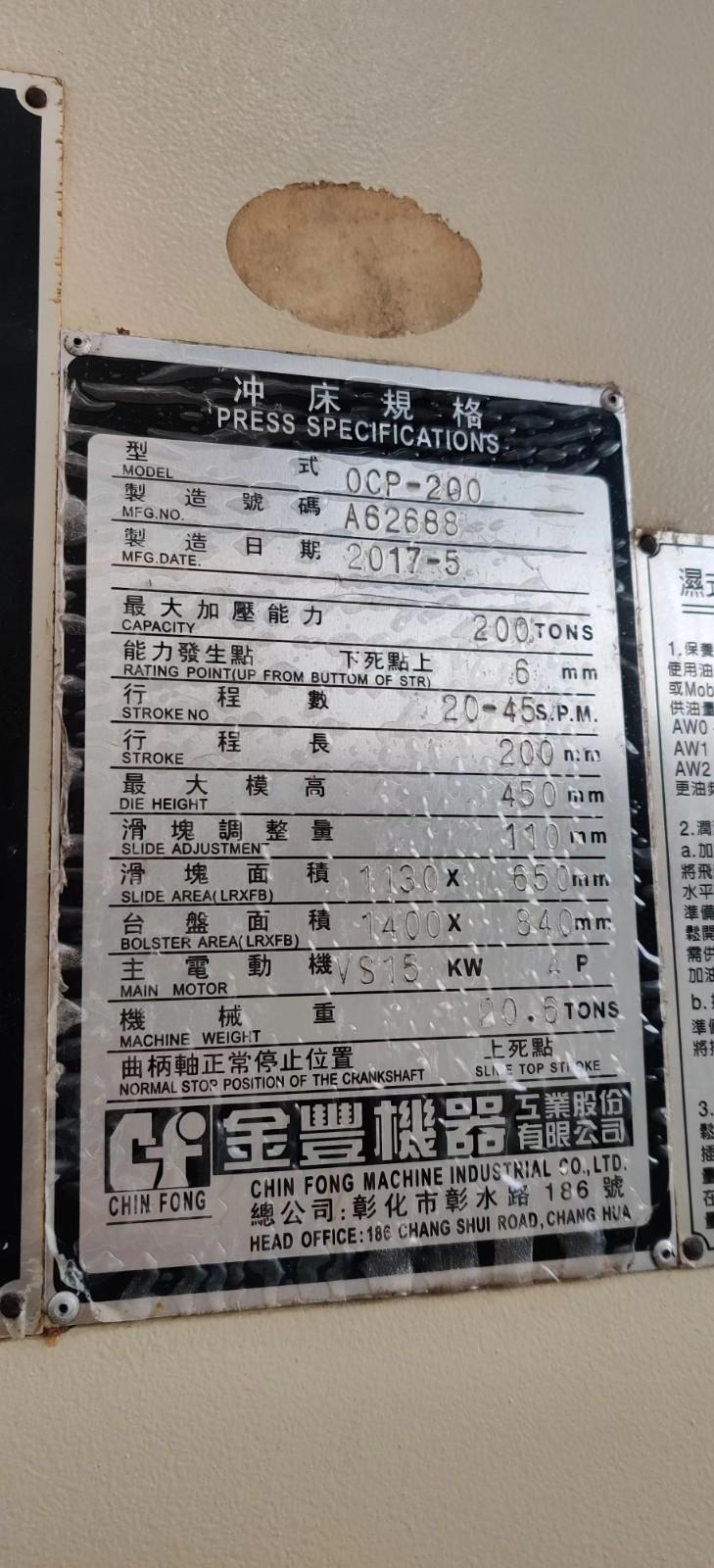

[Product Information]:

Maximum machining capacity: 200tons

Number of travels: 20-45 spm

X-axis travel: 200mm

Maximum die height: 450mm

Slide adjustment: 110mm

Slide area: 850 * 650 * 90mm

Pallet size of worktable: 1400 * 820 * 160mm

Slide travel: 130/80/200mm

Punch depth: 420mm

Main motor power: 18.5kw
