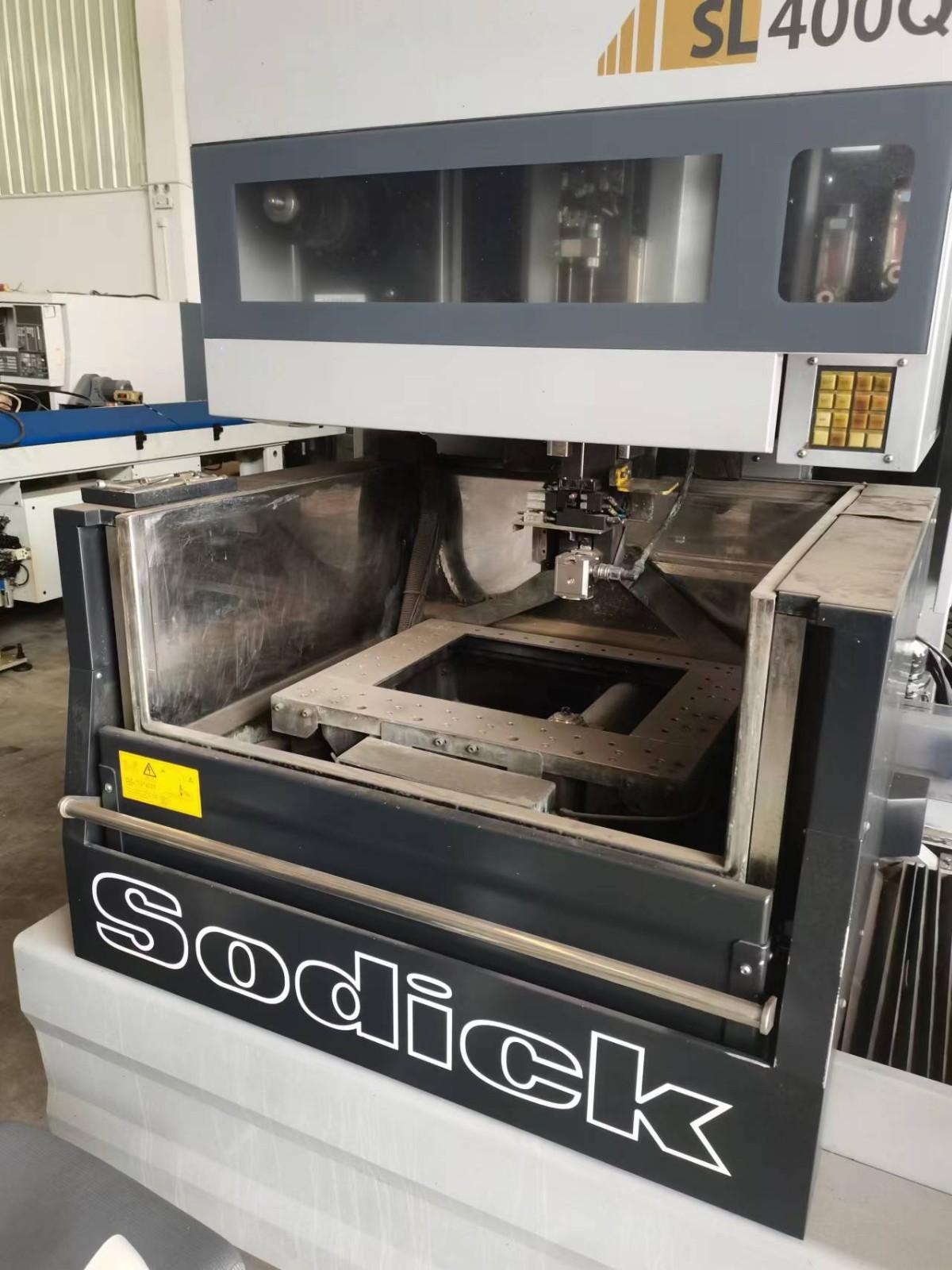

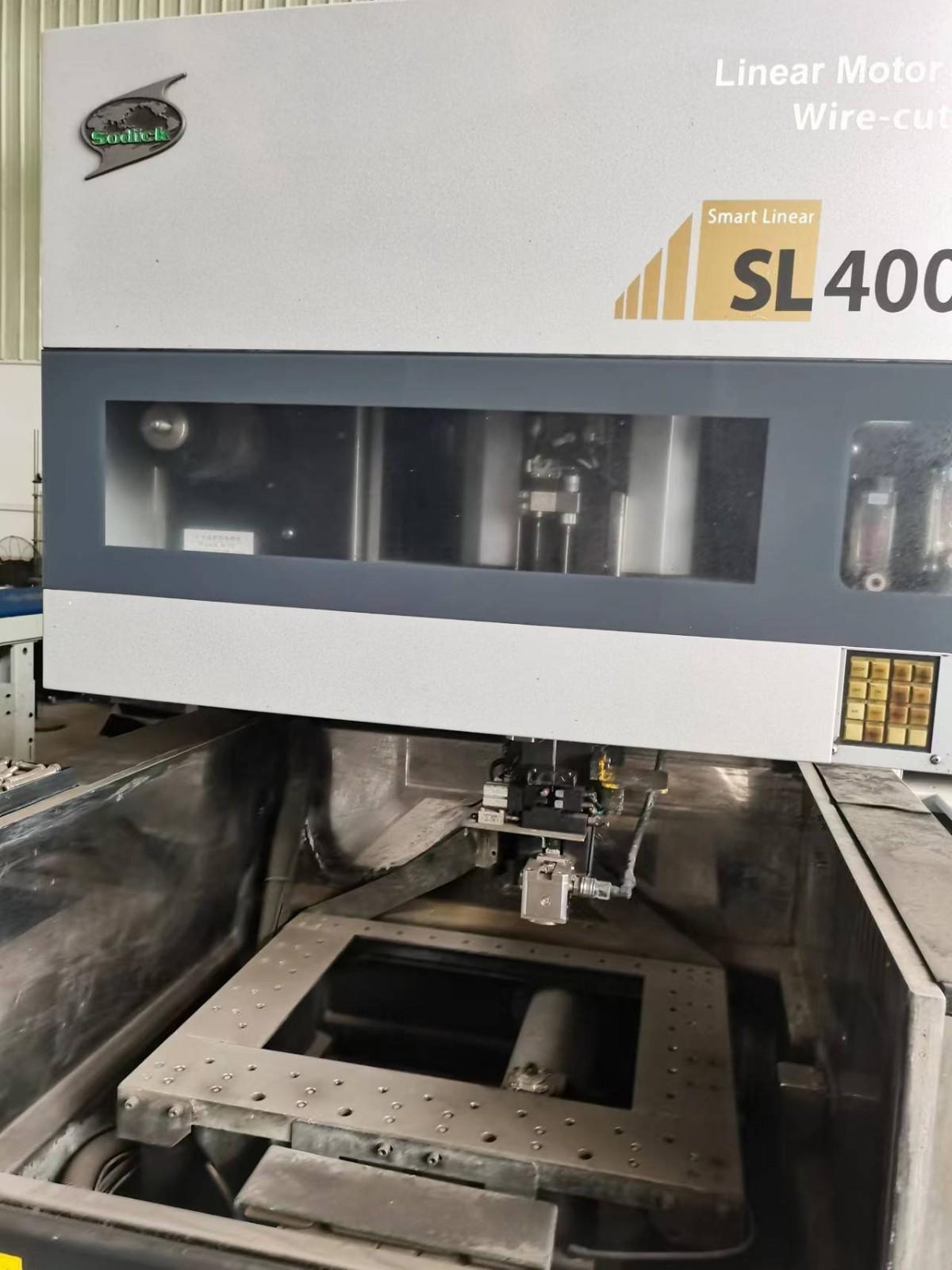

Sodick SL400Q Wire cutting machine

XYZ travel: 400×300×250mm

Maximum internal dimension of tank (width x depth) 850X756mm

U axis * V axis travel 120 * 120mm

Maximum taper angle ± 25 ° (pallet thickness: 100mm)

Maximum workpiece size (width * depth * height)  600 * 470 * 240 mm (flushing cut ), 600 * 470 * 230 mm (submerge cut)

Maximum workpiece weight 500kg (flushing cut), 350kg (submerge cut)

Electrode wire diameter Ф 0.1- Ф 0.3mm

Electrode wire tension 3-23N

Electrode wire feeding rate Max 420mm/sec

Machine dimensions (width X depth X height) 2070X2390X2126mm

Machine installation dimensions (width X depth) 3305X3695mm

Machine weight 3350kg
