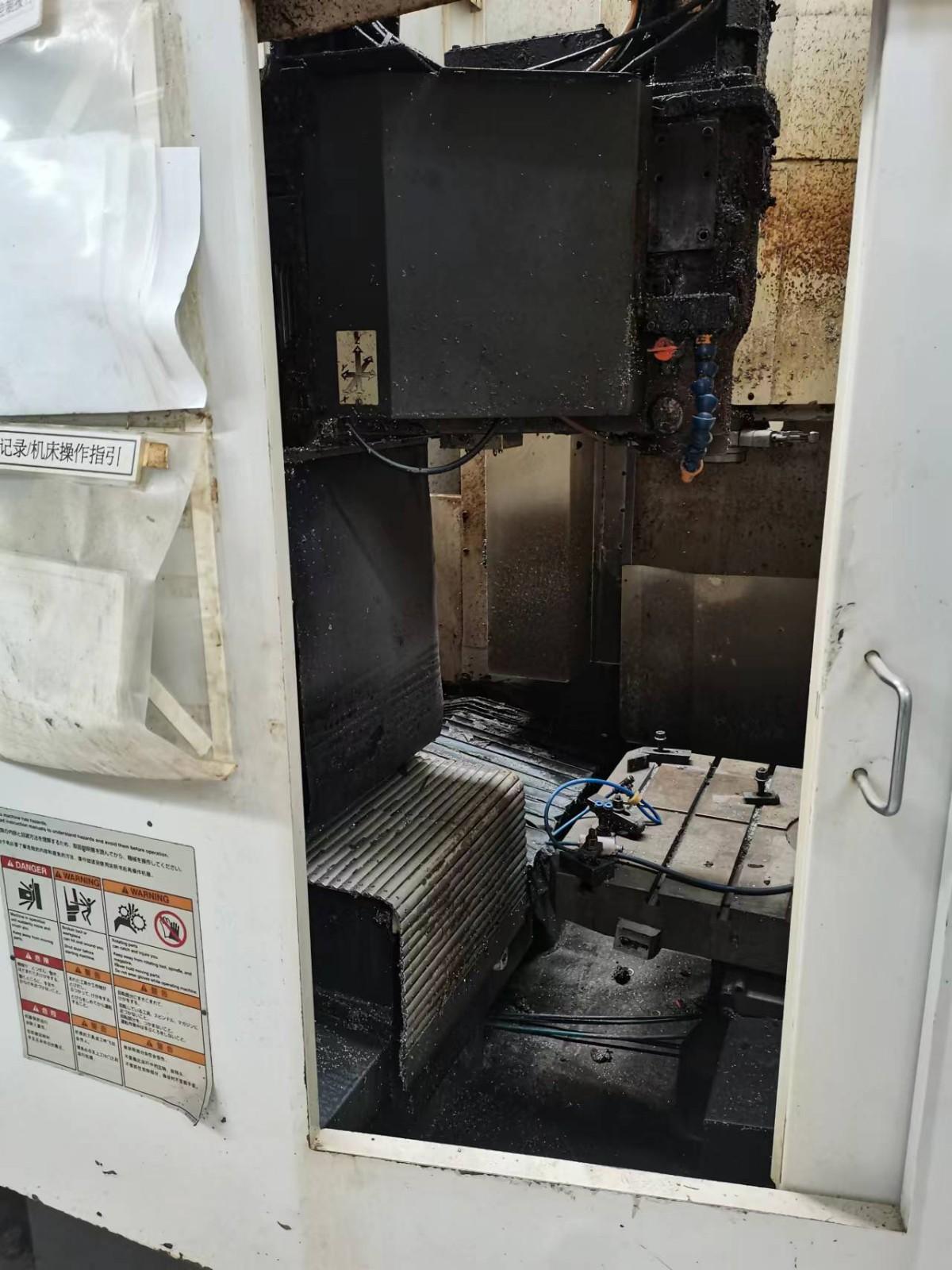

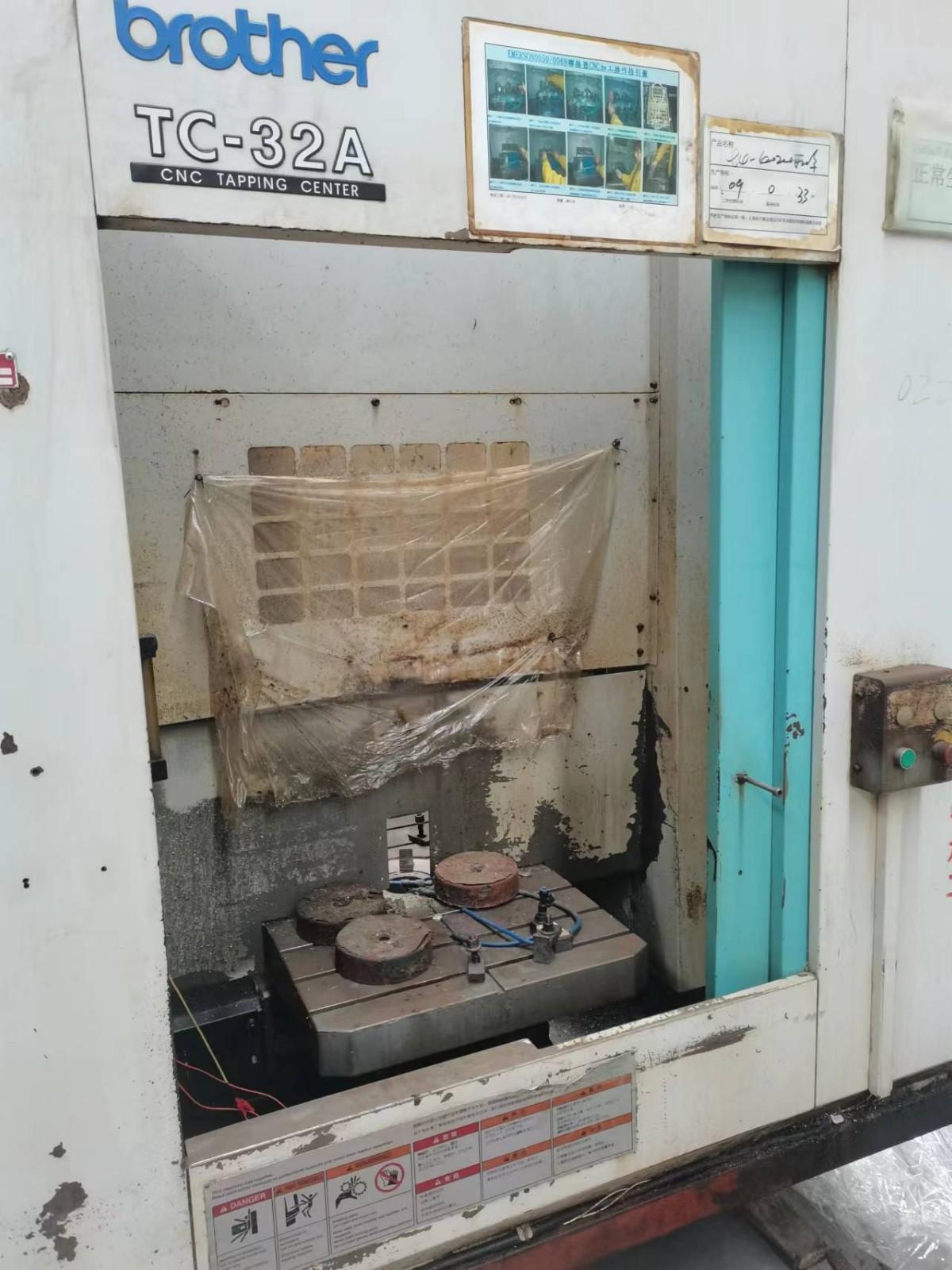

brother TC-32A Tapping machine
[Product Information]:
- Inventory number：70427
- Brand：brother
- Model：TC-32A
- Origin：Japan
- Location：China
- Year：
- Create Time：2023-02-09
Specifications:
Worktable size : 550*350 [mm]
Travels X*Y*Z : 450*320*410 [mm]
Distance between worktable and spindle nose : 200 to 610 [mm]
Rapid feed rate: 50 [m/min]
Work feed rate : 0 to 20.000 [mm/min]
Spindle speed : 12.000 [rpm]
Tool holders: HSK-A40
Spindle motor power : 7,7 [kw]
Tool magazine type : ATC Random
Tools changing time : 2,2 [sec]
Weight of the machine : 3.500 [kg]
Dimensions of the machine : 3263 x 1848 x H. 2360 [mm]
