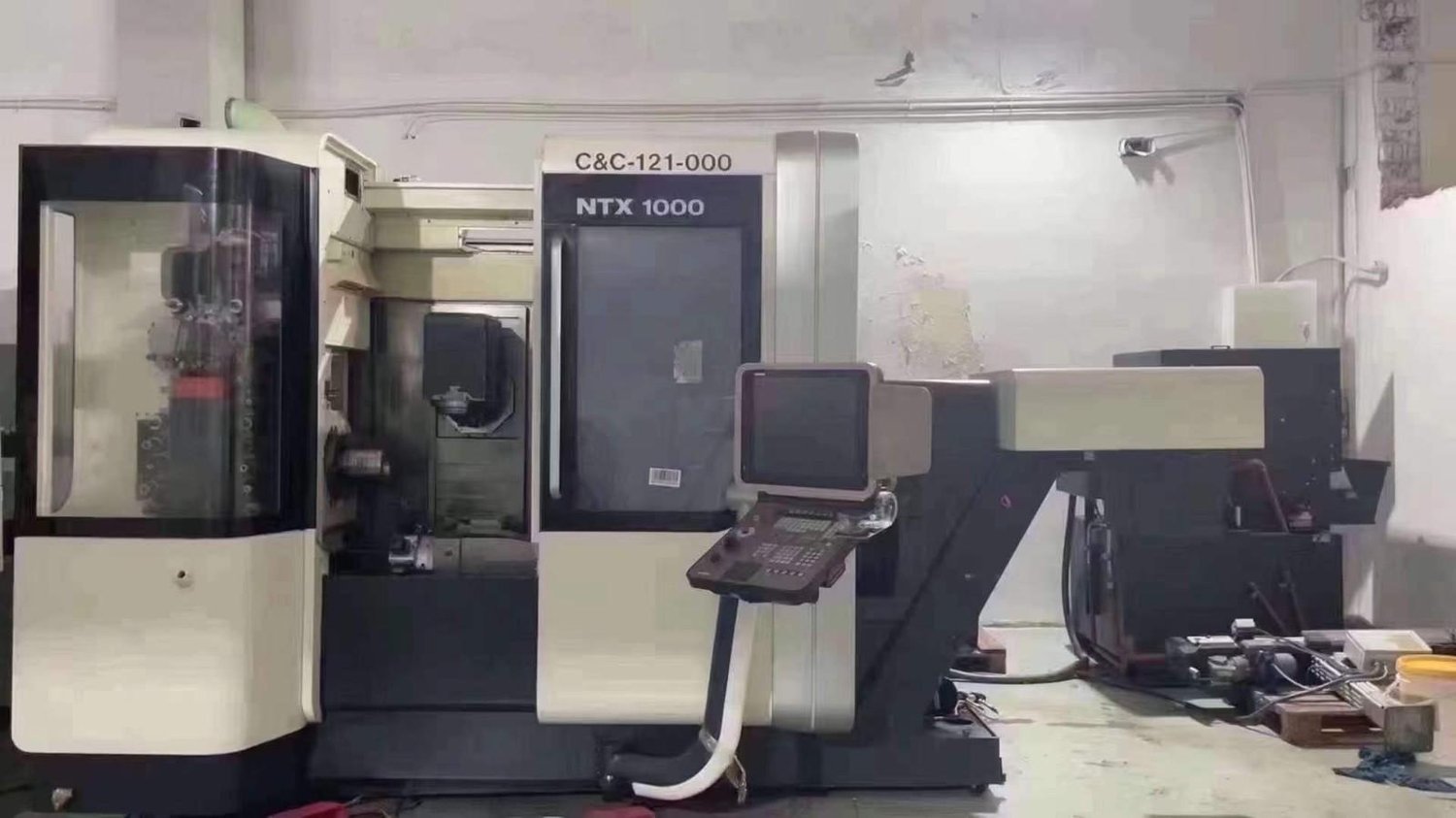

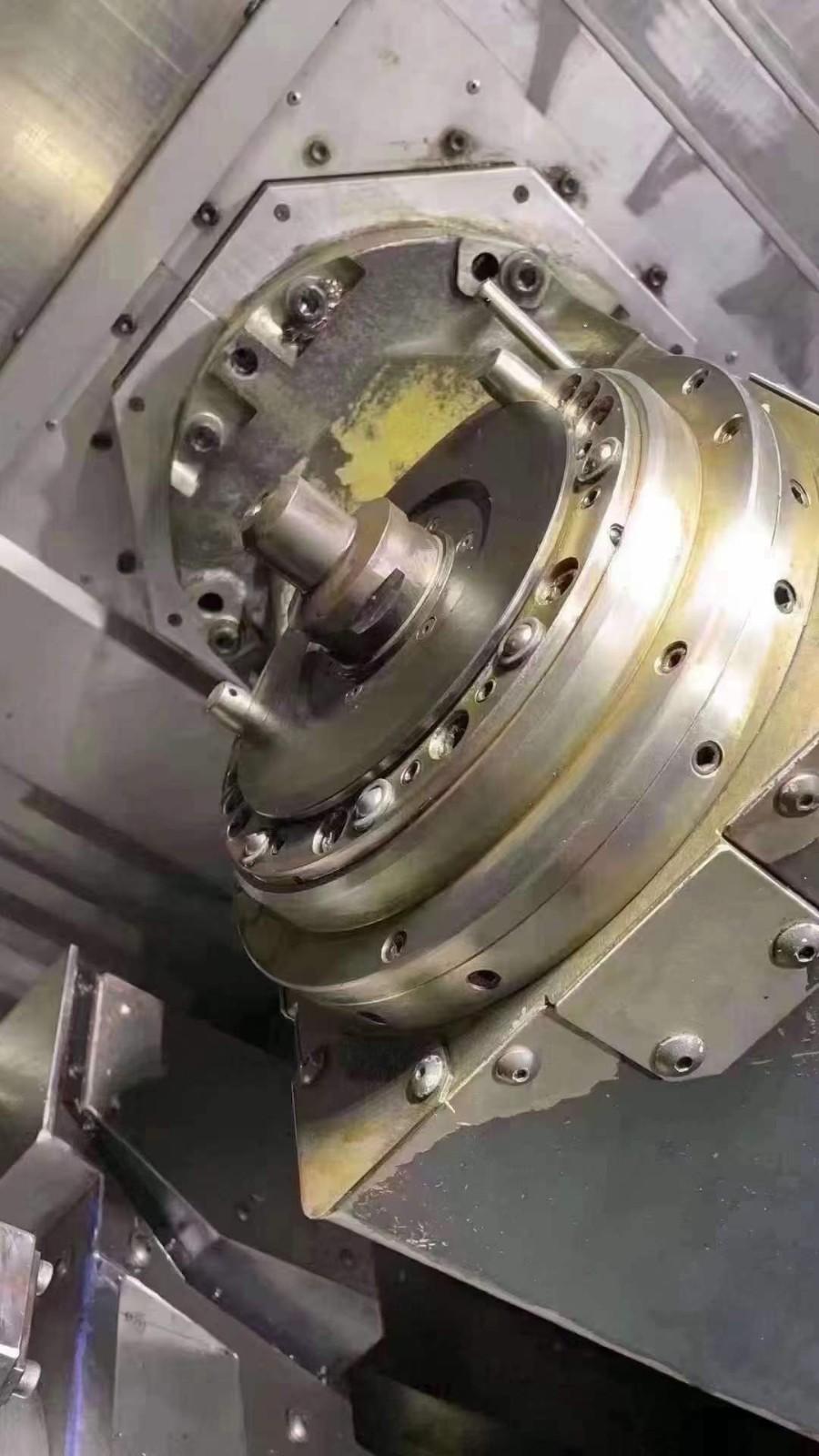

DMG NTX1000 Turn Mill Machining Centre

Brand: DMG

Model: NTX1000

System: Siemens 840D SL

Maximum turning diameter: 370mm

Maximum turning length: 424mm

Maximum spindle speed: 6000rpm

Maximum sub-spindle speed: 6000rpm

Bar capacity: 52mm

Milling spindle

Travel X/Z/Y: 380/460/+-105 mm

B axis swing: +/-120 deg

Maximum milling spindle speed: 12000rpm

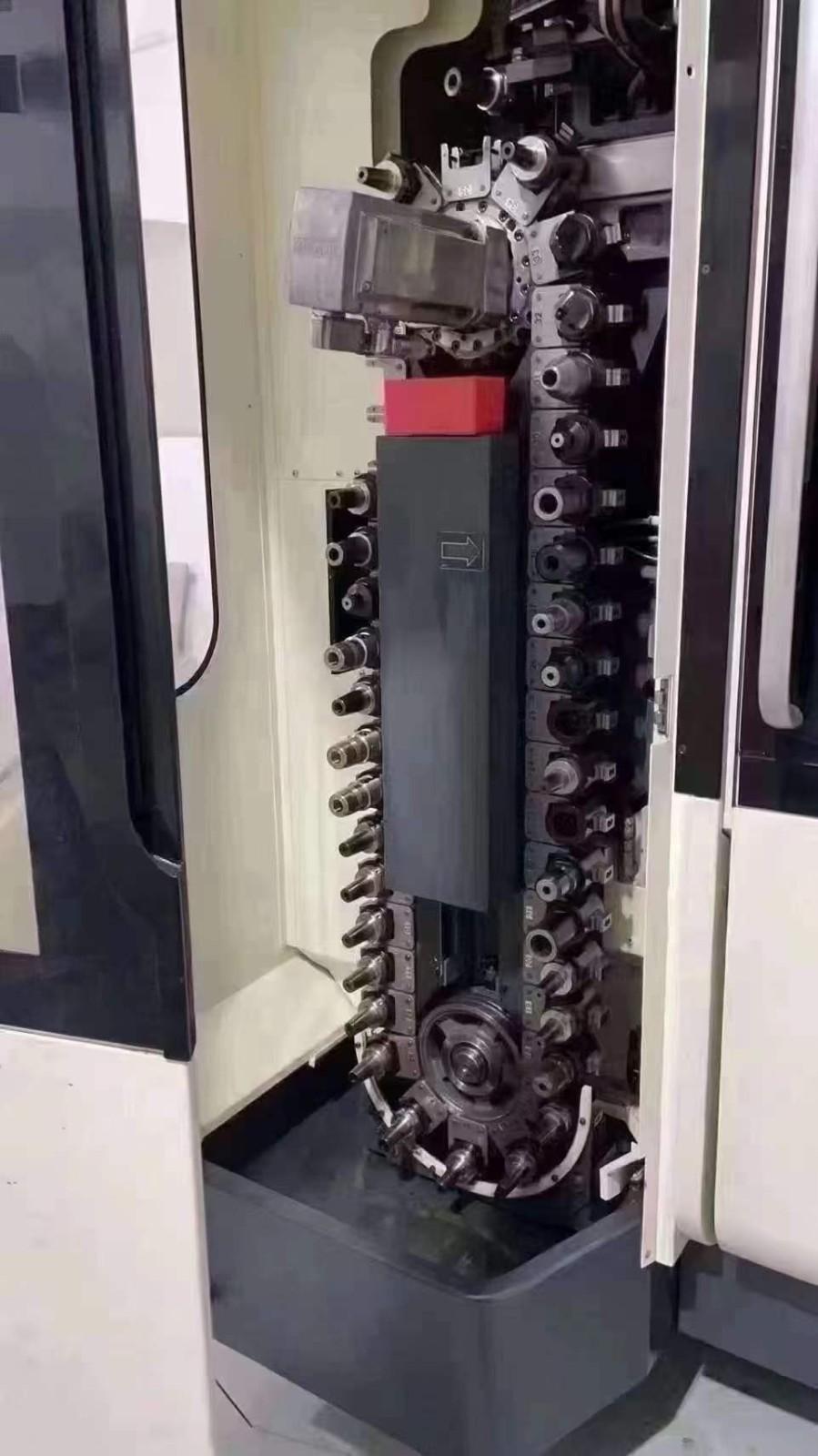

Number of tools: 40

Tool brand: Capto C5

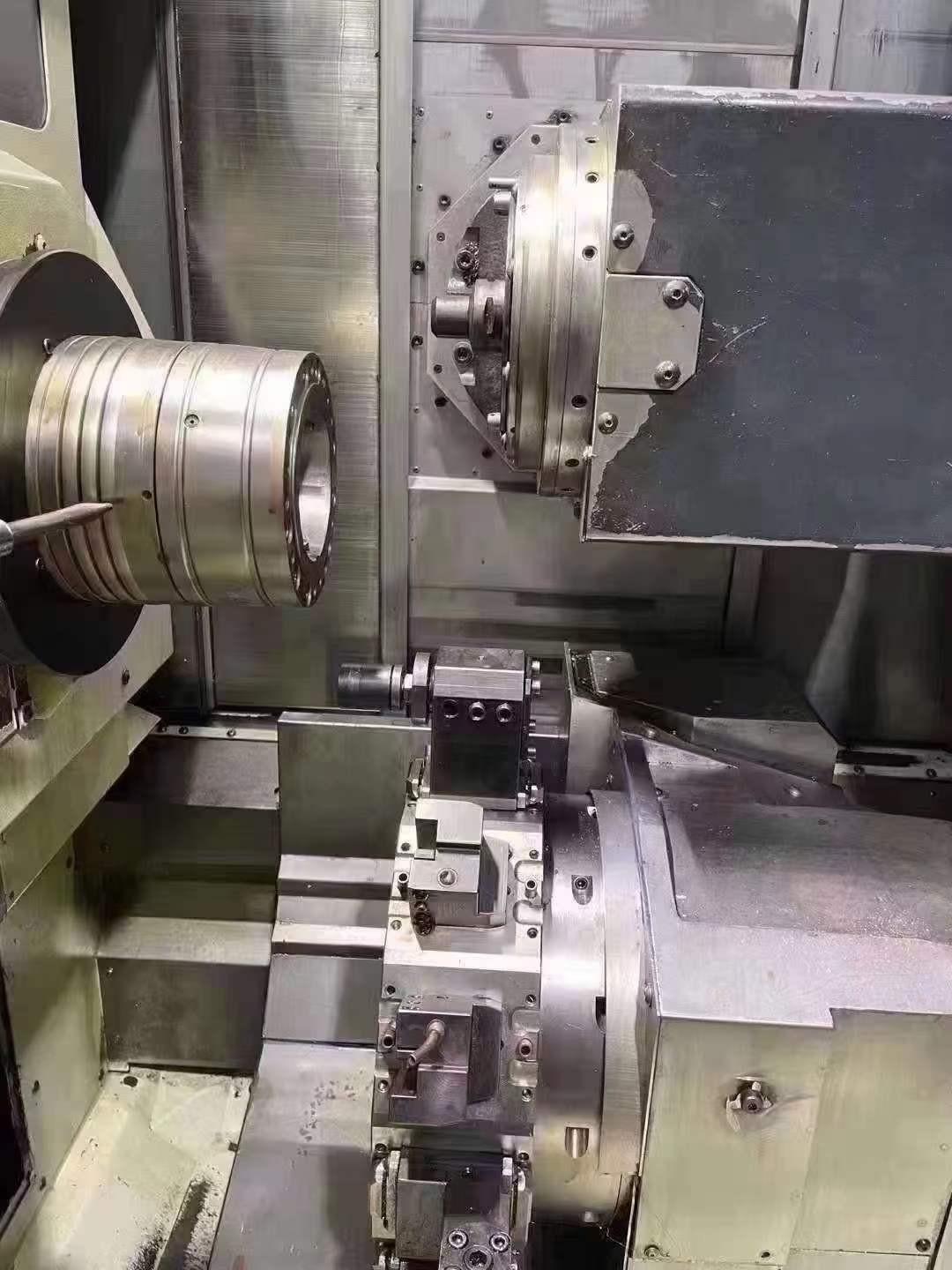

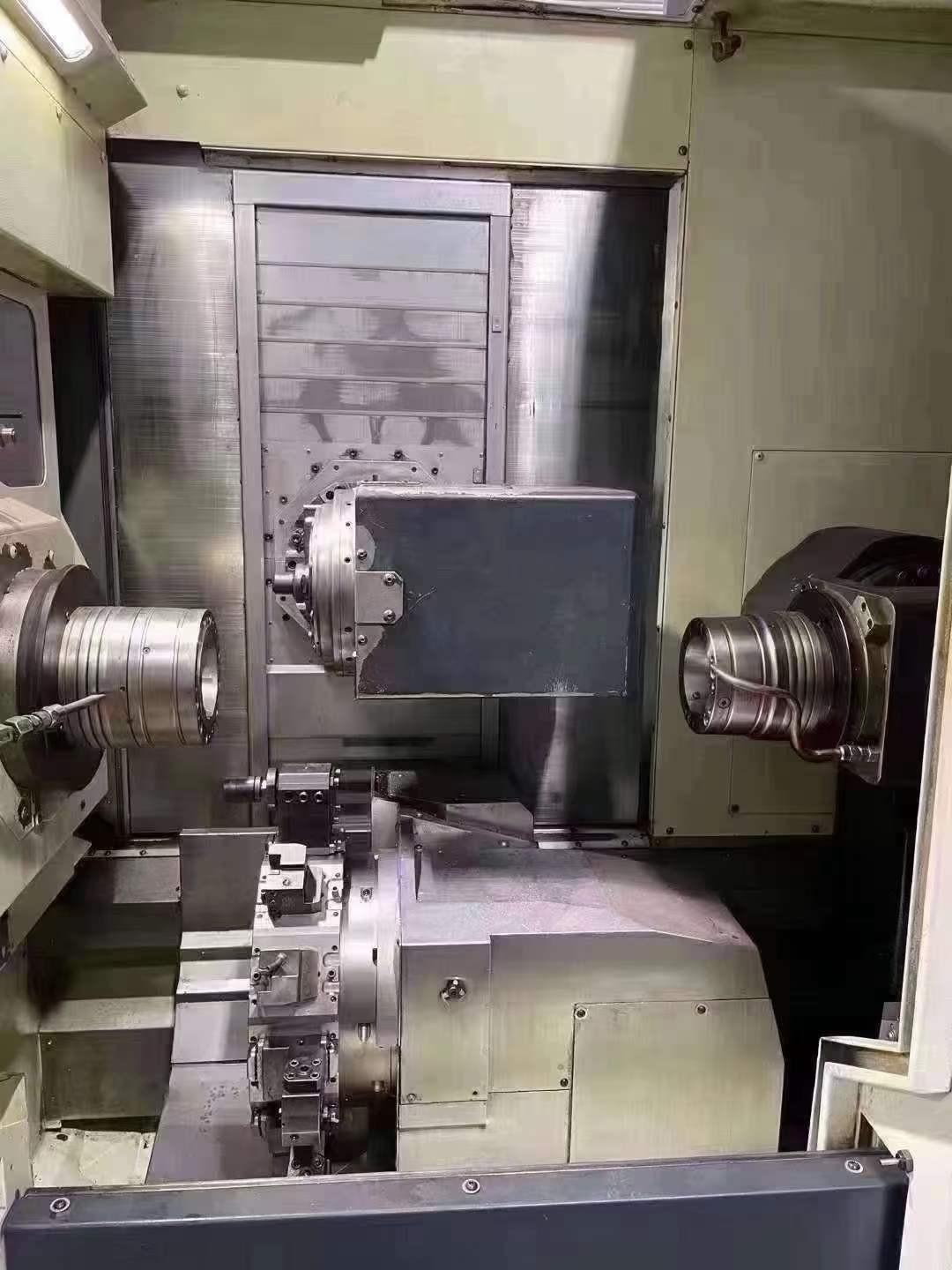

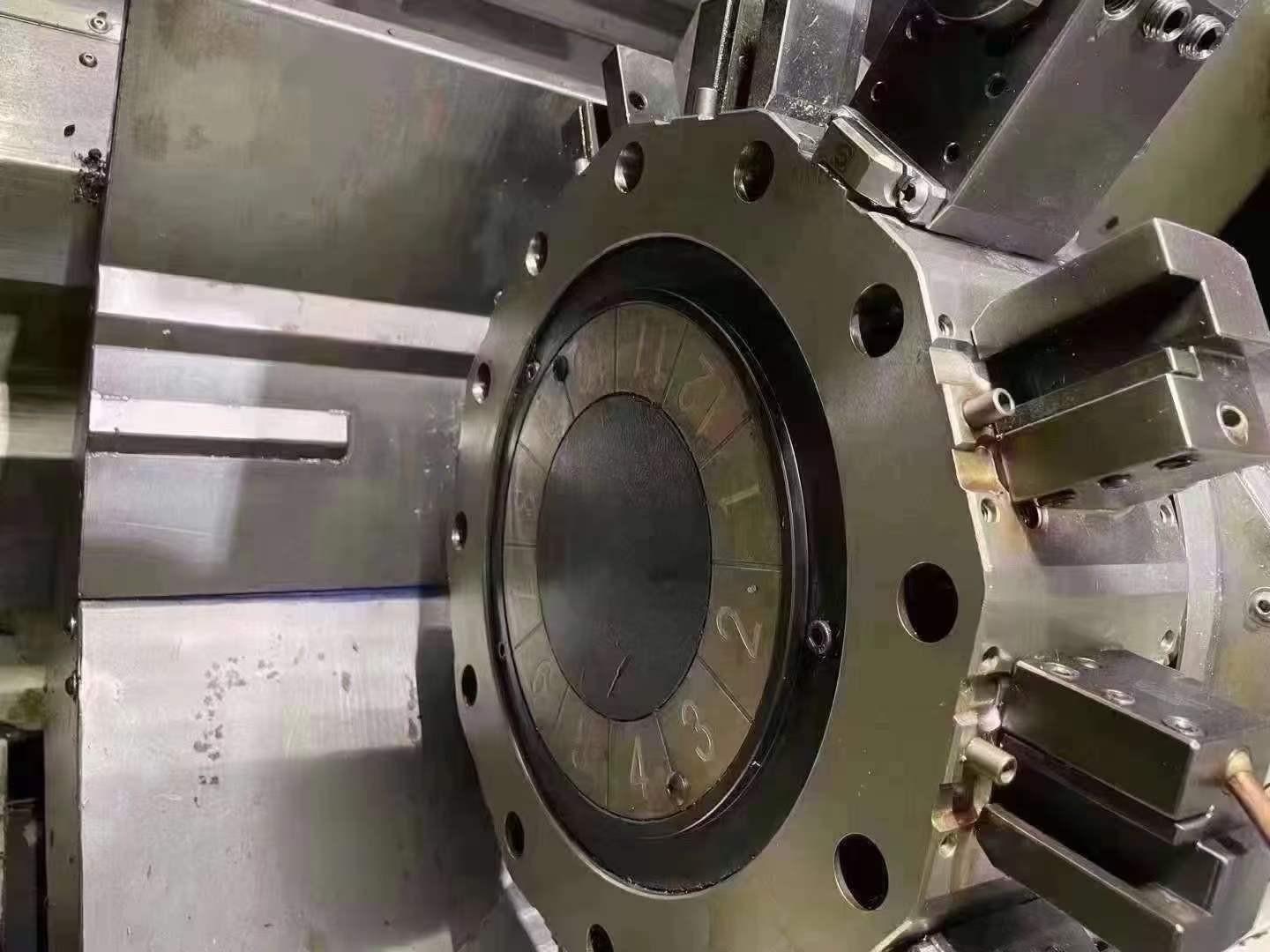

Lower turret: 10 tool positions

Travel X/Z:155/610 mm

Spindle bore: 73mm

Bar capacity: 65mm

Maximum speed: 5000rpm

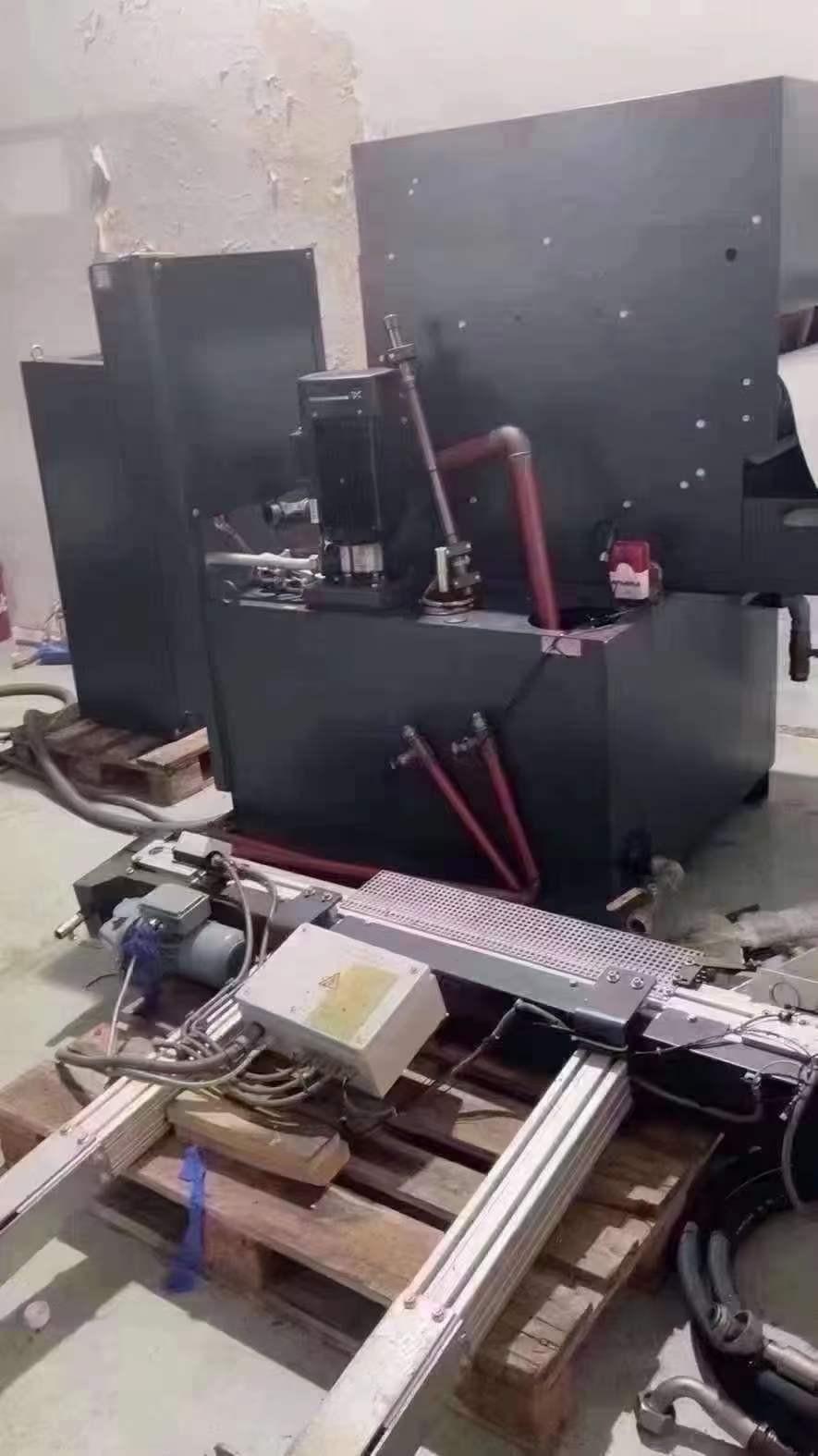

Plate scraper type chip conveyor, loading machine, blanking machine
