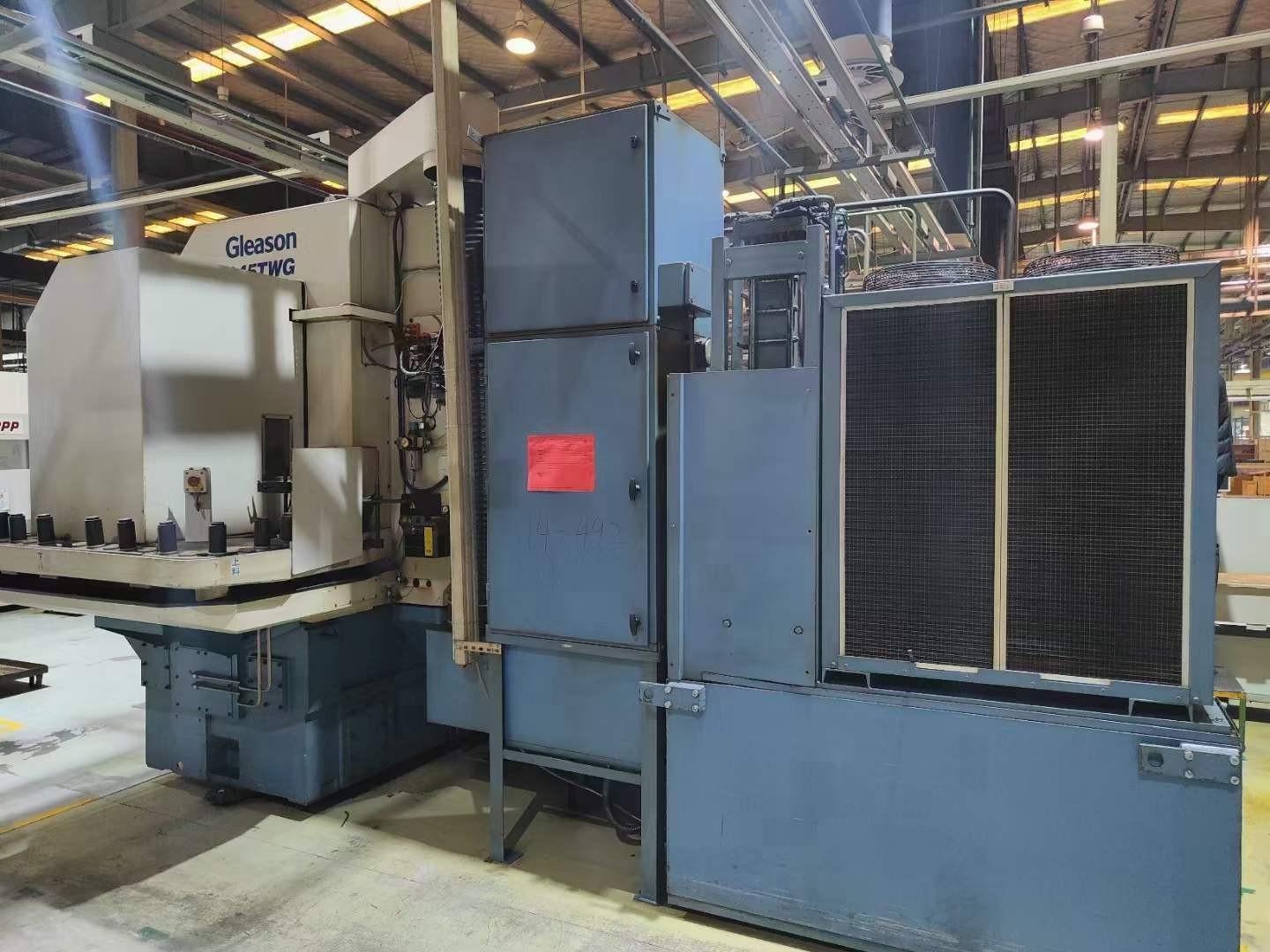

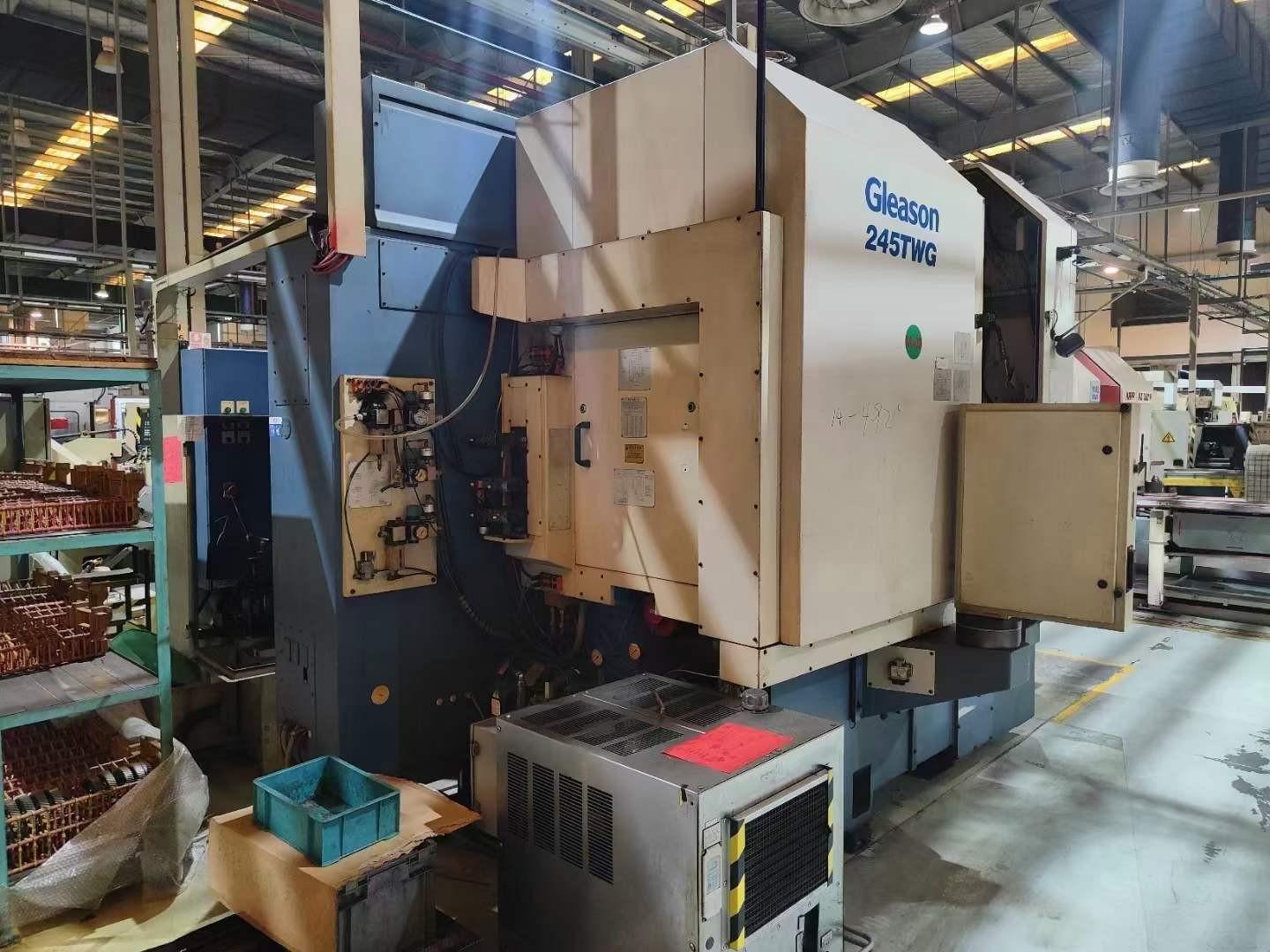

Gleason 245TWG Gear grinding machine

Brand Gleason Pfauter

Model 245TWG

Maximum modulus 6

Maximum turning angle ±45 deg

Maximum grinding wheel spindle speed 12000 RPM

Maximum grinding wheel diameter 180 mm

Minimum grinding wheel diameter 136mm

Maximum grinding depth 150mm

Worktable diameter 158.7mm

Worktable load 500 kg

Maximum worktable speed 1000 rpm

Maximum machining diameter 260mm

Minimum machining diameter 15 mm

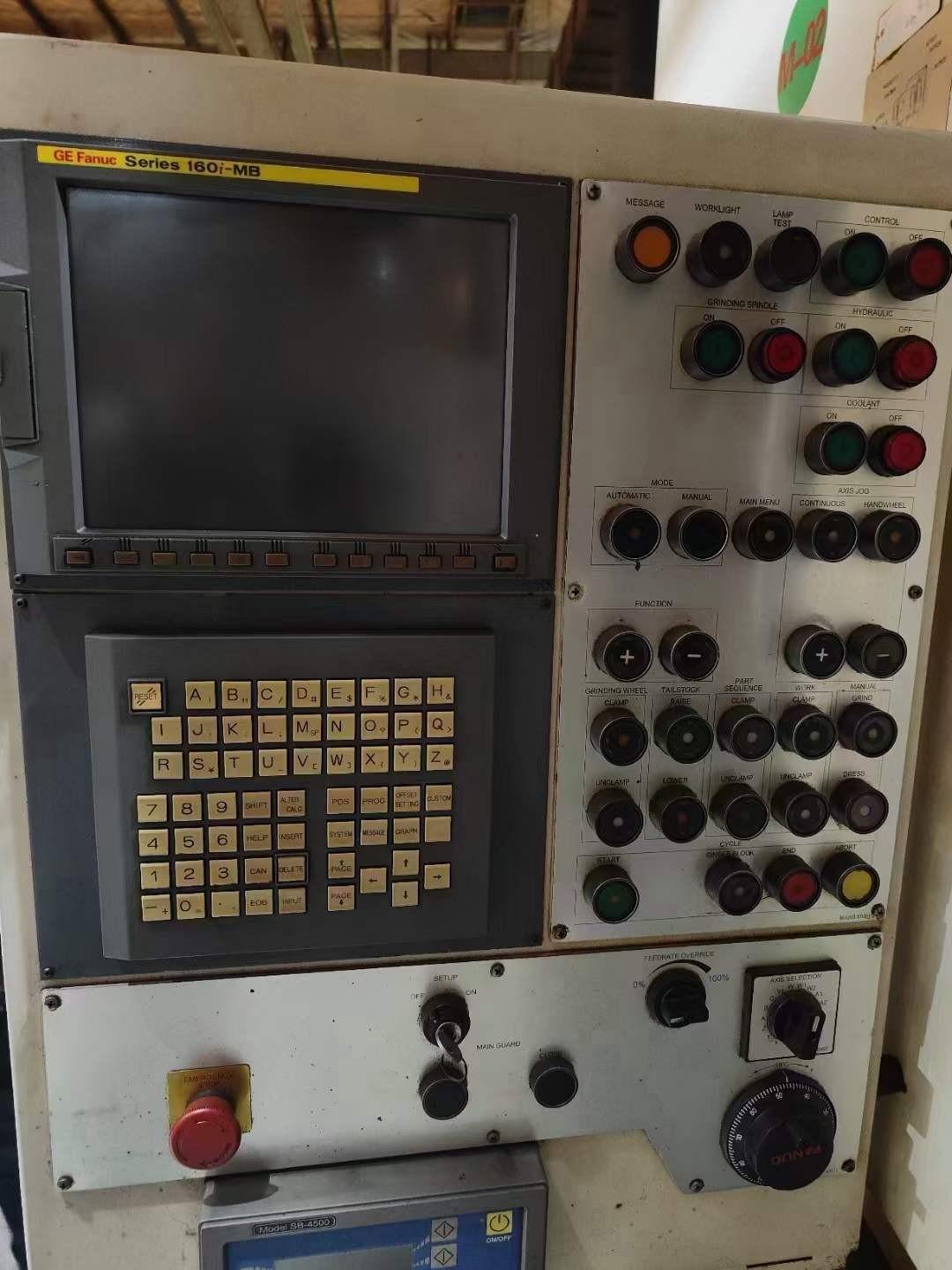

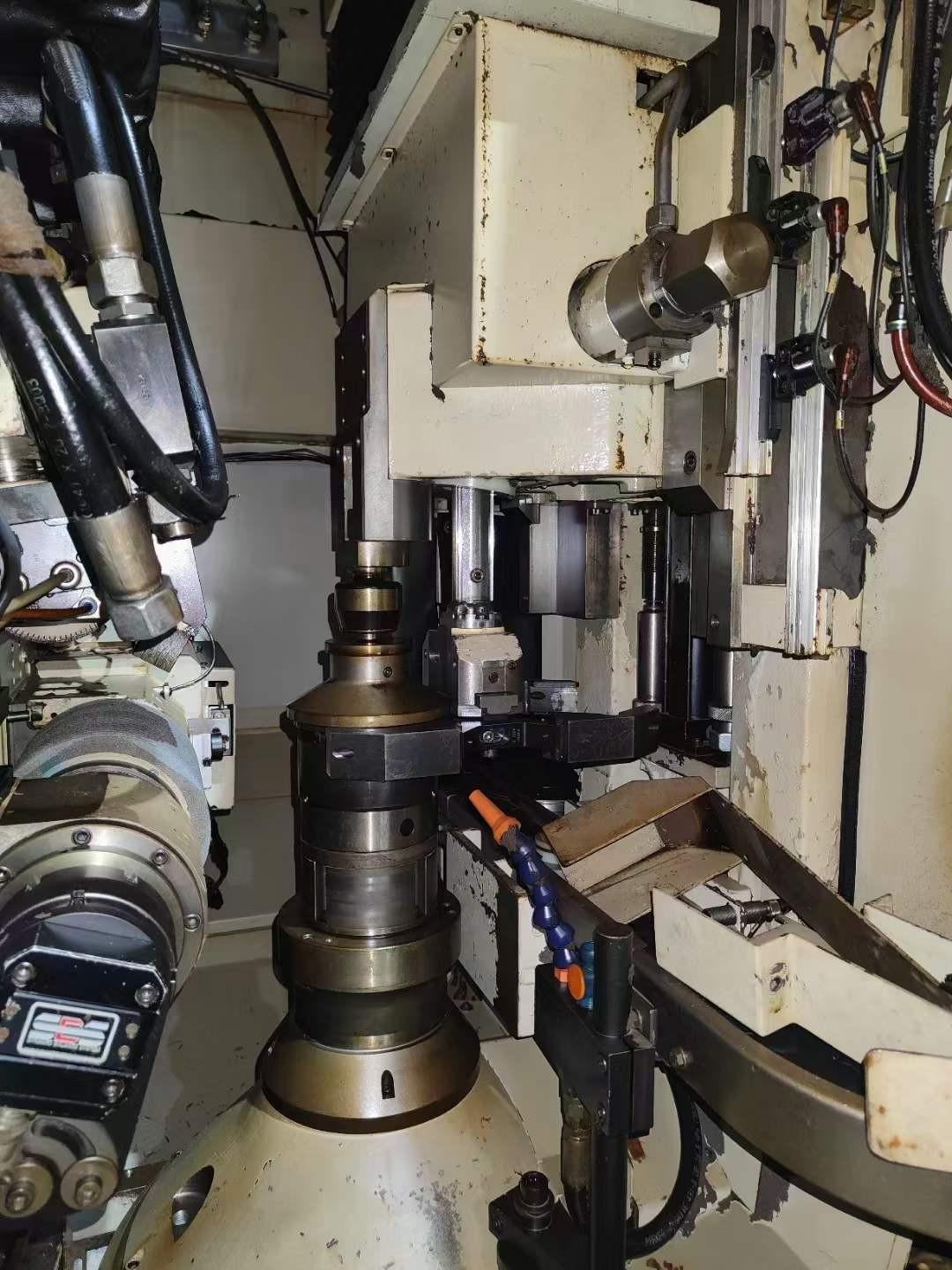

With Fanuc automatic grinding wheel dressing system, automatic loading and unloading
