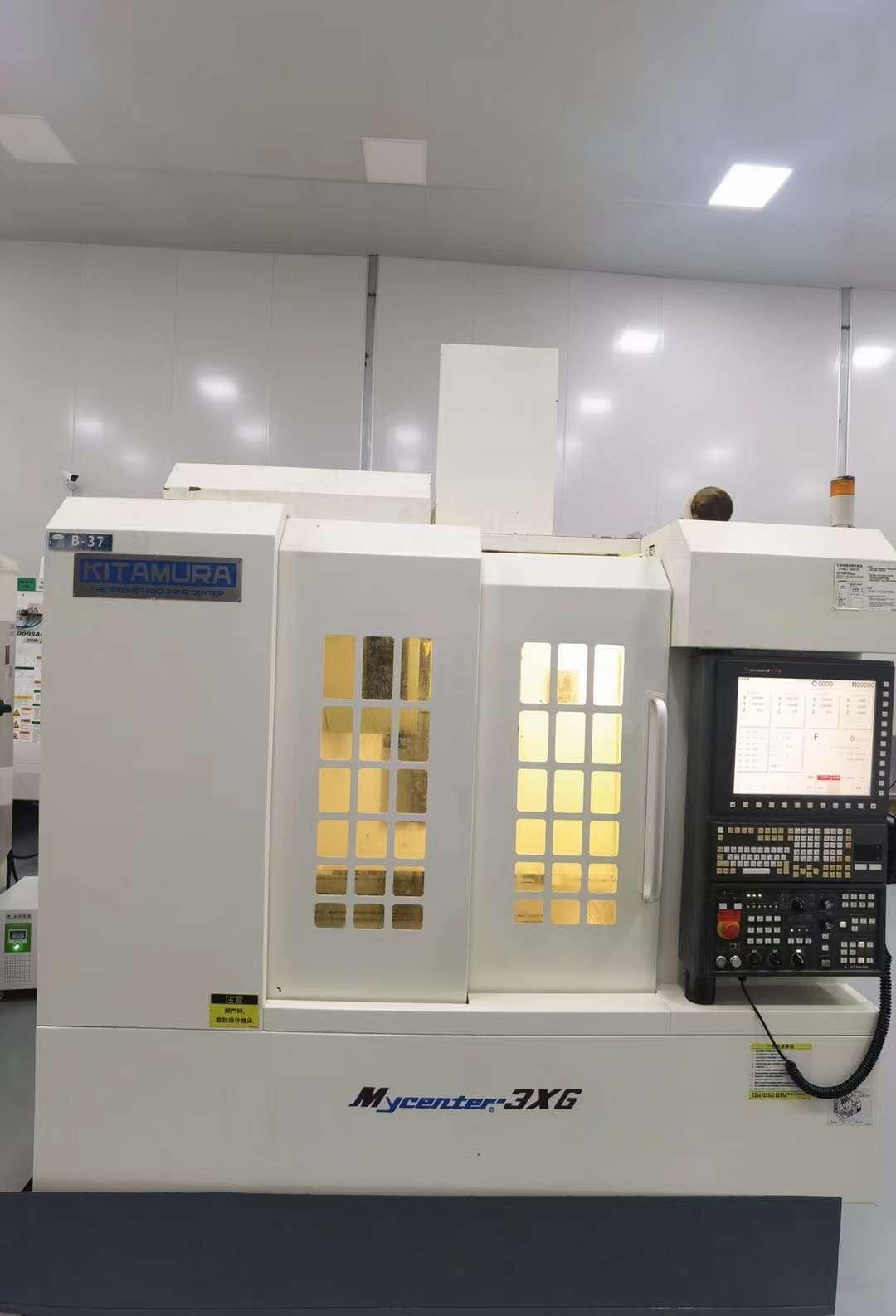

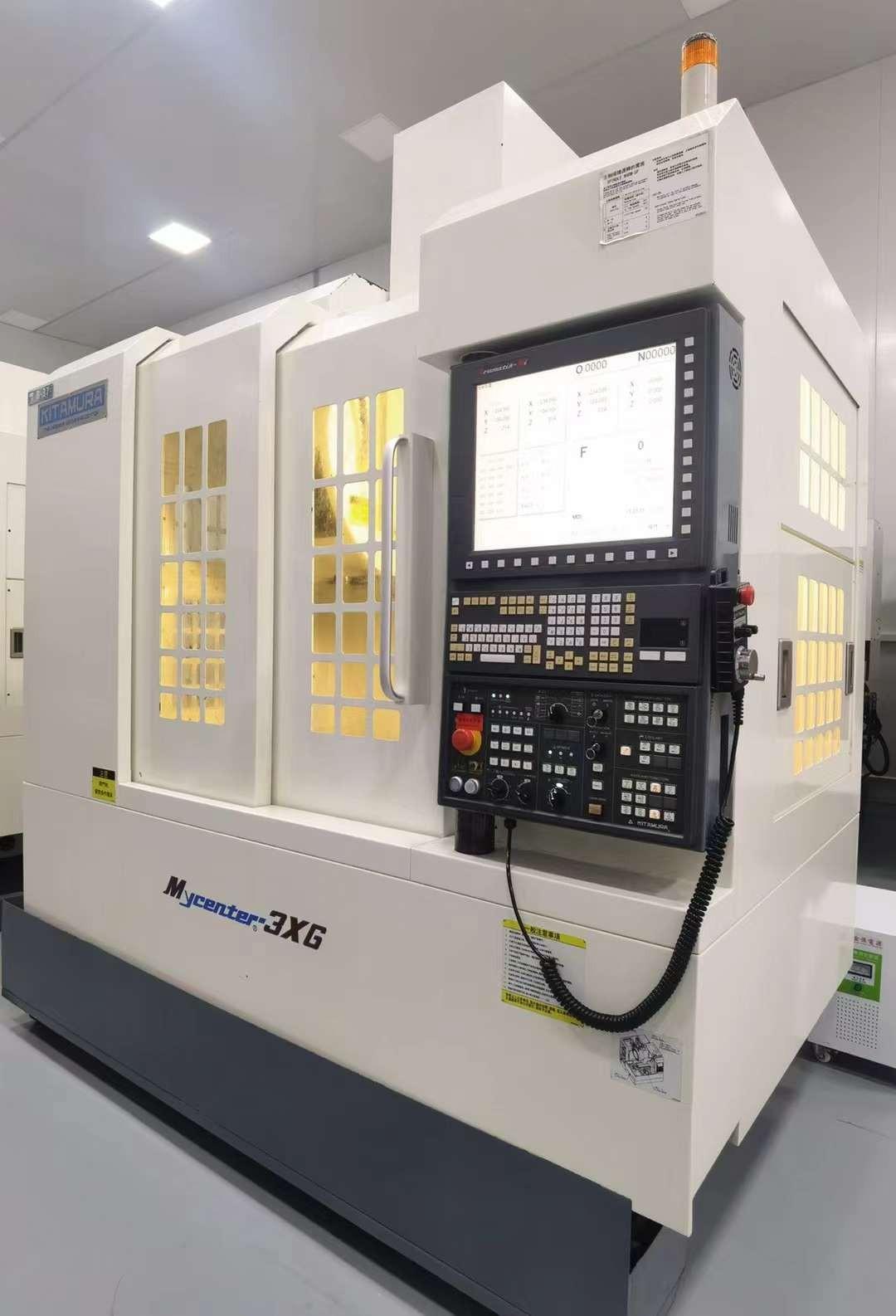

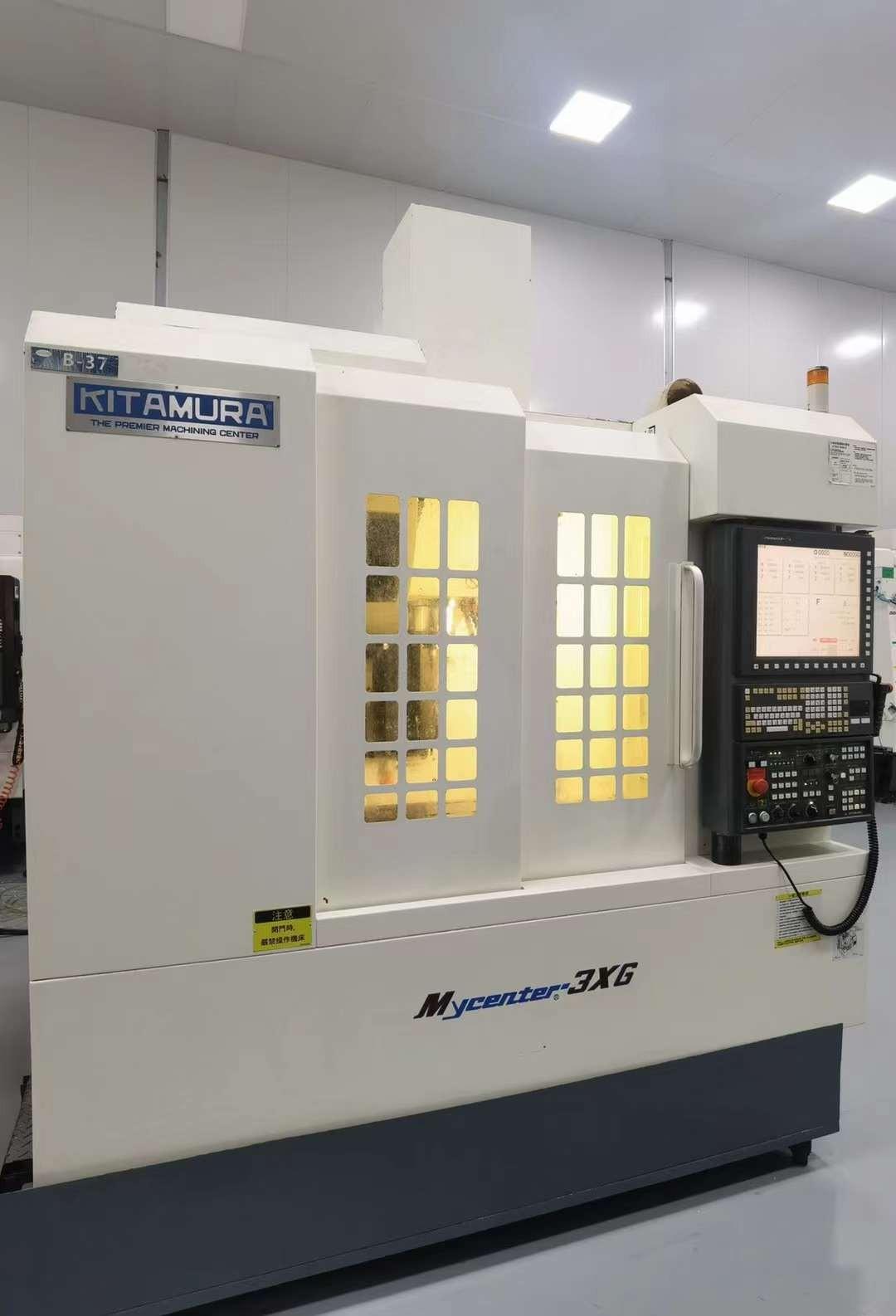

Kitamura Mycenter3XG Vertical Machining centre

Brand and model :Kitamura Mycenter3XG

X*Y*Z travels: 760*455*460mm

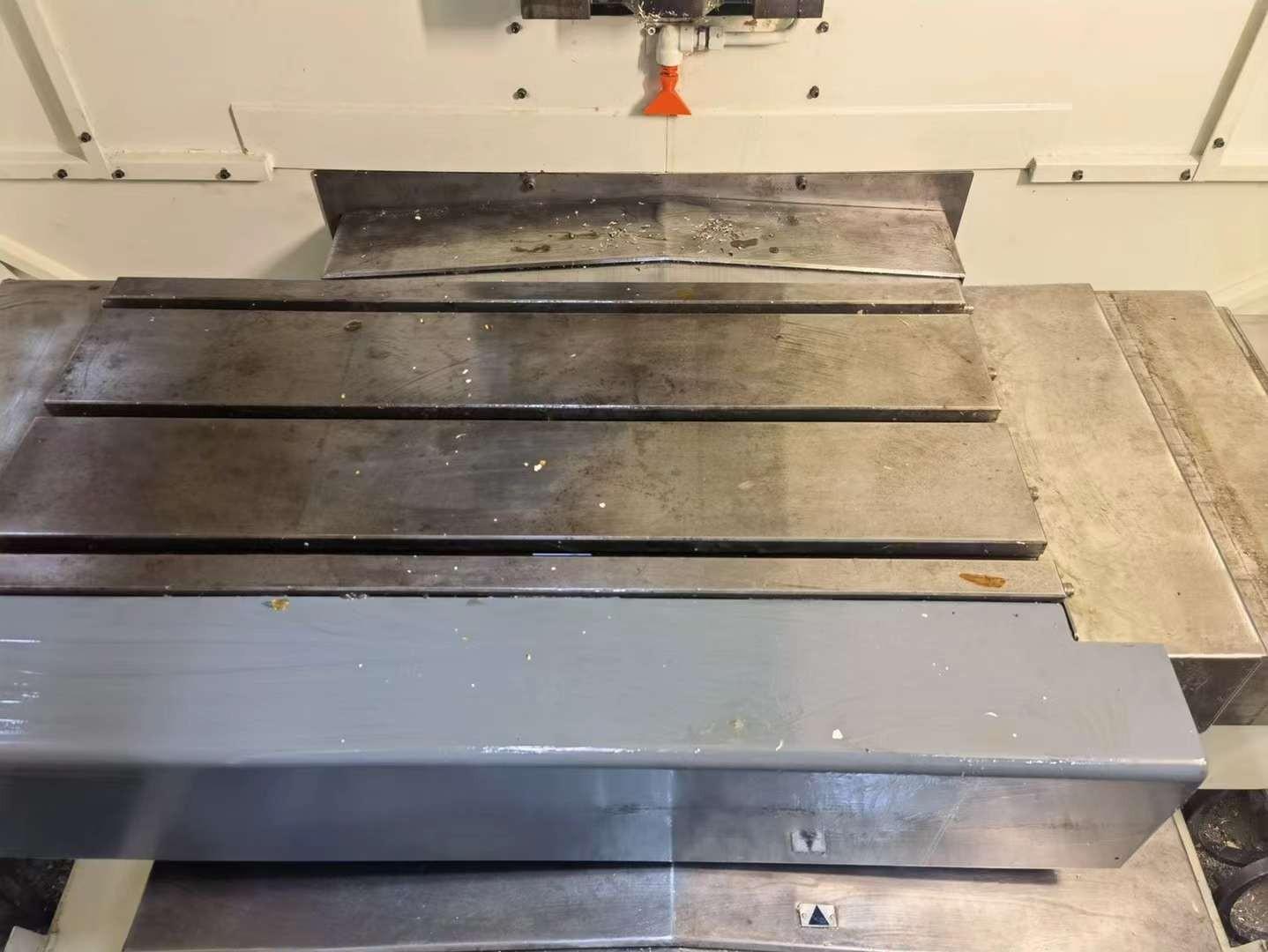

Worktable size: 410*900nm

Maximum worktable load: 500kg

Spindle speed: 40-15000rmp

Spindle taper: NST.NO.40

Spindle motor: 15kw

Spindle torque: 95.5N.m

Spindle mode: directly connected spindle

Fast feed rate: 50000mm/min

Chip feed rate: 0-36000mm/min

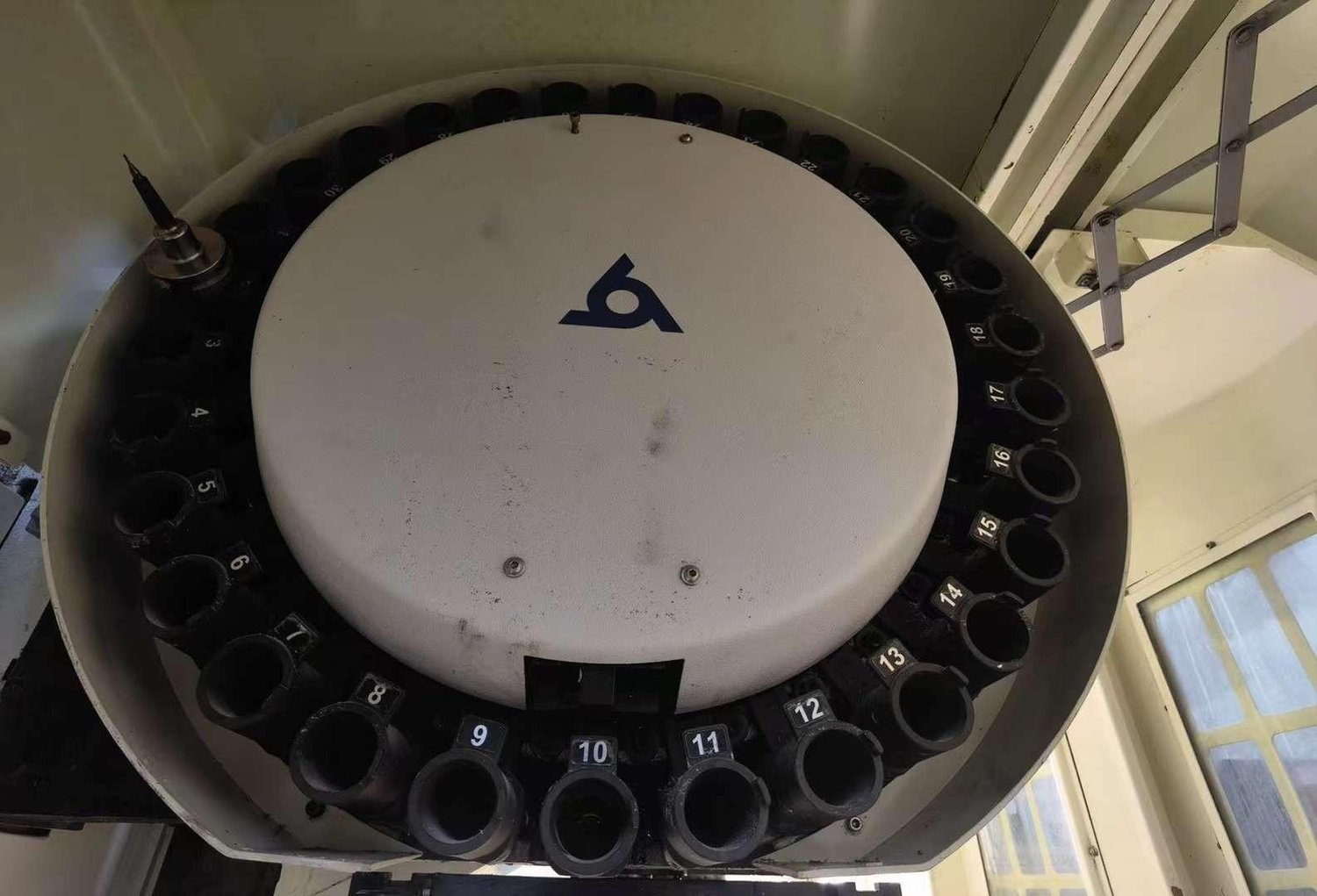

Maximum tools number :30

Tool changing time (T-T) : 1.6 sec

Tool changing time (C-C) : 3.3 sec

Distance from worktable to spindle nose : 110*570mm

Machine weight: 5740kg

Dimensions: 2235*2370*2882mm

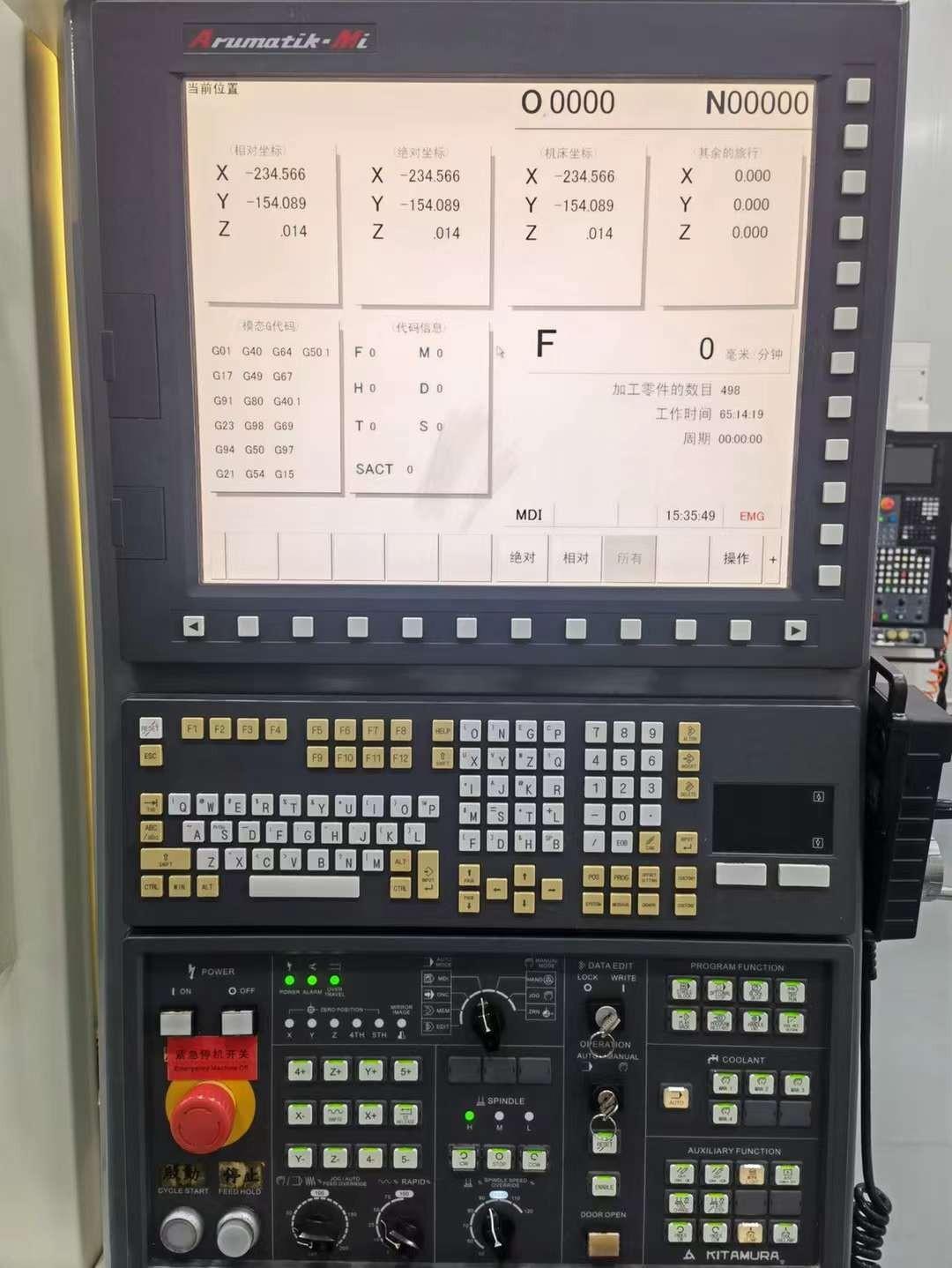

CNC system: Mitsubishi M-750V
