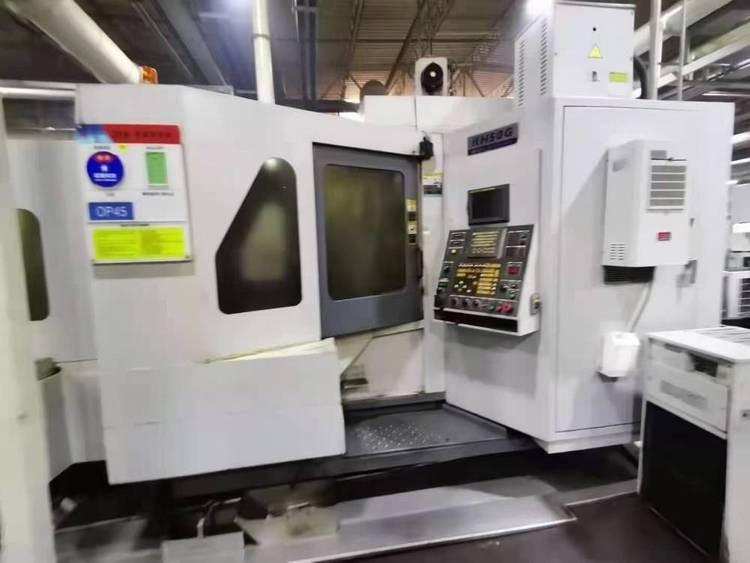

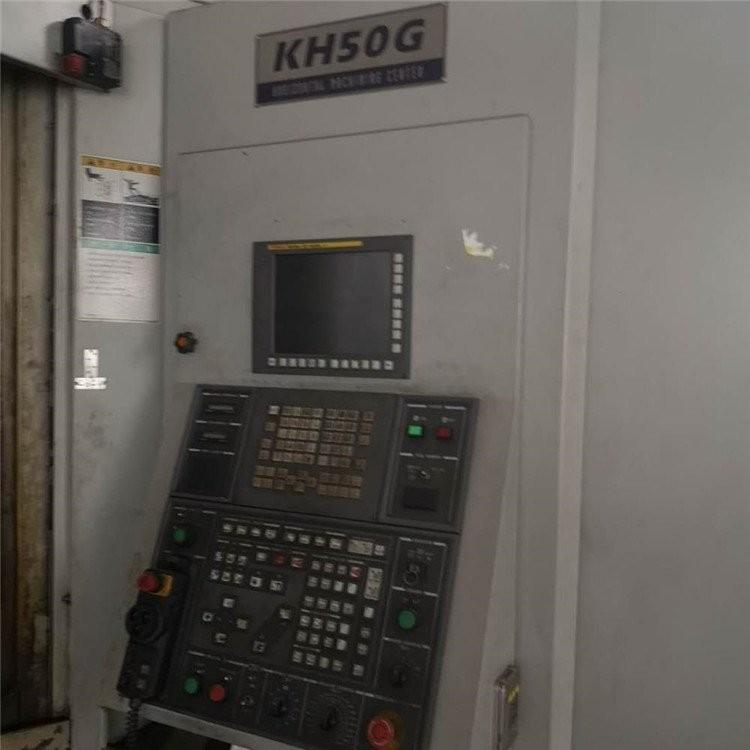

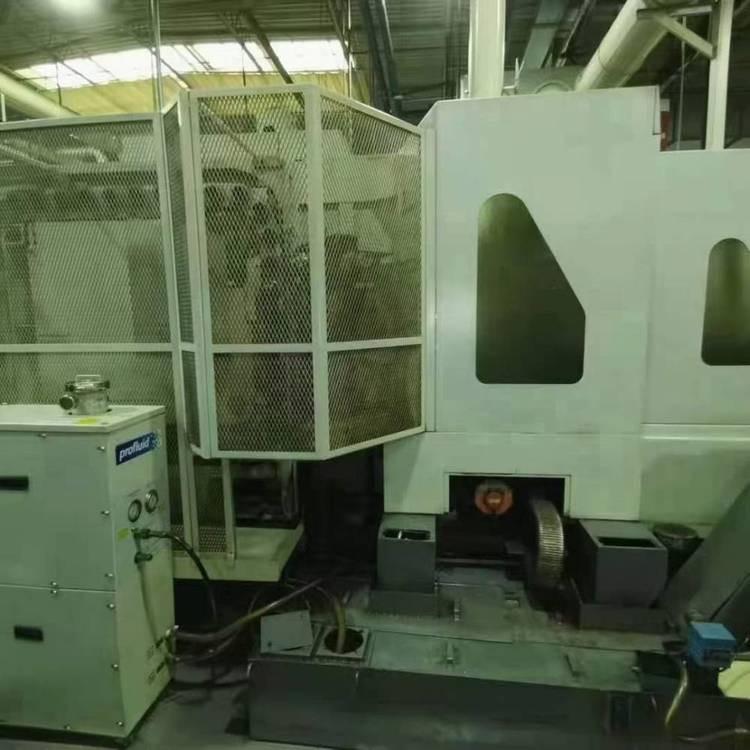

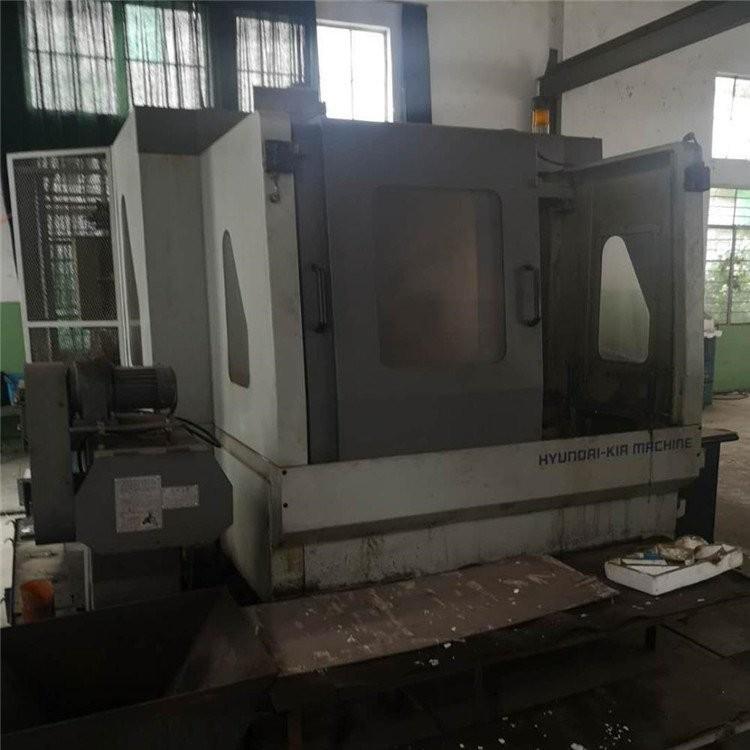

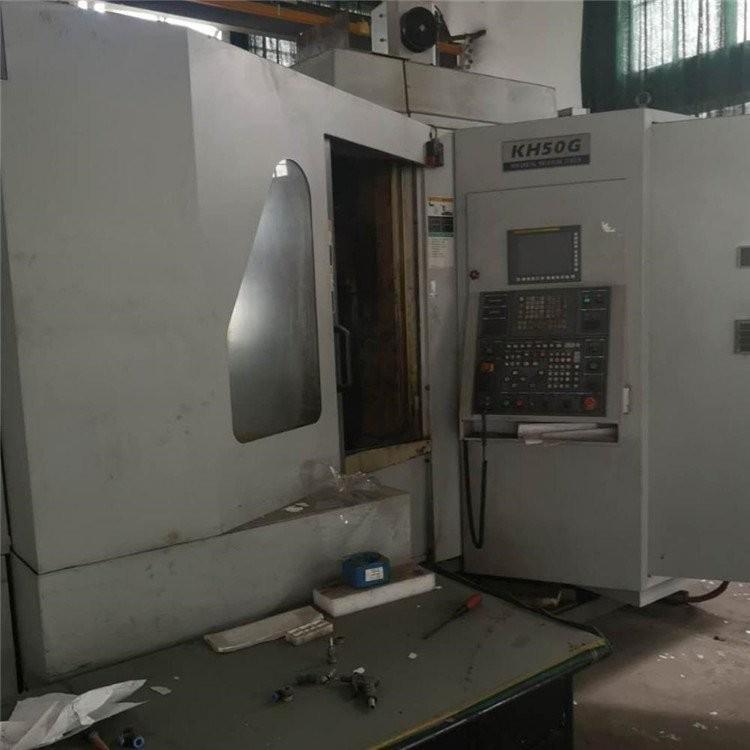

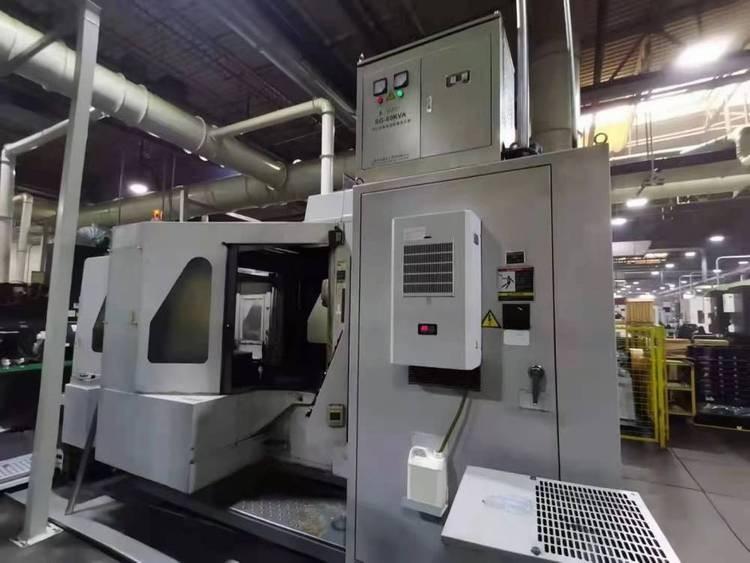

WIA KH50G Horizontal Machining centre

Brand and model : WIA KH50G

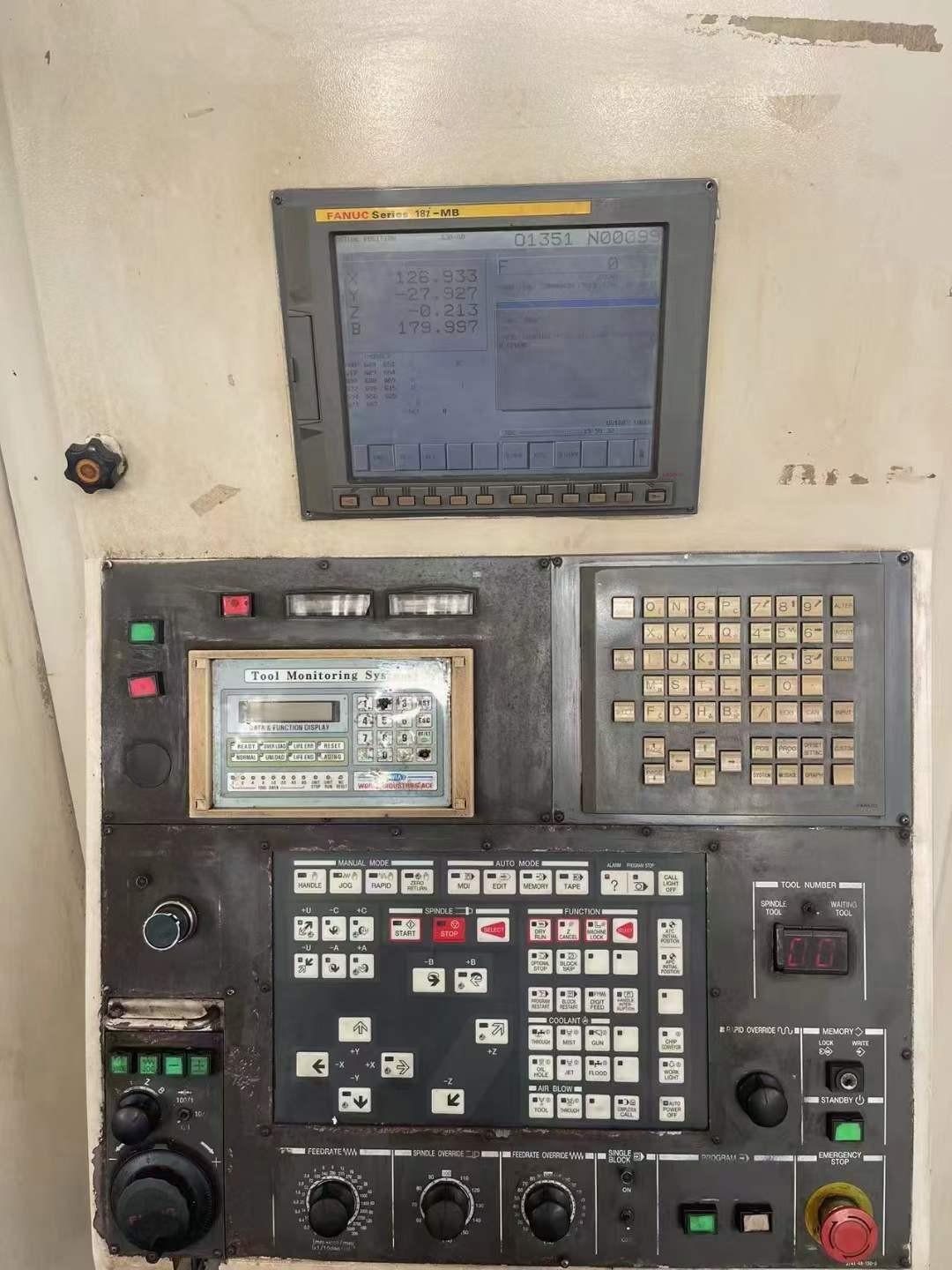

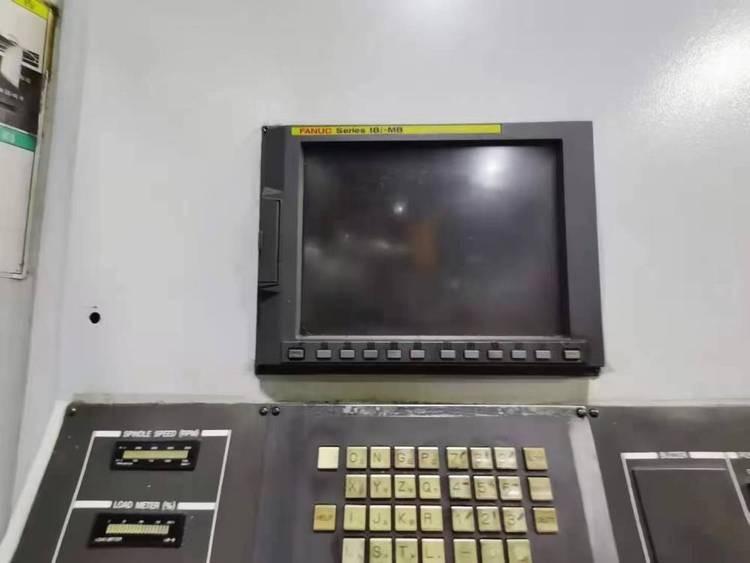

System: Fanuc 18i-MB

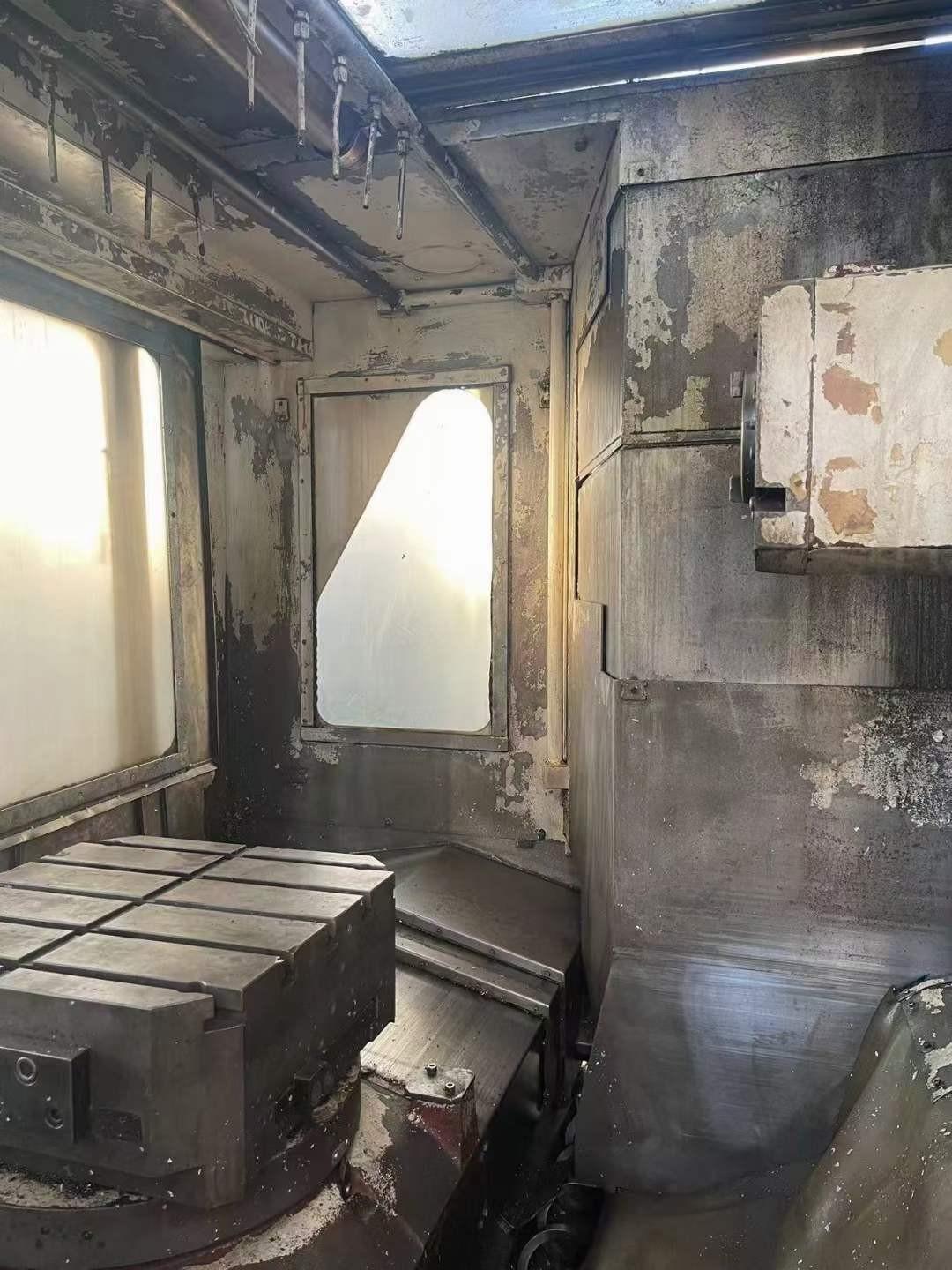

Worktable size: 500X500mm

Maximum workpiece size: Ø 900xH780mm

Minimum indexing revolution : 1 °[0.001 °] deg

Spindle : BT50 gear head

Spindle speed: 20~4500 [8000] r/min

Spindle power: 18.5/15 [18.5/15] kW

Spindle torque: 901/730 [657/532] N.m

Maximum travel (X/Y/Z): 760/705/650mm

Distance from worktable surface to spindle nose: 0~705mm

Distance from column surface to spindle center: 135~785mm

Rapid feed rate (X/Y/Z): 20/20/20 m/min

Cutting feed rate (X/Y/Z): 5m/min

Main motor power: 18.5kw

Weight: 12000 kg

Spindle center flushing

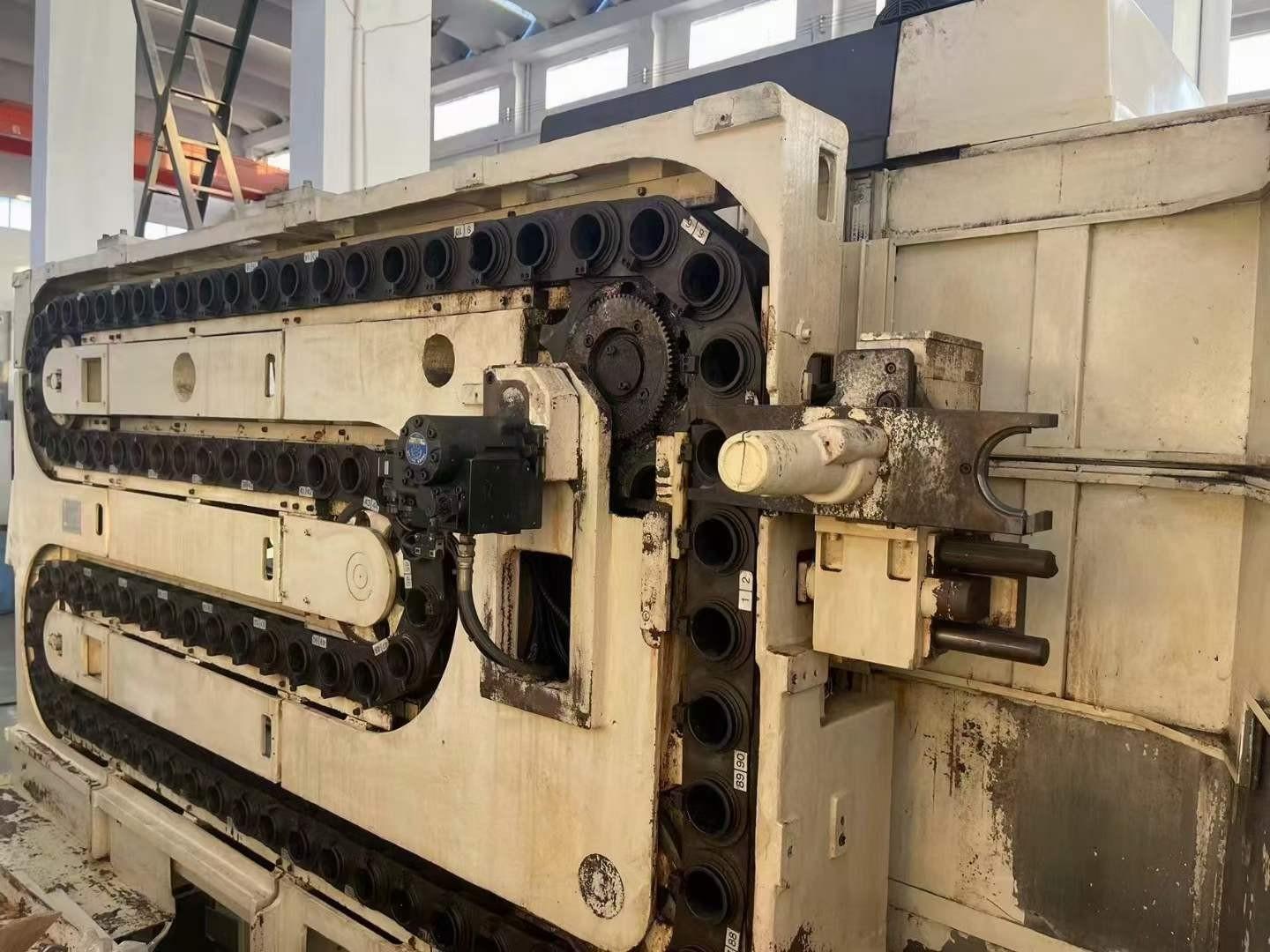

40 tools magazine
