Mitutoyo ROUNDTEST RA-2100 Automatic lathe

Brand: Mitutoyo ROUNDTEST RA-2100

Worktable:

Repetition accuracy (radial):  (0.02+3.8H/10000) um

Repetition accuracy (axial):  (0.02+3.8R/10000) um

Maximum leveling amplitude: ± 1 °

Maximum measured diameter: φ 300mm

Maximum workpiece diameter: φ 580mm

Worktable load:  30Kg

Z-axis:

Maximum positioning speed: 35mm/s

Maximum detection depth: 100mm

X axis:

Horizontal movement: 175mm

Straightness (2.5): 0.7um/150mm

Horizontal movement: 1.0um/150mm

Maximum positioning speed: 20mm/s

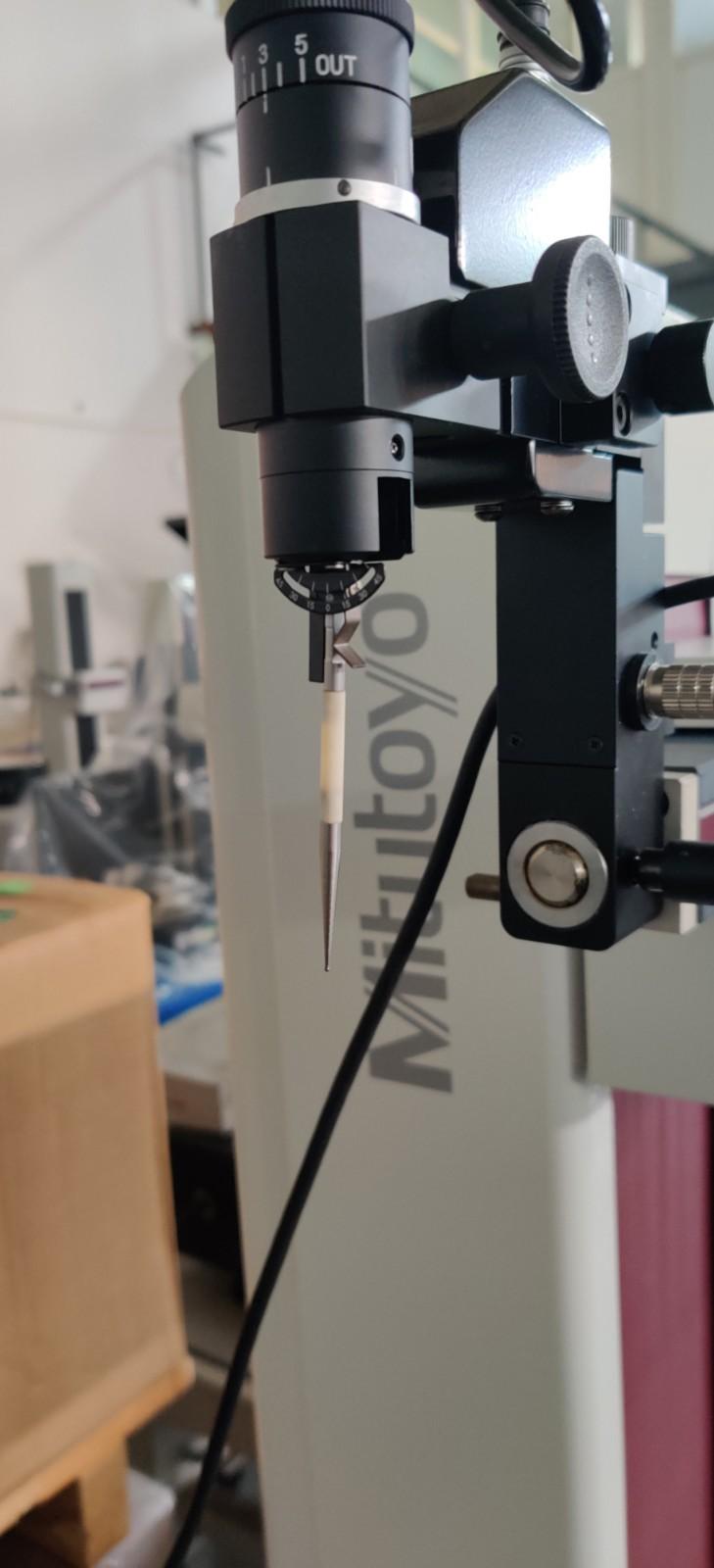

Measuring needle and probe:

Measuring range: ± 400um (± 5mm: tracking range)

Force measurement: 7-10mN (level 5)

Measuring direction: two-way

Probe angle adjustment: ± 45 ° (with scale)
