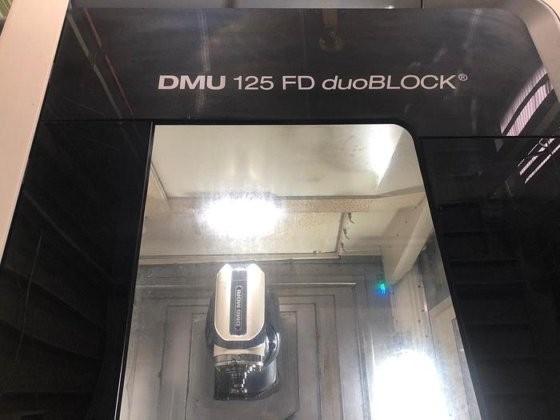

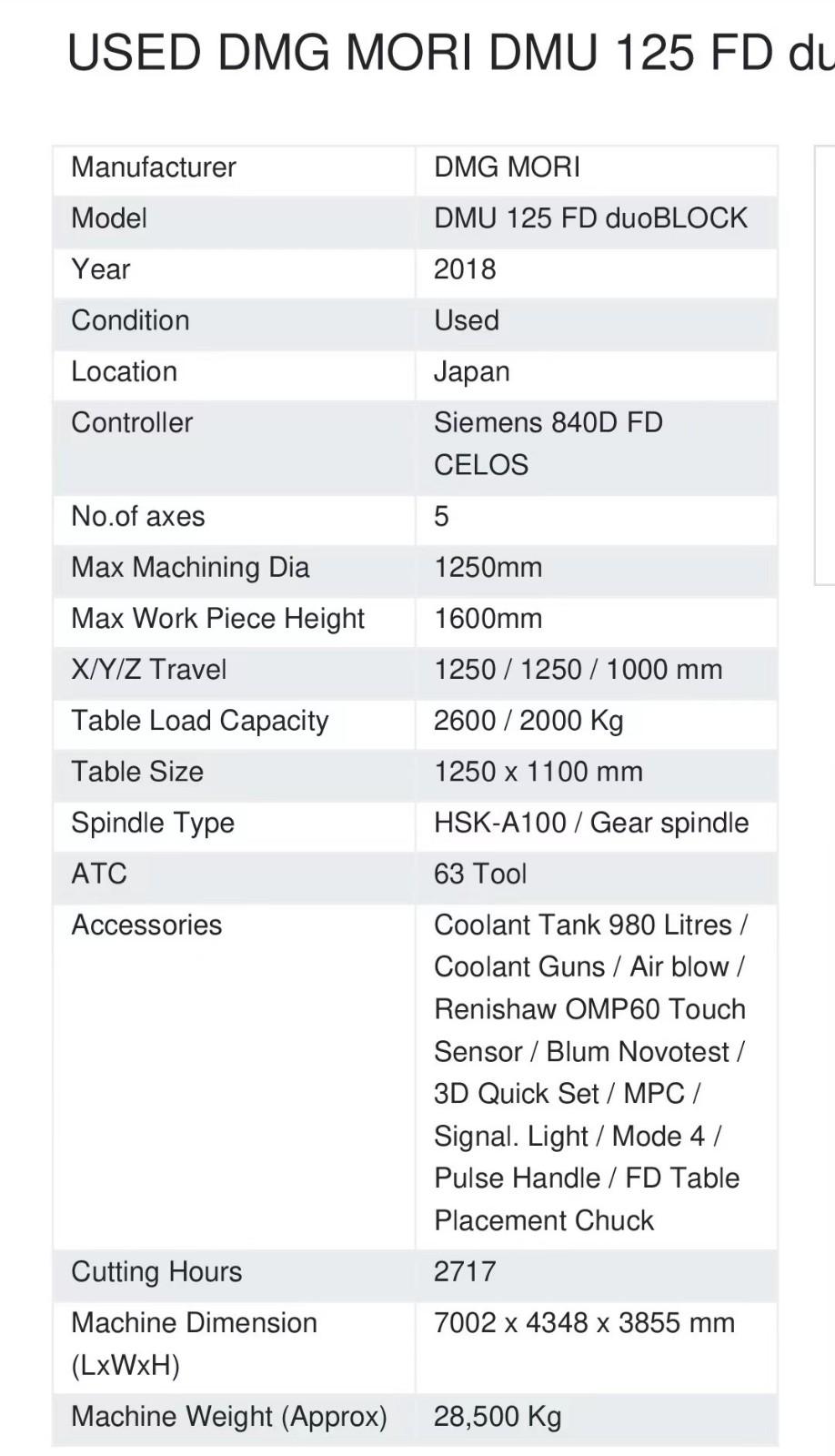

DMG DMU125 FD duoBLOCK Vertical Machining centre

Worktable size 1250mm x 1100 mm

Worktable clamping surface diameter 1250 mm

Maximum worktable speed 500rpm

Maximum worktable load 2600kg

Center height 225 mm

Control system Siemens 840D FD CELOS

Number of axes 5

Maximum machining diameter 1250 mm

Maximum workpiece height 1600 mm

X/Y/Z axes travel 1250/1250/1000 mm

X/Y/Z axes rapid feed rate 60/60/60 m/min

Maximum spindle speed 12000 rpm

Maximum power 44 kW

Maximum torque 288 Nm

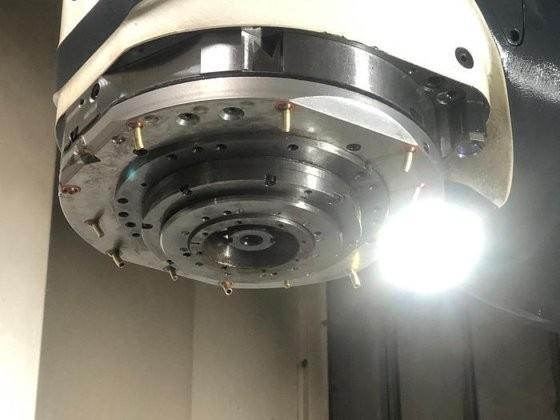

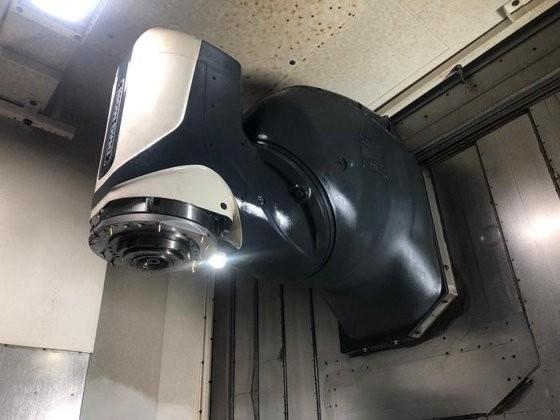

Spindle type HSK-A100/gear spindle

Number of ATC tools 63

Machine footage(L x W x H) 7002mm x 4348mm x 3855 mm

Machine weight 28500 kg

Accessories:

980L coolant tank/coolant gun/air gun/Renishaw OMP60 probe/Blum Novotest measurement/3D quick setting/MPC/signal light/pulse handle/FD worktable/chuck

Remarks:

4 working modes

2717 hours of machining time
