JIR FINE VMC-850 CNC milling machine
[Product Information]:
- Inventory number：70209
- Brand：JIR FINE
- Model：VMC-850
- Origin：China
- Location：China
- Year：
- Create Time：2022-12-29
Specifications:

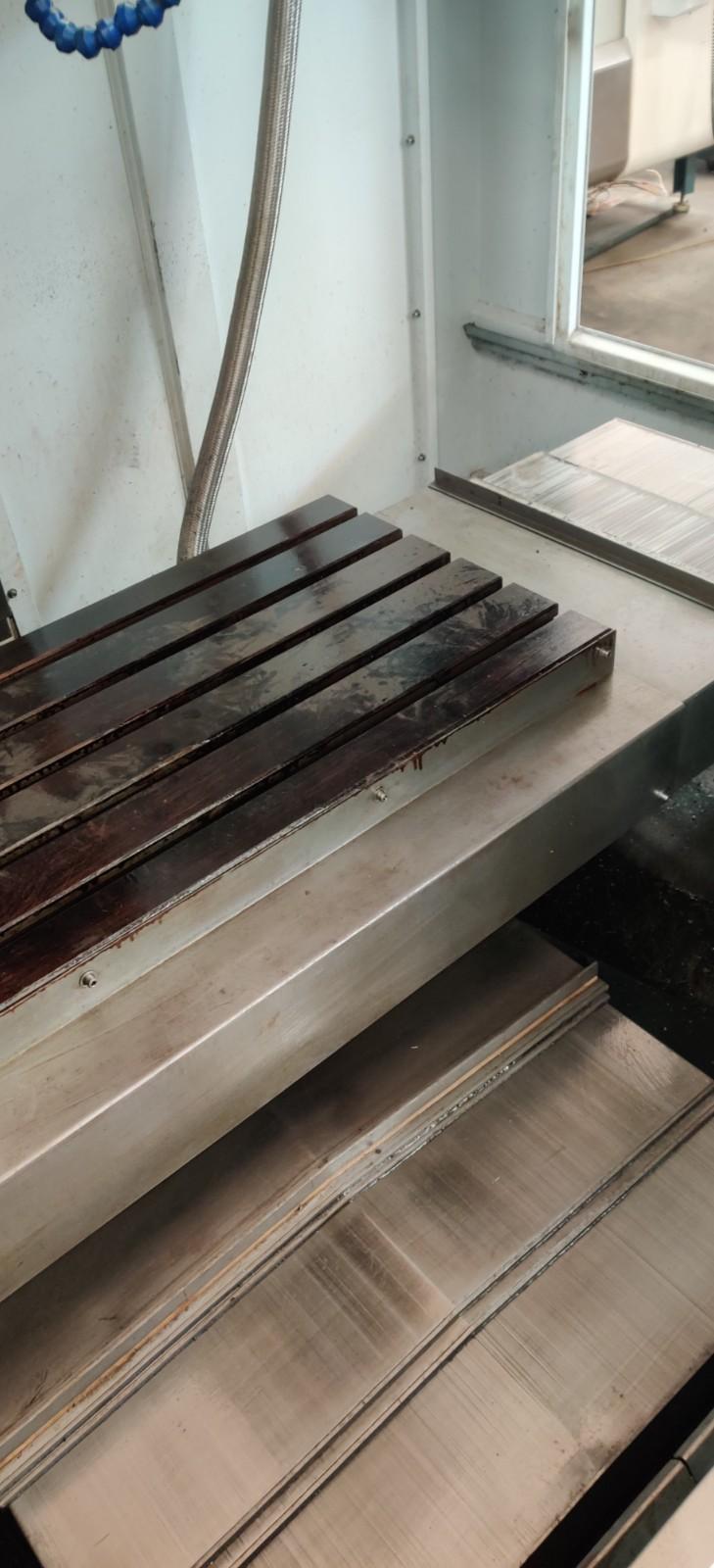

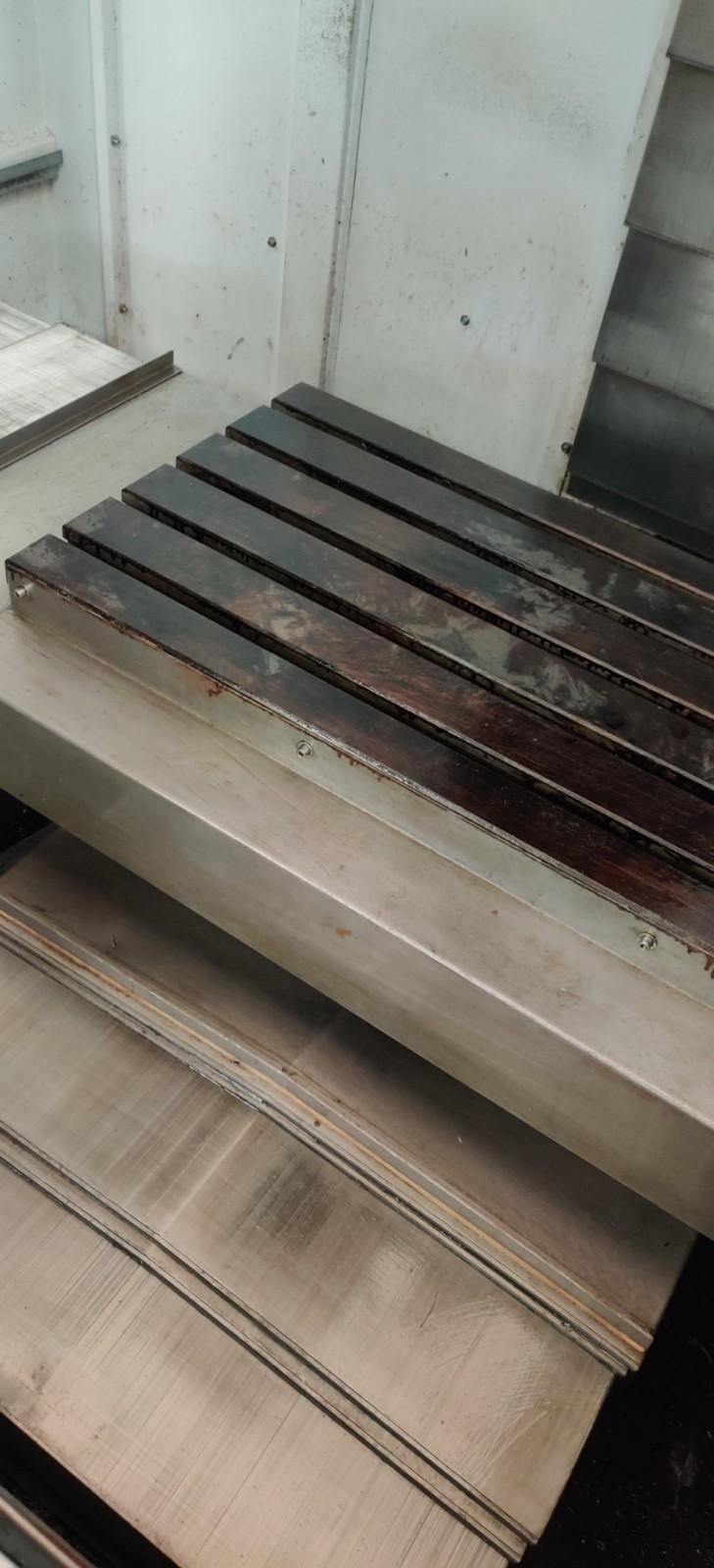

Worktable size: 1000 * 500mm
Three axes travel: 800 * 500 * 500mm
Worktable load: 450kg
T-slot: 18 * 5 * 90mm
Distance from spindle nose to worktable: 110-610mm
Distance from spindle center to column guideway surface: 560mm
Rapid movement: 24/24/18m/min
Spindle speed: 8000rpm
Fast movement: 2700 * 2500 * 2400mm
Rated voltage 110V
Weight: 5000kg
